Overview

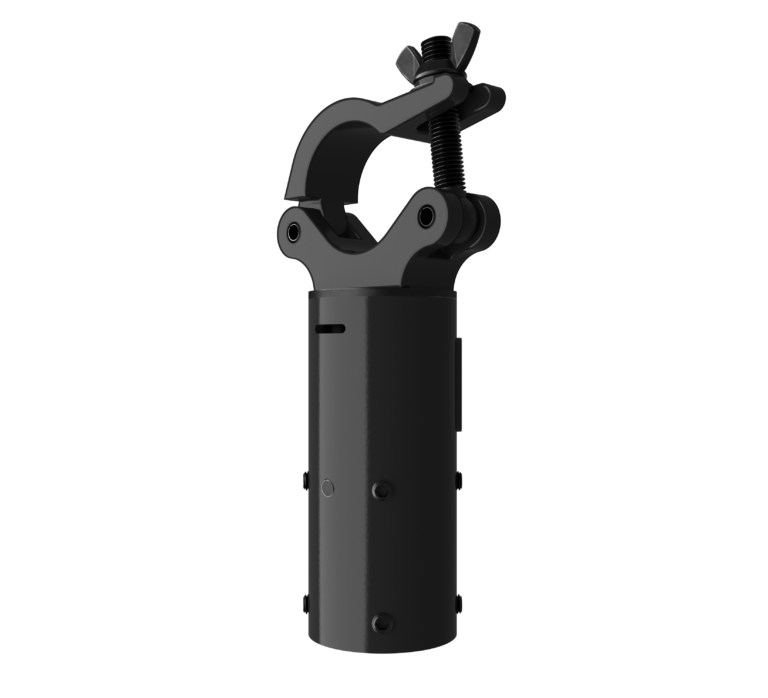

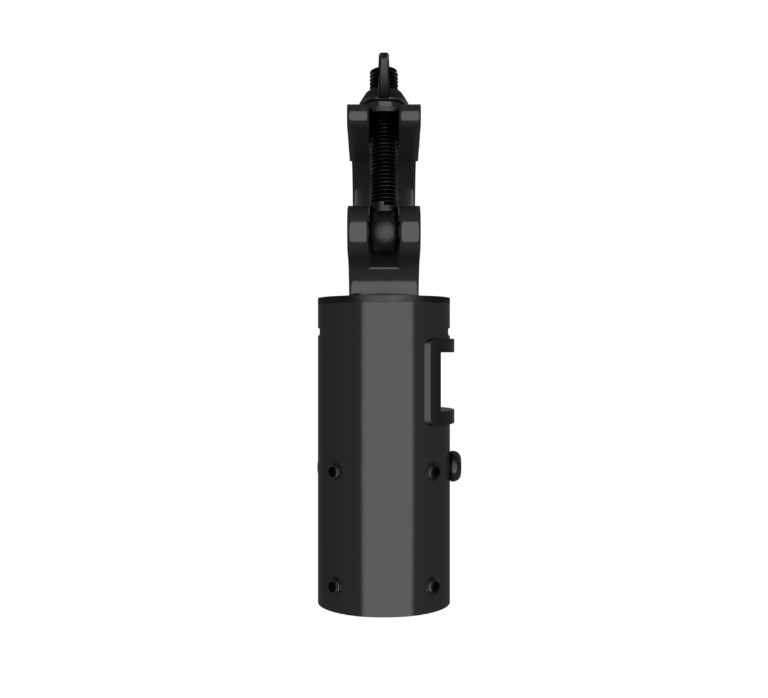

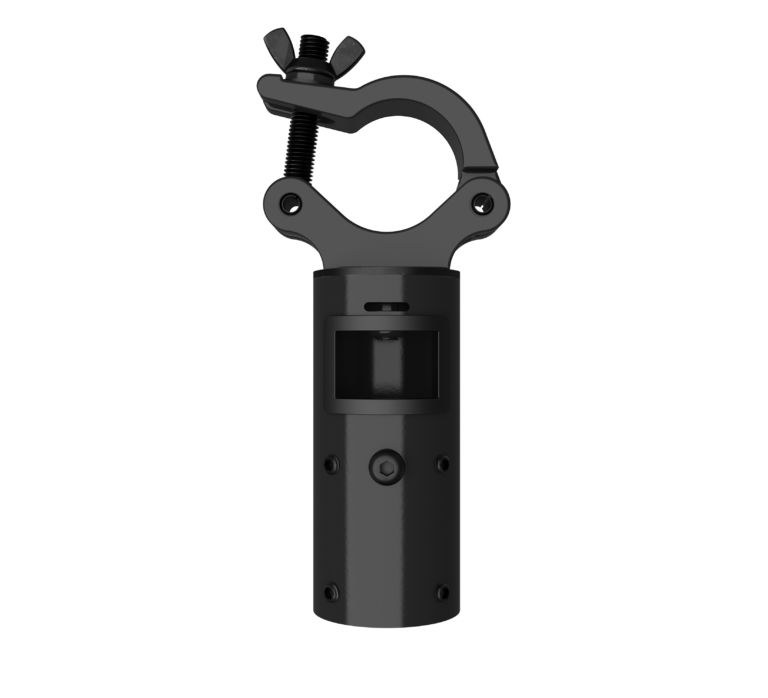

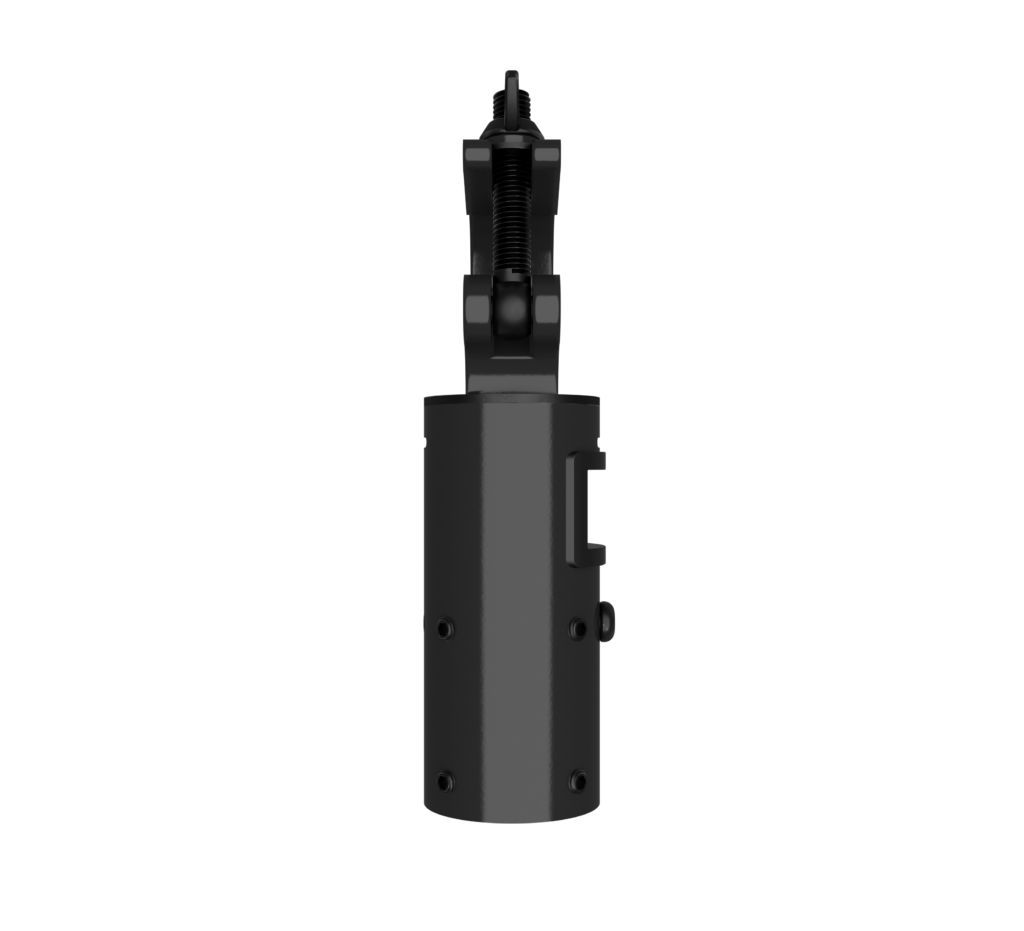

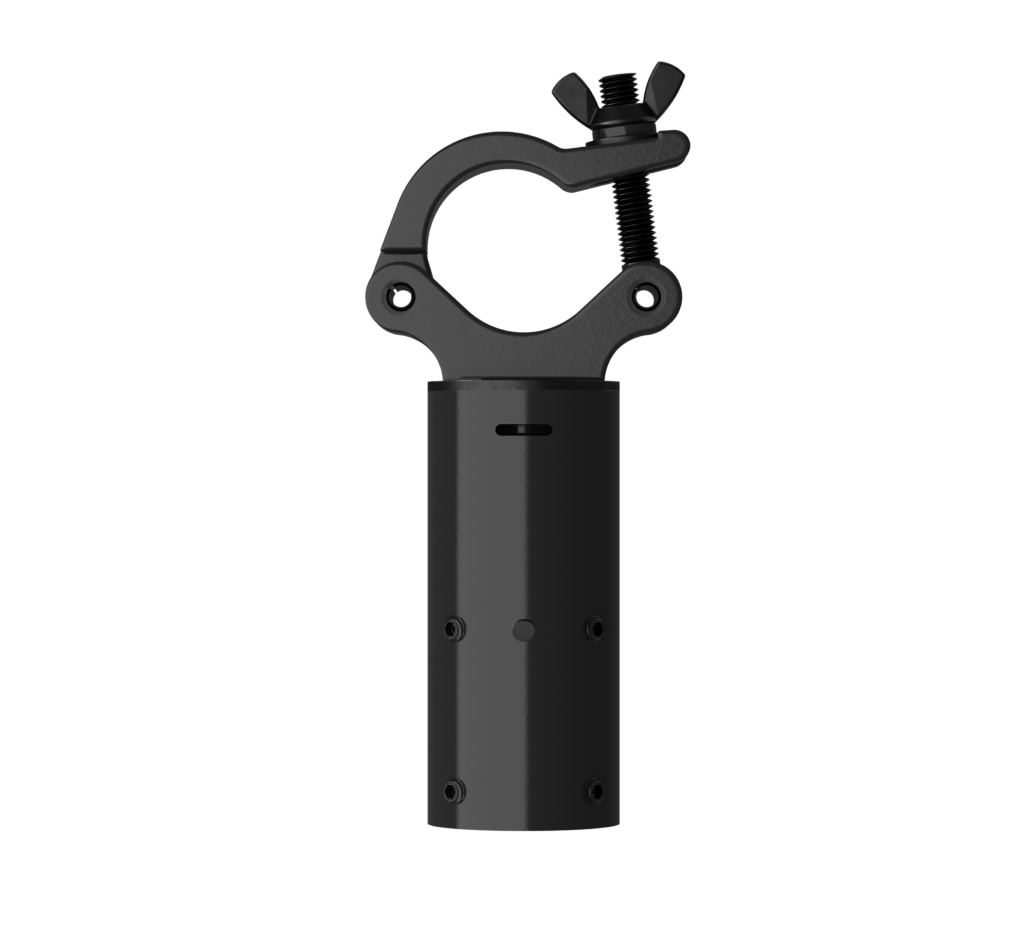

Designed to fit B-Tech's Ø50mm poles onto truss systems, scaffolding and other horizontal poles, the BT7825 features a Zinc plated clamp to fit truss sizes of Ø42mm - Ø50mm and integrated cable management. The BT7825 has a drop length of 194mm and comes pre-assembled to shorten install times. Supplied as standard with safety bolt and grub screws for a secure installation, these can be replaced with alternative shorter versions, to allow a better channel that allows cables to pass through more easily.
Product Features

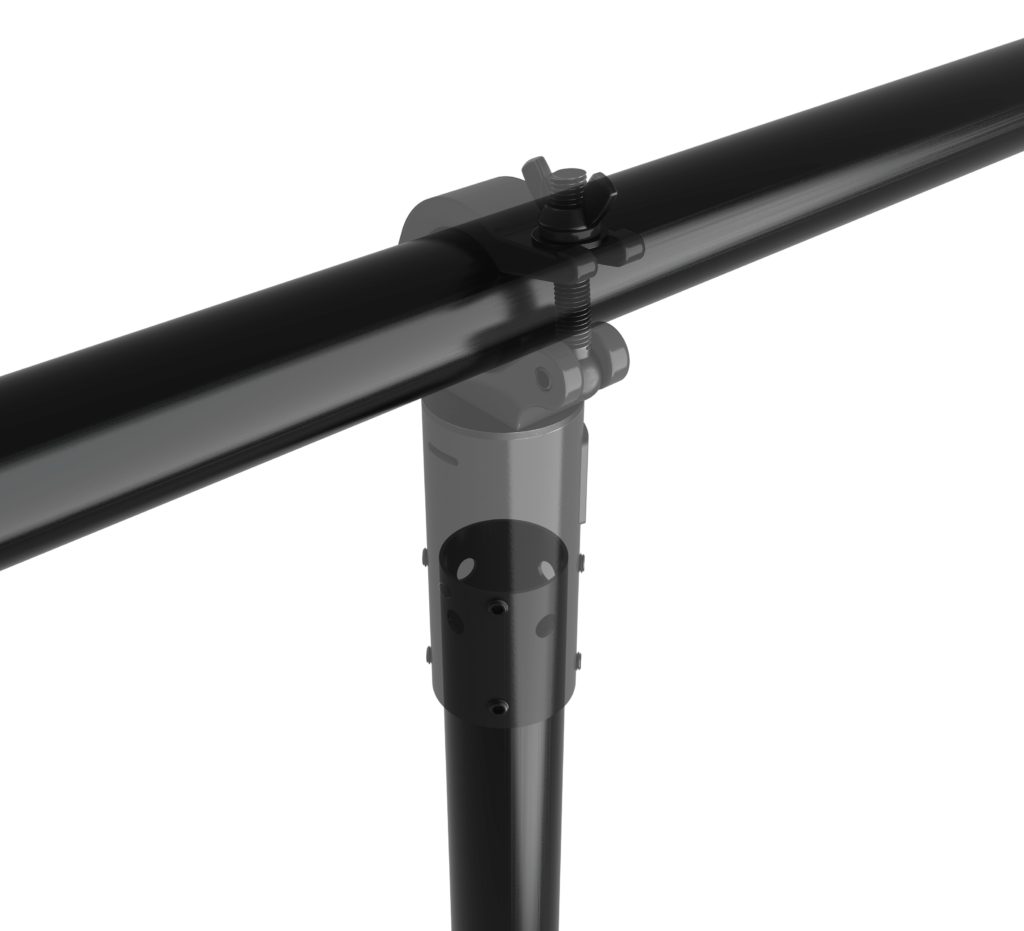

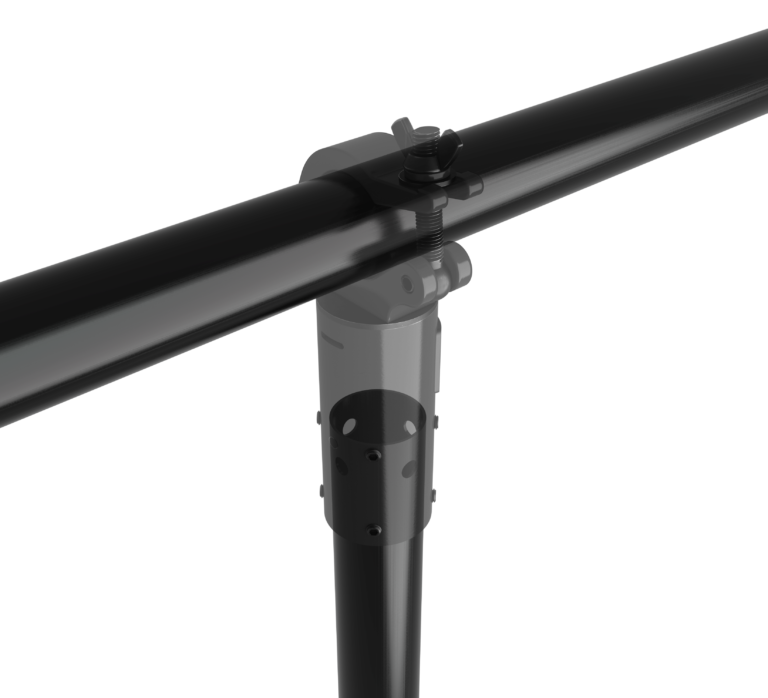

- Adjustable adaptor for attaching Ø50mm poles to truss system's scaffolding and other horizontal poles
- Supplied with safety bolt for secure installation
- Multiple grub screws allow micro-adjustment of the pole angle once mounted
- Internally unobstructed for cables to pass through easily

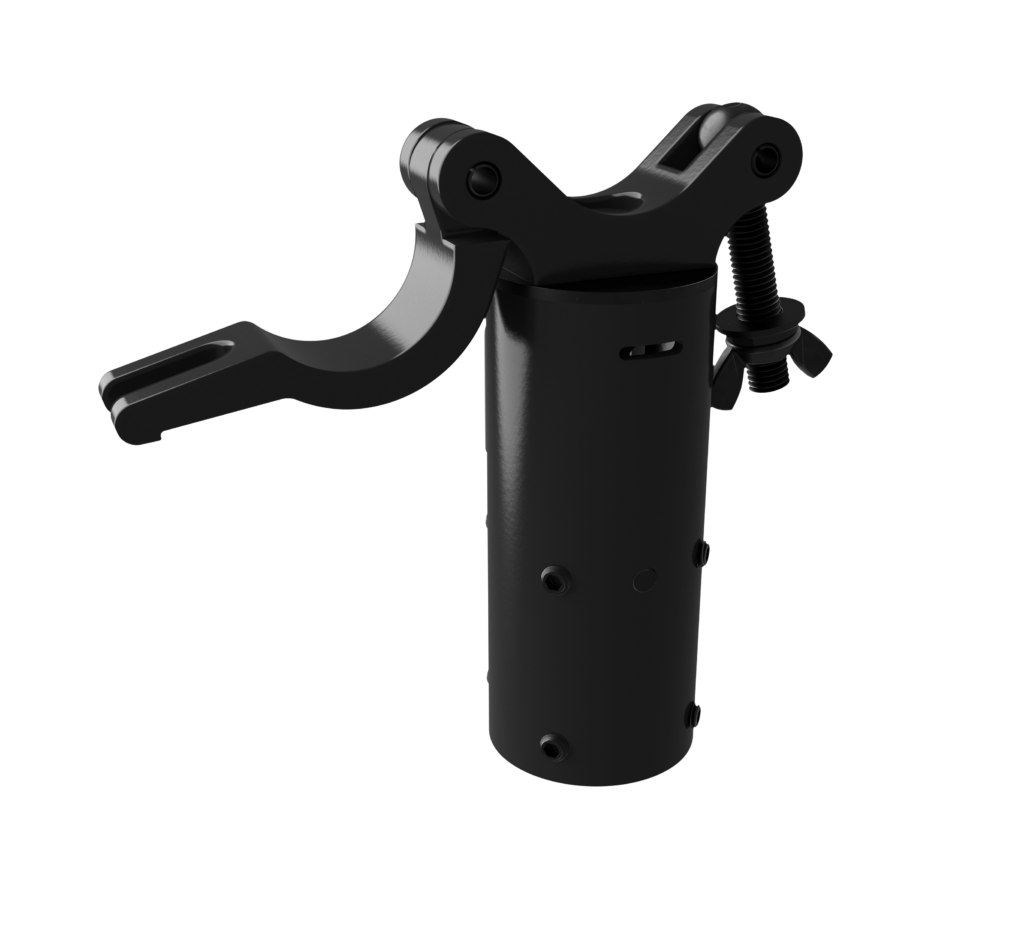

- Wing-nut fixing allows quick release of the clamp from the pole
- Integrated cable management for a neat and tidy installation
Product Specifications
- Max load (single screen installations): 70kg (154.3lbs)
- Max load (back-to-back installations): 140kg (308.6lbs)
- For pole diameter: 50mm
- Product width: 98mm
- Product depth: 60mm
- Product height: 238mm
- Steel thickness: 2mm
- Truss compatibility: Ø42mm (1.65") - Ø50mm (2")
- Colour: Black
