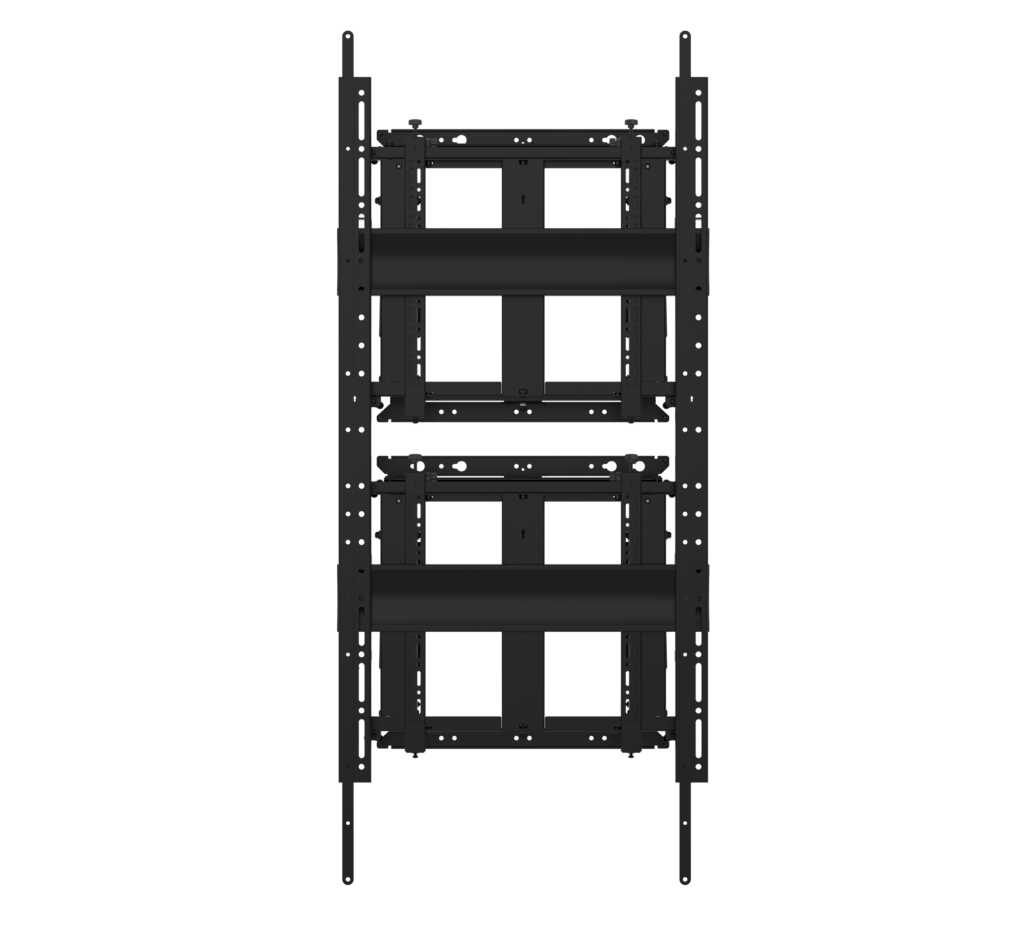

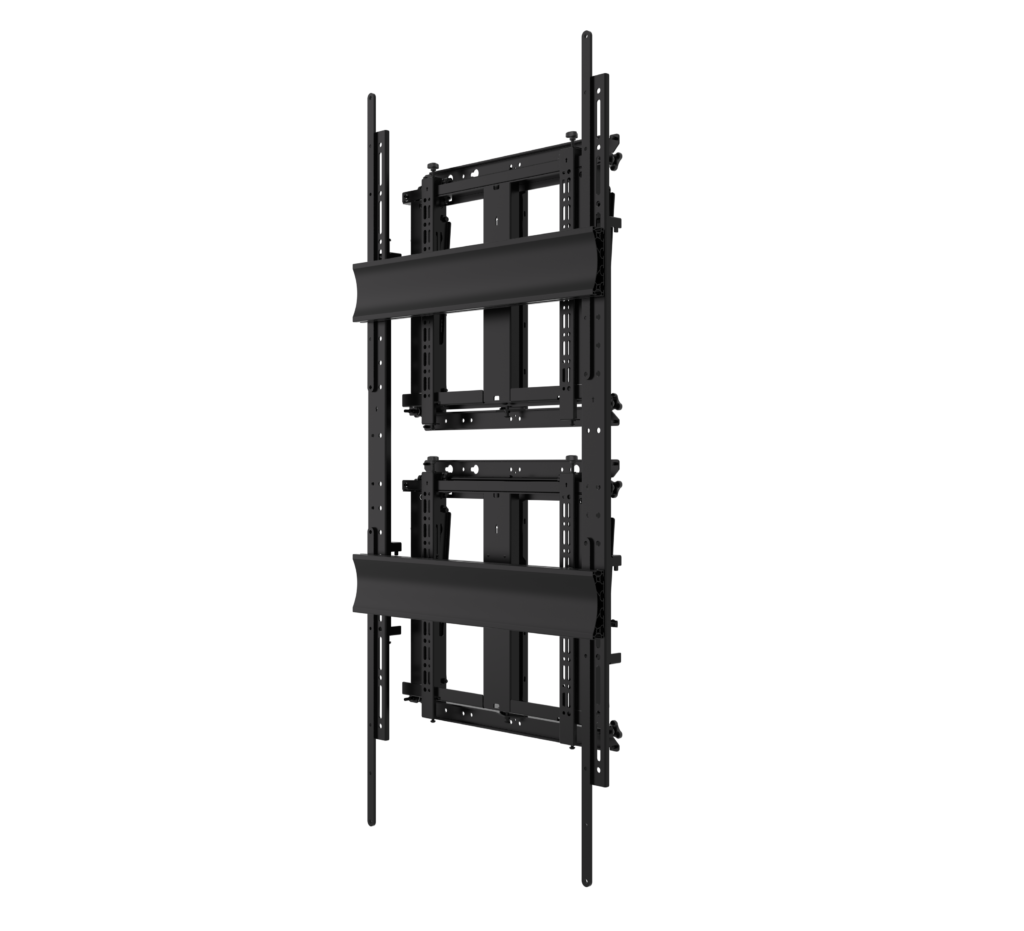

BT9925

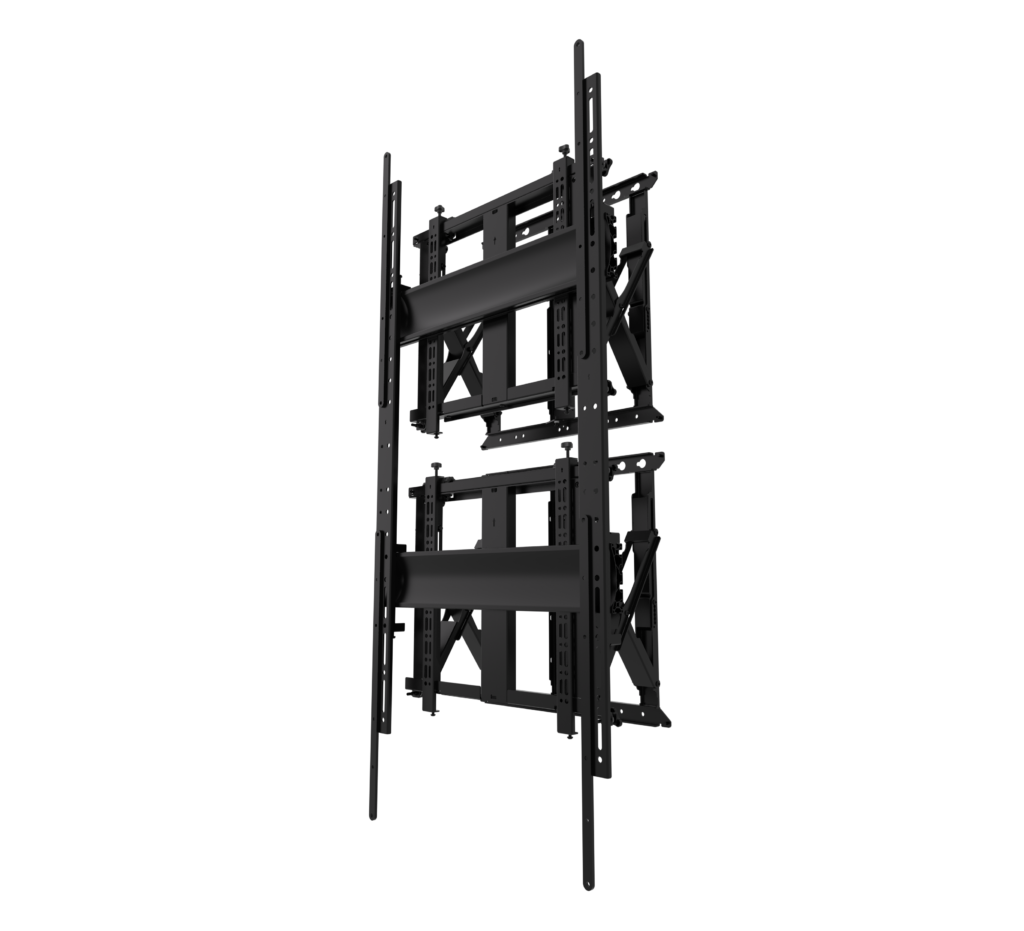

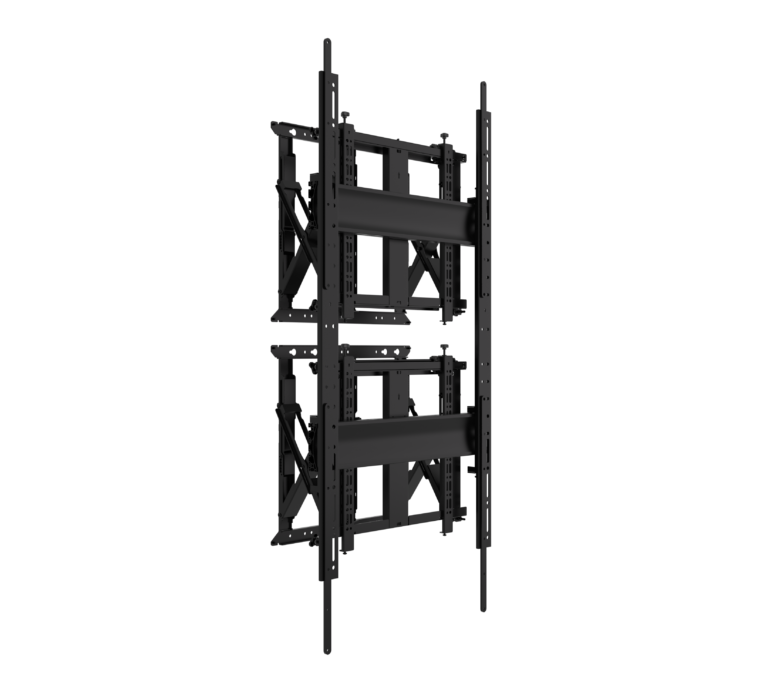

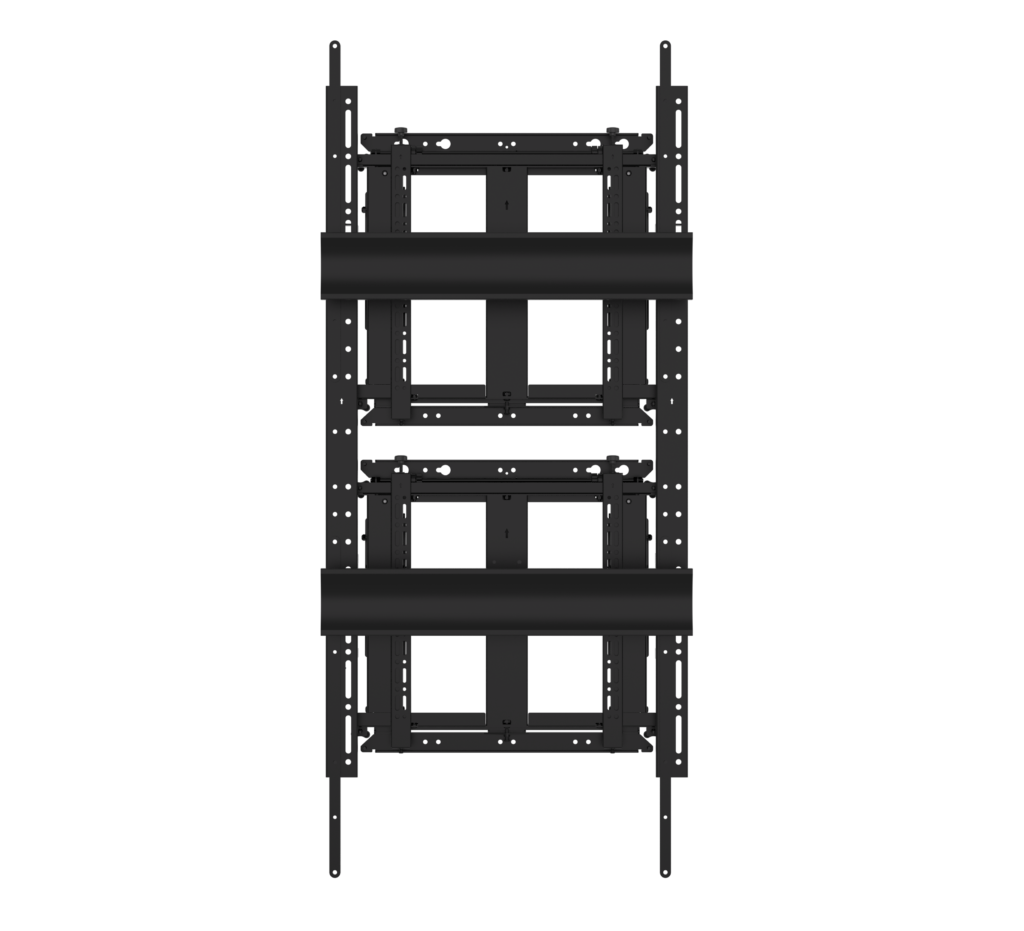

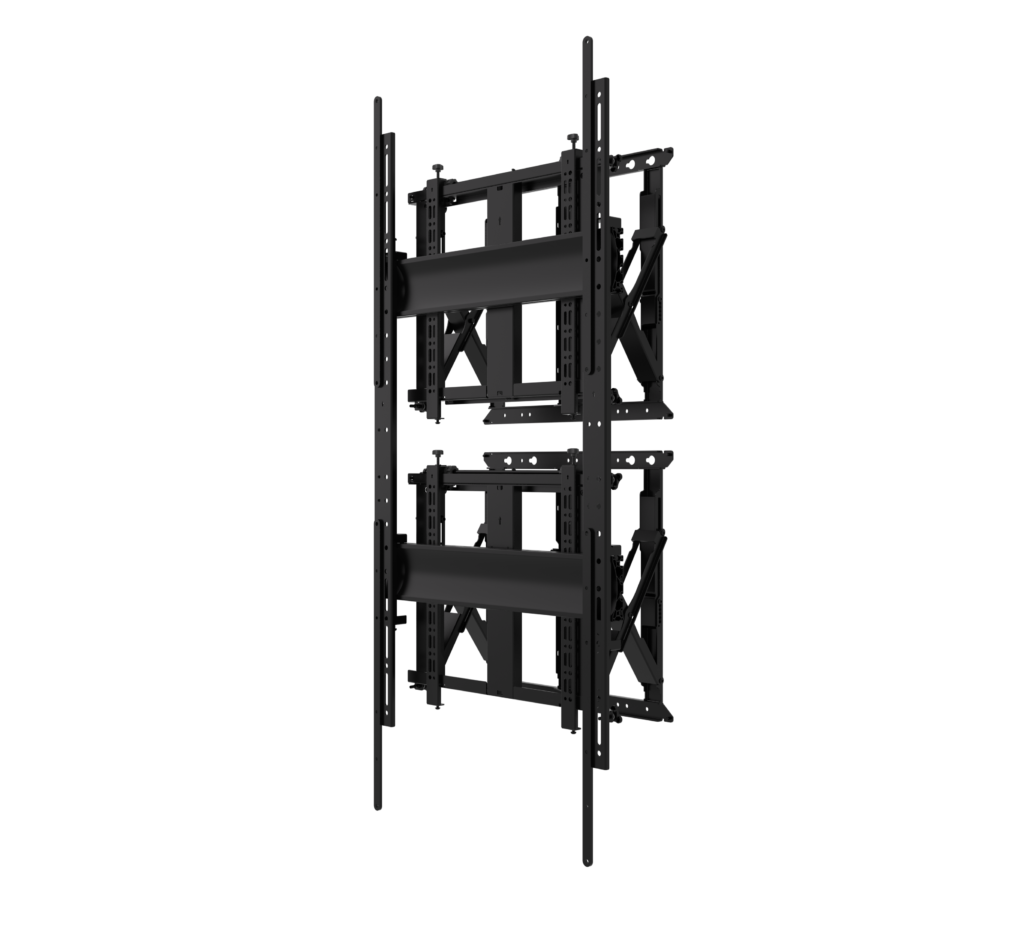

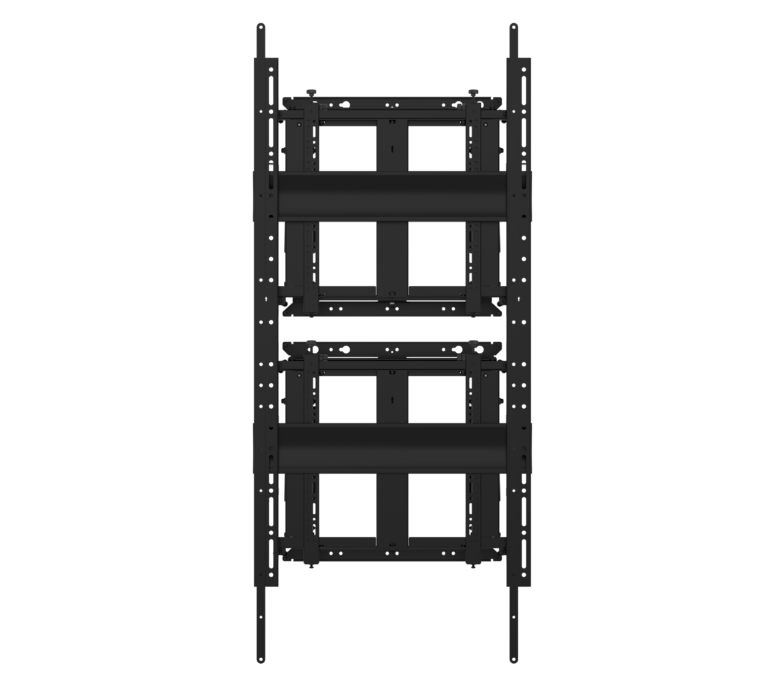

Soft-Open Full Service Portrait Wall Mount For LG® 110UM5J-B

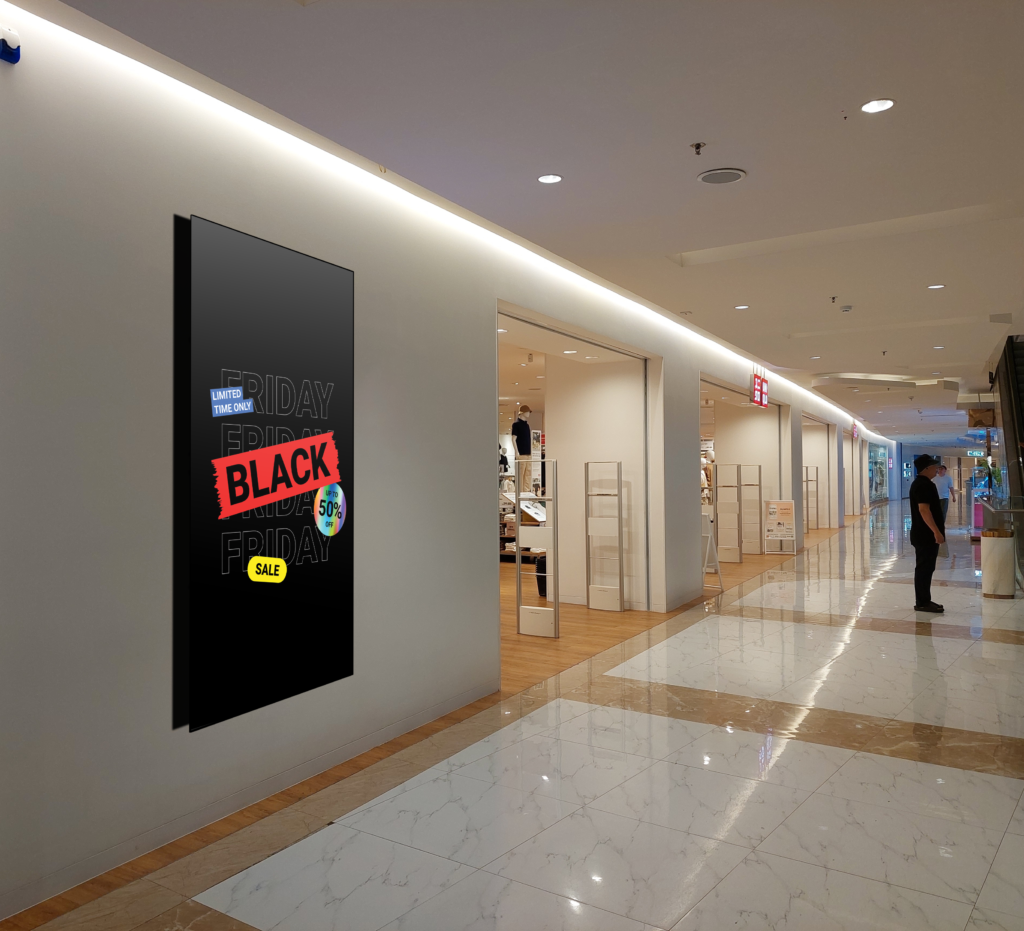

Portrait mount for LG 110UM5J-B UHD display
Product Features

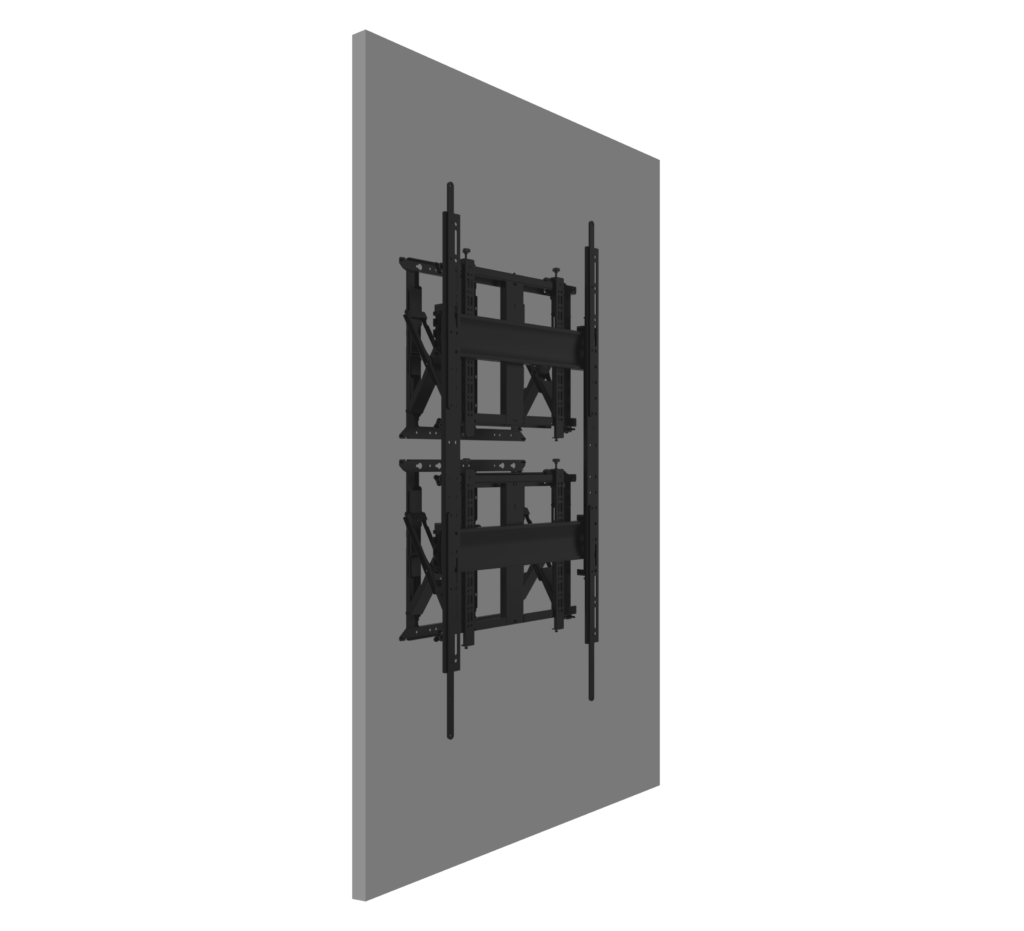

- Designed to wall mount extra-large signage displays such as LG's 110UM5J-B*
- Universal design suitable for portrait mounting other standard screens over 72"

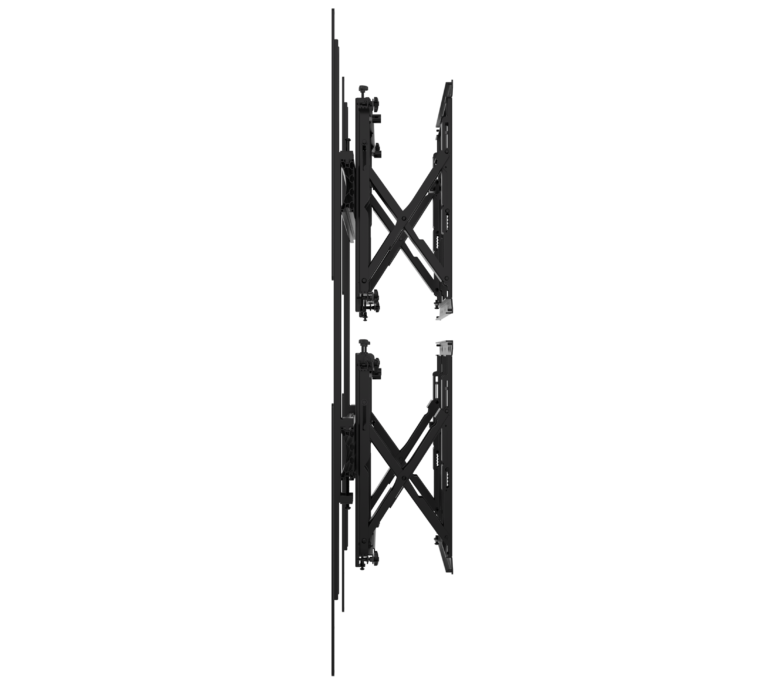

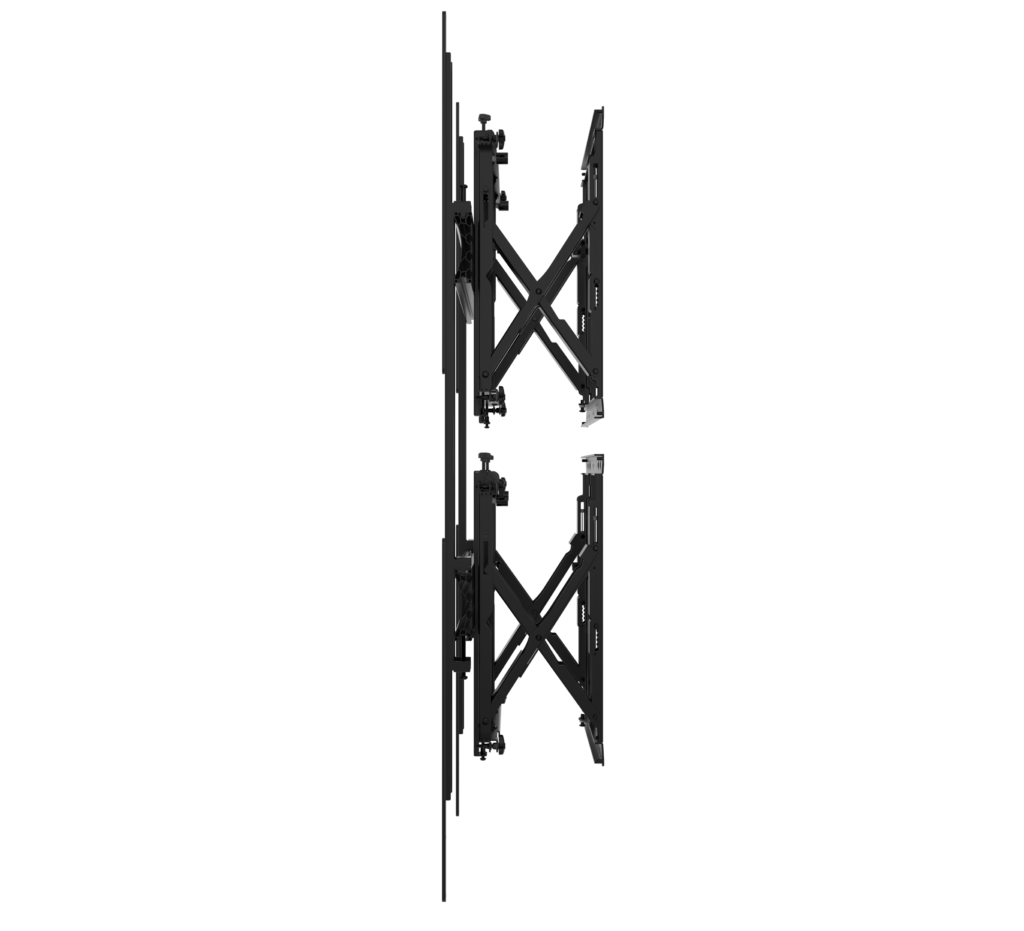

- Pop-out system with soft opening provides a safe and easy service access
- Ideal for recess mounting
- Tool-less micro-adjustment of +/-7.5mm
- Features depth, height and lateral micro-adjustment
- Keyhole fixings on wall plates for an easier installation
- Safety screws help prevent unauthorised removal of screens
- Simple 'hook-on' installation
- All mounting hardware included
- *For landscape mounting LG's 110UM5J-B use BT9921
Product Specifications
- Recommended display size: 72” (183cm) up to 120" (305cm)
- Max load: 80kg (176.4lbs)
- VESA® fixings: up to 600mm x 1500mm
- Product width: 705mm
- Min product depth: 112.8mm
- Max product depth: 129.8mm
- Product height: 1520mm
- Distance from wall - min: 112.8mm
- Distance from wall - max: 129.8mm

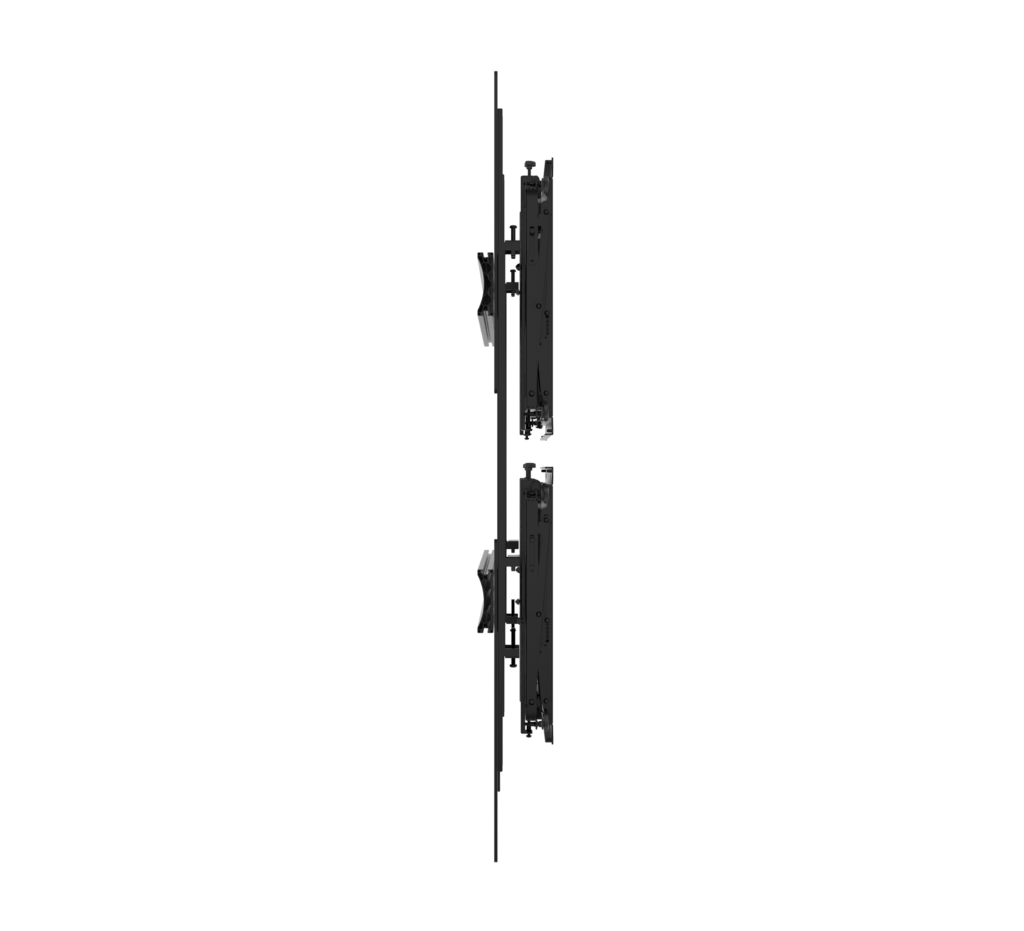

- Popped out depth: 281.8mm
- Tool-less micro-adjustment: +/-7.5mm per corner
- Orientation: Portrait
- Colour: Black
