BT9240
Universal dvLED Wall Mount

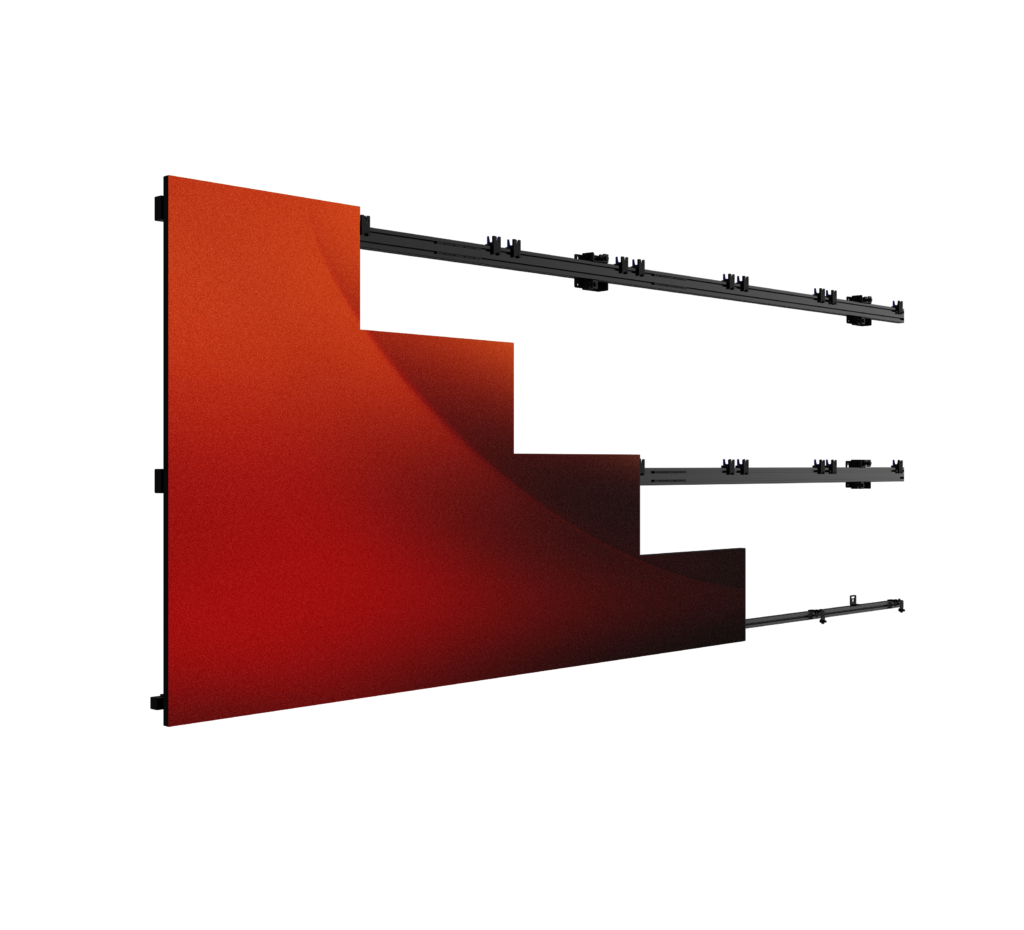

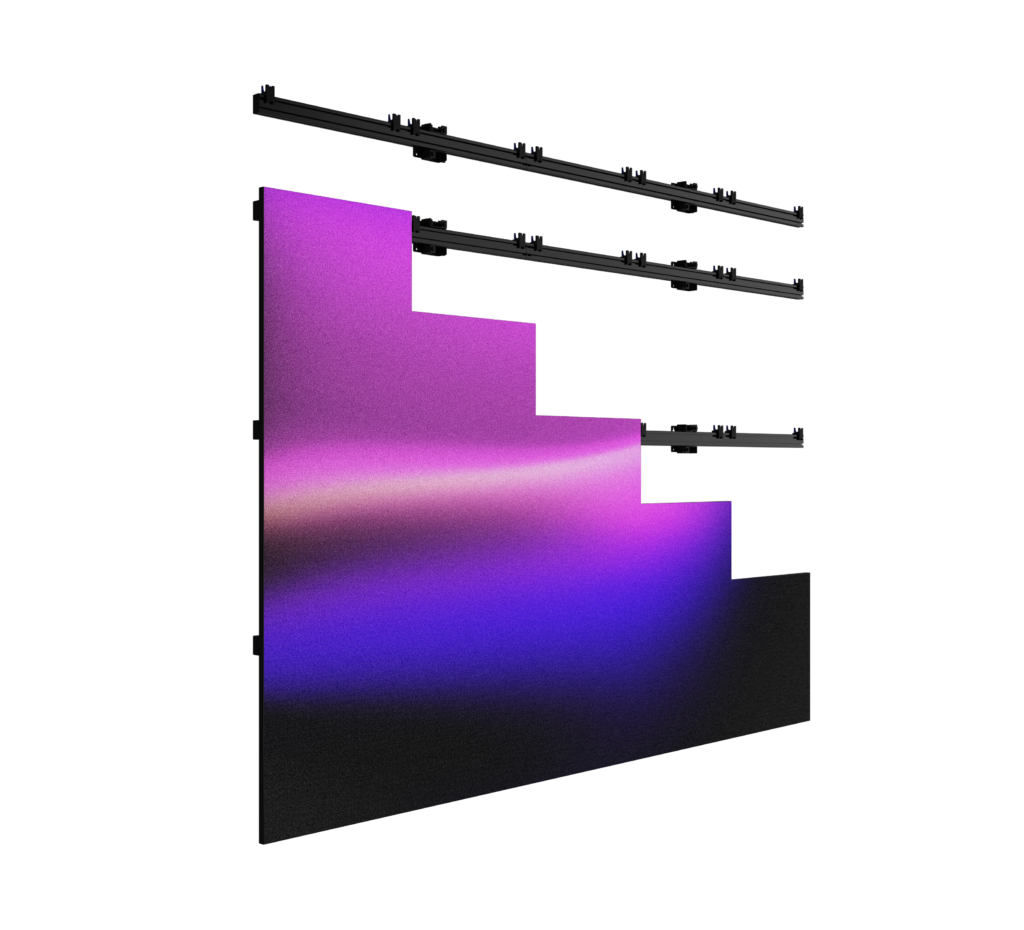

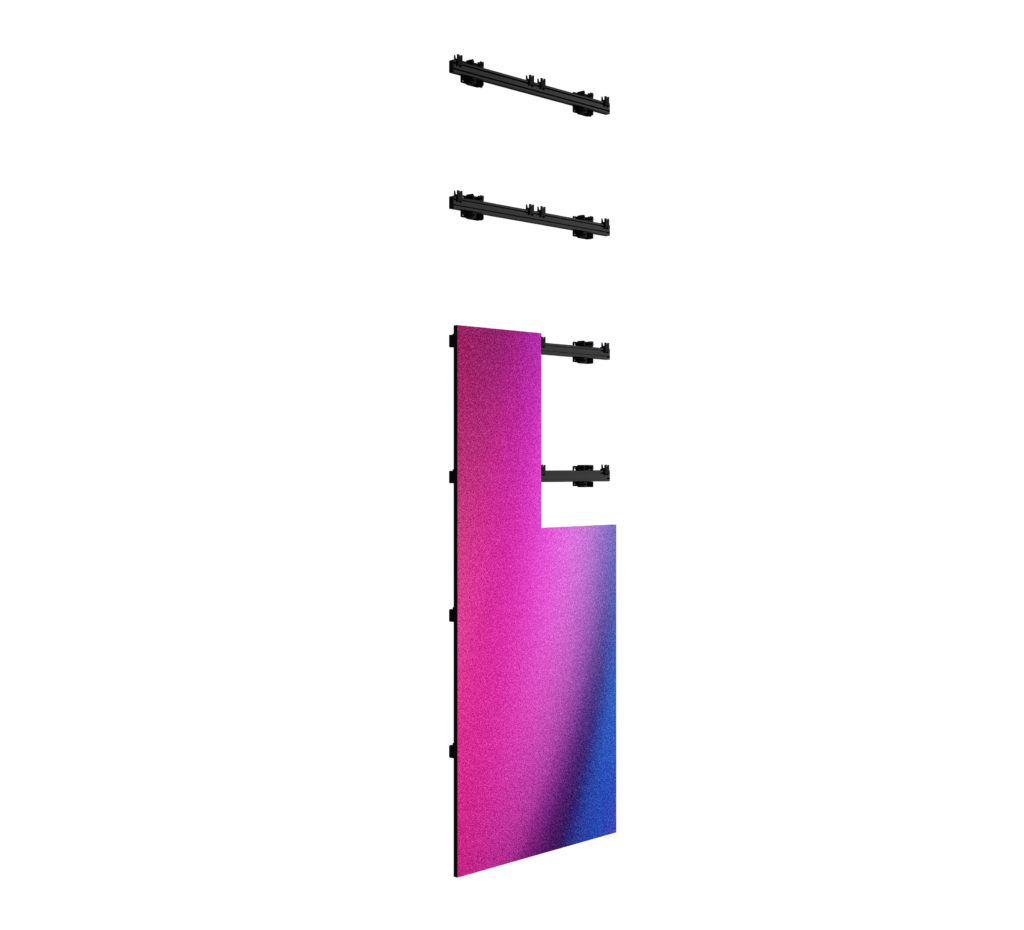

Designed to assemble dvLED panels in any configuration
Product Features
- Patent Pending XpressConnect technology

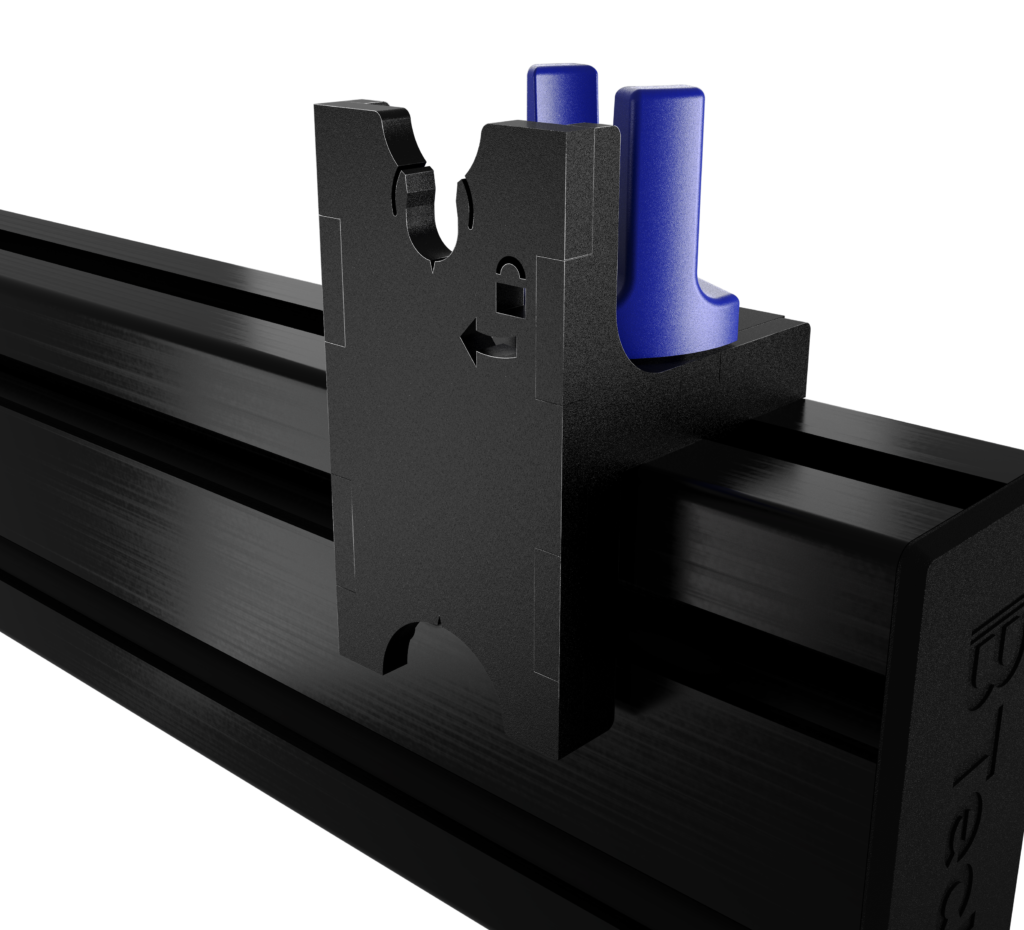

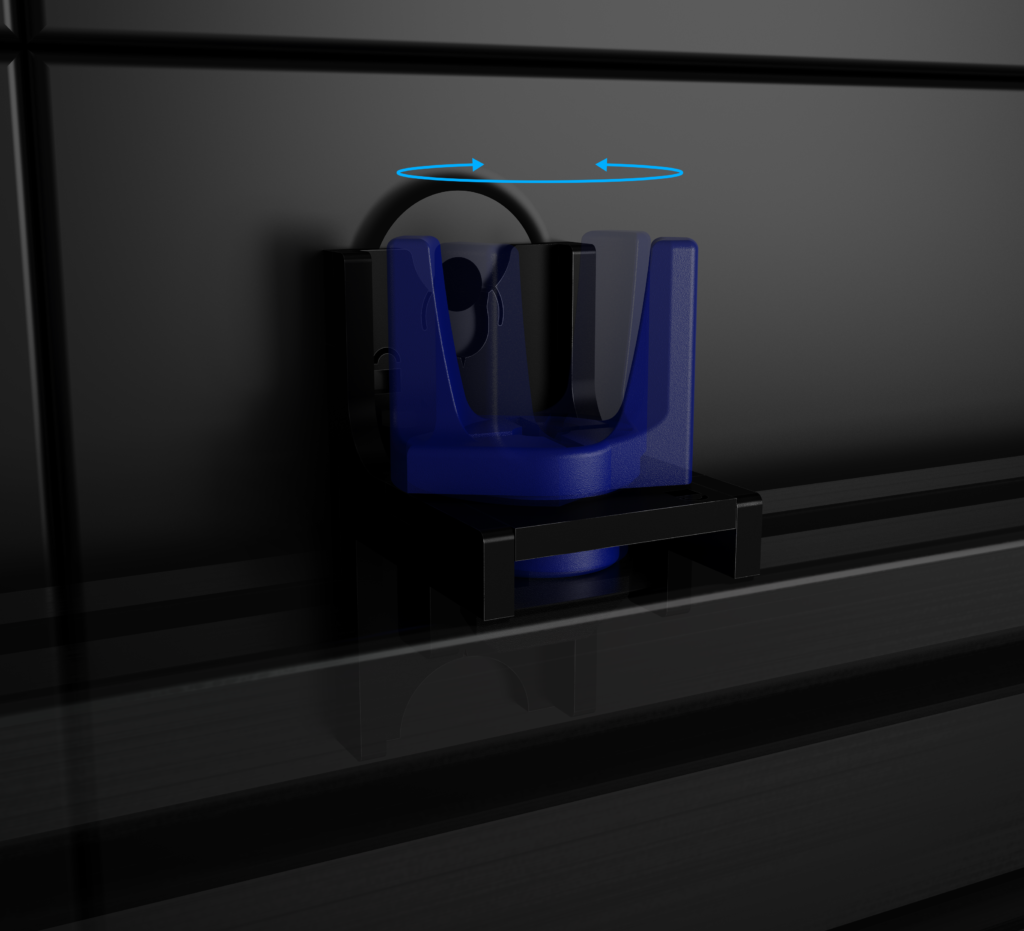

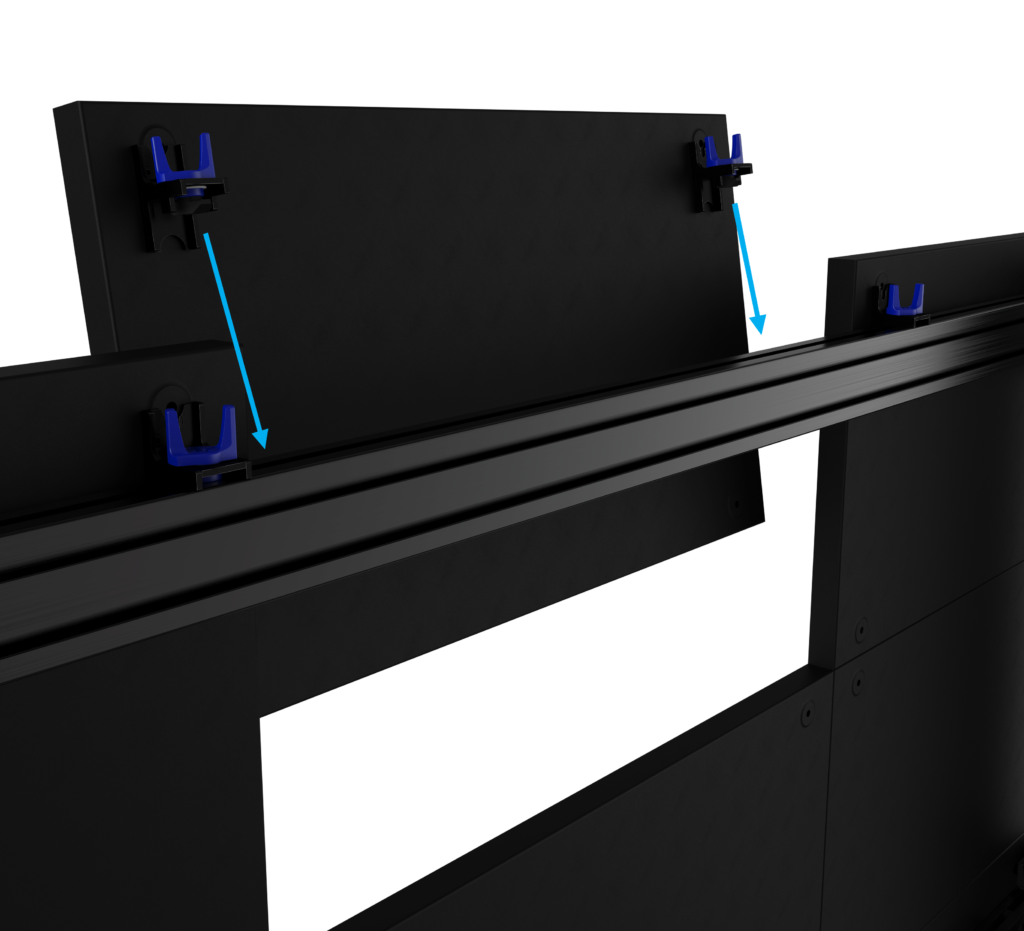

- Tool-less twist lock - cabinets ‘hook-on' and lock in with a quarter turn
- Hang cabinets in pairs to speed up the install
- Row height spacer (available separately) to speed up the install
- Close to the wall install, mounts cabinets 60mm from wall (+/-5mm depth adjustment)
- Open frame allows panel access for easy servicing and maintenance
- All mounting hardware
- 100% plastic free packaging
- Installation overview video available
Product Specifications
- Compatible panels: All 27" latching cabinets
- Cabinet fixing method: Rear mounted using M6, M8, M10 fixings
- Height adjustment: +/-5mm
- Depth adjustment: +/-5mm on wall plate (Additional +10mm at cabinet)
- Colour: Black
- For indoor use only
