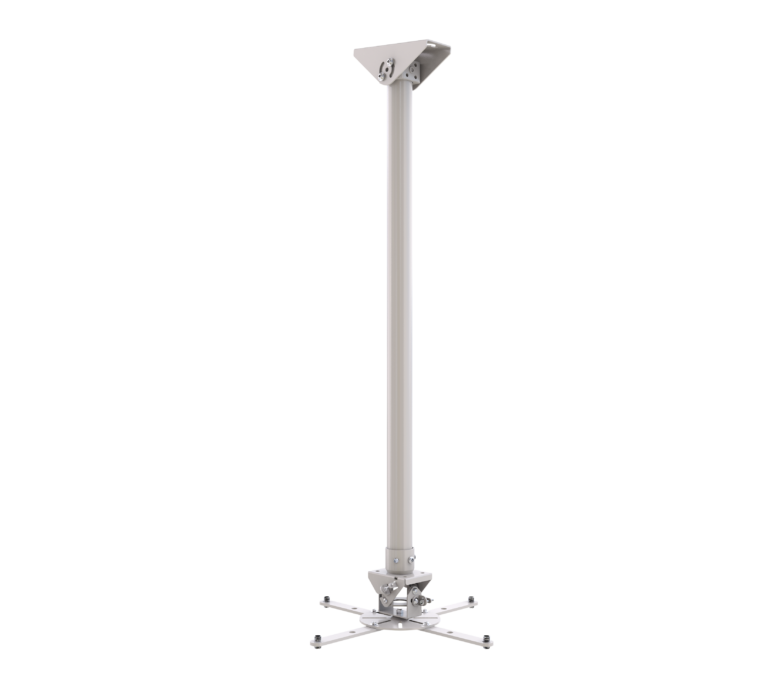

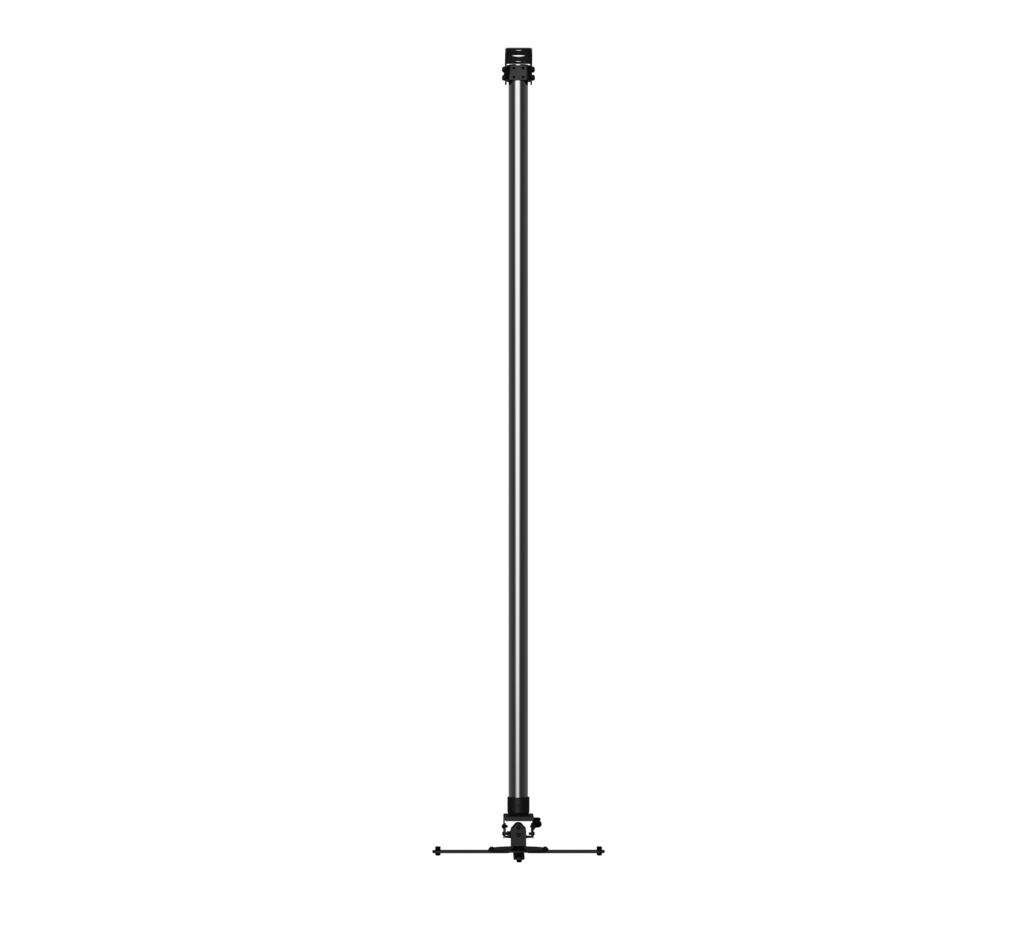

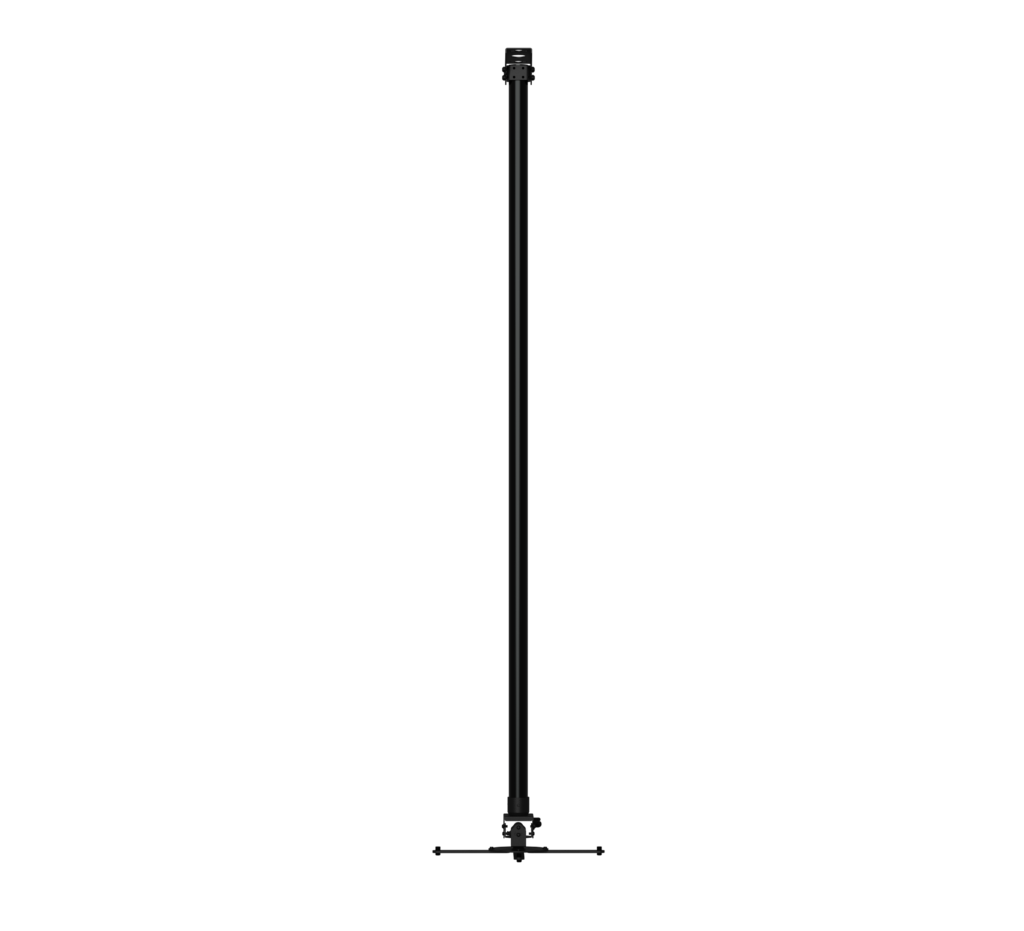

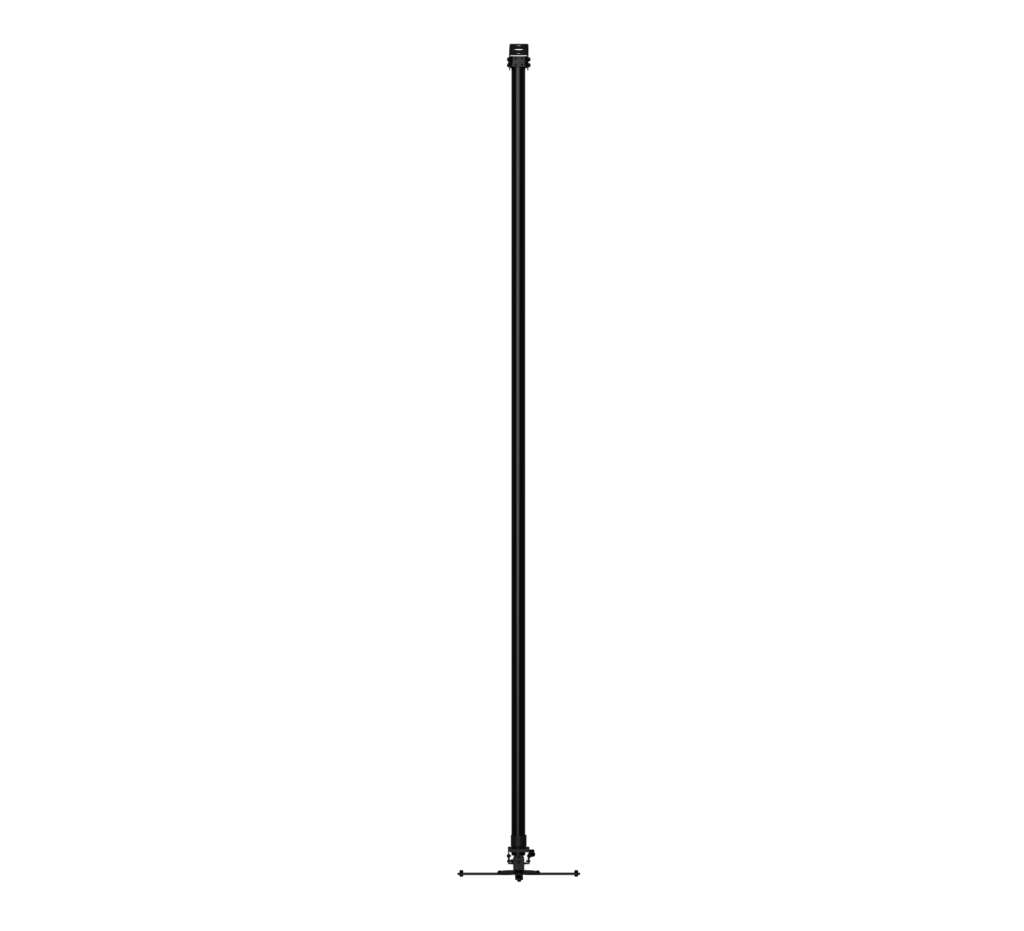

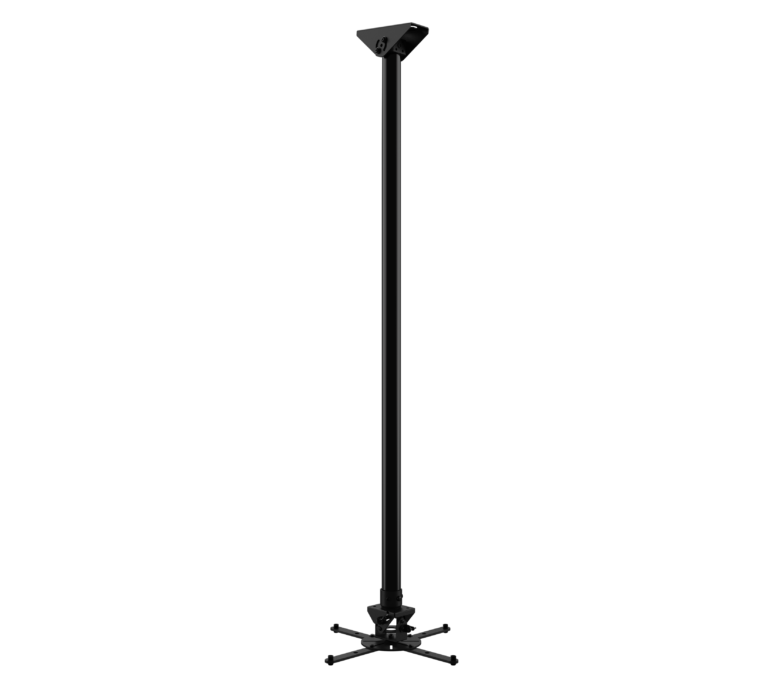

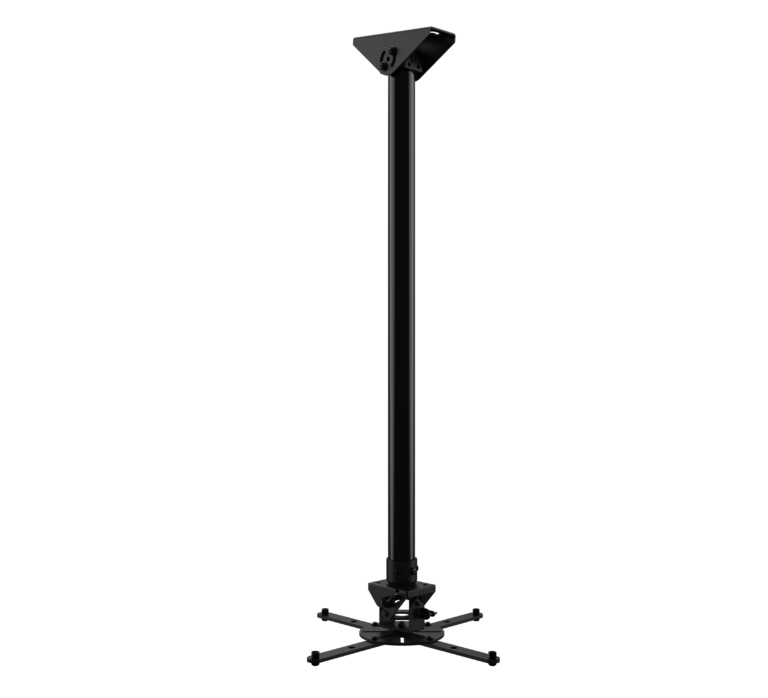

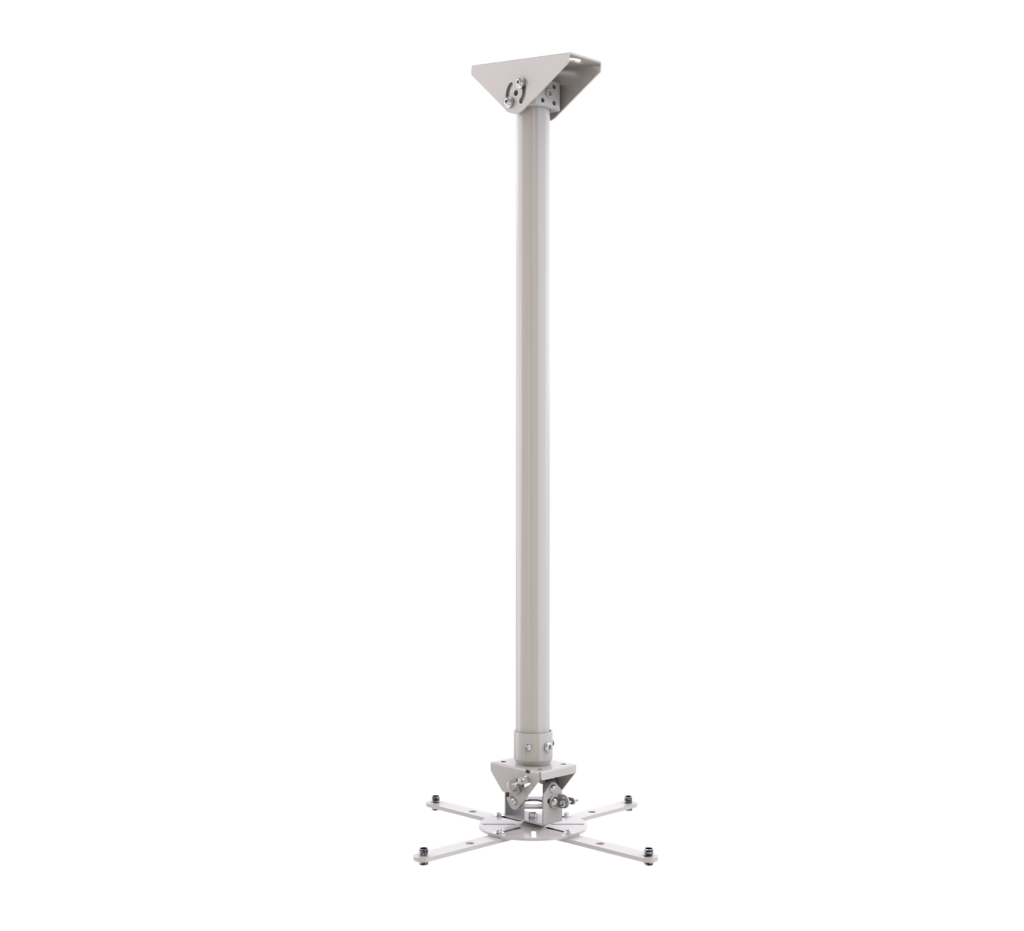

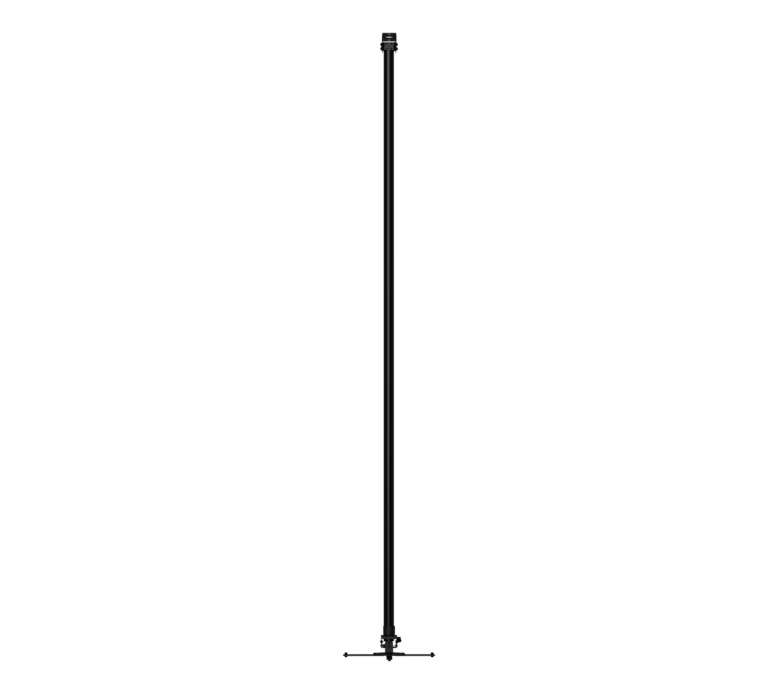

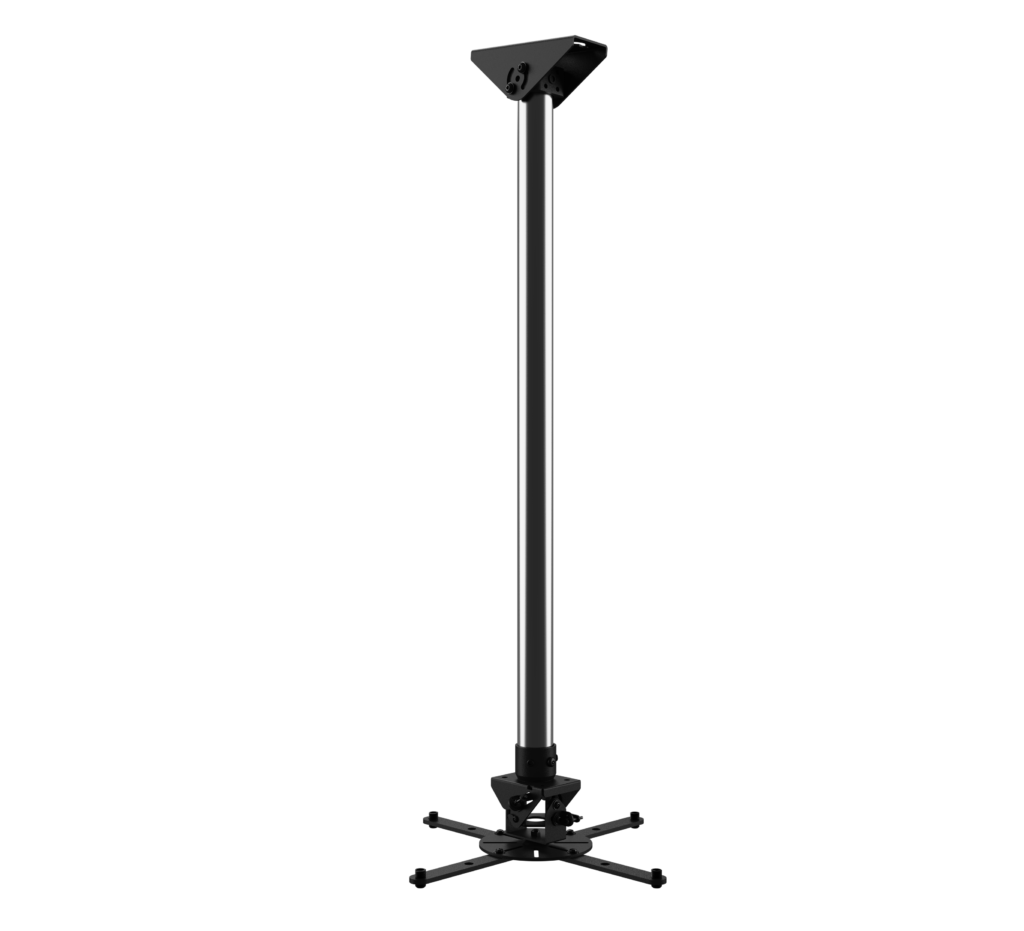

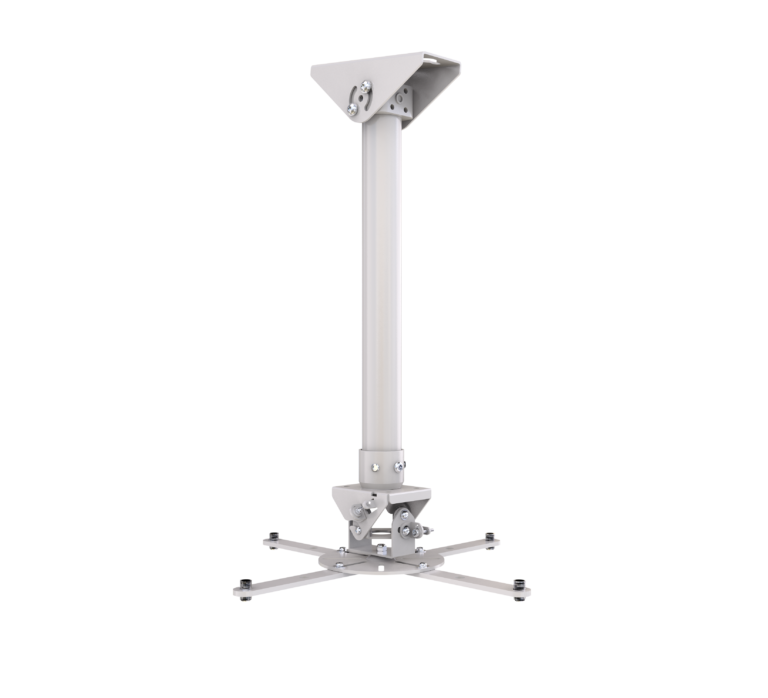

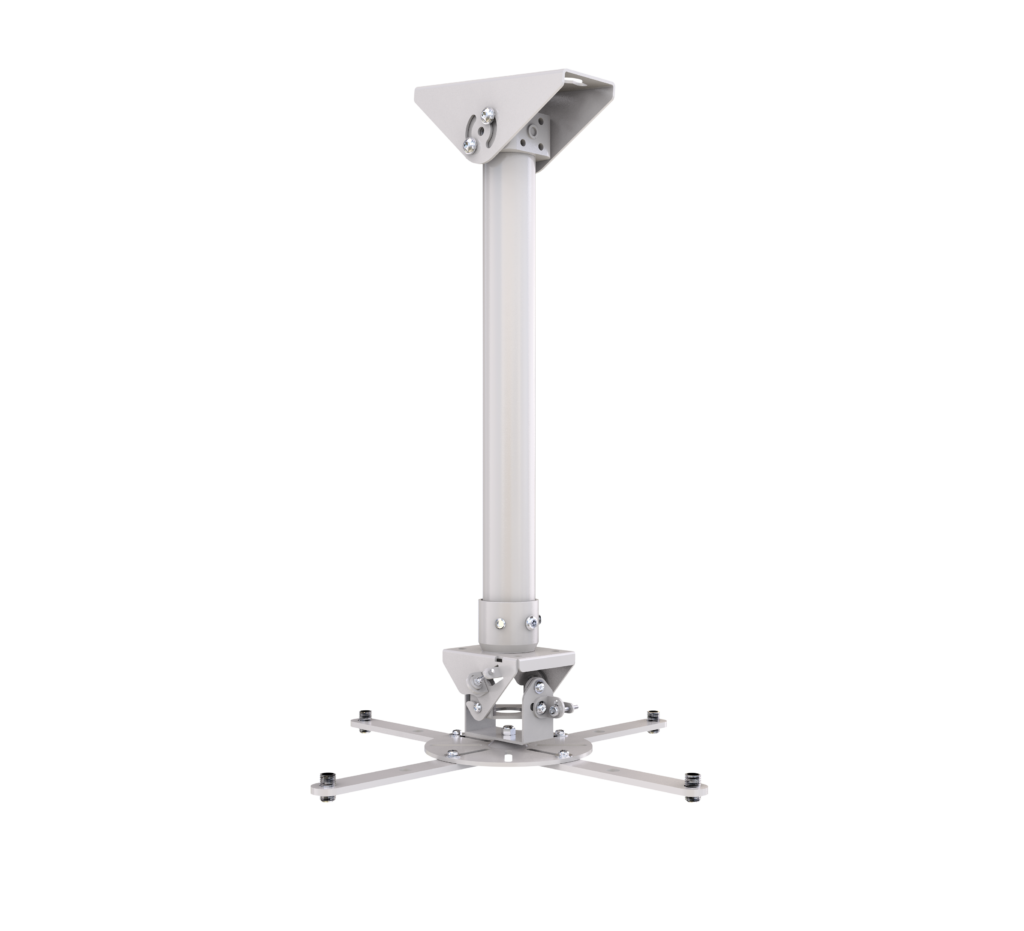

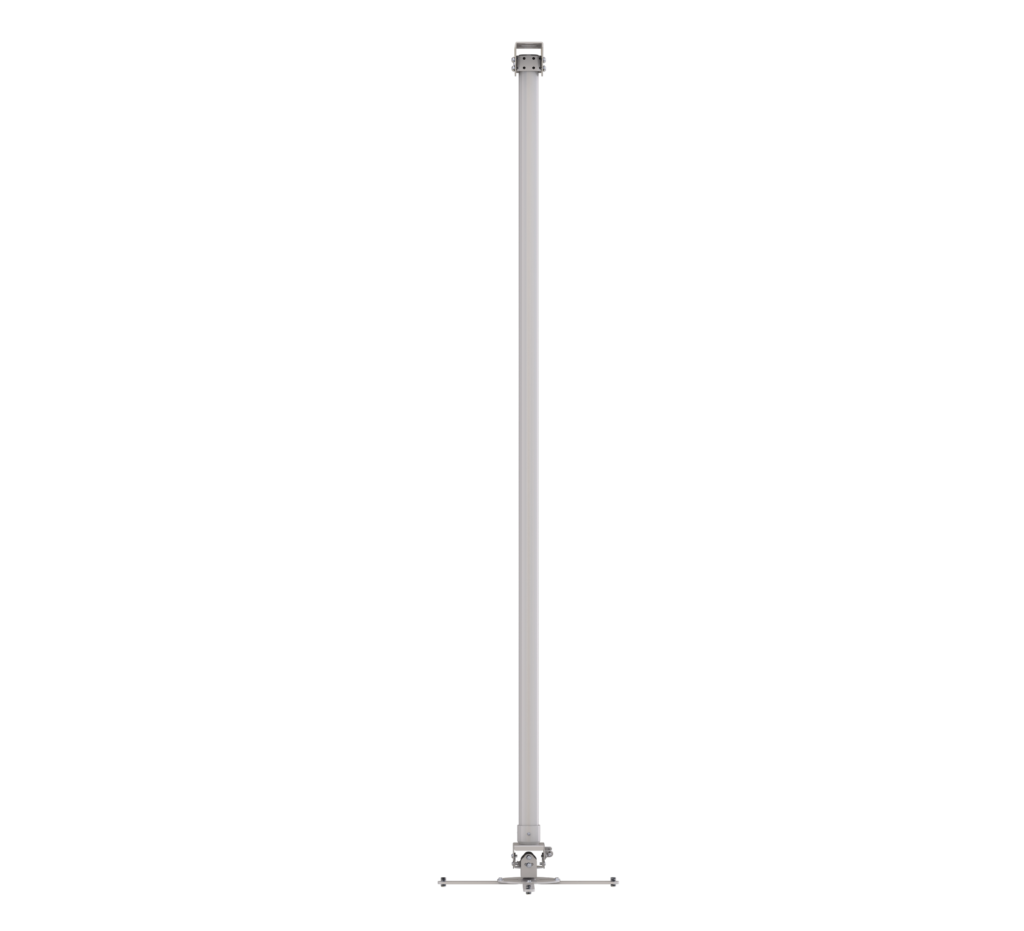

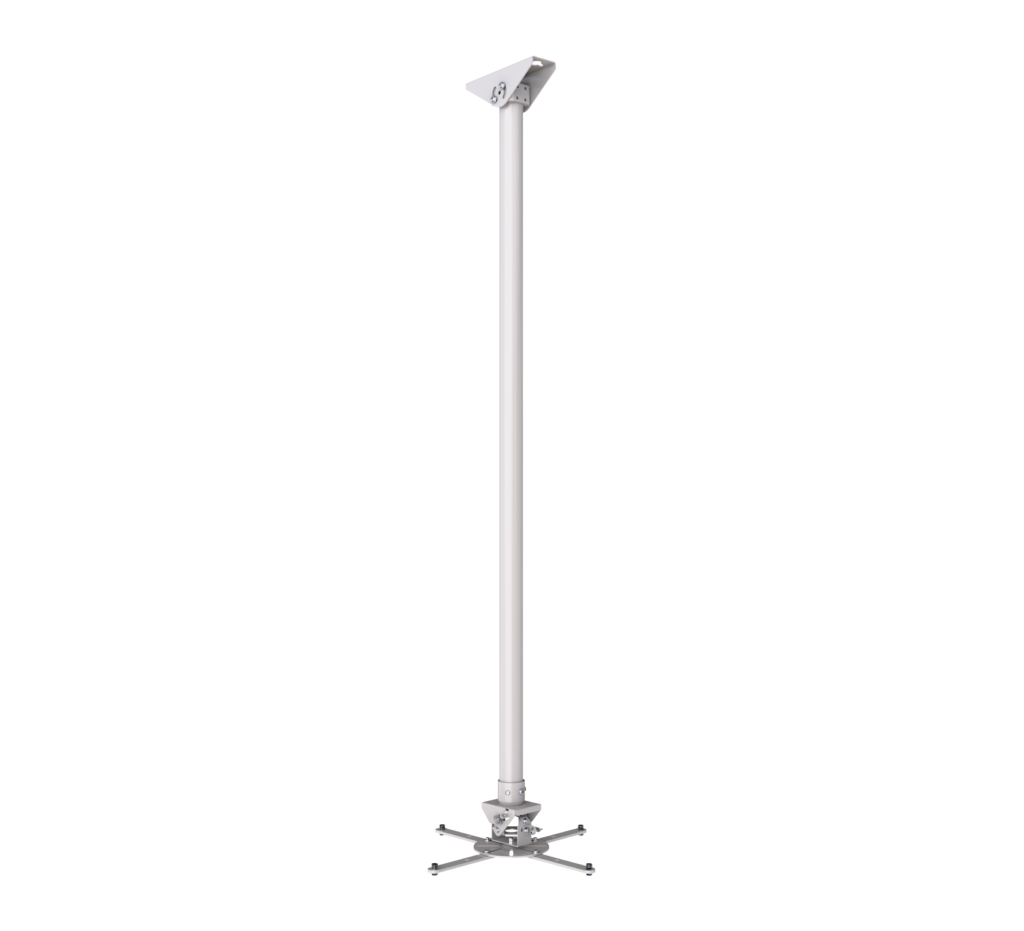

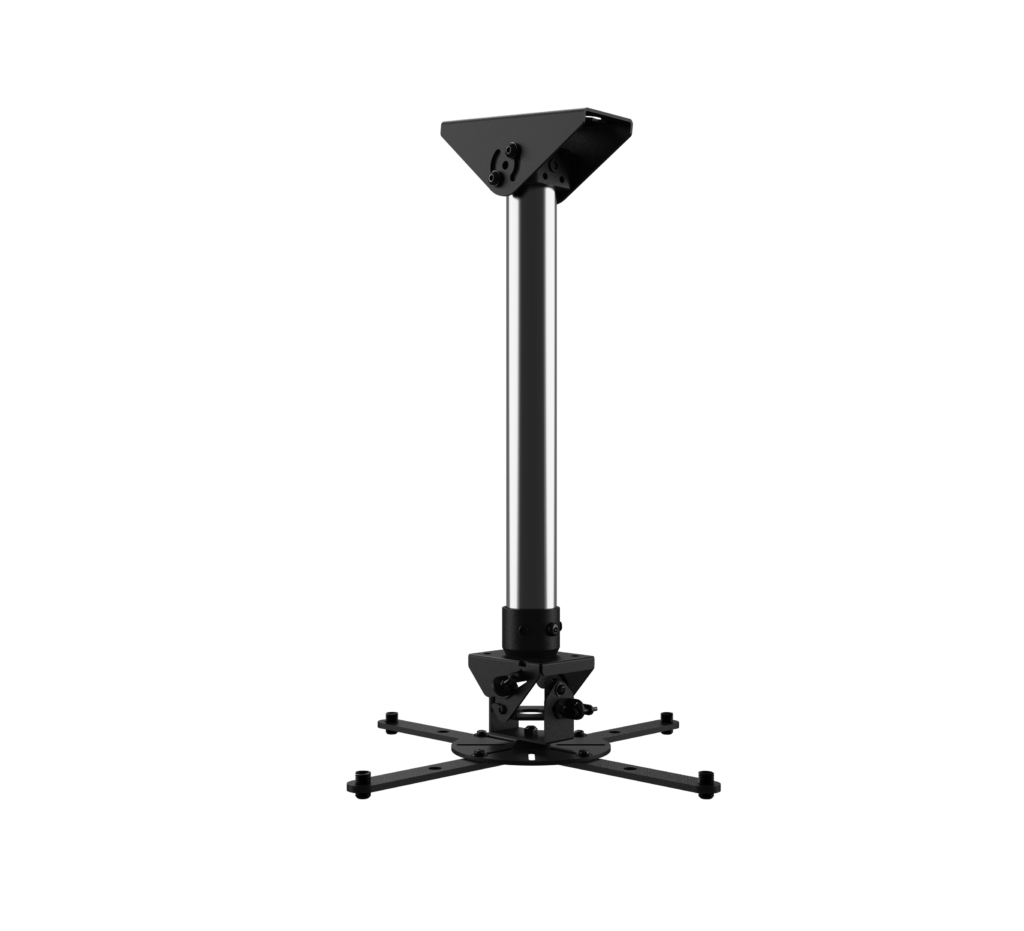

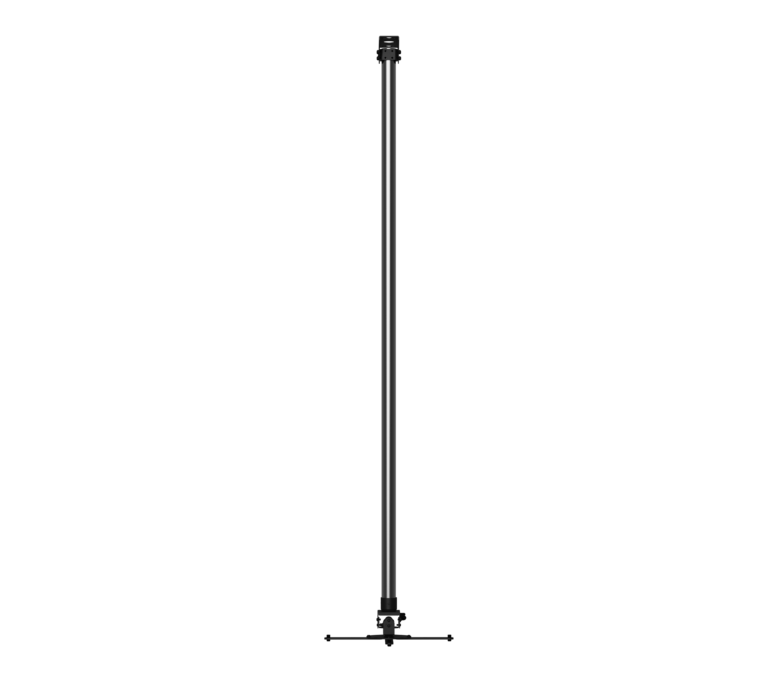

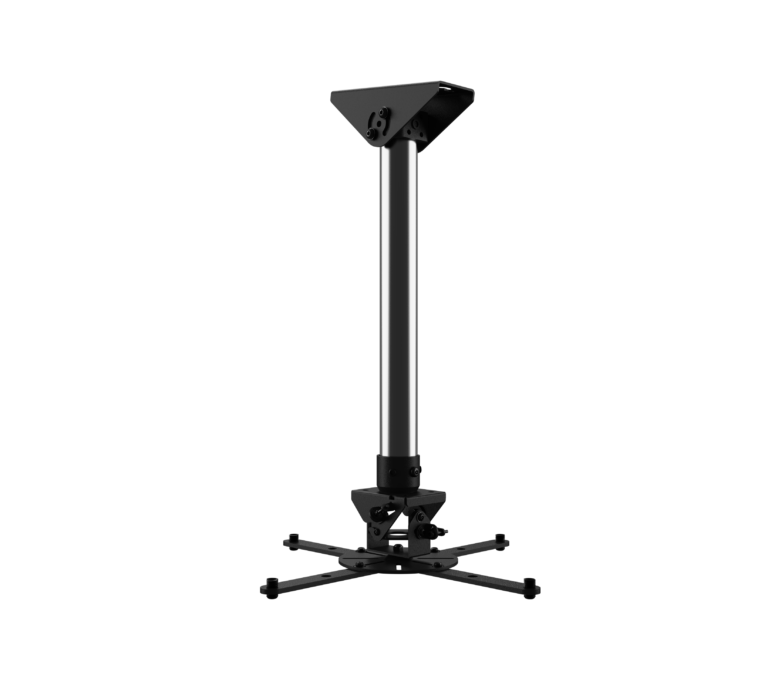

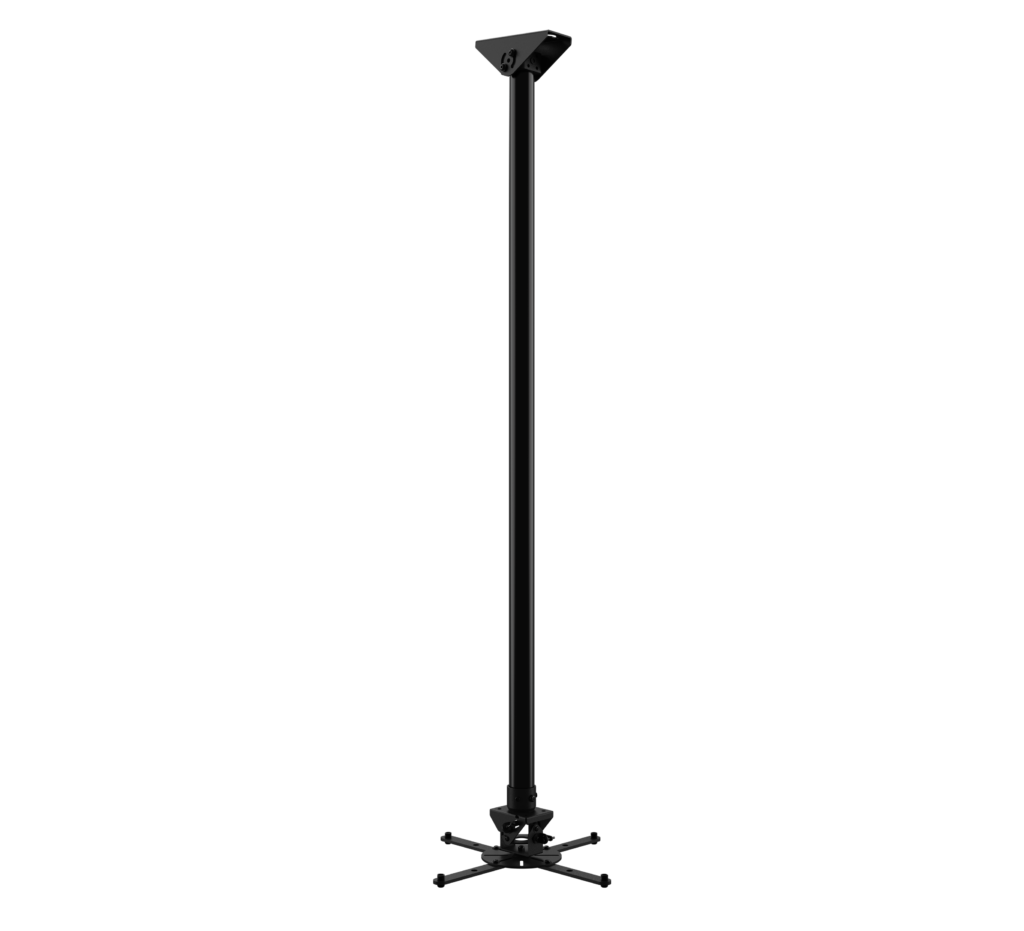

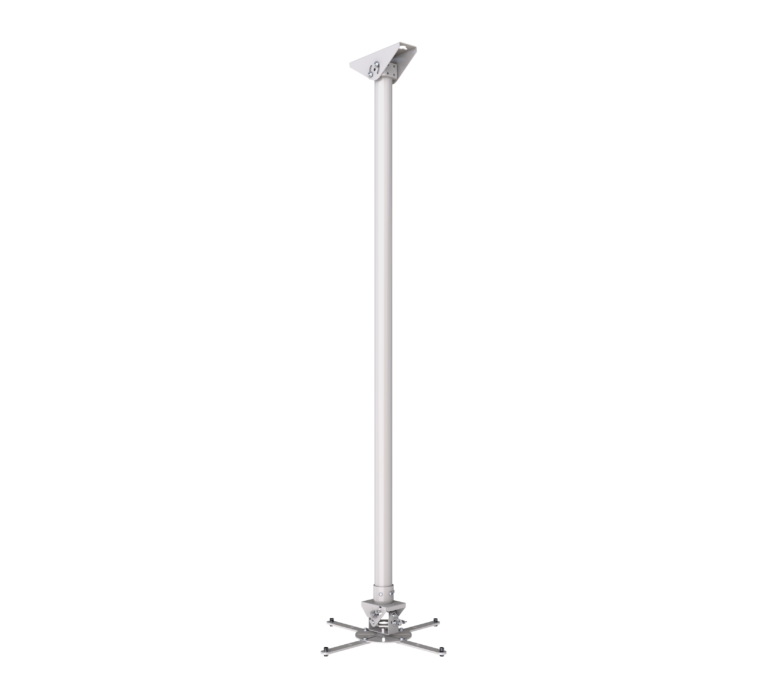

BT899XL-FD

Extra-Large Projector Ceiling Mount

With Micro Adjustment

BlackBlackBlackBlackBlackBlack & ChromeBlack & ChromeBlack & ChromeBlack & ChromeBlack & ChromeBlack & WhiteBlack & WhiteBlack & WhiteBlack & White
BT899XL-FD050-B BT899XL-FD050-BC BT899XL-FD050-BW BT899XL-FD100-B BT899XL-FD100-BC BT899XL-FD100-BW BT899XL-FD150-B BT899XL-FD150-BC BT899XL-FD150-BW BT899XL-FD200-B BT899XL-FD200-BC BT899XL-FD200-BW BT899XL-FD300-B BT899XL-FD300-BC
Enquire TodayView Related Products

Product Features

  • Integrated cable management for smart installation
  • Security locking screws and Allen key provided for a secure installation
  • Suitable for angled ceilings
  • Unique ‘Carousel’ mounting plate for universal compatibility
  • Suitable for projectors using M2.5, M3, M4, M5 and M6 fixings

Product Specifications

  • Available pole lengths: 0.5m, 1m, 1.5m, 2m, 3m
  • Max load: 25kg (55lbs)
  • Tilt: +/-13°
  • Roll: +/-6°
  • Yaw: 360°
  • Ceiling plate tilt: 90°
  • Pole diameter: 50mm
  • Max distance between fixings: 493mm
  • Colour options: Black, White, Chrome Pole
  • BT899XL-FD150: 1.5m (59") Pole
  • BT899XL-FD200: 2m (78.7") Pole
  • BT899XL-FD300: 3m (118.1") Pole
  • Colour options : Black, White or Chrome Pole
