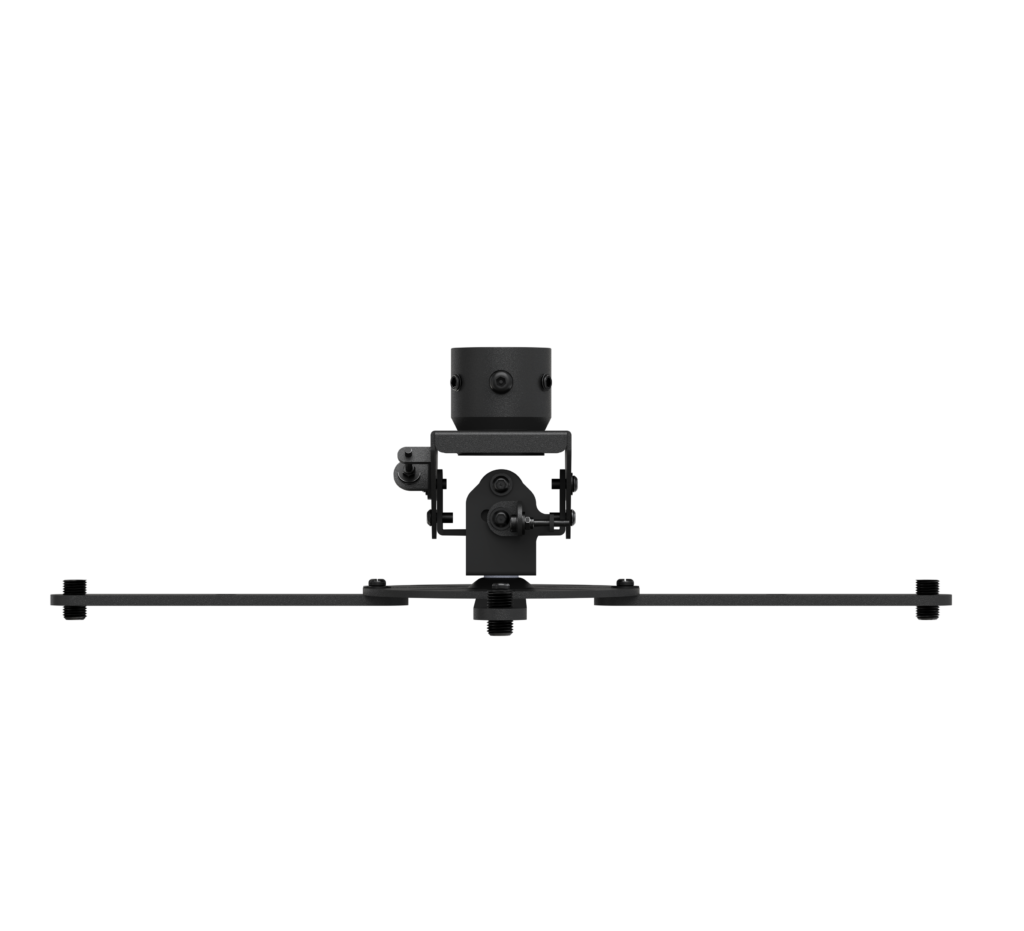

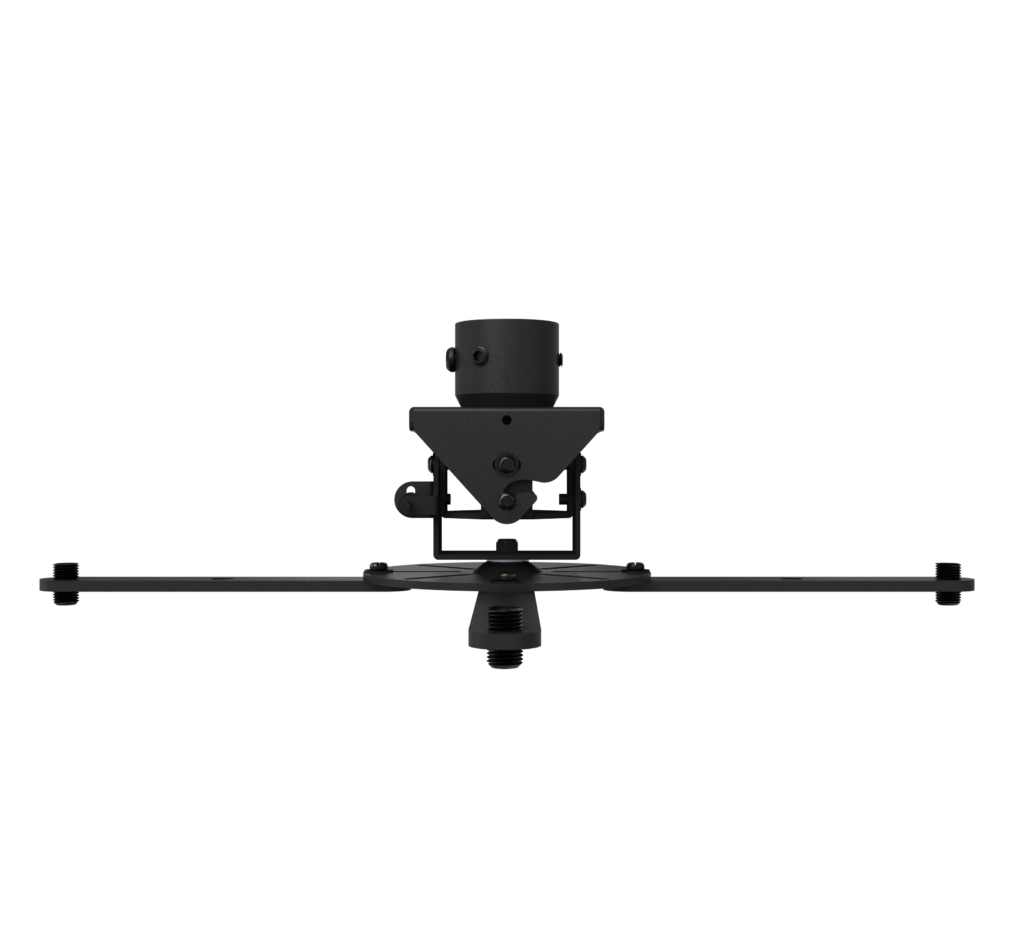

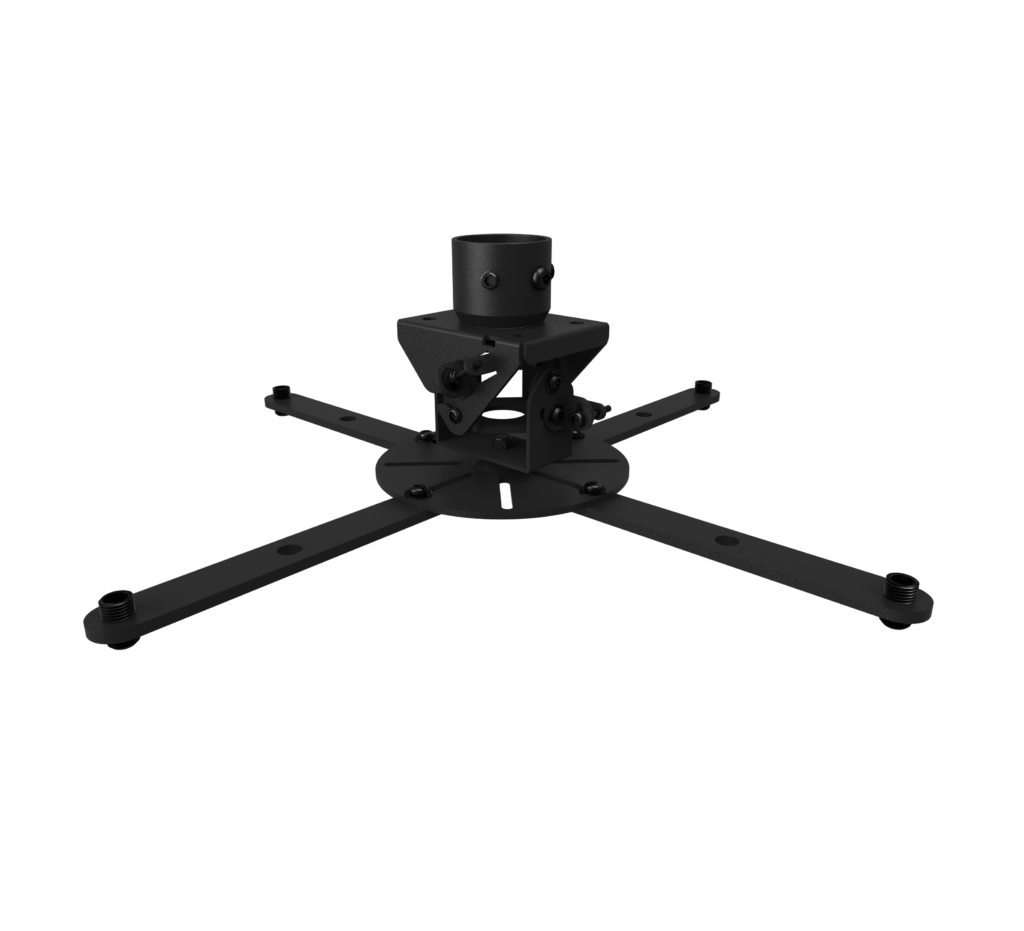

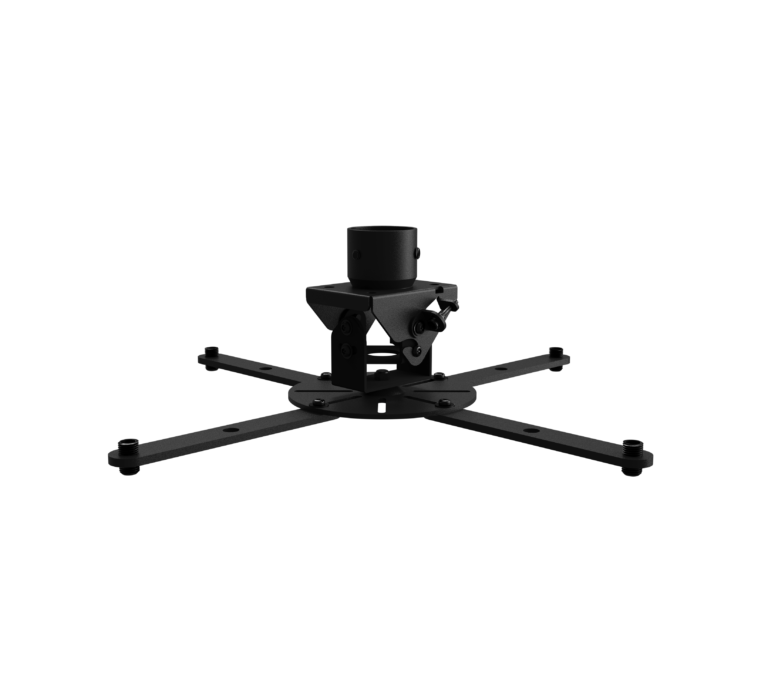

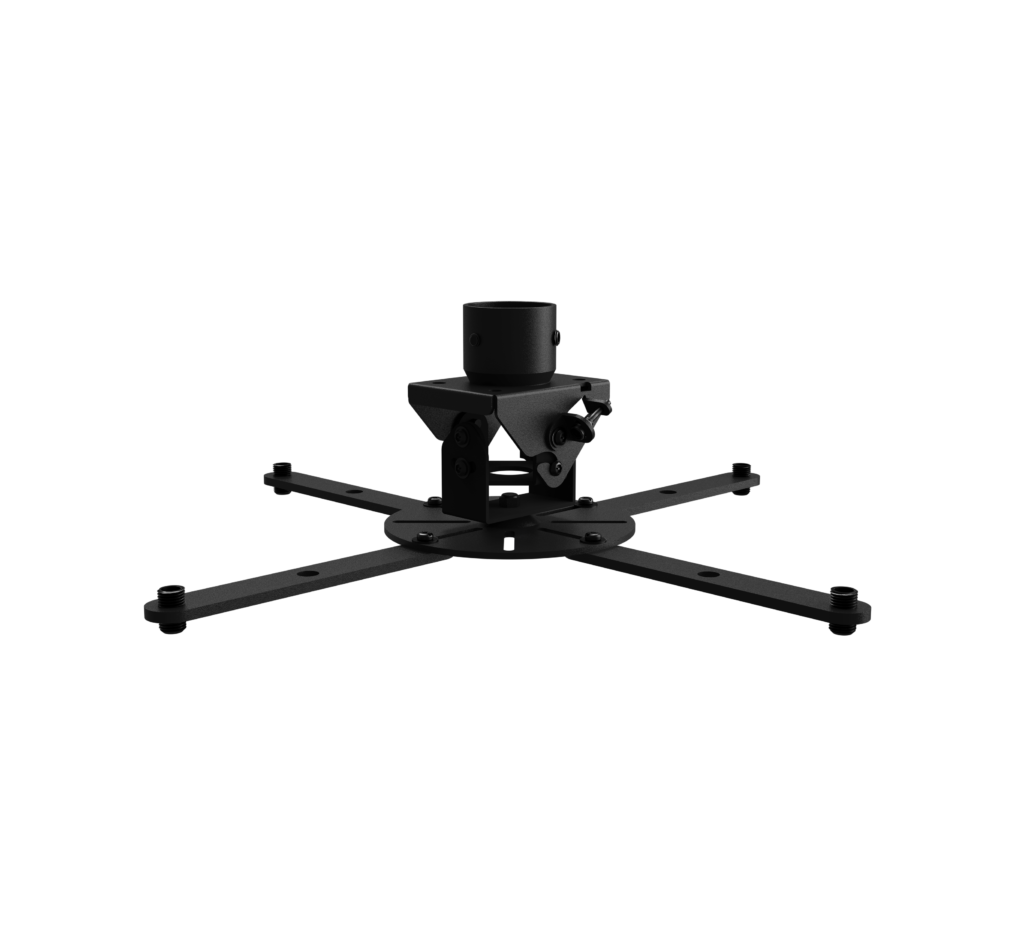

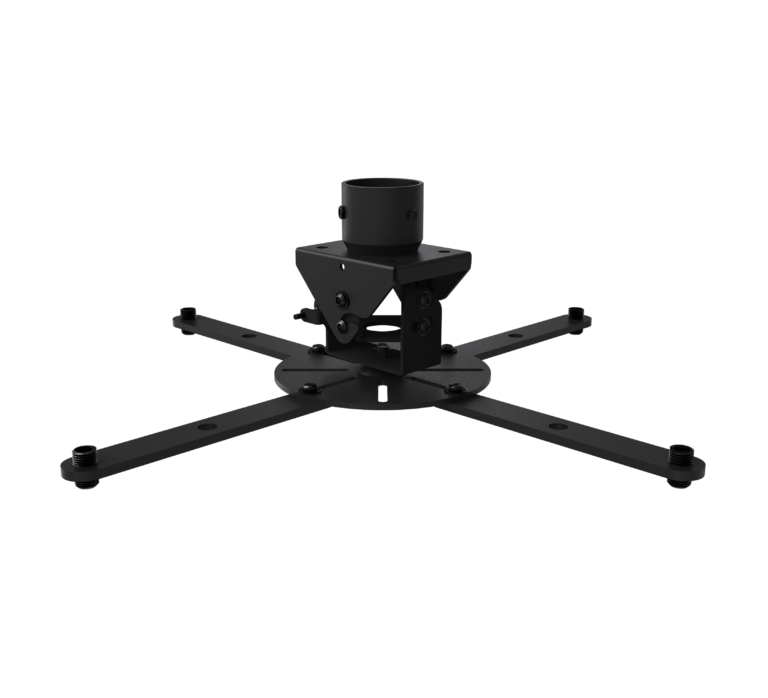

BT899XL

Extra-Large Projector Ceiling Mount

With Micro Adjustment

Product Features

  • Integrated cable management for smart installation

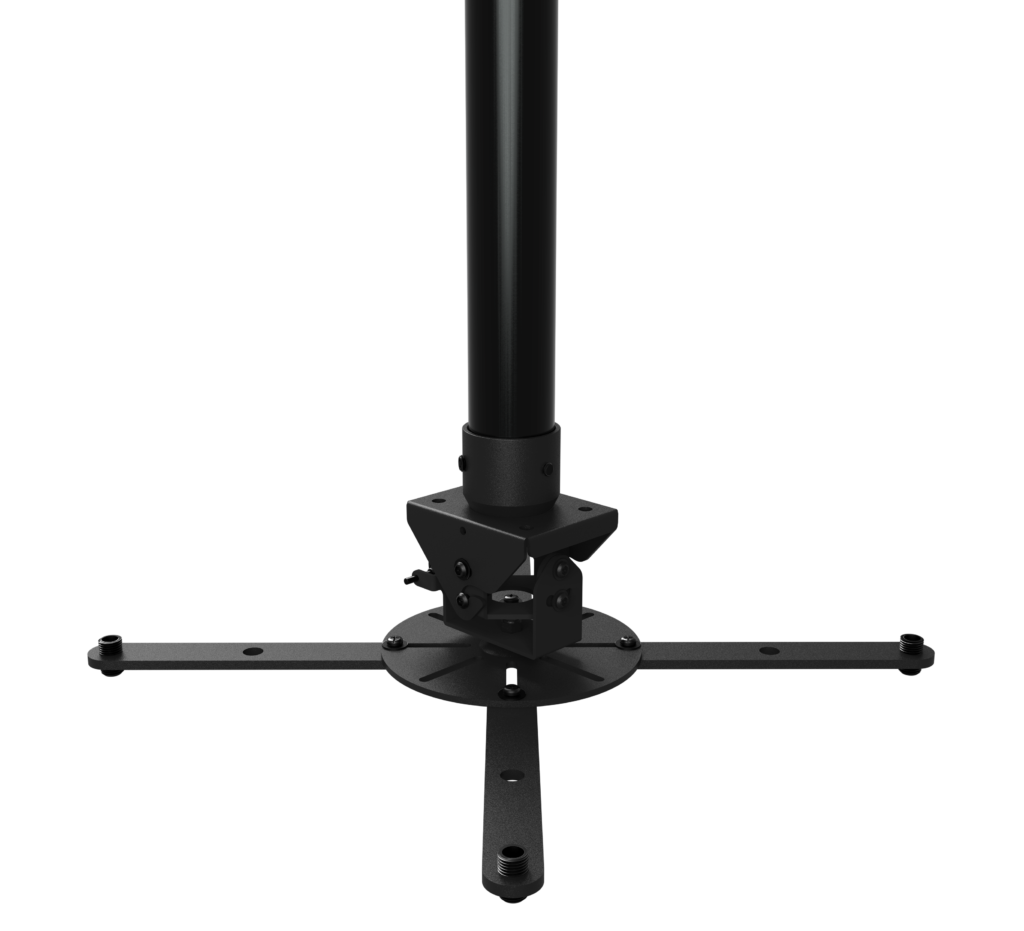

  • Can be mounted directly to the ceiling or onto a pole
  • The 52mm collar is compatible with 50mm (2") pole systems including B-Tech System 2 and 1.5" NPT pipe systems
  • Pre-assembled for simple three step installation
  • Micro-adjustment for short throw projectors
  • Security locking screws and allen key provided for a secure installation

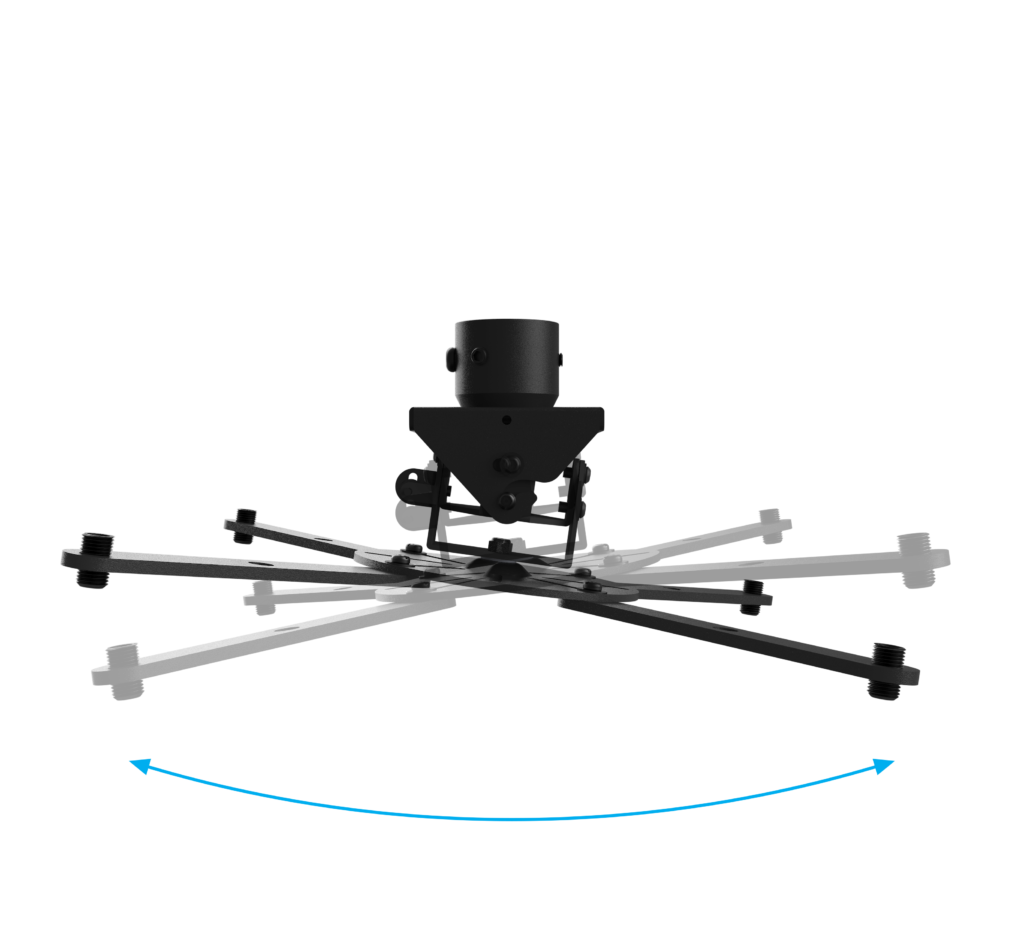

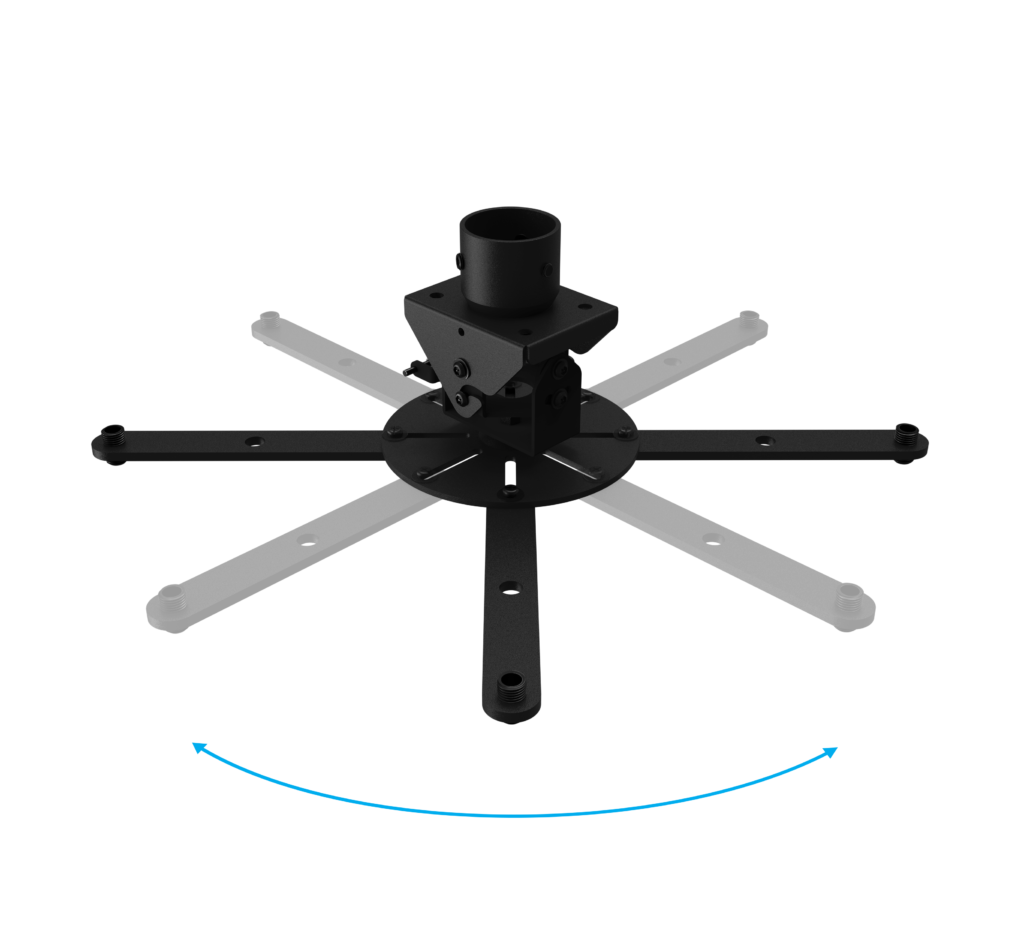

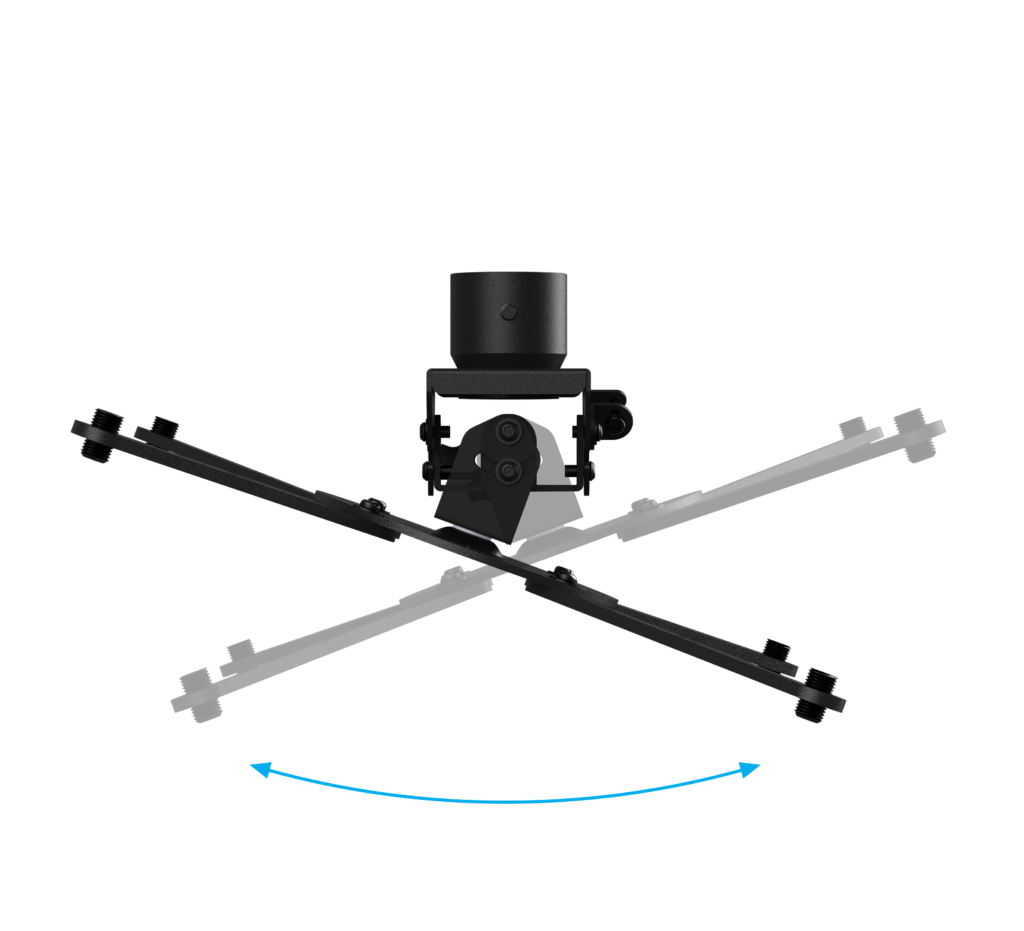

  • Unique ‘Carousel’ mounting plate for universal compatibility
  • Suitable for projectors using M2.5, M3, M4, M5 and M6 fixings
  • All mounting hardware included

Product Specifications

  • Max load: 25kg (55lbs)
  • For pole diameter: 50mm
  • Tilt: +/-13°
  • Yaw: 360°
  • Roll: +/-6°
  • Max distance between fixings: 493mm
  • Max product width: 522mm
  • Max product depth: 522mm
  • Ceiling drop: 98.5mm (3.9")
  • Colour options: Black, White
