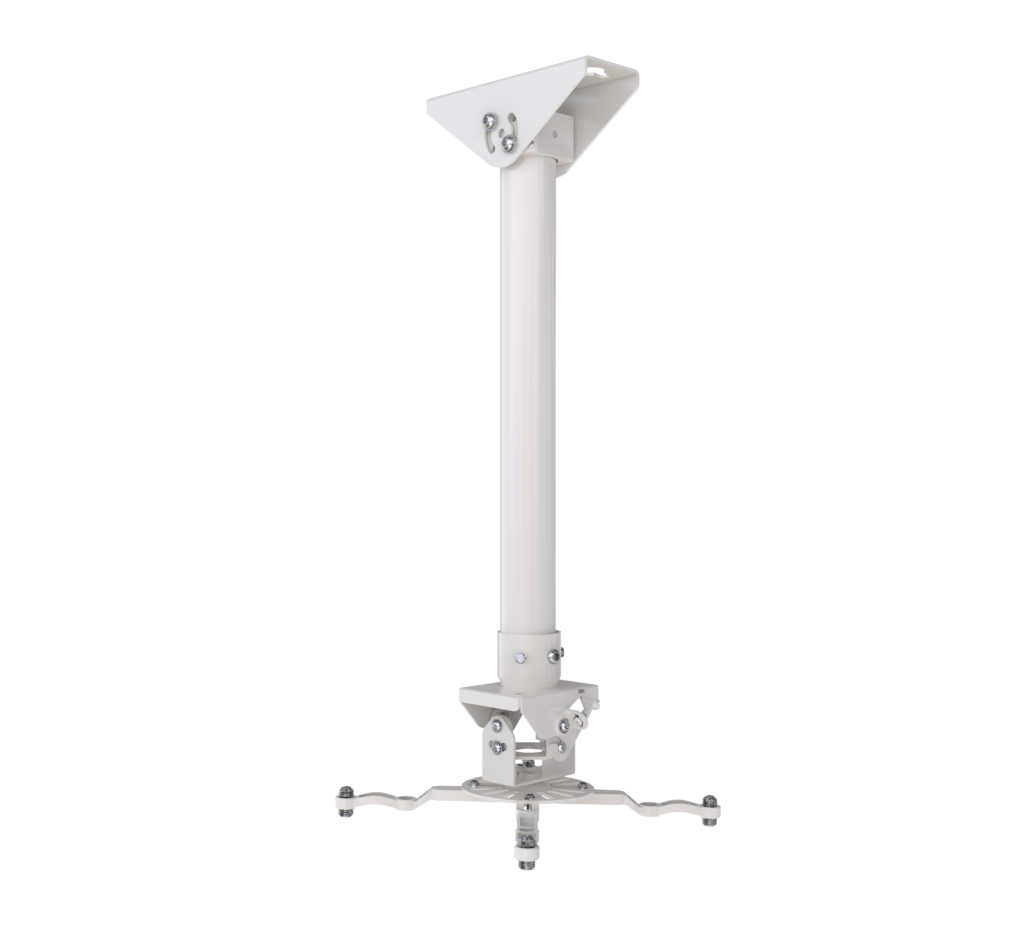

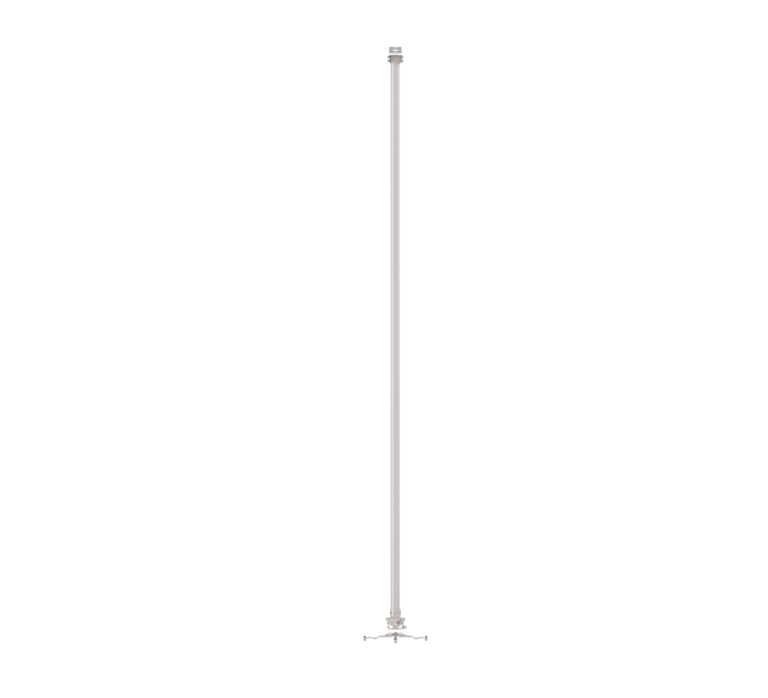

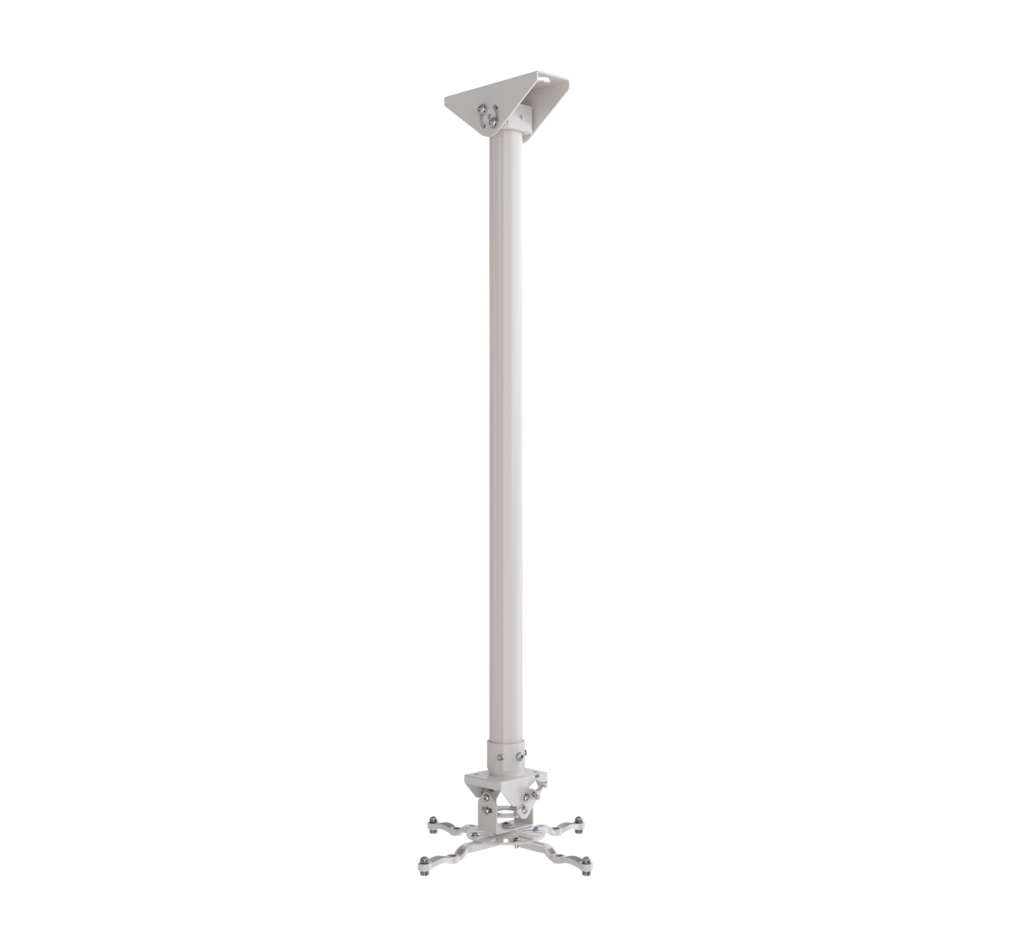

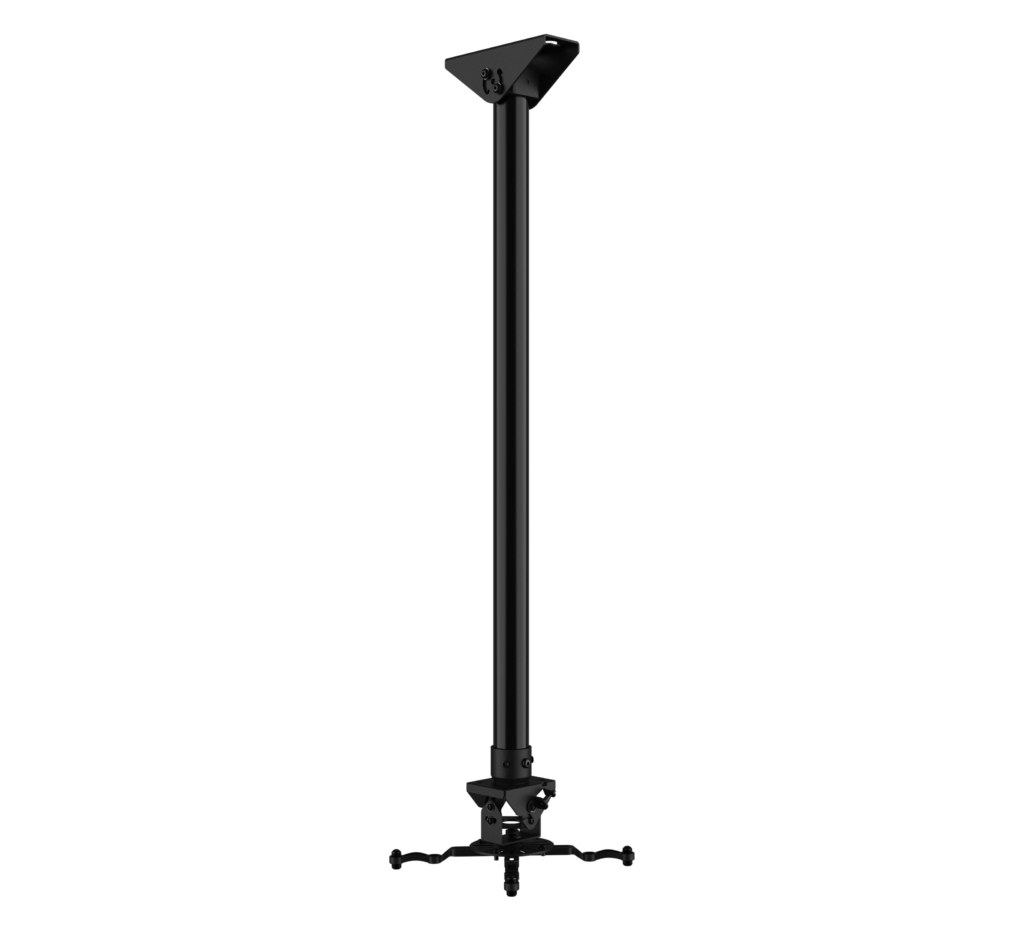

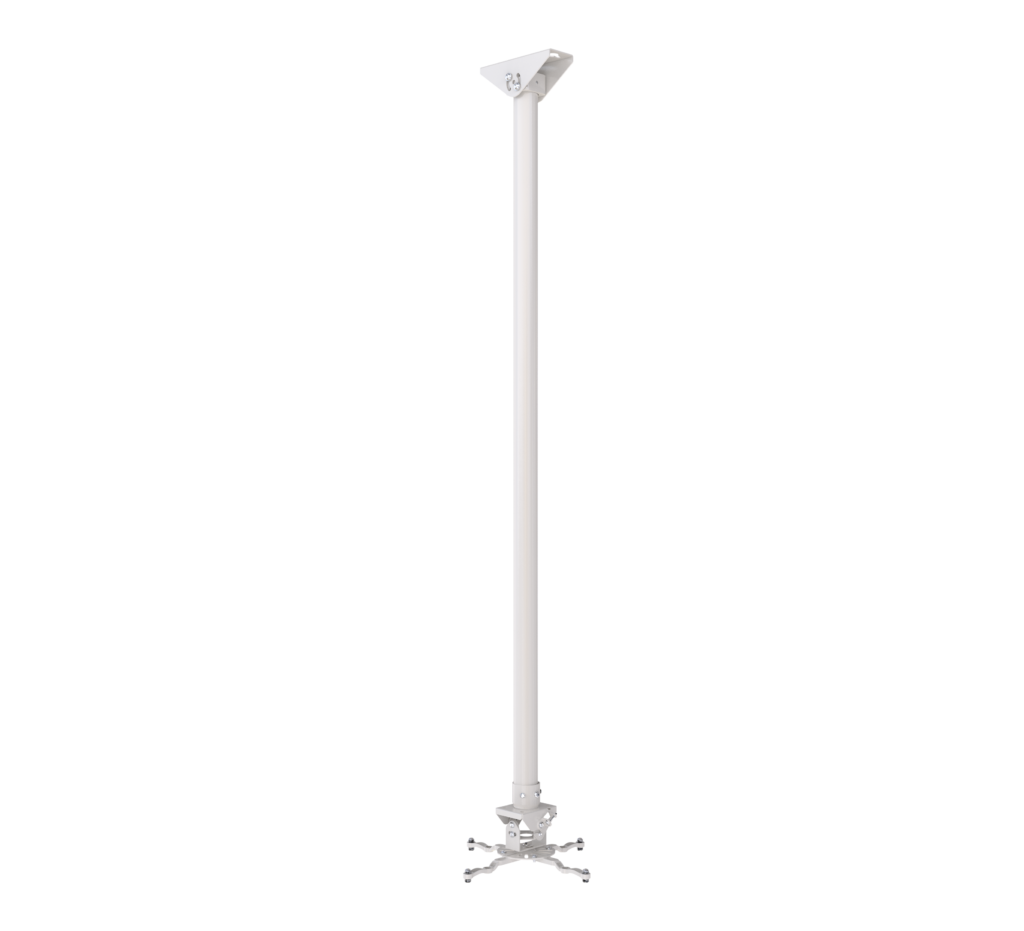

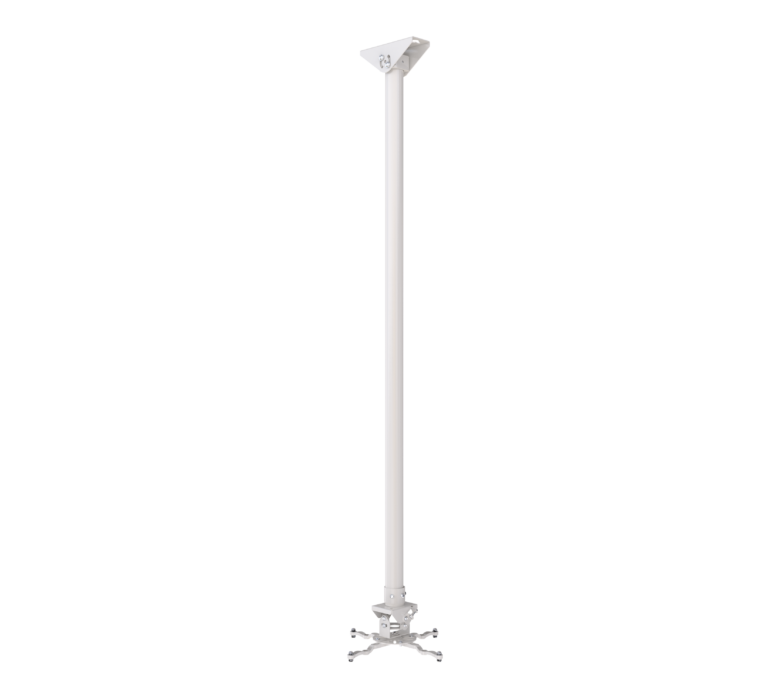

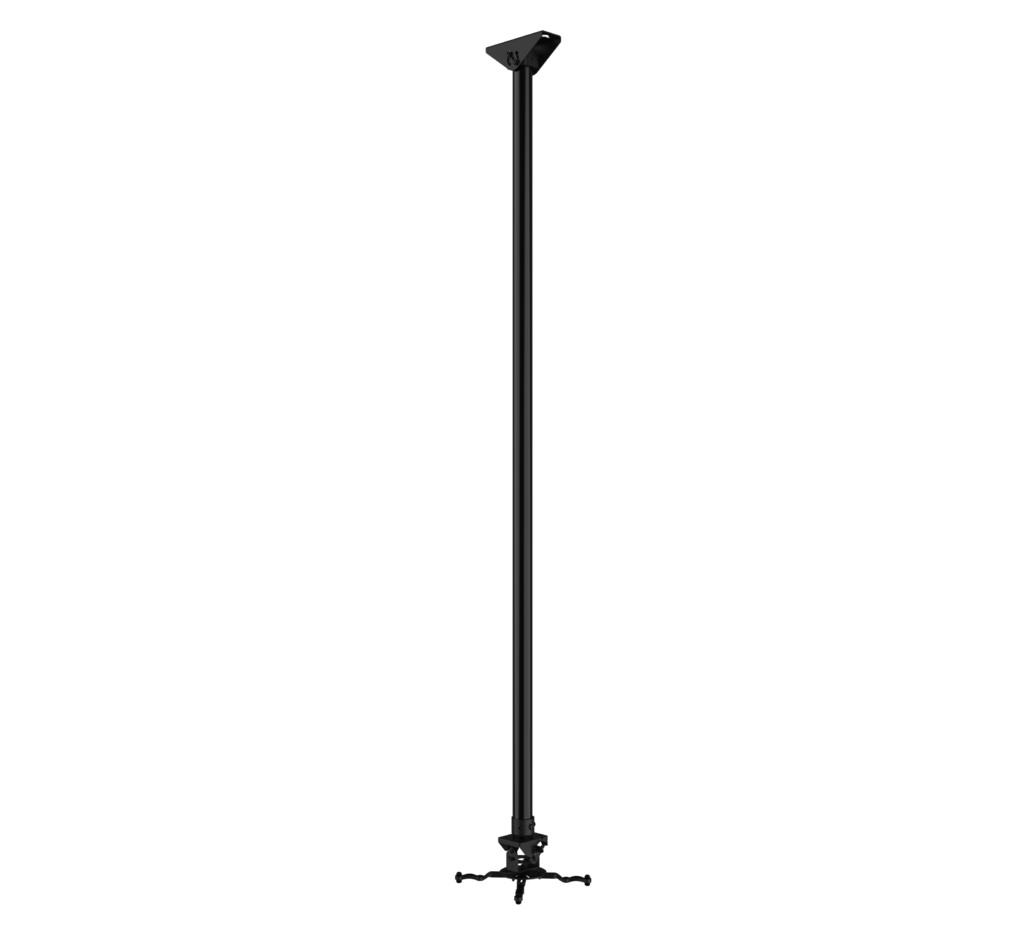

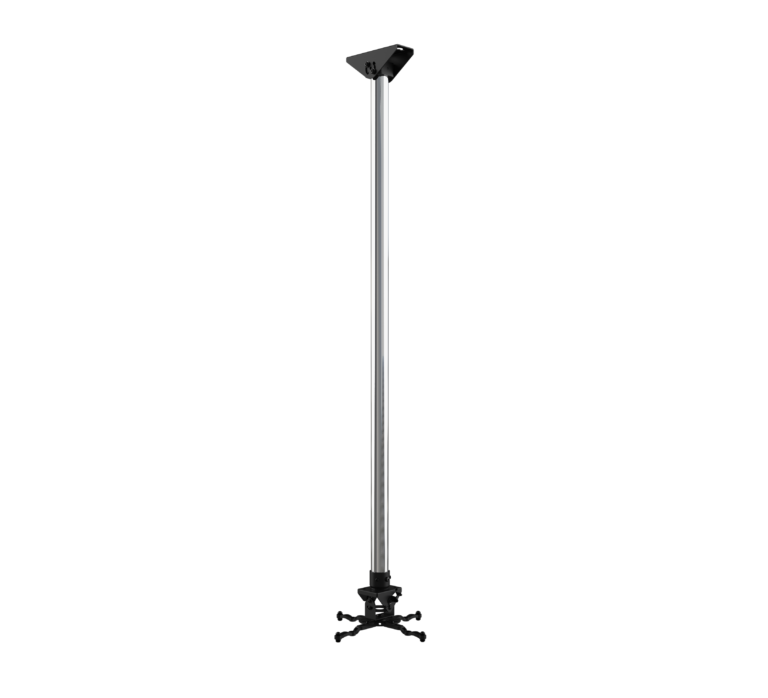

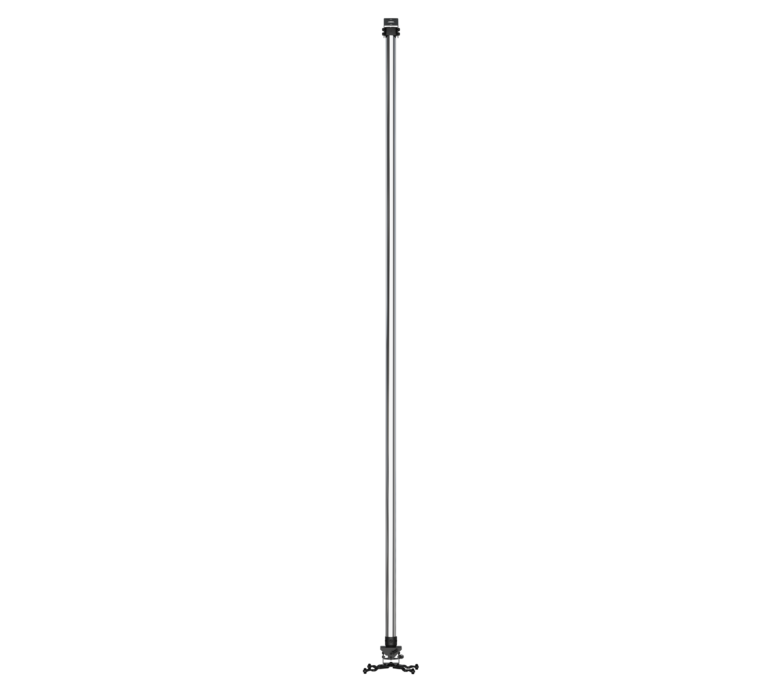

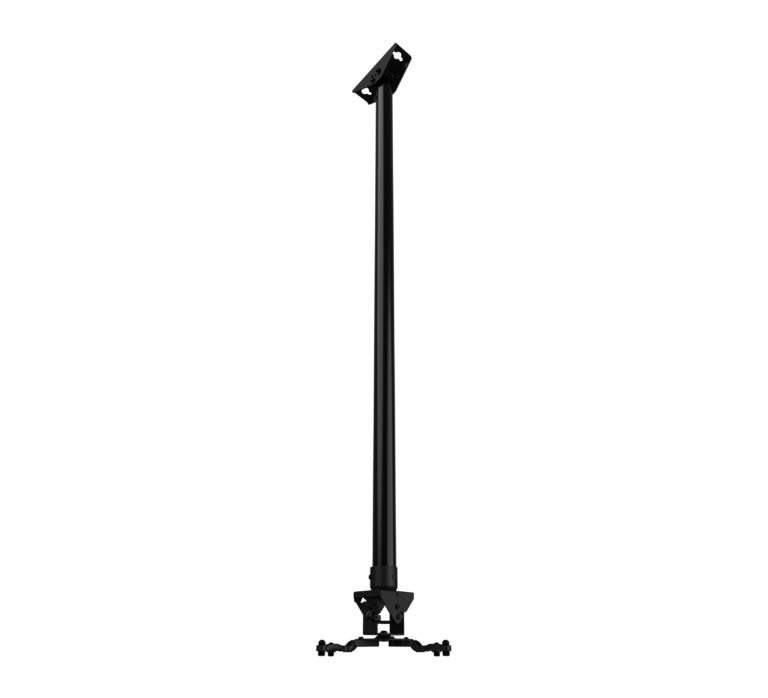

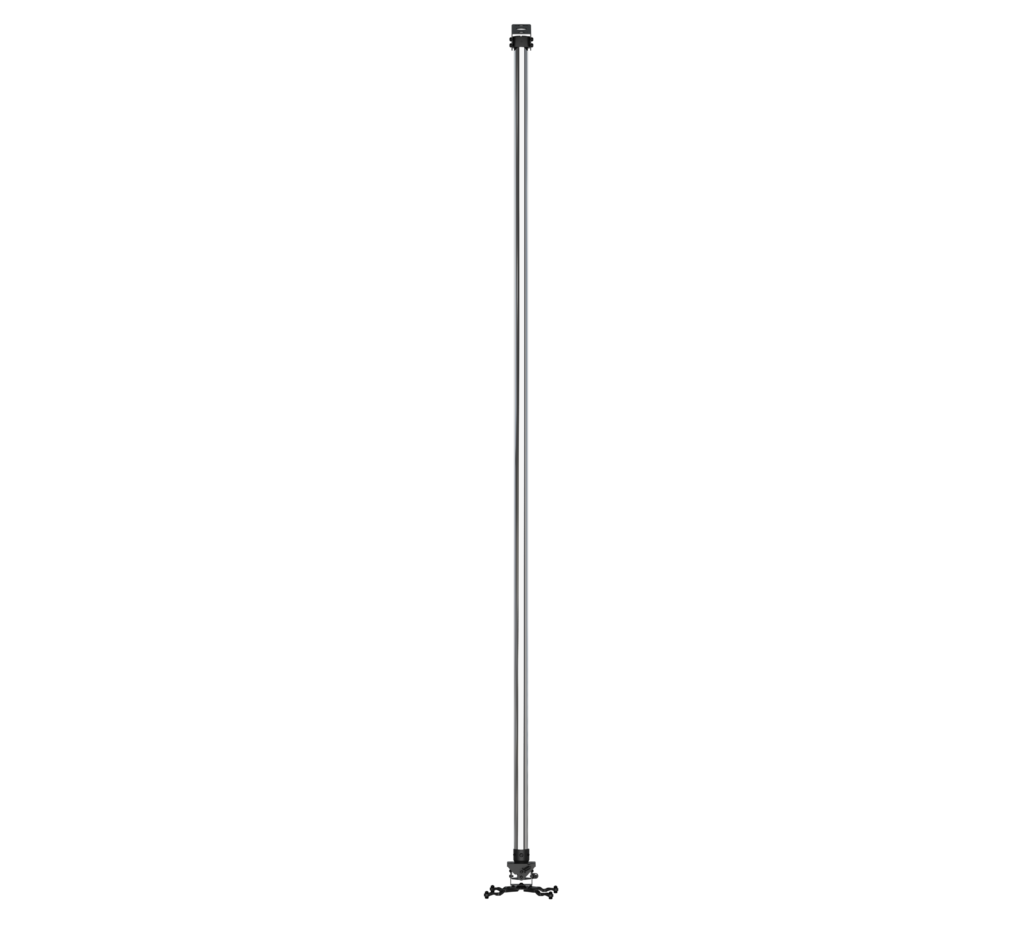

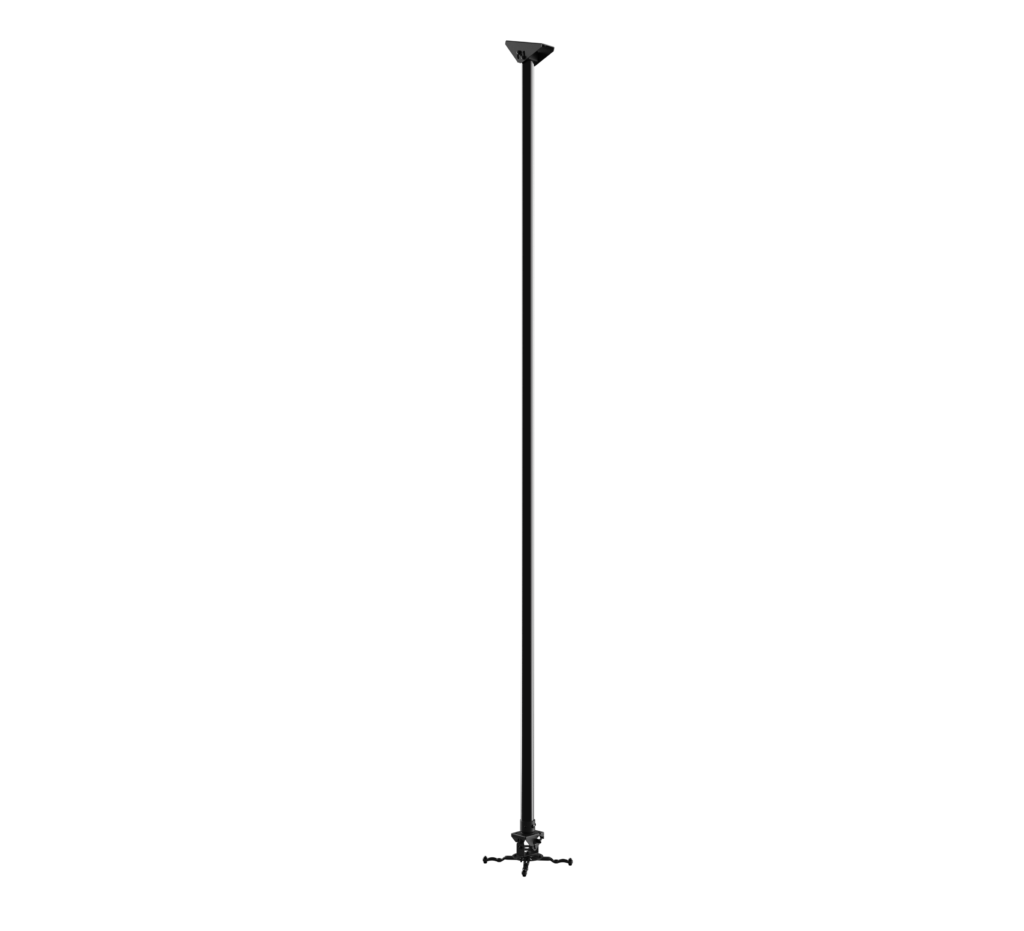

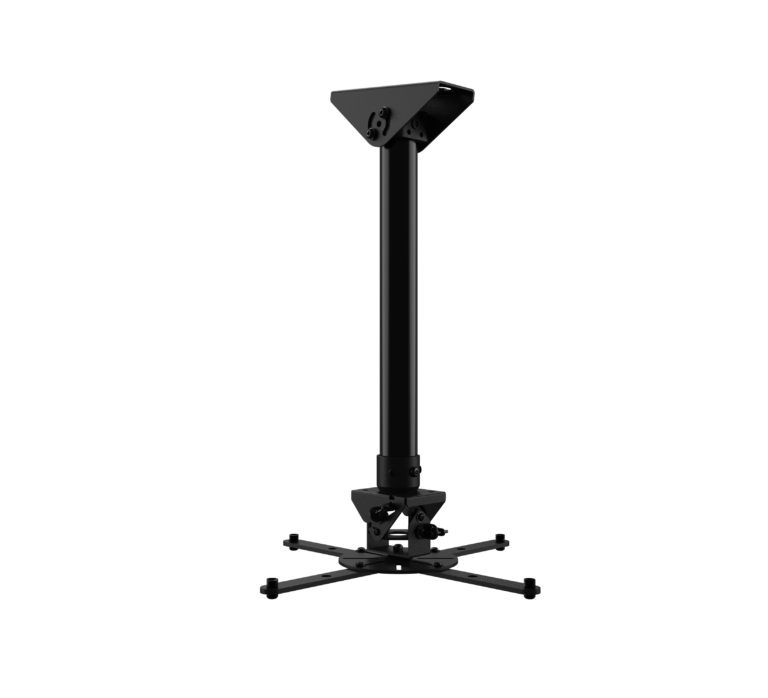

BT899-FD
Fixed Drop Projector Ceiling Mount
With Micro Adjustment
BlackBlackBlackBlackBlackBlack & ChromeBlack & ChromeBlack & ChromeBlack & ChromeBlack & ChromeWhiteWhiteWhiteWhite
Product Features
- Designed to mount heavy duty projectors from the ceiling
- Features easy, incremented tilt adjustment

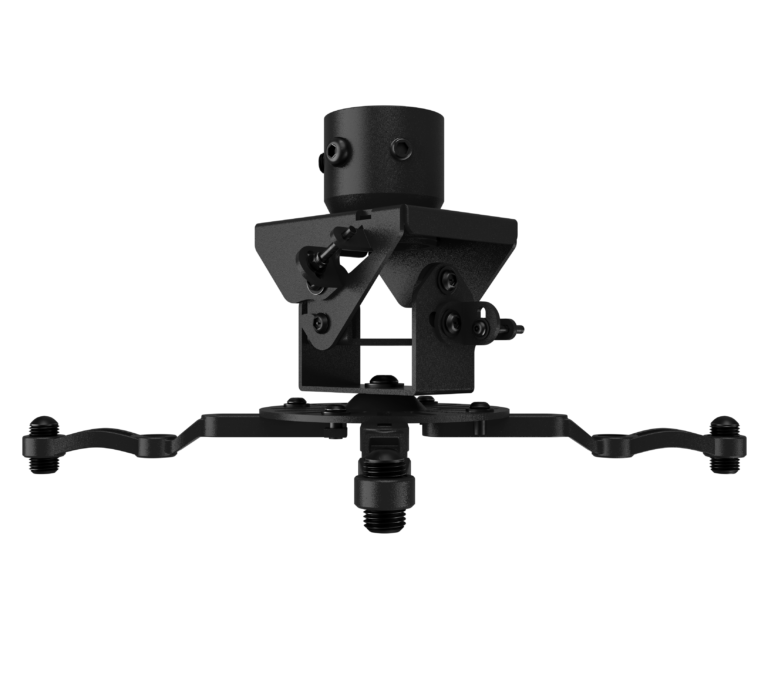

- Extendable mounting plate features 4-point micro-adjustment for perfect alignment of the projected images
- Micro-adjustment is altered using thumbwheels for better grip and a more controlled adjustment
- Quick and easy assembly

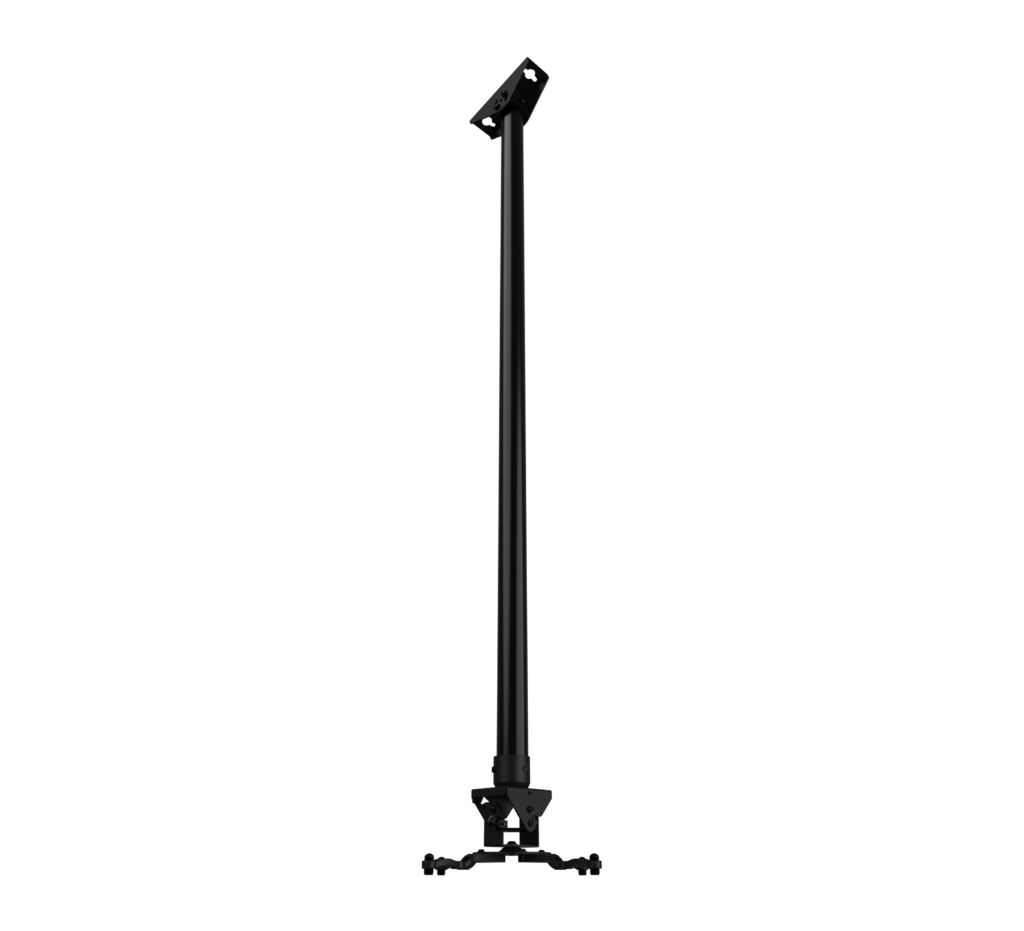

- Adjustable ceiling plate suitable for angled ceilings
- Optional extension legs can be used to accommodate larger fixing patterns
- Ø50mm pole is internally unobstructed for cables to pass through easily
- Suitable for projectors using M6, M8, M10 and M12 fixings
Product Specifications
- Available pole lenghts: 0.5m, 1m, 1.5m, 2m, 3m
- Max load: 25kg (55lbs)
- Pole diameter: 50mm
- Tilt: +/-13°
- Yaw: 360°
- Roll: +/-6°
- Max distance between fixings: 370mm
- Tilt at ceiling: 90°
- Colour options: Black, White, Chrome
- BT899-FD150: 1.5m (59") Pole
- BT899-FD200: 2m (78.7") Pole
- BT899-FD300: 3m (118.1") Pole
- Colour options: Black, White or Chrome pole
