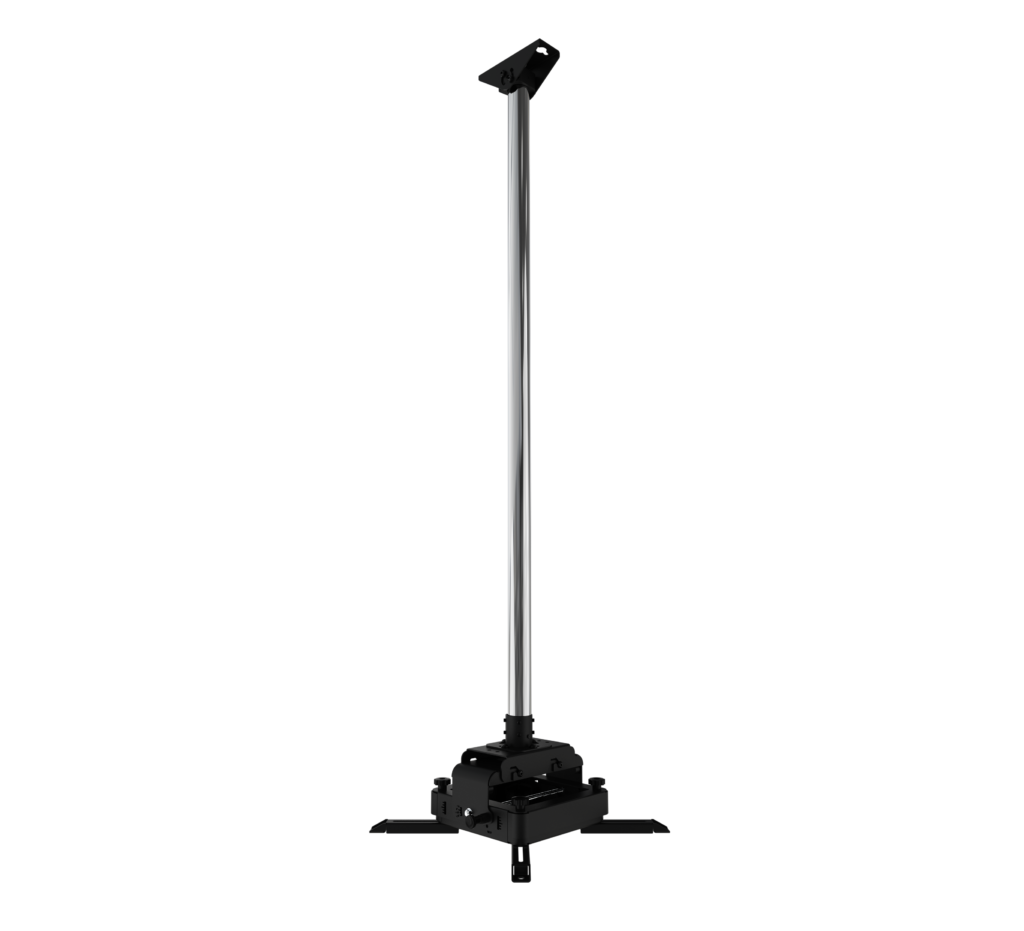

BT893-FD150-BC
Fixed Drop Heavy Duty Projector Ceiling Mount
For Projectors up to 70kg
BlackBlackBlackBlackBlackBlack & ChromeBlack & ChromeBlack & ChromeBlack & ChromeBlack & ChromeBlack & WhiteBlack & WhiteBlack & WhiteBlack & White
Product Features

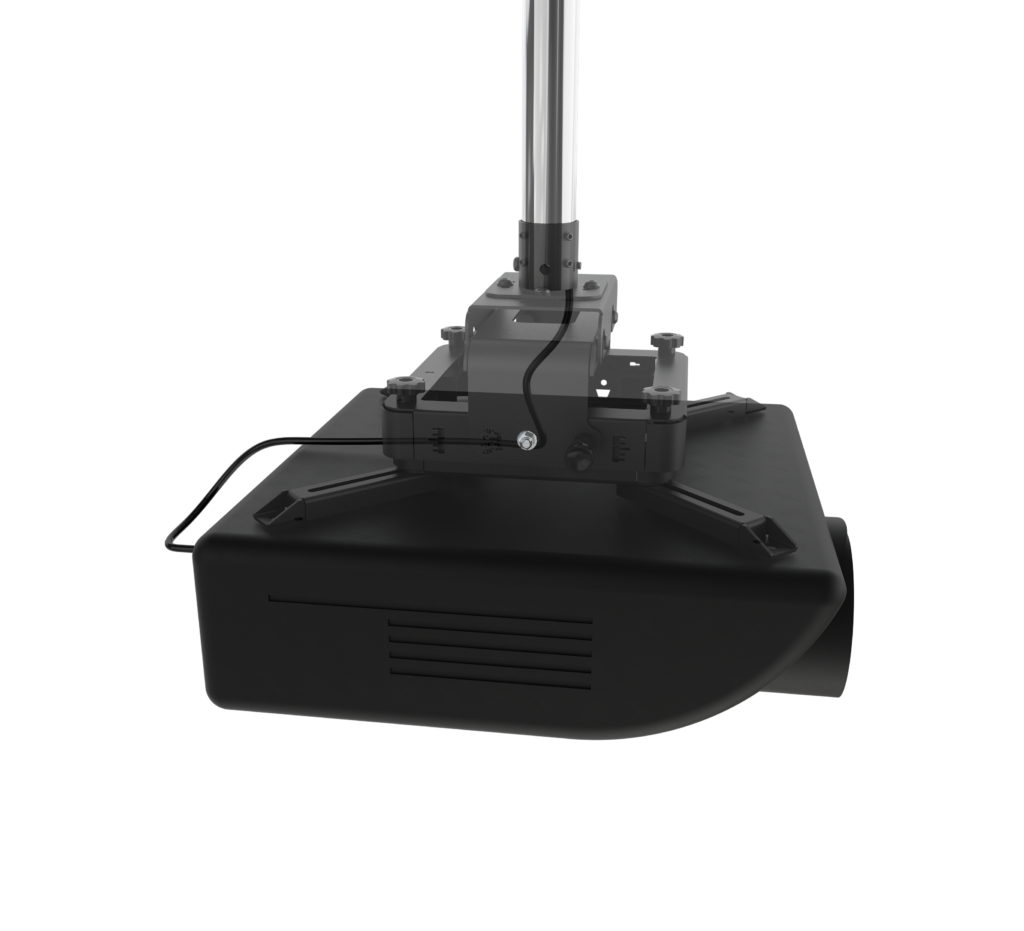

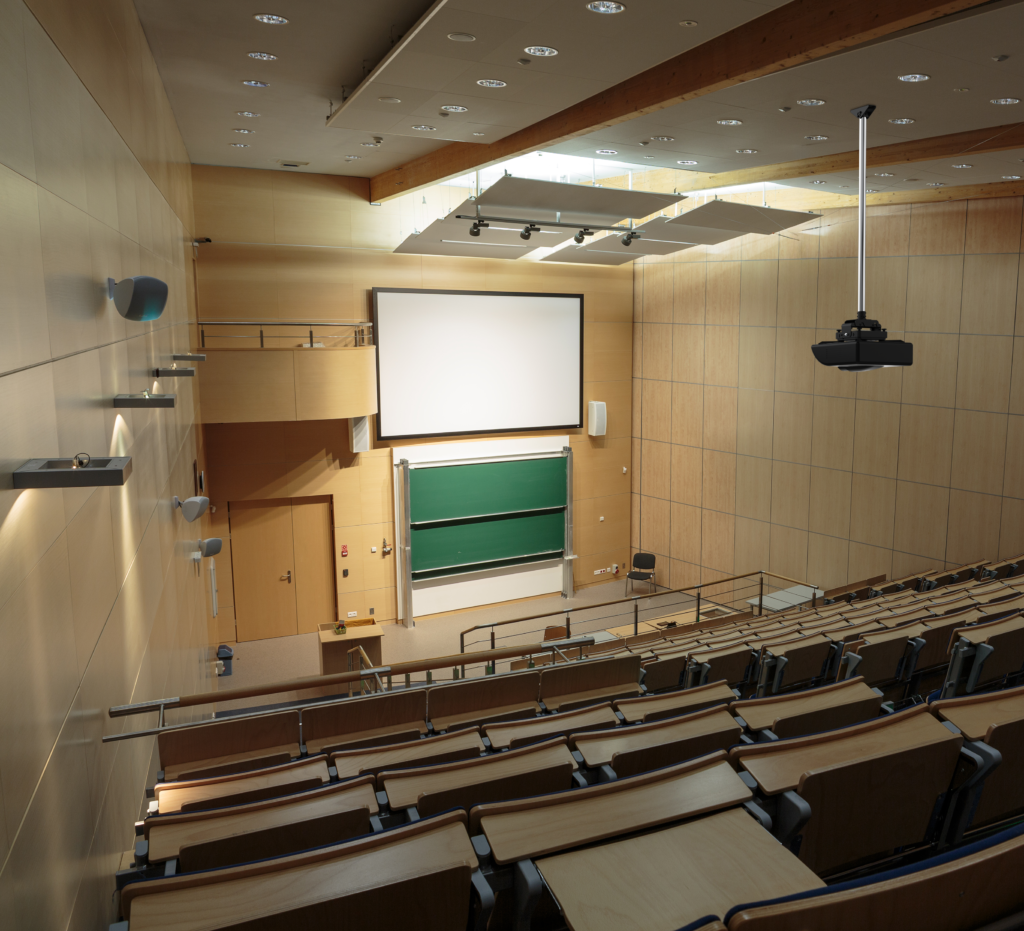

- Designed to mount heavy duty projectors from the ceiling
- Features easy, incremented tilt adjustment

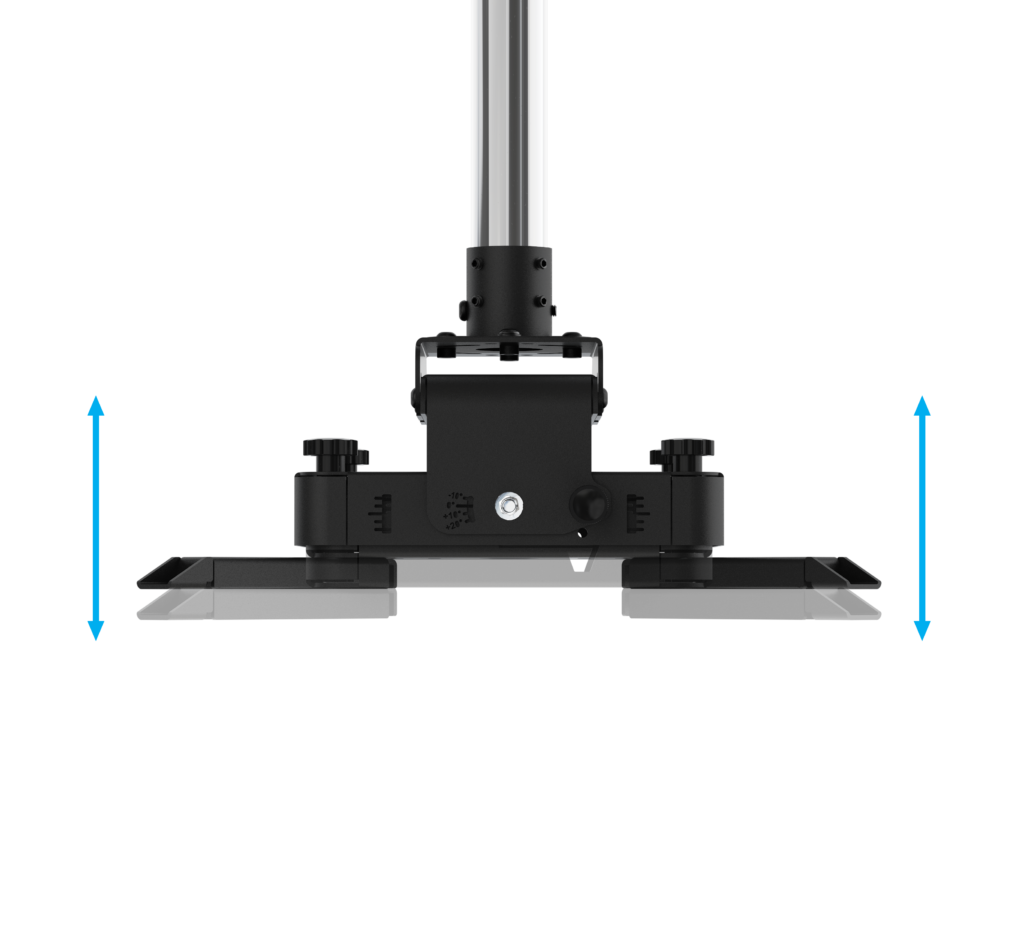

- Extendable mounting plate features 4-point micro-adjustment for perfect alignment of the projected images
- Micro-adjustment is altered using thumbwheels for better grip and a more controlled adjustment
- Quick and easy assembly

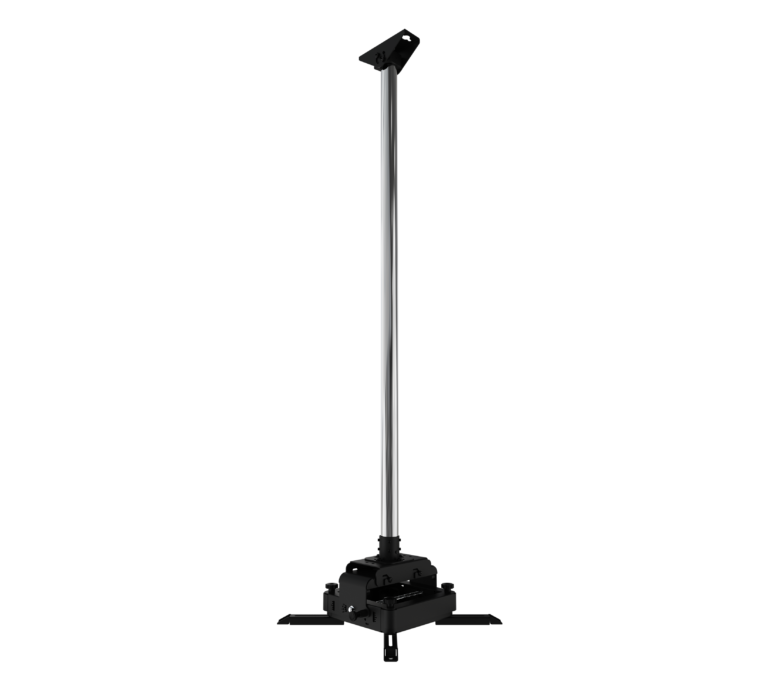

- Adjustable ceiling plate suitable for angled ceilings
- Optional extension legs can be used to accommodate larger fixing patterns
- Ø50mm pole is internally unobstructed for cables to pass through easily
- Suitable for projectors using M6, M8, M10 and M12 fixings
Product Specifications

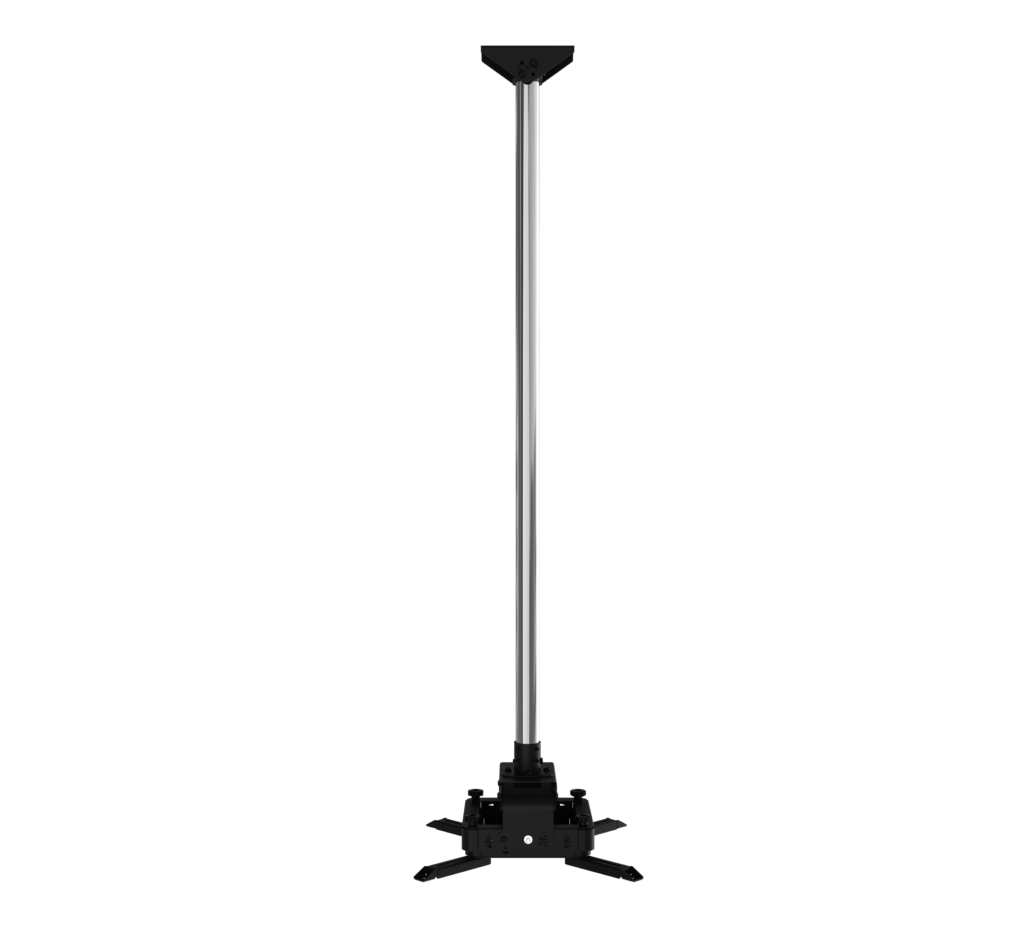

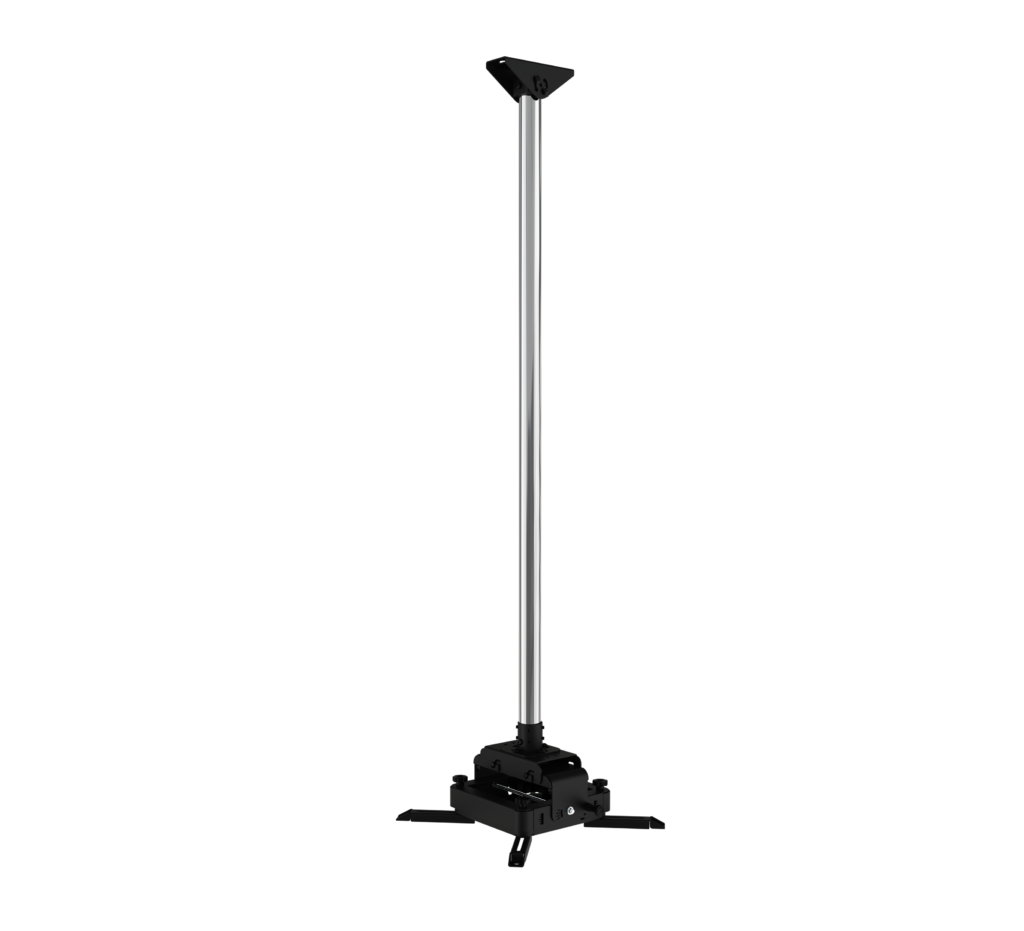

- Pole length: 1.5m
- Max load: 70kg (155lbs)
- Max distance between fixings: 873mm (34.4")
- Max square distance between fixings: 618mm (24.3")

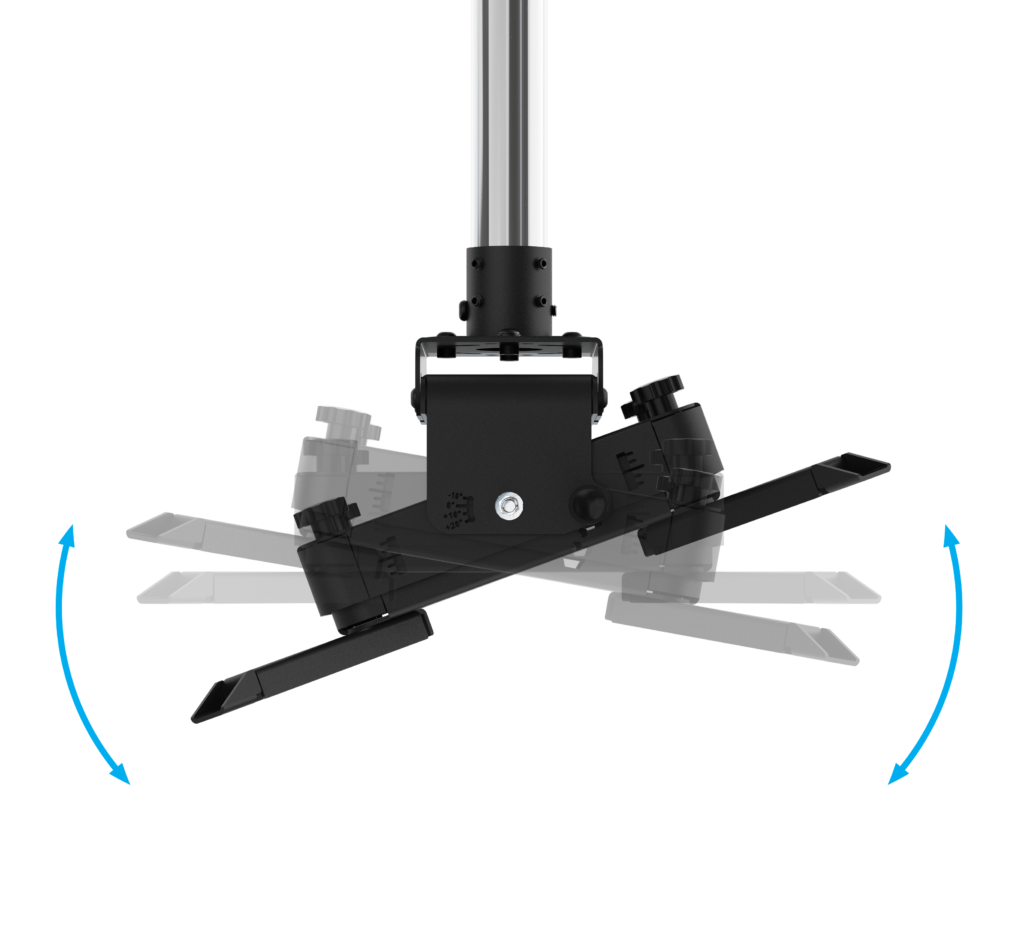

- Tilt: +20°/-10° (+/-5° with micro-adjustment)
- Tilt at ceiling: 90°

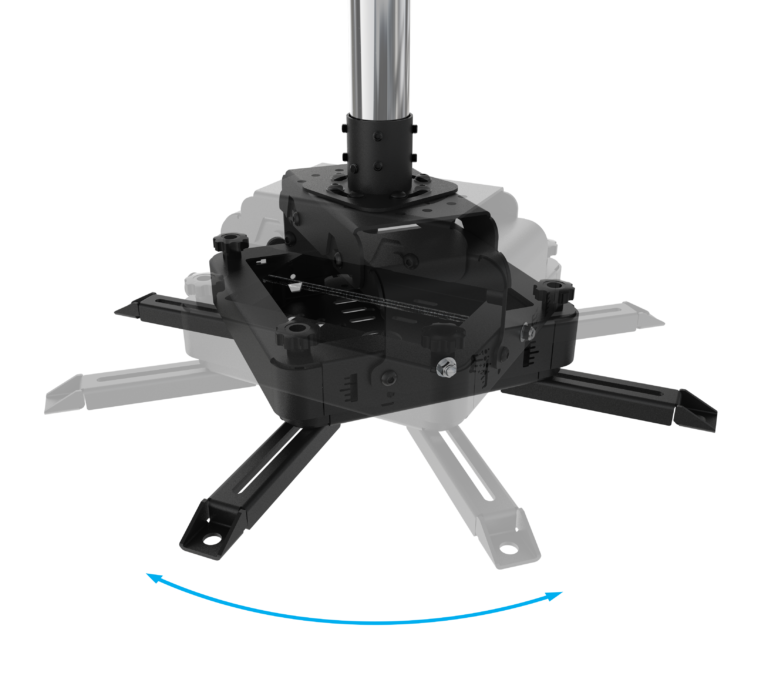

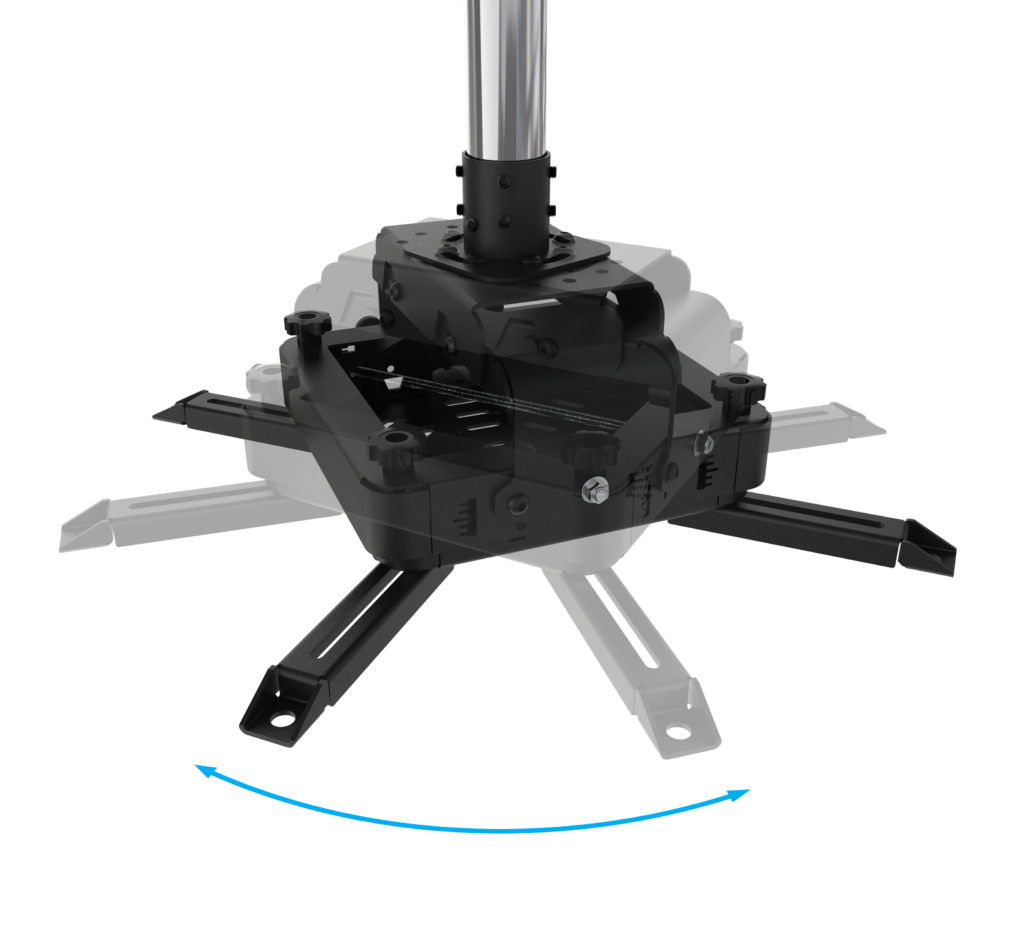

- Yaw (pole mounted): +/-45°
- Roll: +/-5°

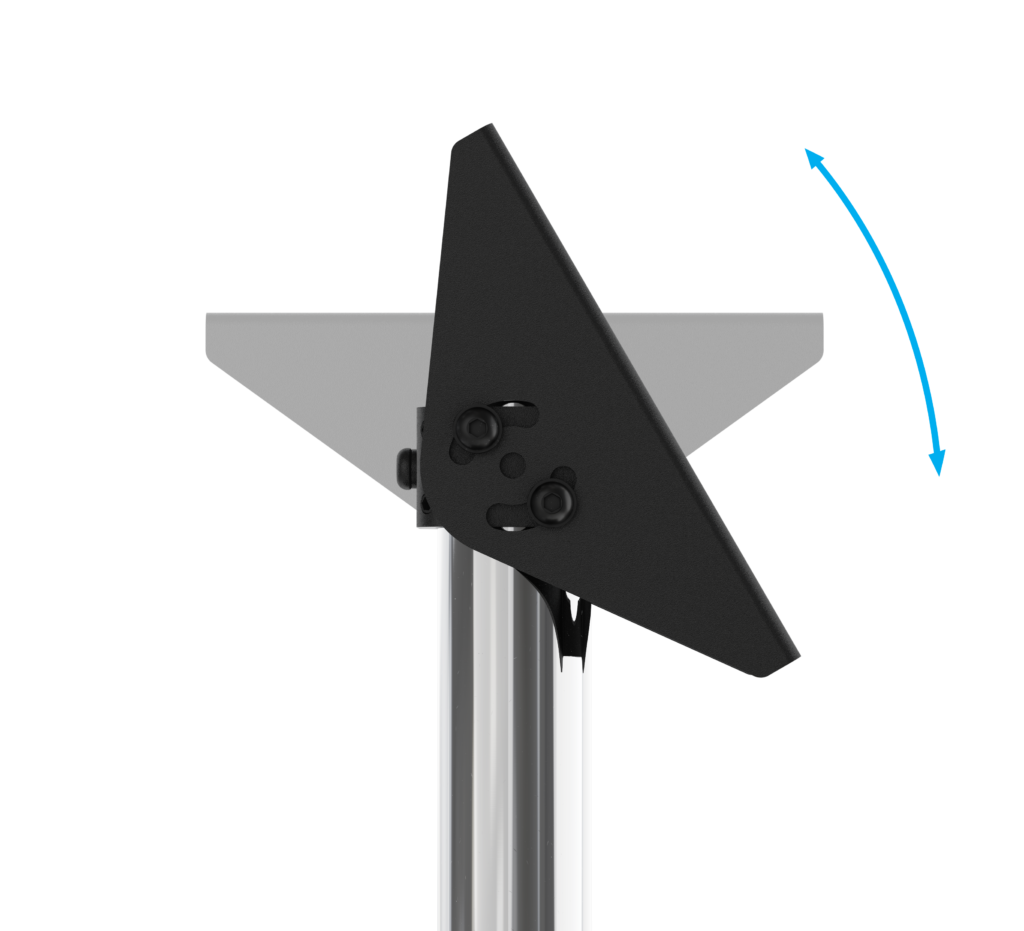

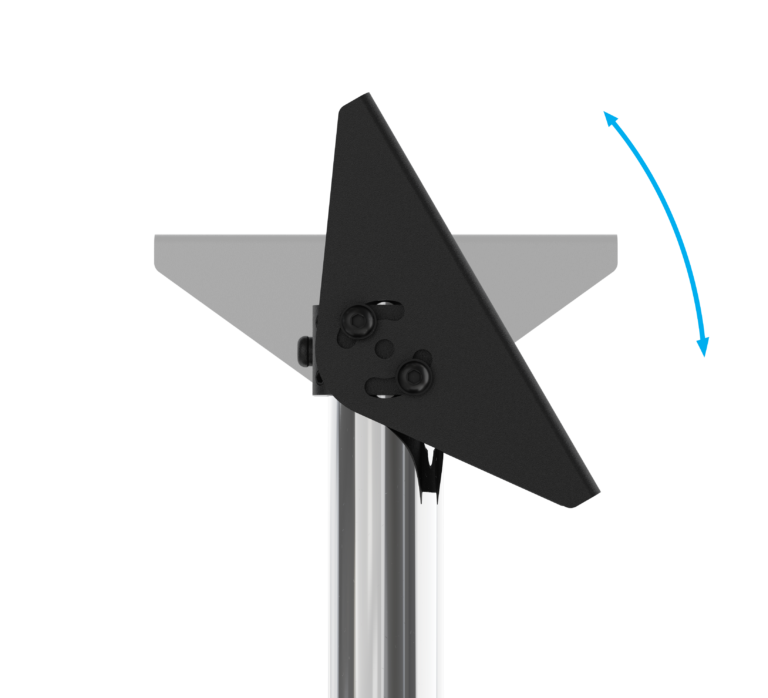

- Ceiling plate tilt: 90°
- Colour: Black & Chrome
- BT893-FD200: 2m (78.7") pole
- BT893-FD300: 3m (118.1") pole
- Max distance (between fixings): 873mm (34.4")
- Max distance (square fixing pattern): 618mm (24.3")
- Colour: Black or Chrome
