BT8527
XL Twin Screen VC Stand
For twin screens up to 75"
Black
Black & Silver
Choose product version by code
BT8527-B
BT8527-BS
Enquire Today
View Related Products
Product Features

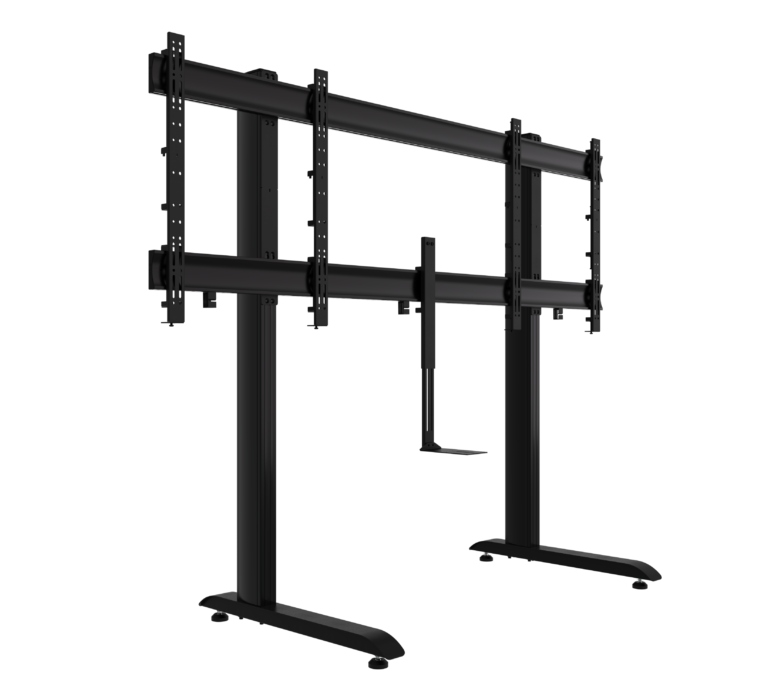

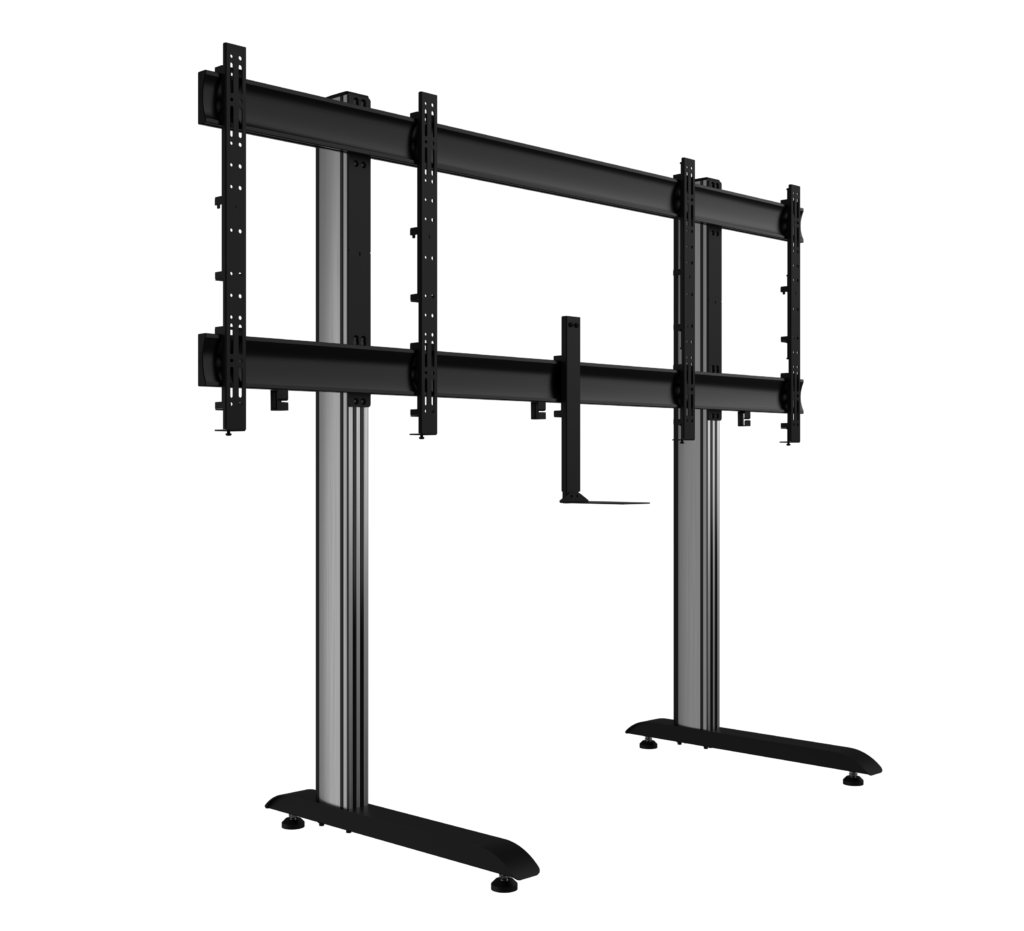

Universal design suitable for mounting two 75" screens side by side

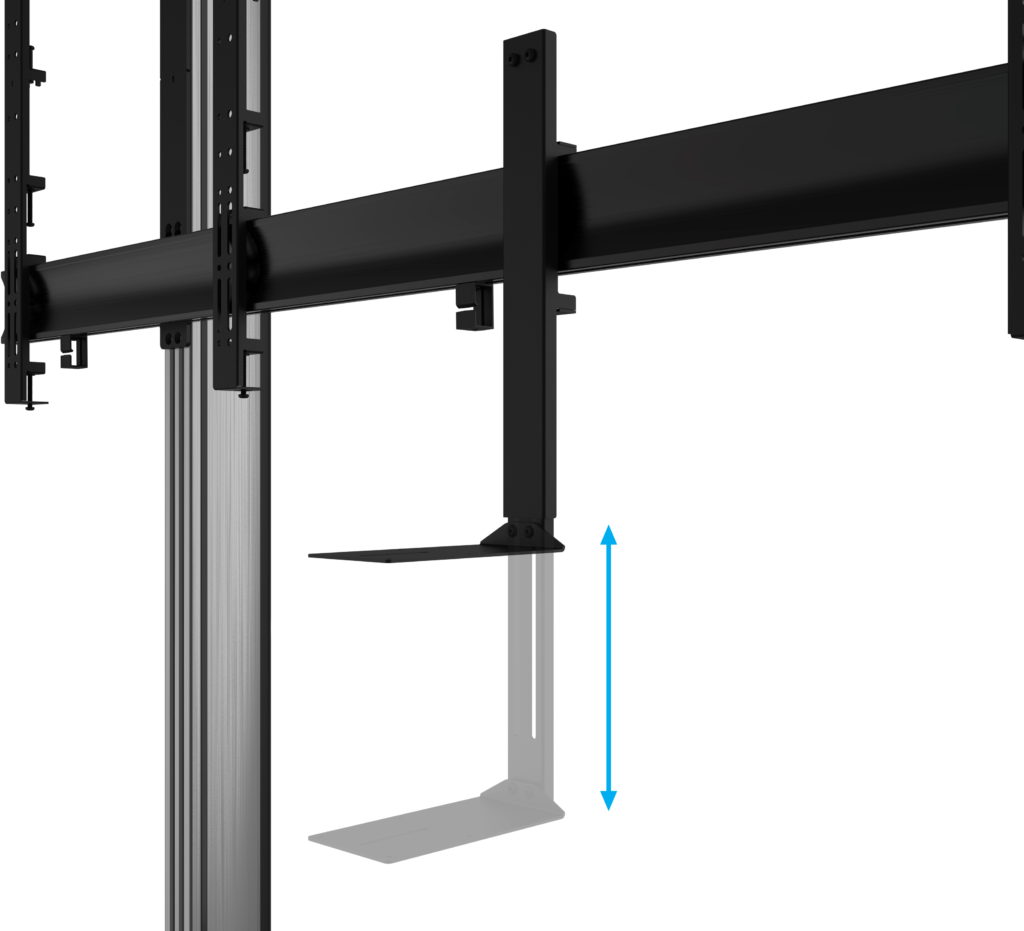

Adjustable mounting arm mounts the included VC shelf above or below the screen
Interface arms include levelling screws to adjust the screen height
Integrated cable management for a smart installation
Safety screws help prevent unauthorised screen removal
VC shelf fits most cameras with 1/4" thread with 100 x 100mm fixing points
Simple 'hook-on' installation
Product Specifications
Recommended display size: 65" up to 75"
Max load: 100kg (220lbs) per screen
Max shelf load: 4kg (9lbs)
VESA® fixings: up to 600mm x 800mm
Column length: 1.8m
Product width: 2450mm
Product depth: 950mm
Product height: 1932.5mm
Shelf depth: 235mm
Shelf width: 120mm
Shelf height: 3mm
Orientation: Landscape
Colour options: Black, Silver & Black
