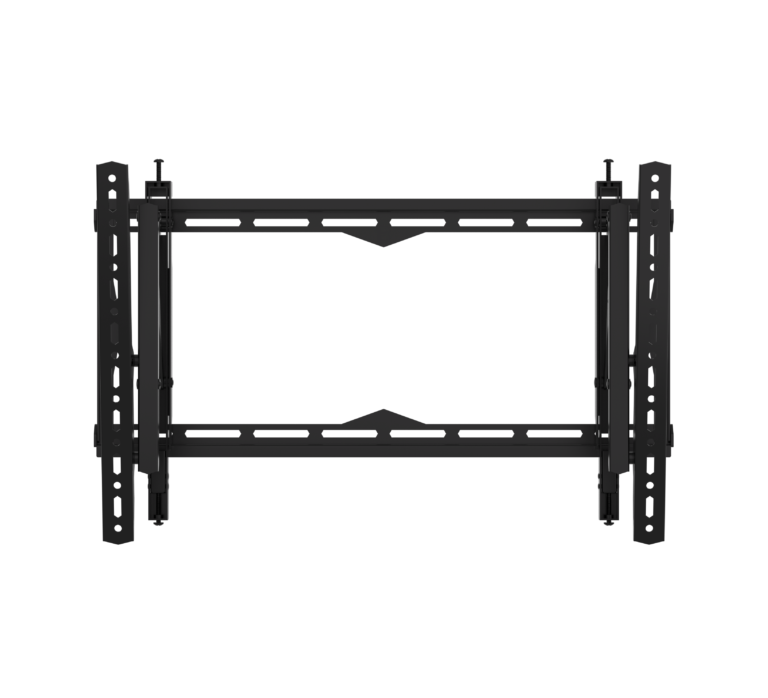

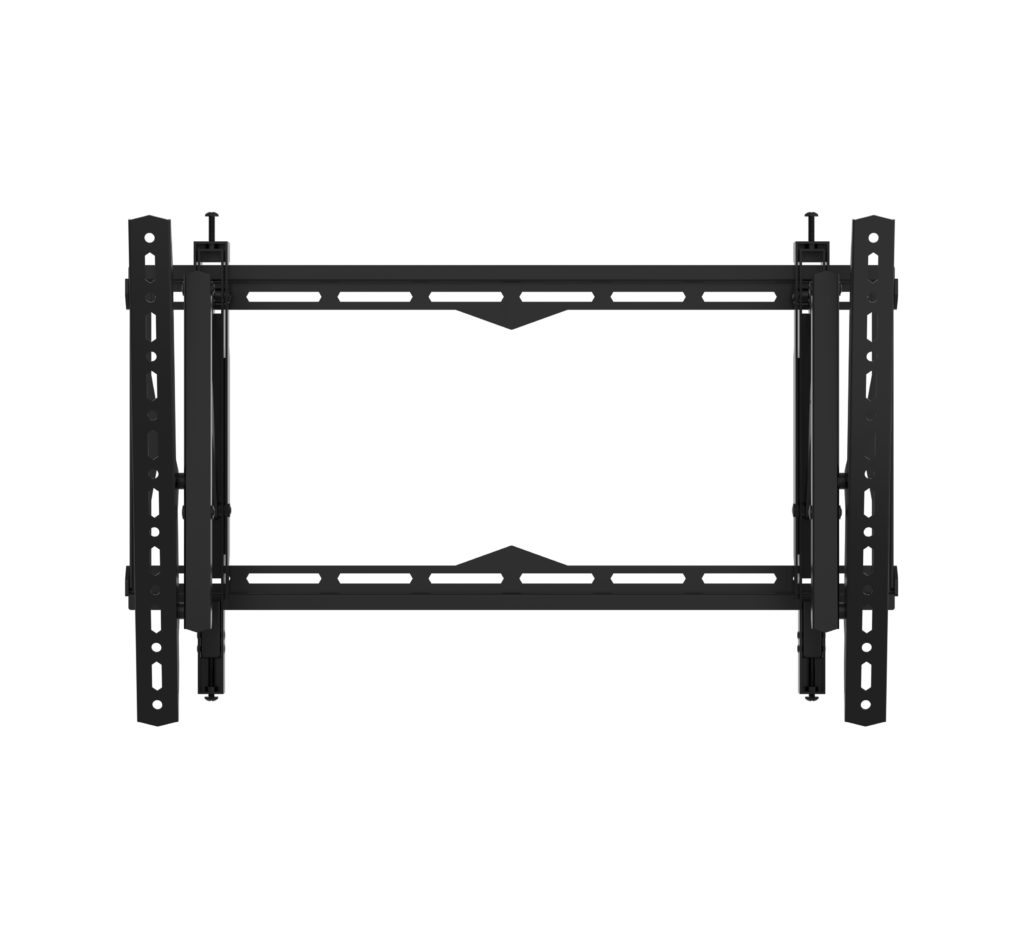

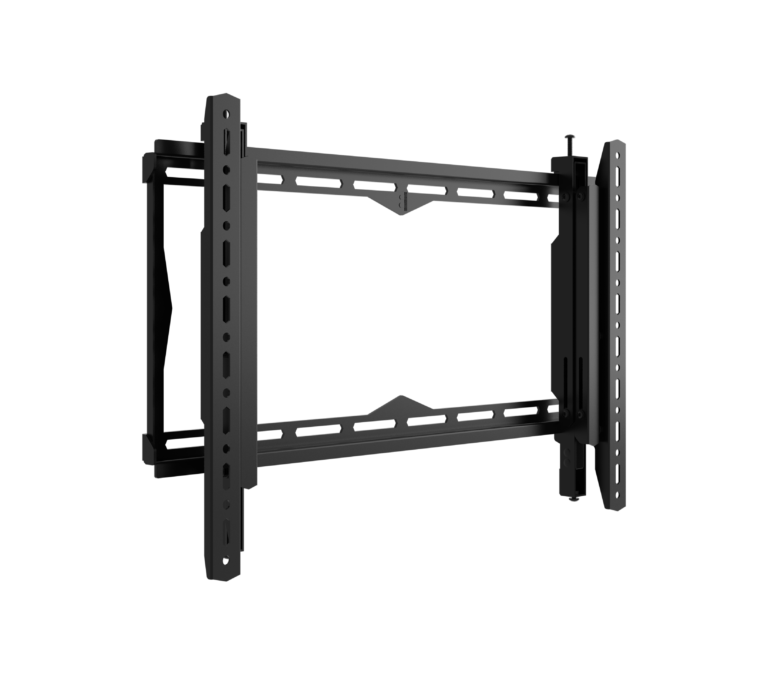

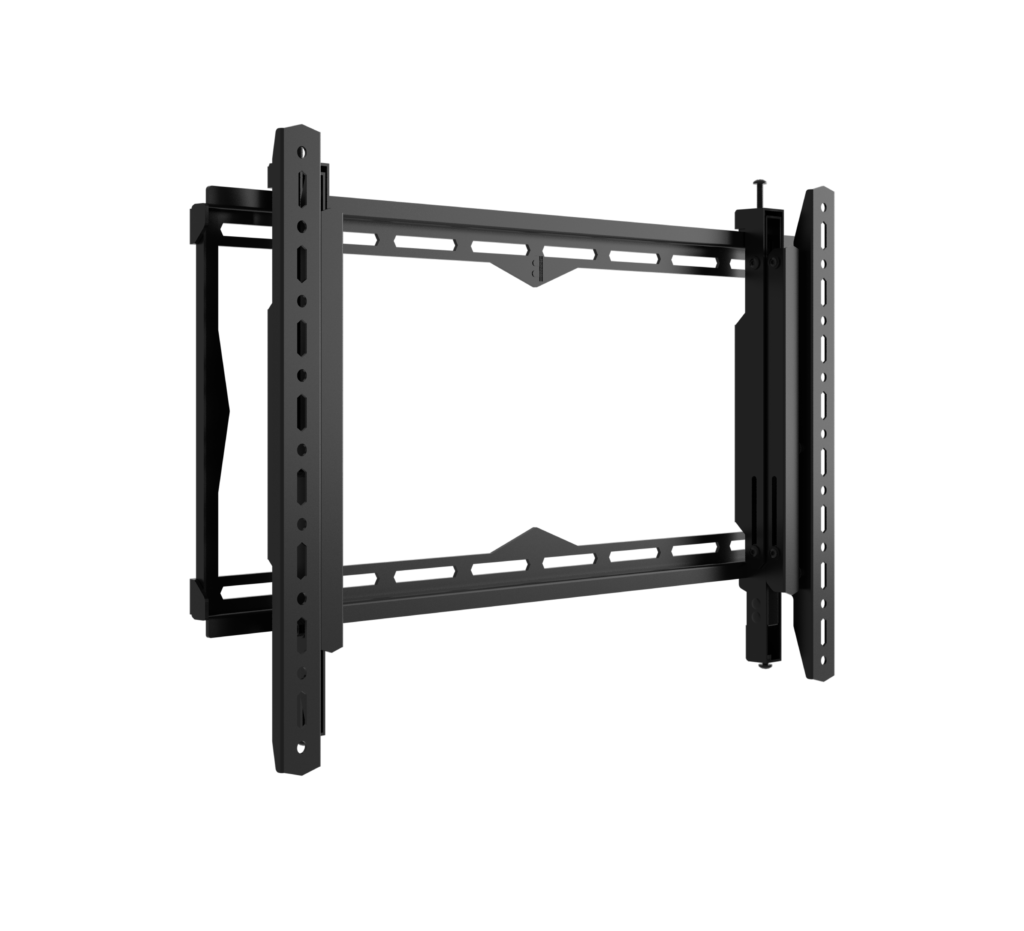

BT8443
Pull Out Flat Screen Wall Mount
For Medium to Large Screens
Overview
B-Tech Elements products offer the core traits that B-Tech is known for: exceptional build quality, strength, and reliability, without some of the premium features typically reserved for our flagship mounts. Designed for large screens, the BT8443 is a pull-out flat screen wall mount with extendable arms that allow the display to swivel and tilt at various angles, which is ideal for recess mounting or for optimising the viewing angle. Capable of supporting displays of up to 35kg, the mount includes a universal interface compatible with VESA patterns up to 650 x 400mm and offers built-in lateral adjustment.
Product Features

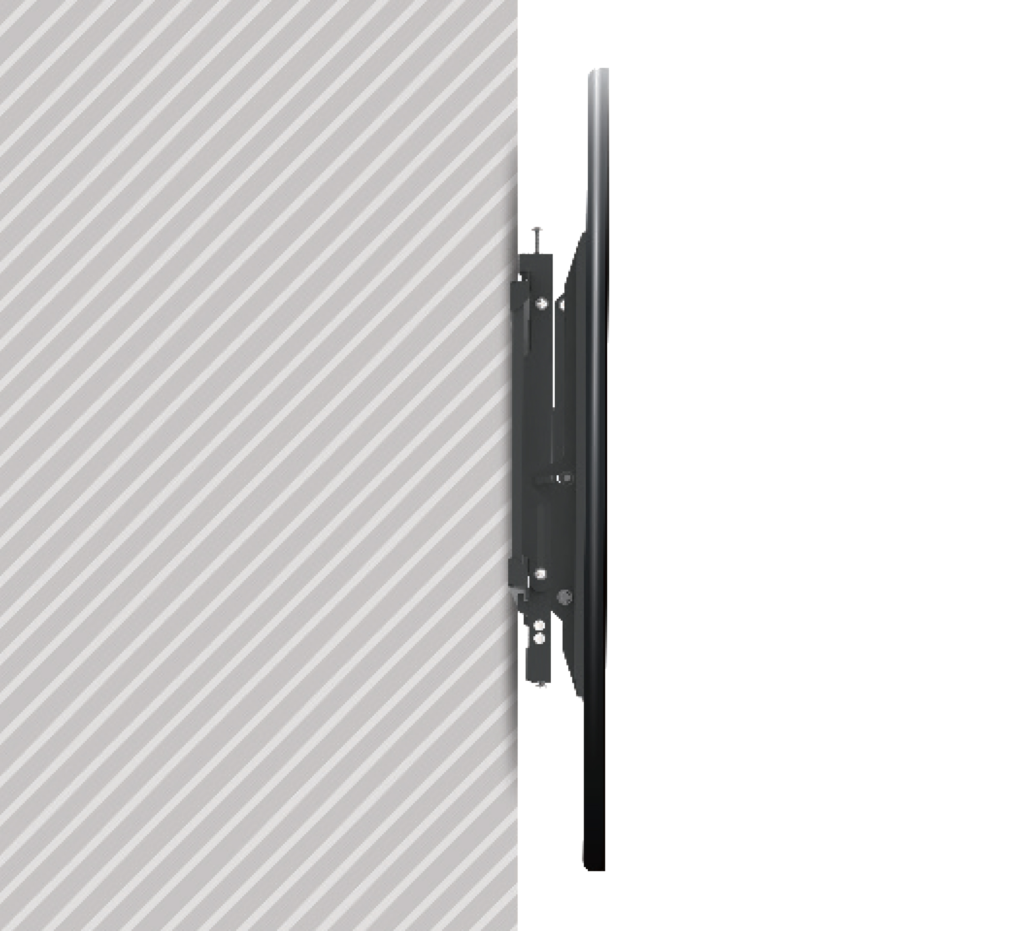

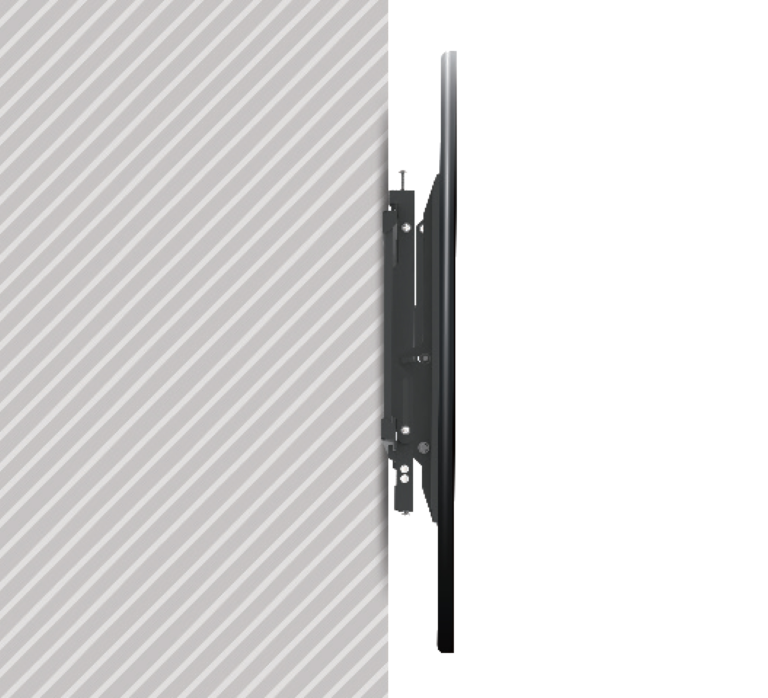

- Mounts just 69mm from the wall when the arms are retracted

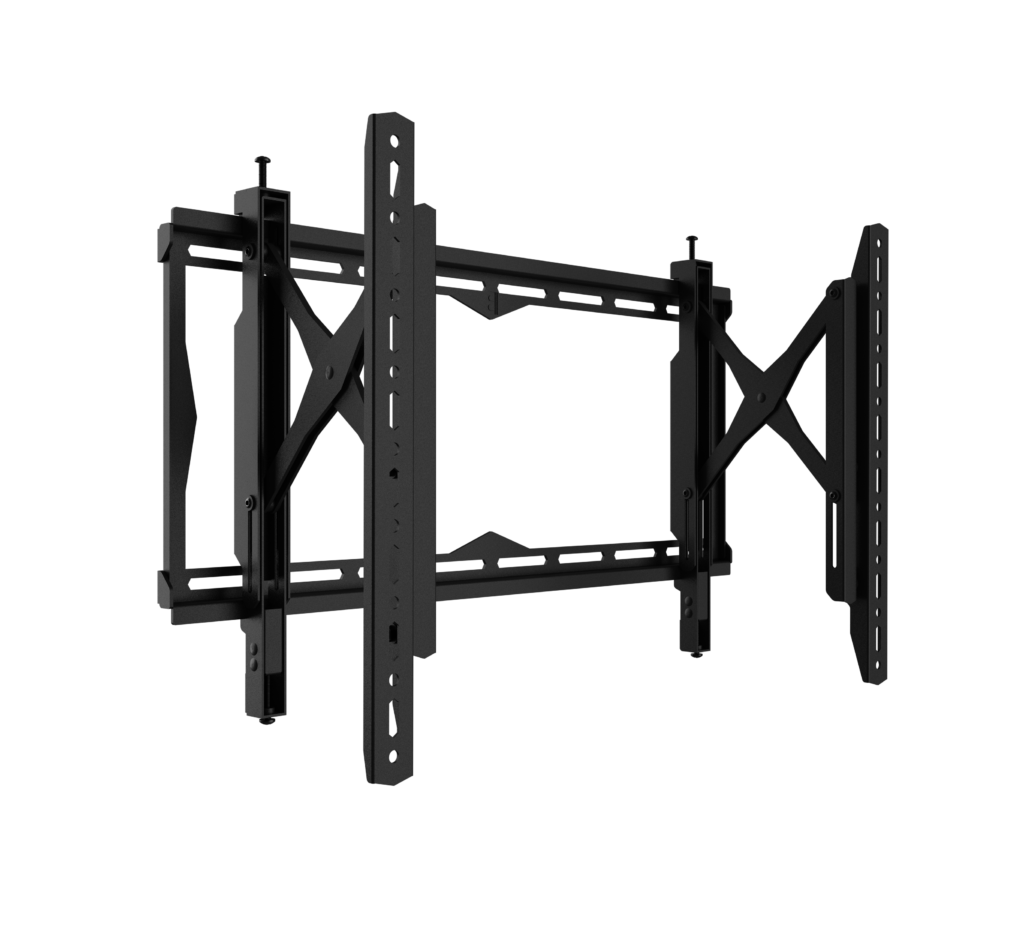

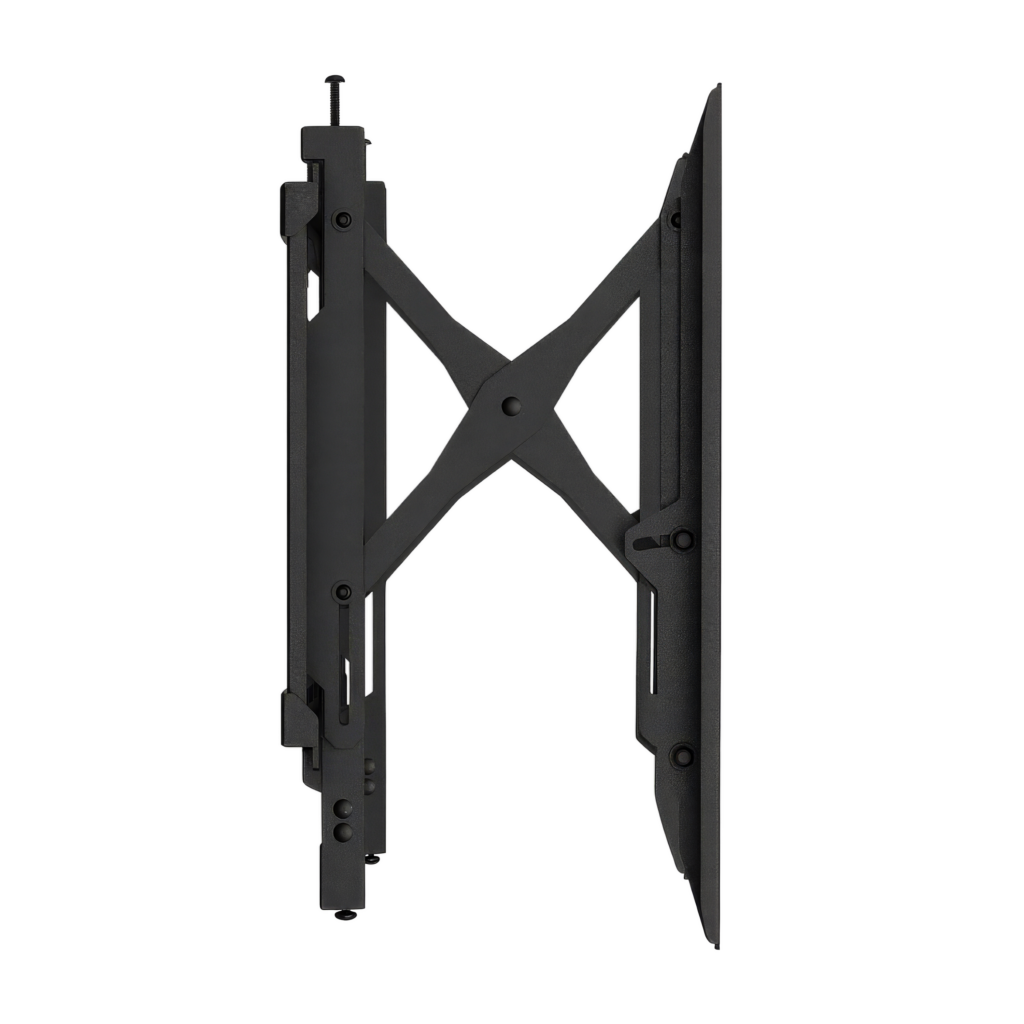

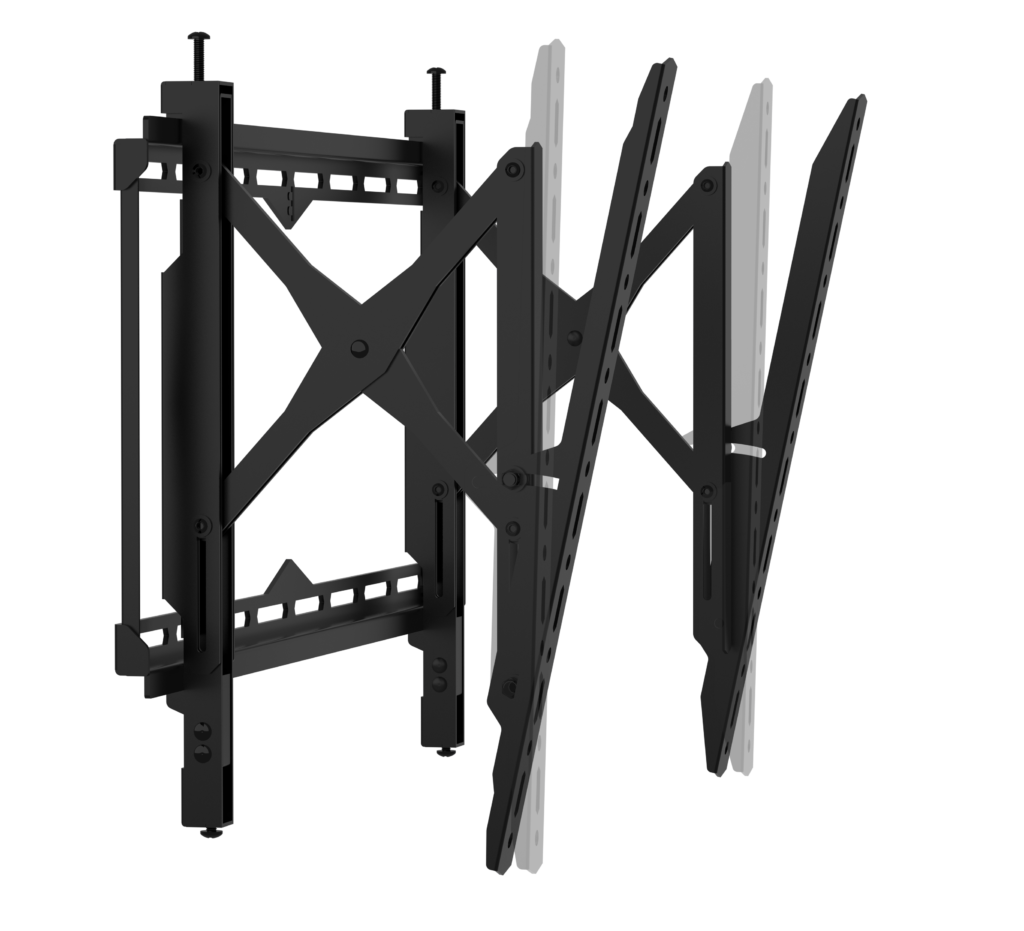

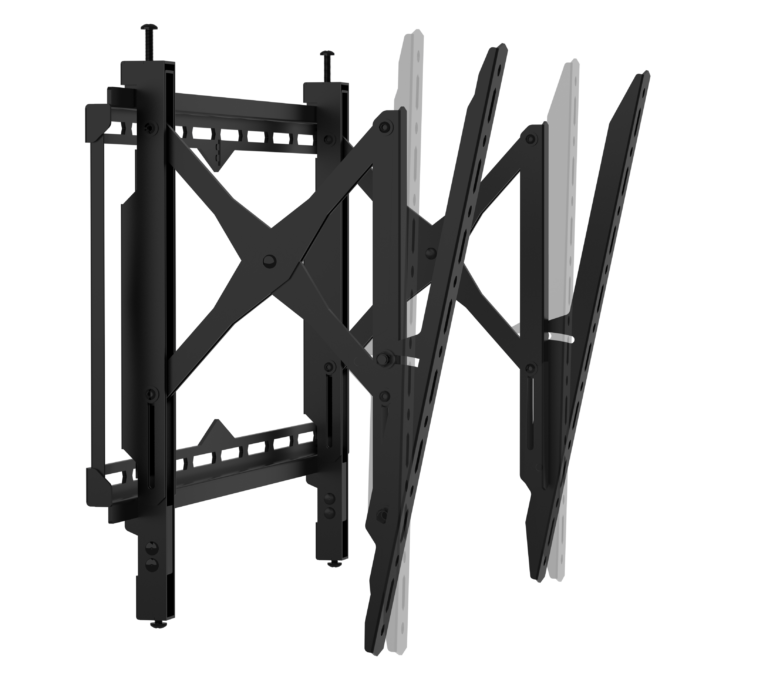

- Extendible mount pulls out from wall

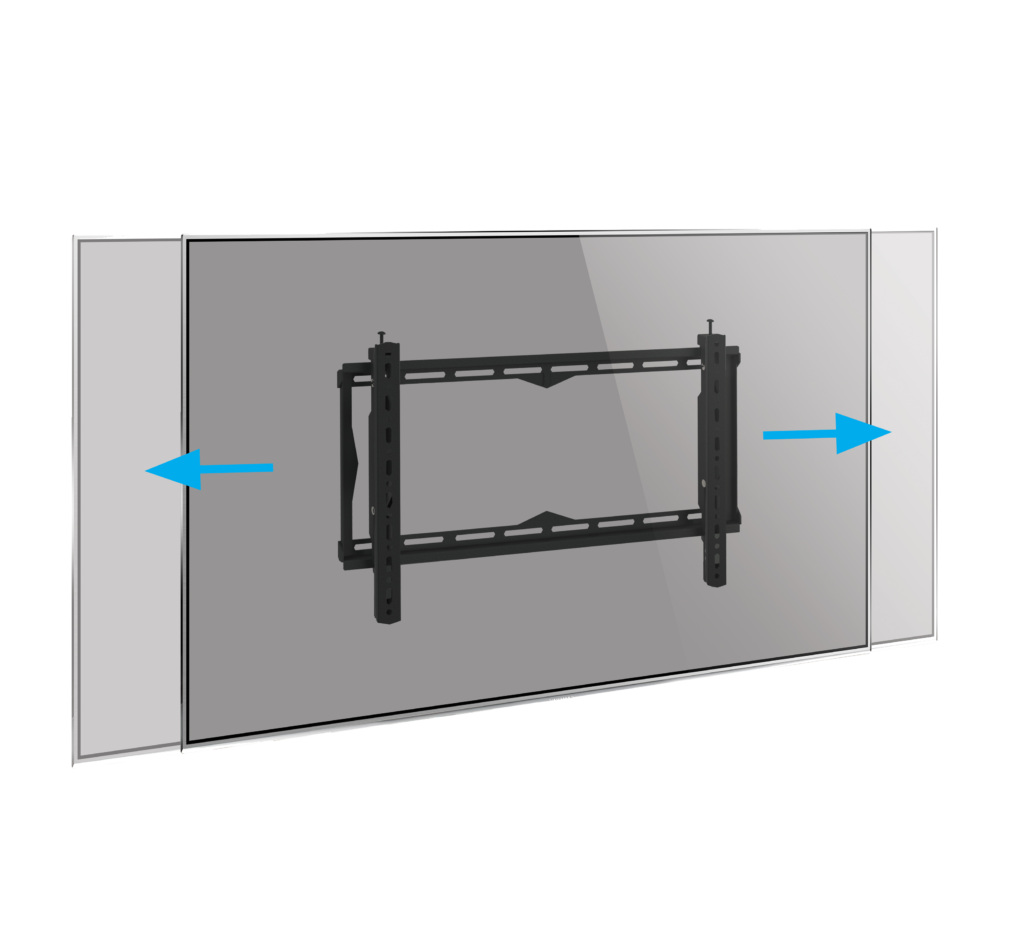

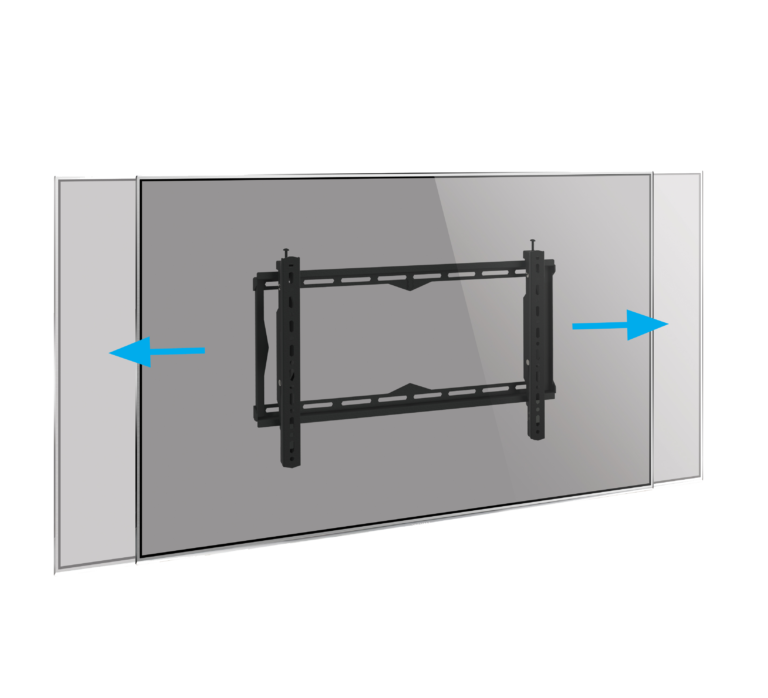

- Lateral adjustment of the screen once mounted

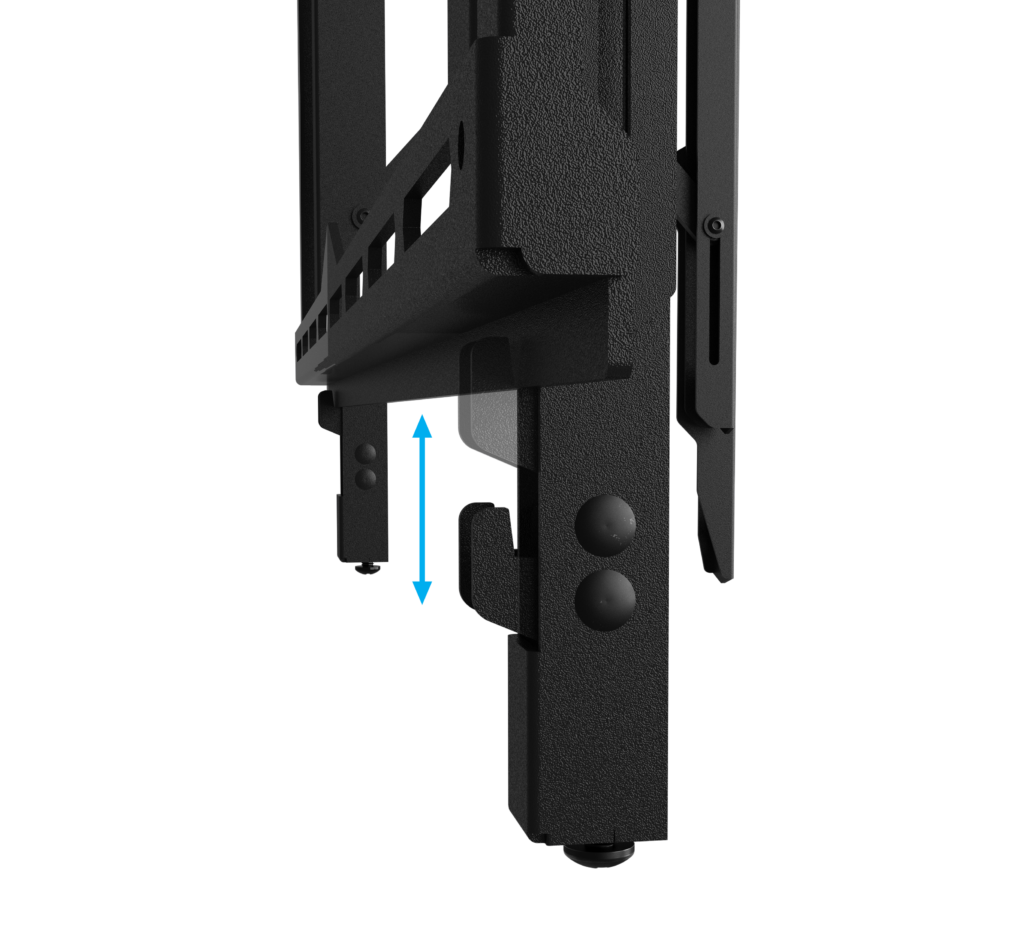

- Levelling screws allow adjustment of screen height
- Suitable for shallow recess mounting

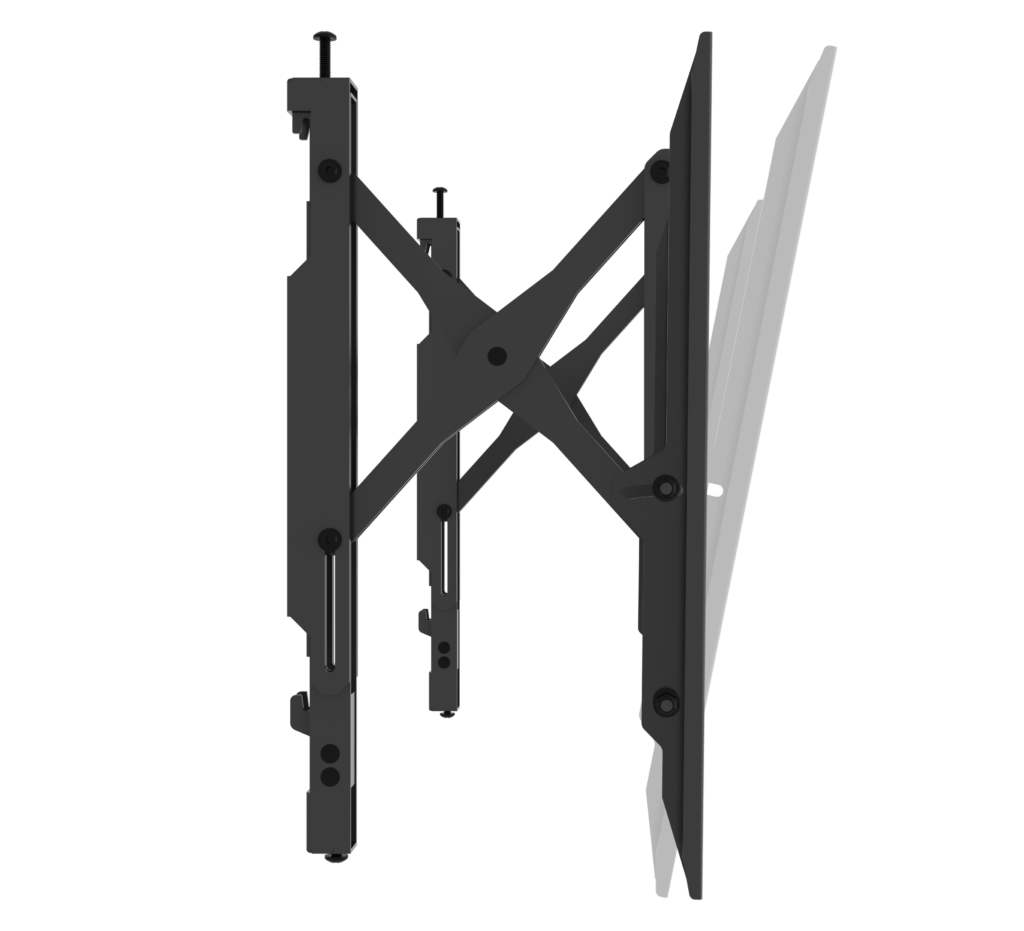

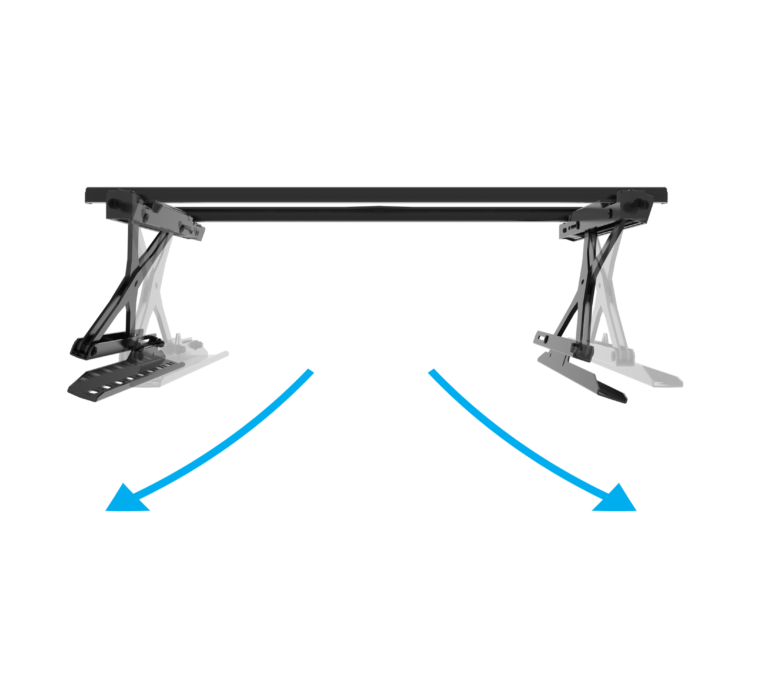

- Adjustable tilt and swivel
- Simple ‘hook-on’ installation with all mounting hardware included
- Safety screws help prevent unauthorised removal of the screen
- Open wall plate suitable for mounting over electrical outlets or media boxes
Product Specifications
- Recommended display size: 42" up to 75"
- Max load: 35kg* (77lbs)
- VESA® fixings: up to 650 x 400mm

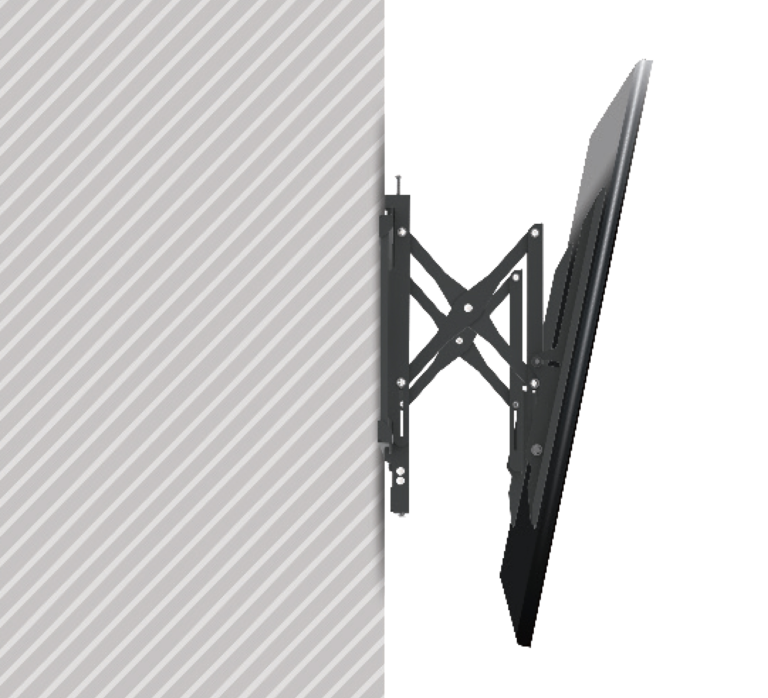

- Tilt: +12/-2°

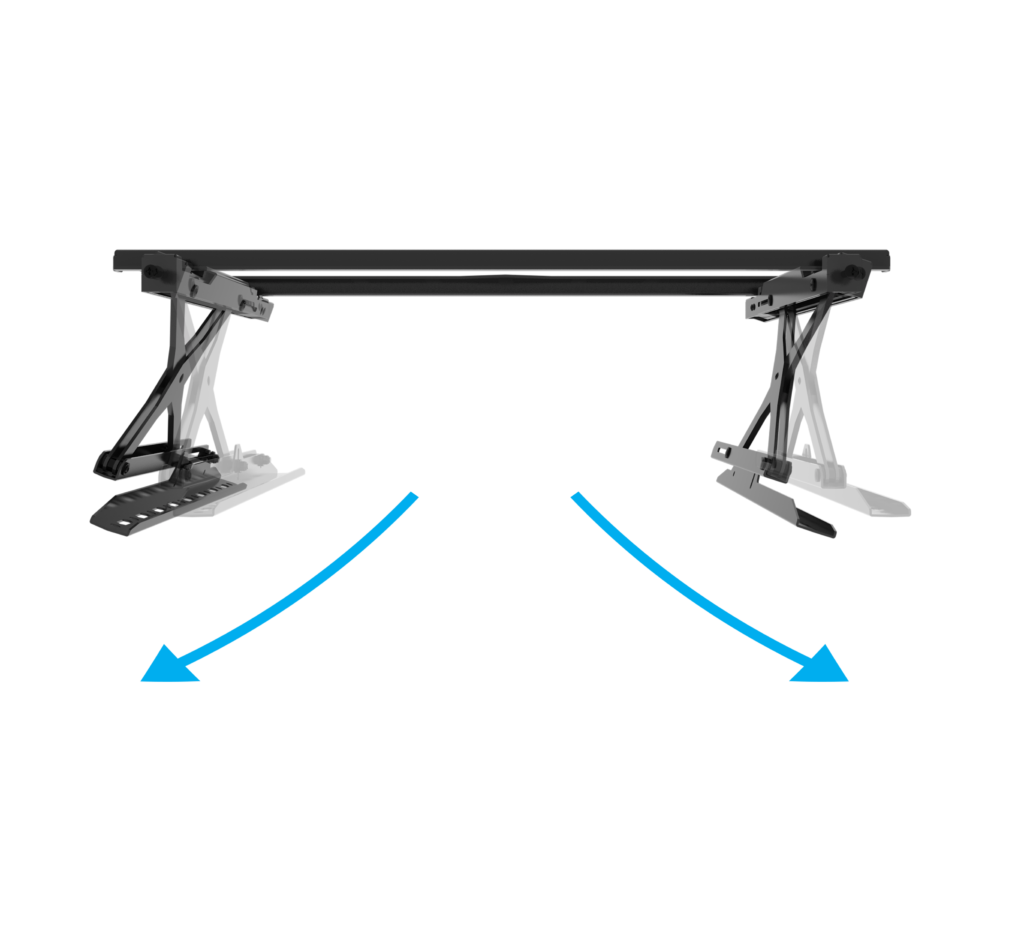

- Swivel: 28°
- Product width: 686mm
- Min product depth: 69mm
- Max product depth: 220mm
- Product height: 444mm
- Distance from wall: 69mm
- Popped out depth: 291mm
- Orientation: Landscape, Portrait
- Colour: Black
