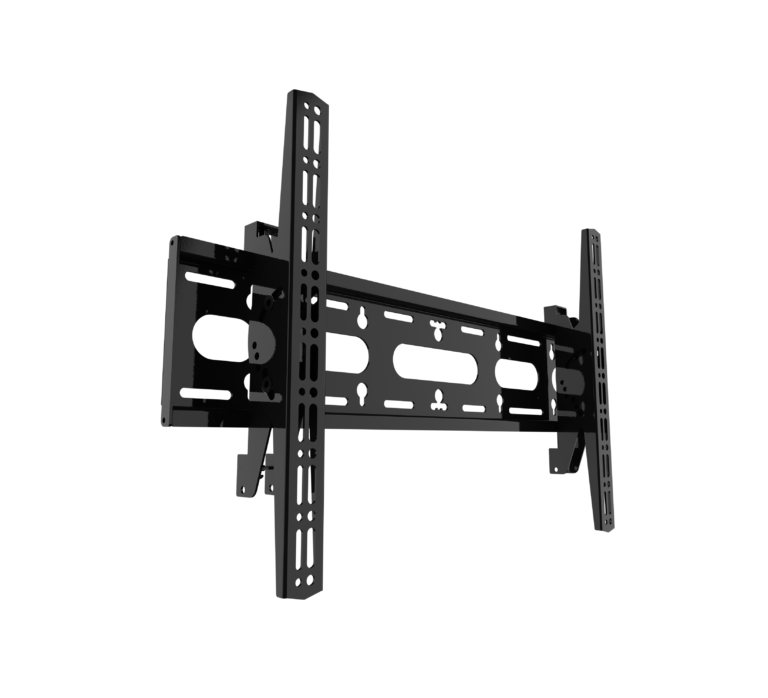

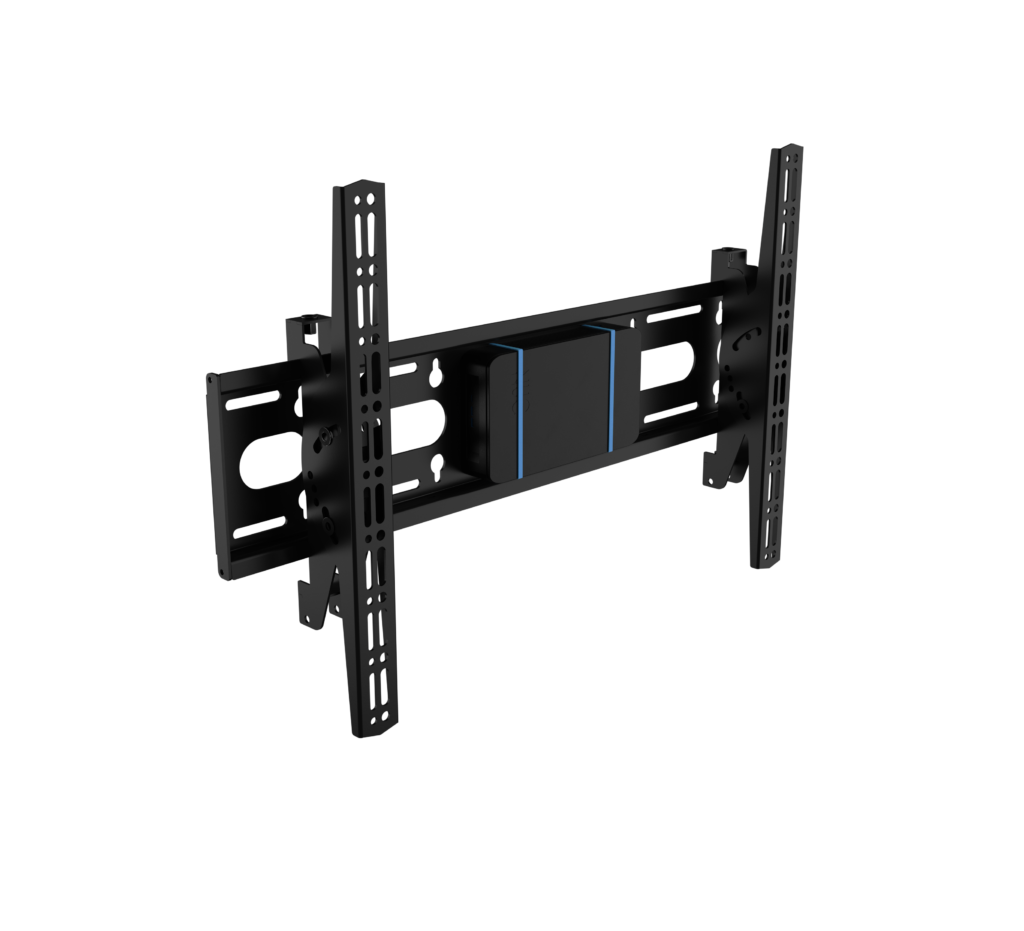

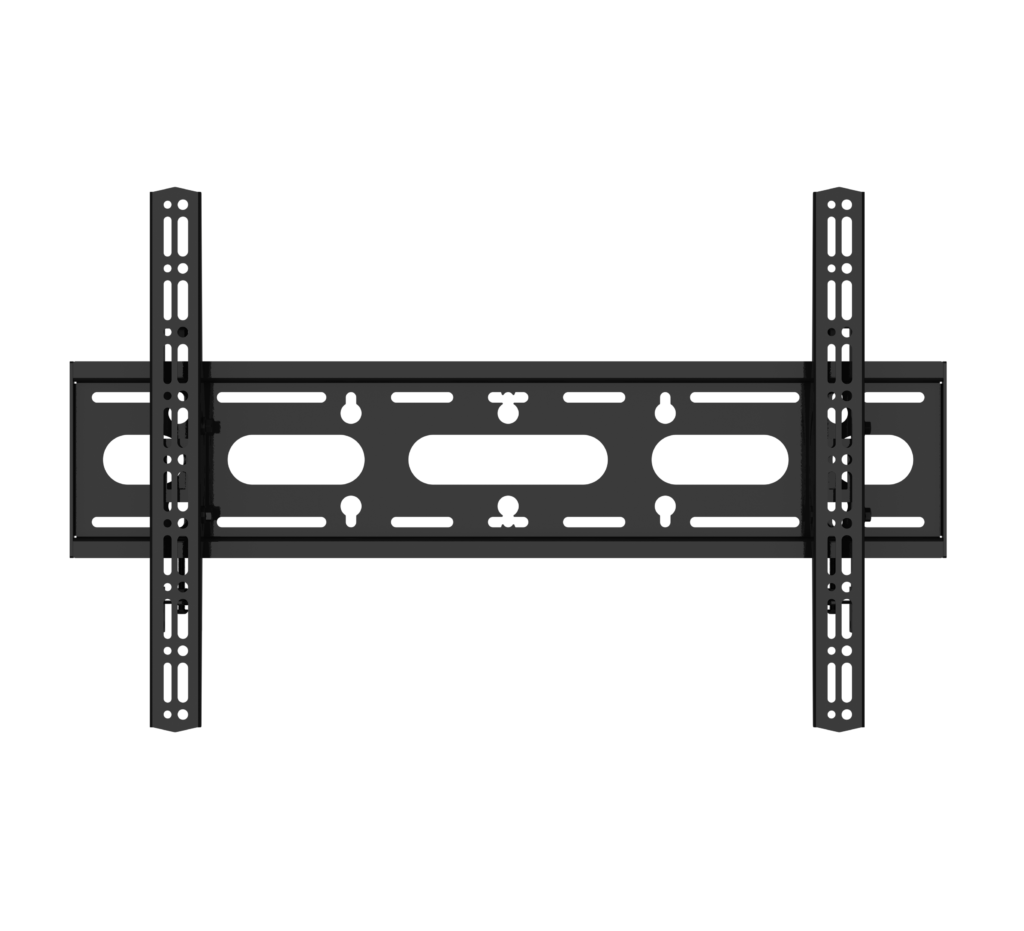

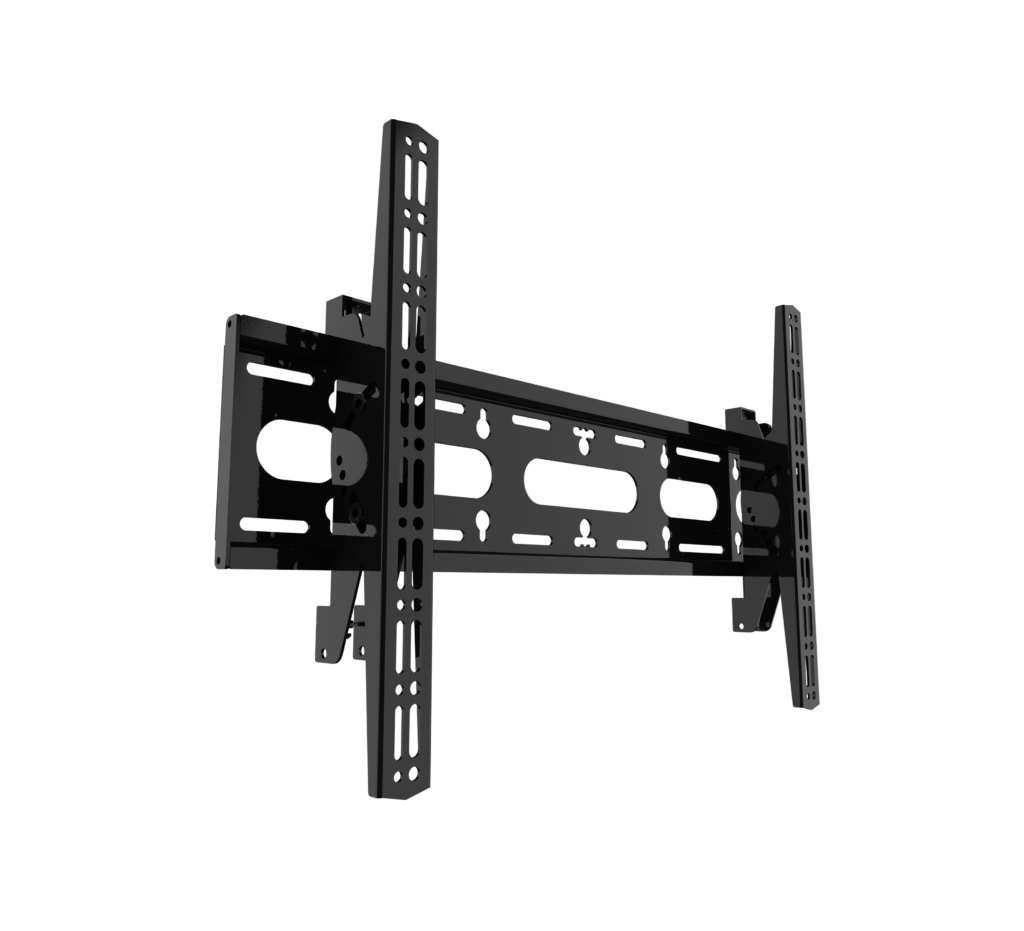

BT8432
Universal Flat Screen Wall Mount With Tilt

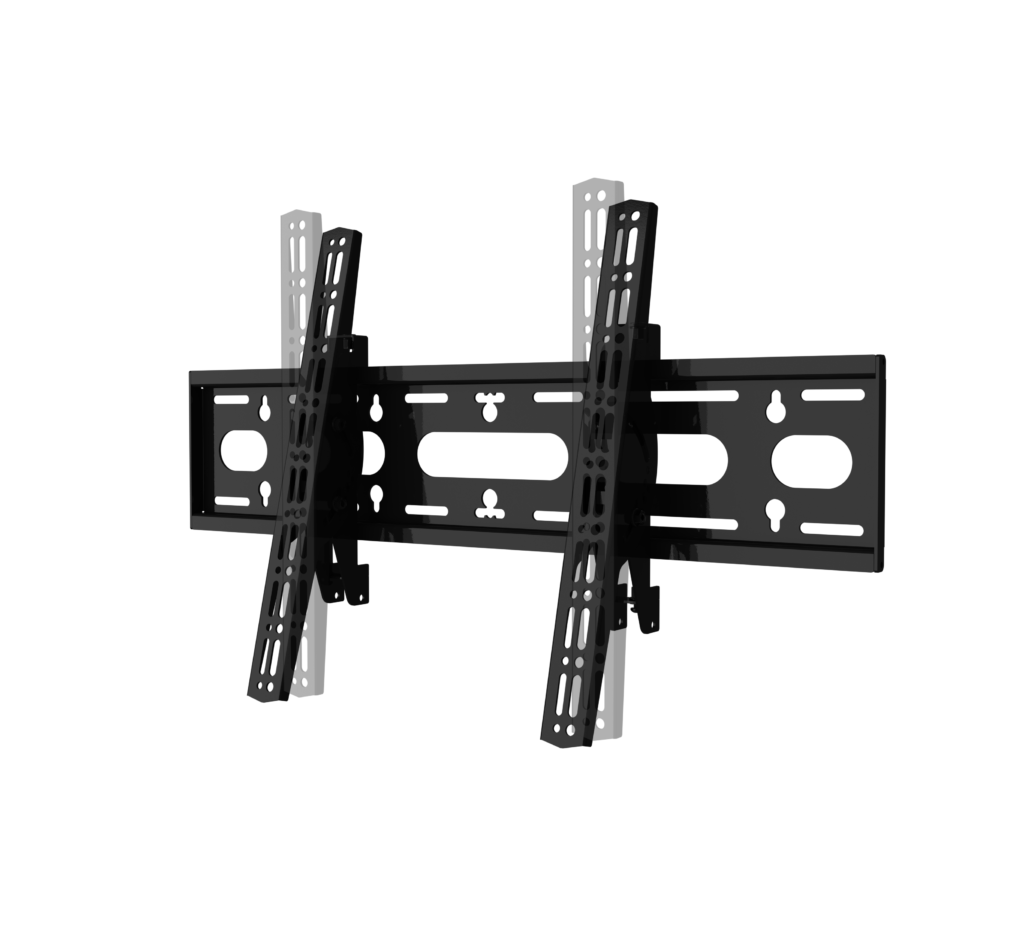

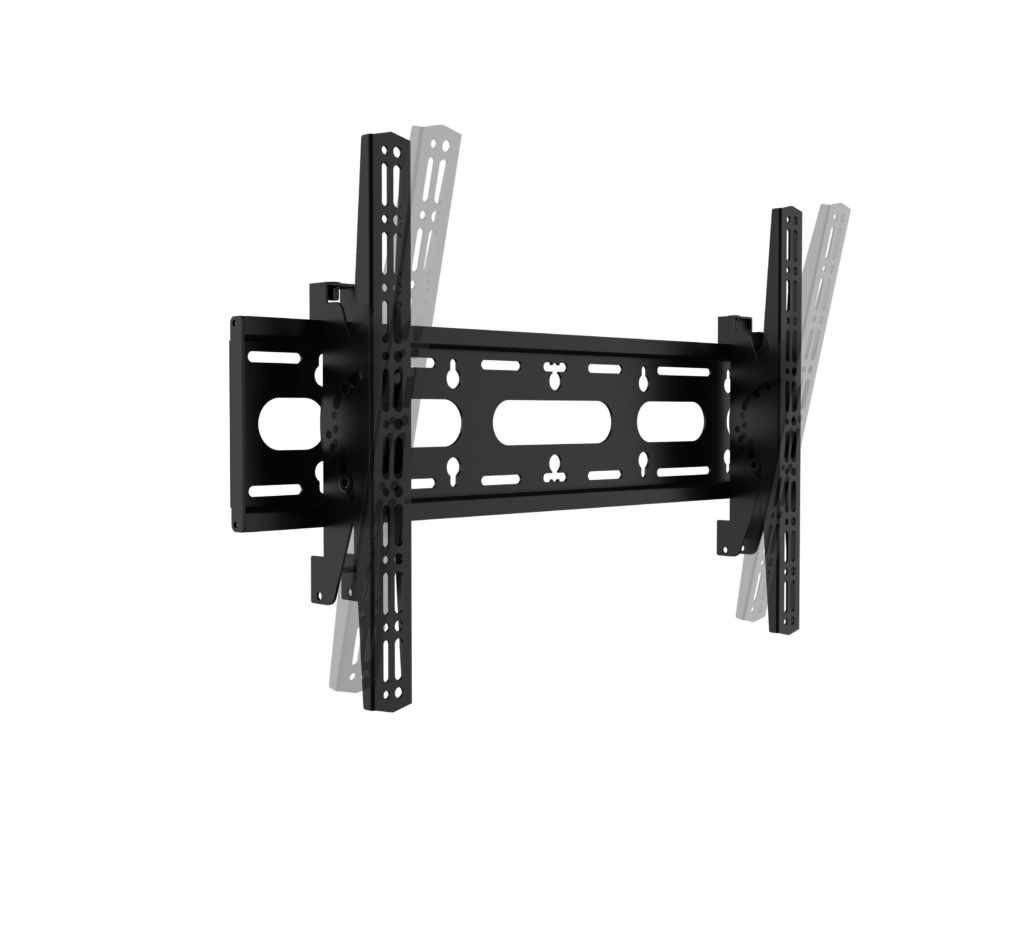

Easy Torsion-Tilt System
Overview

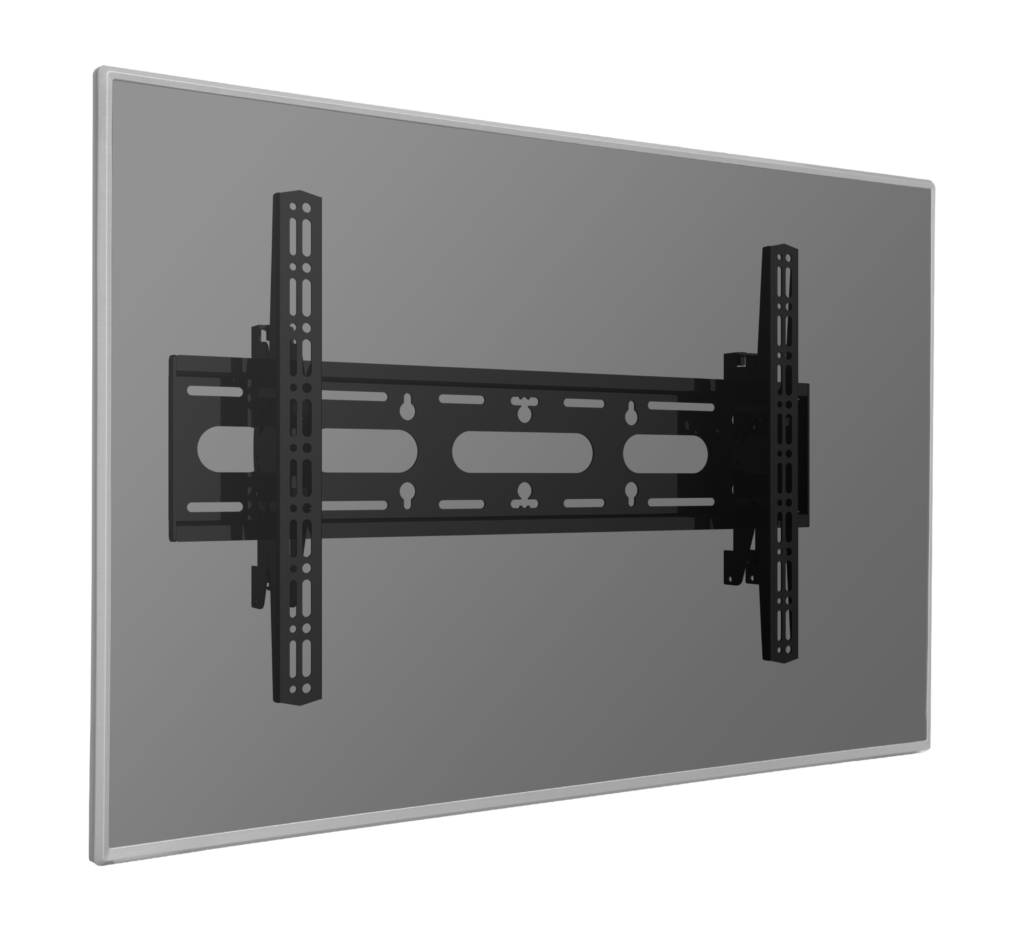

Designed to mount large to extra-large sized screens, the BT8432 is a flat screen wall mount that features a unique ‘Torsion-Tilt’ mechanism which allows easy tilt adjustment of the screen up to +/-15°. Also suitable for pole mounting using B-Tech’s Accessory Collars, the BT8432 features levelling screws to adjust the screen level post installation as well as locking screws which help prevent unauthorised removal of the screen.
Product Features
- Unique ‘Torsion-tilt’ mechanism for easy tilt adjustment
- Lateral adjustment of screen once mounted
- Levelling screws allow adjustment of screen height
- Security locking screws and Allen key to prevent unauthorised screen removal

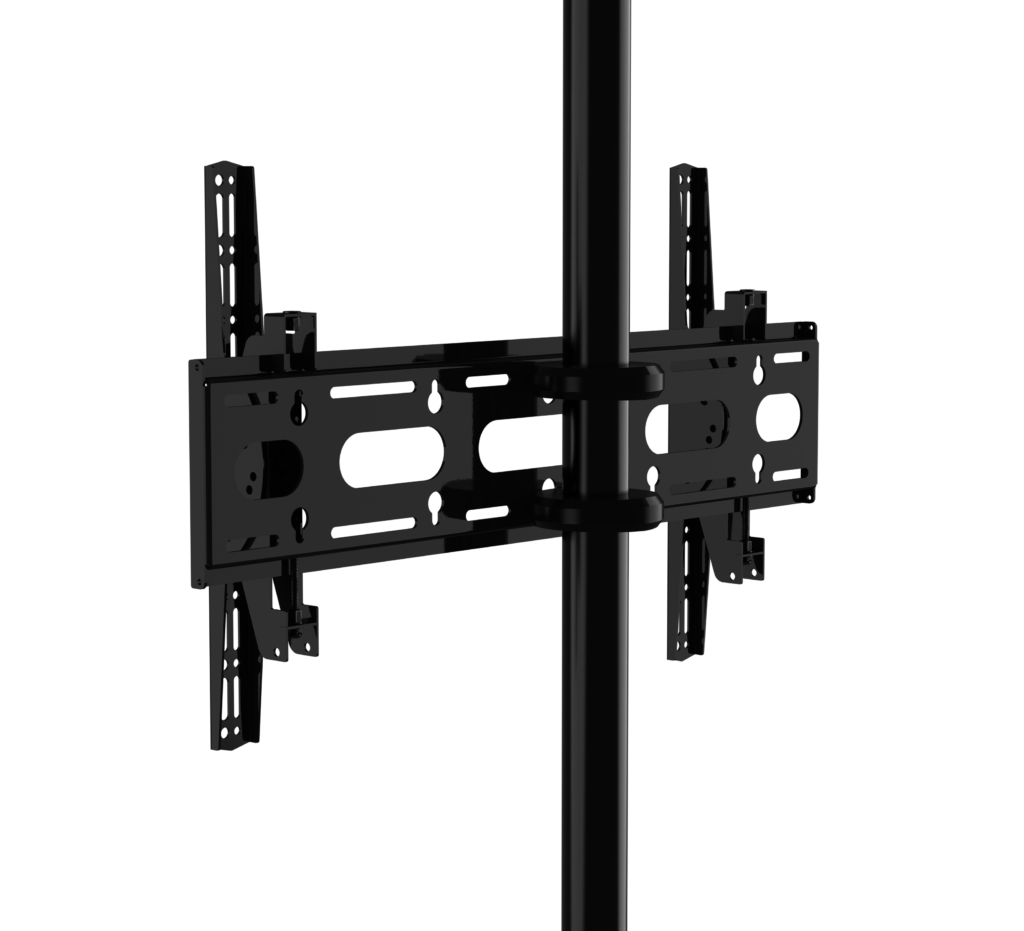

- Collar compatible ideal for pole mounting
- Simple ‘hook-on’ installation with all mounting hardware included
Product Specifications
- Recommended display size: 42" up to 80"
- Max load: 70kg* (154lbs)

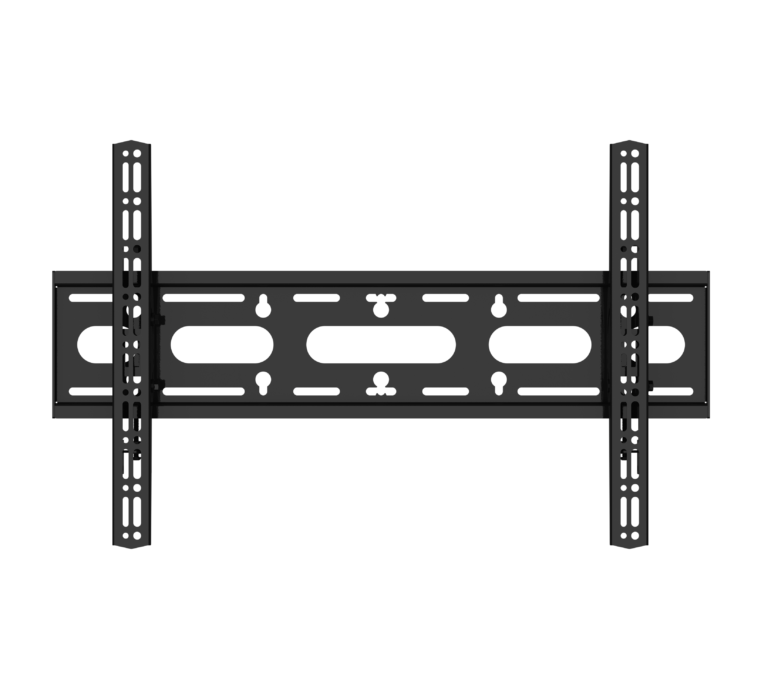

- VESA® fixings: up to 600mm x 400mm
- Universal fixings: up to 677 x 400mm

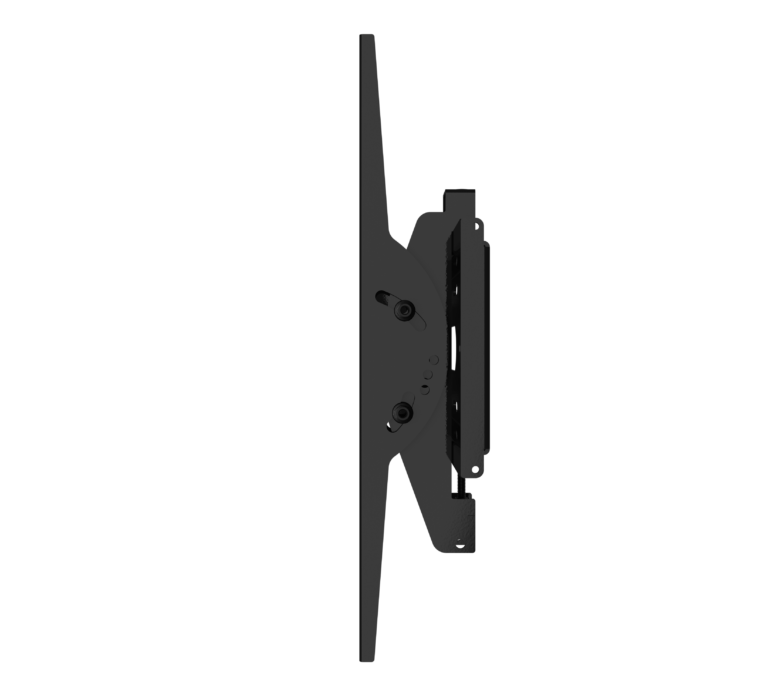

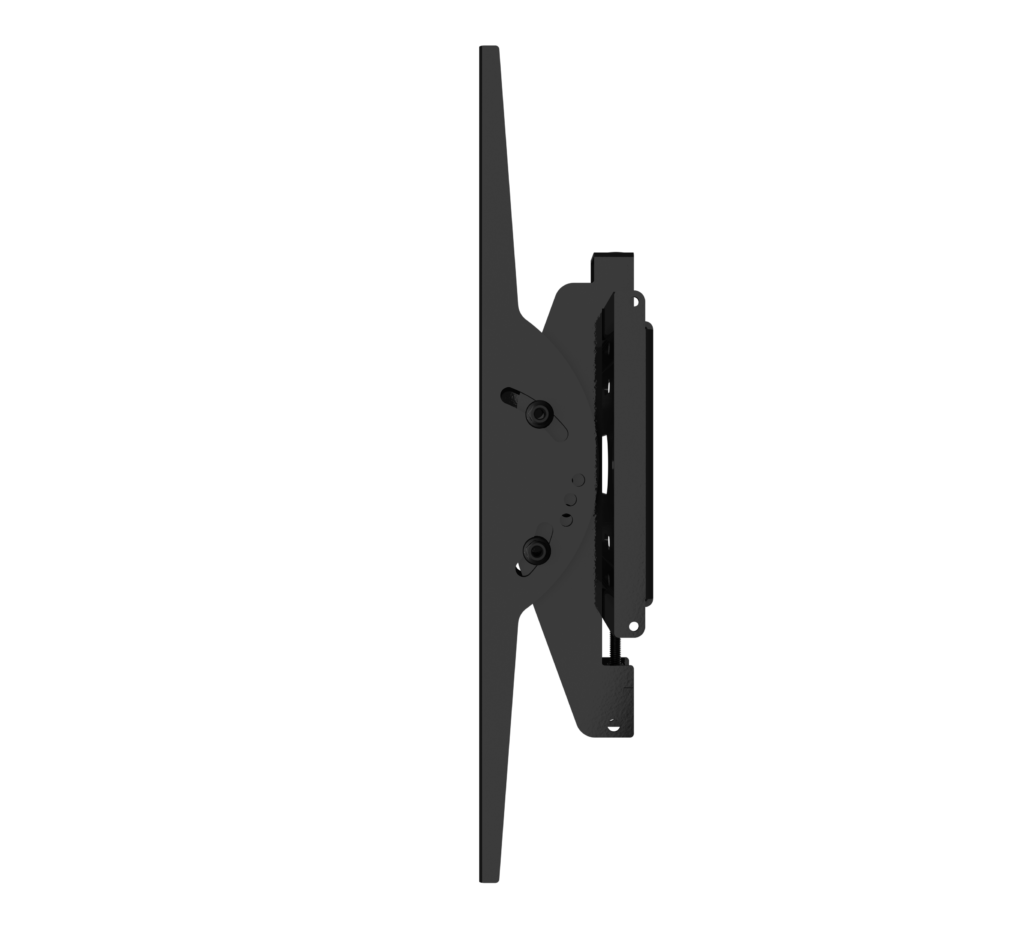

- Tilt: +/-15°
- Product width: 700mm
- Min product depth: 80mm
- Max product depth: 141.6mm
- Product height: 427.7mm
- Distance from wall - min: 80mm
- Distance from wall - max: 141.6mm
- Padlock hole size diameter: 5mm
- Orientation: Landscape, Portrait
- Colour: Black
