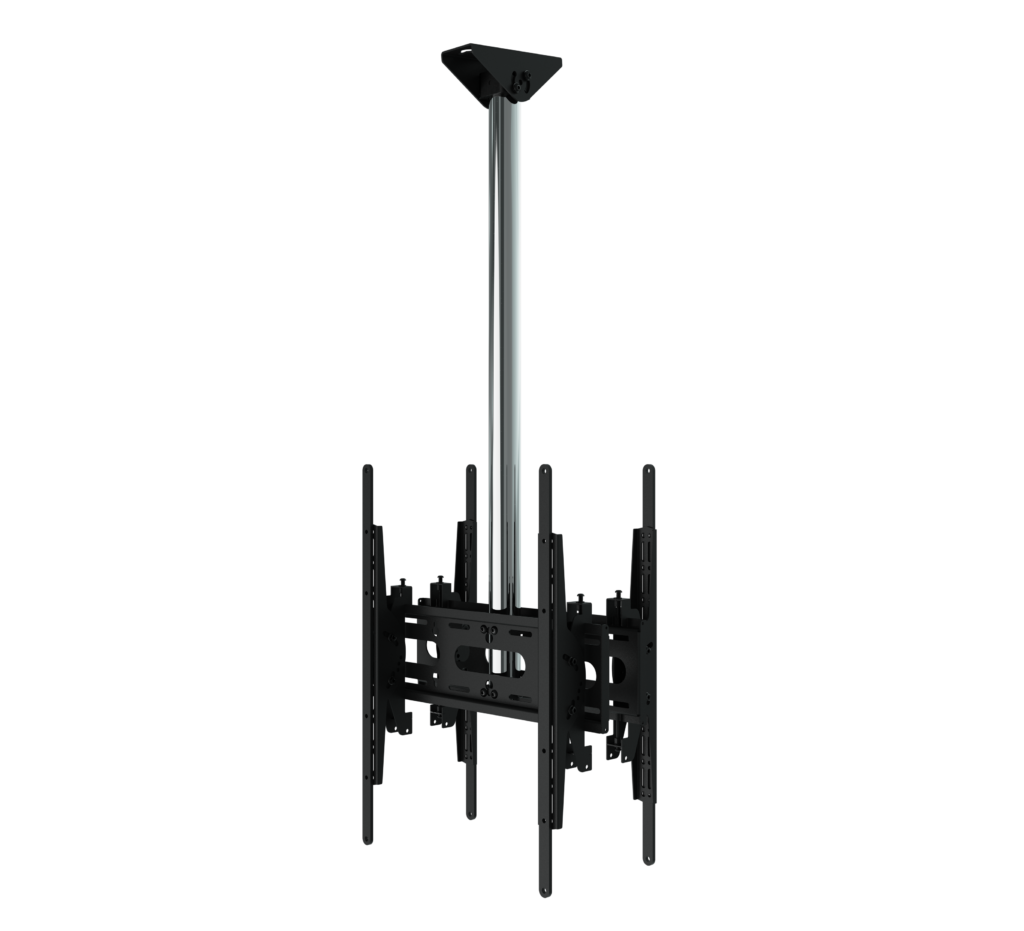

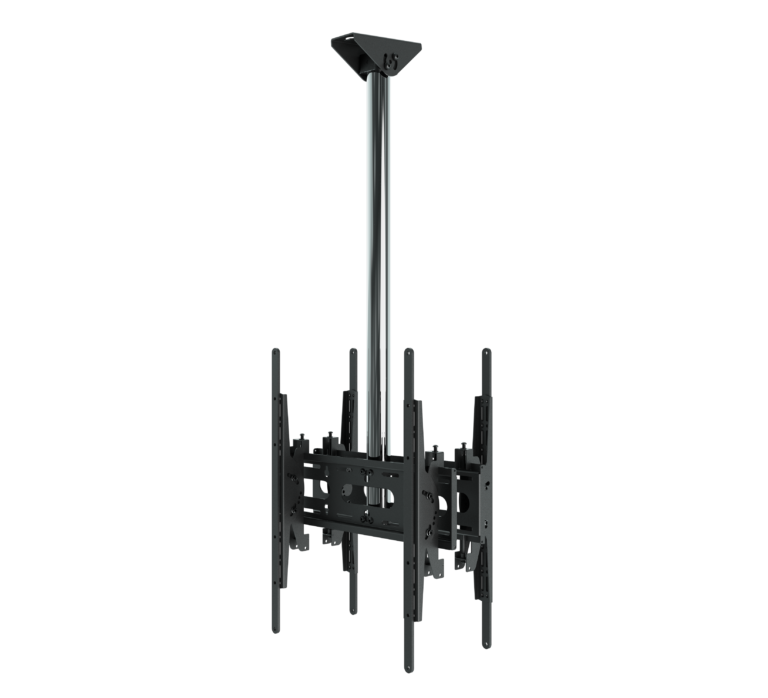

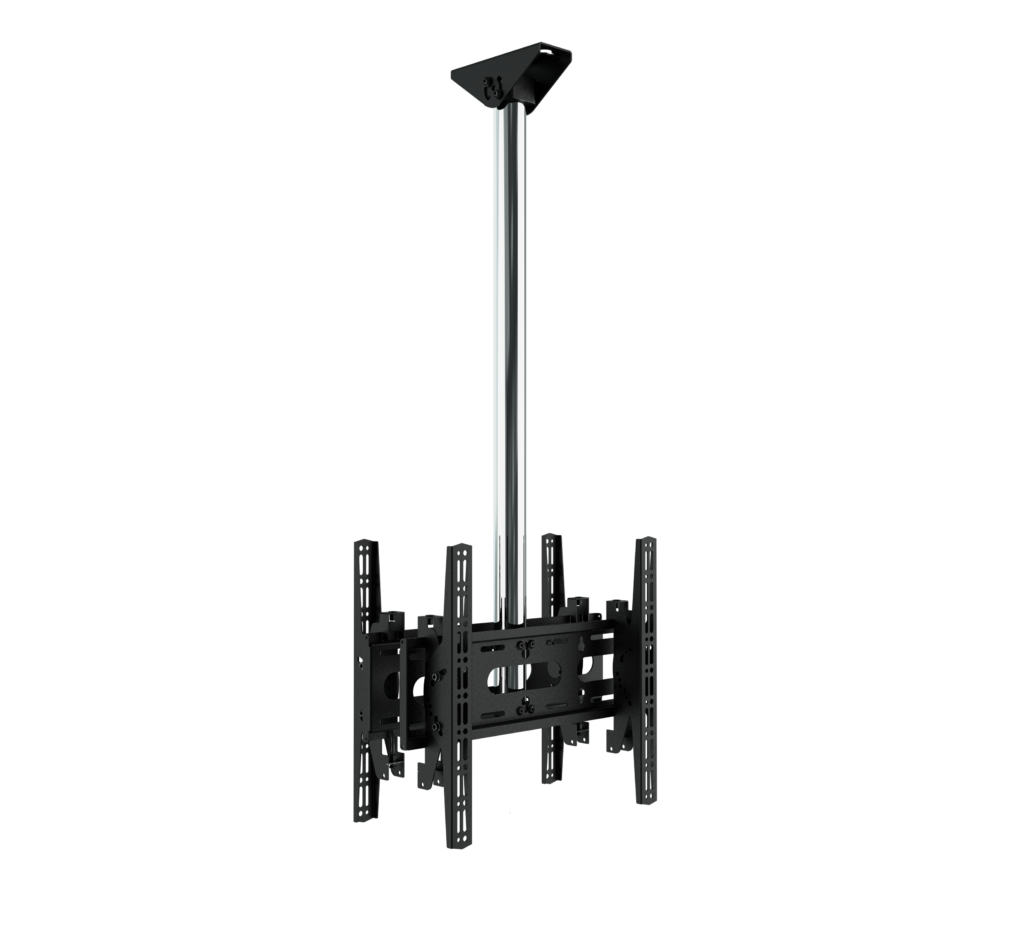

BT8428-100-BC

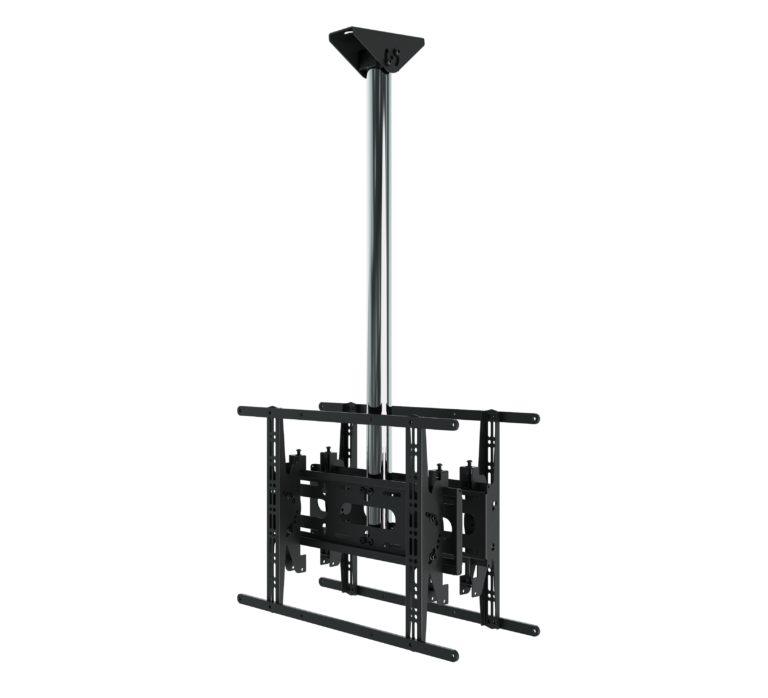

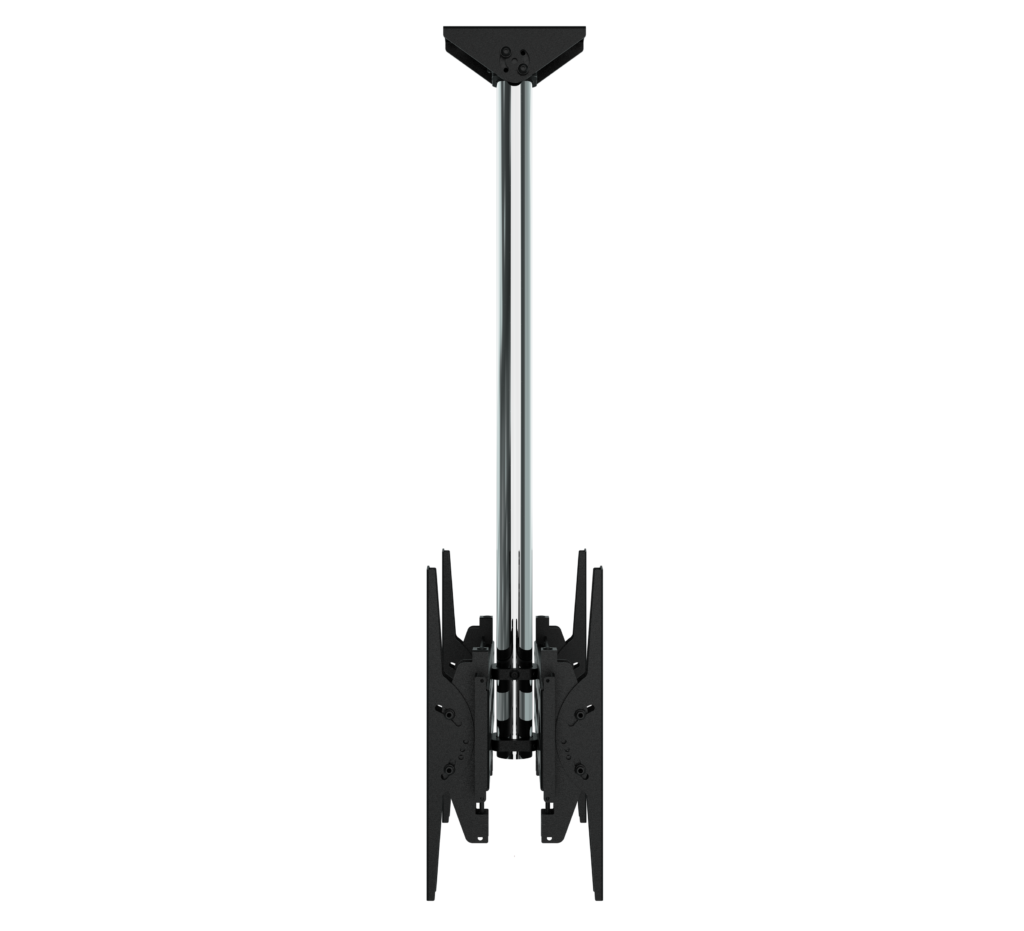

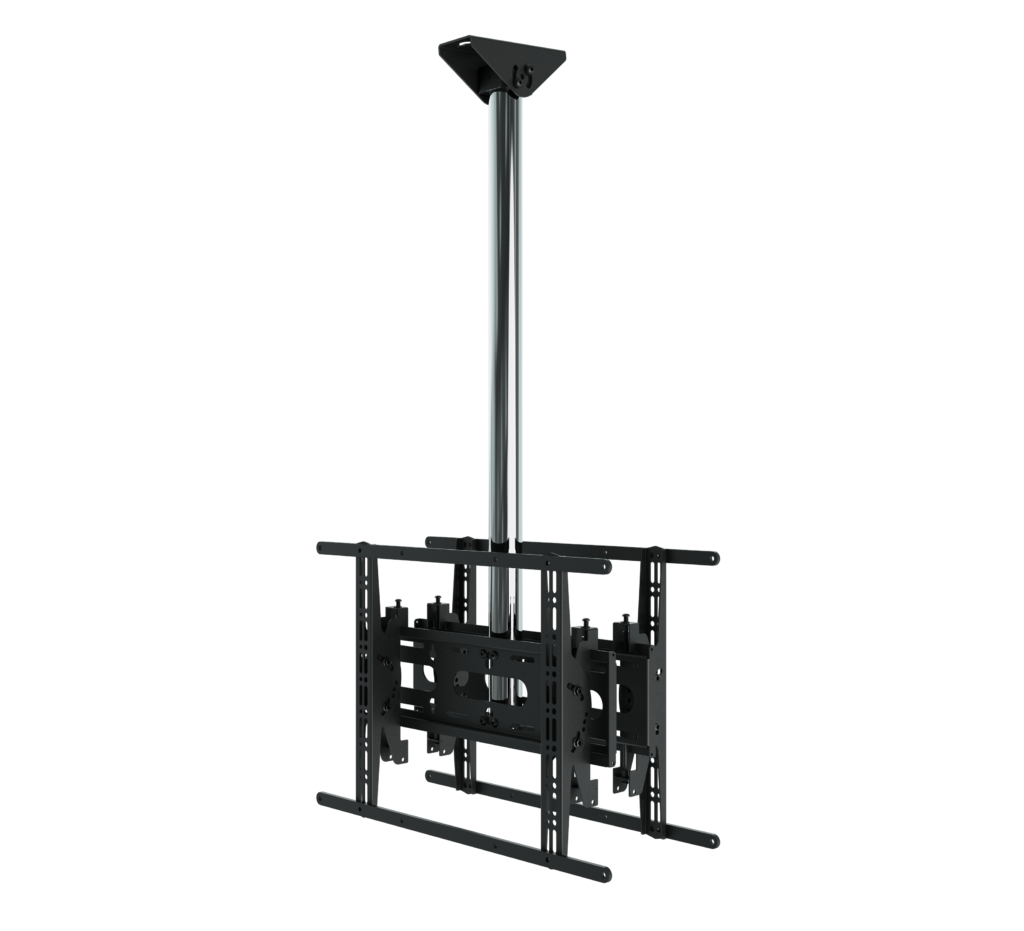

Back-to-Back Universal Flat Screen Ceiling Mount

With Tilt

Product Features

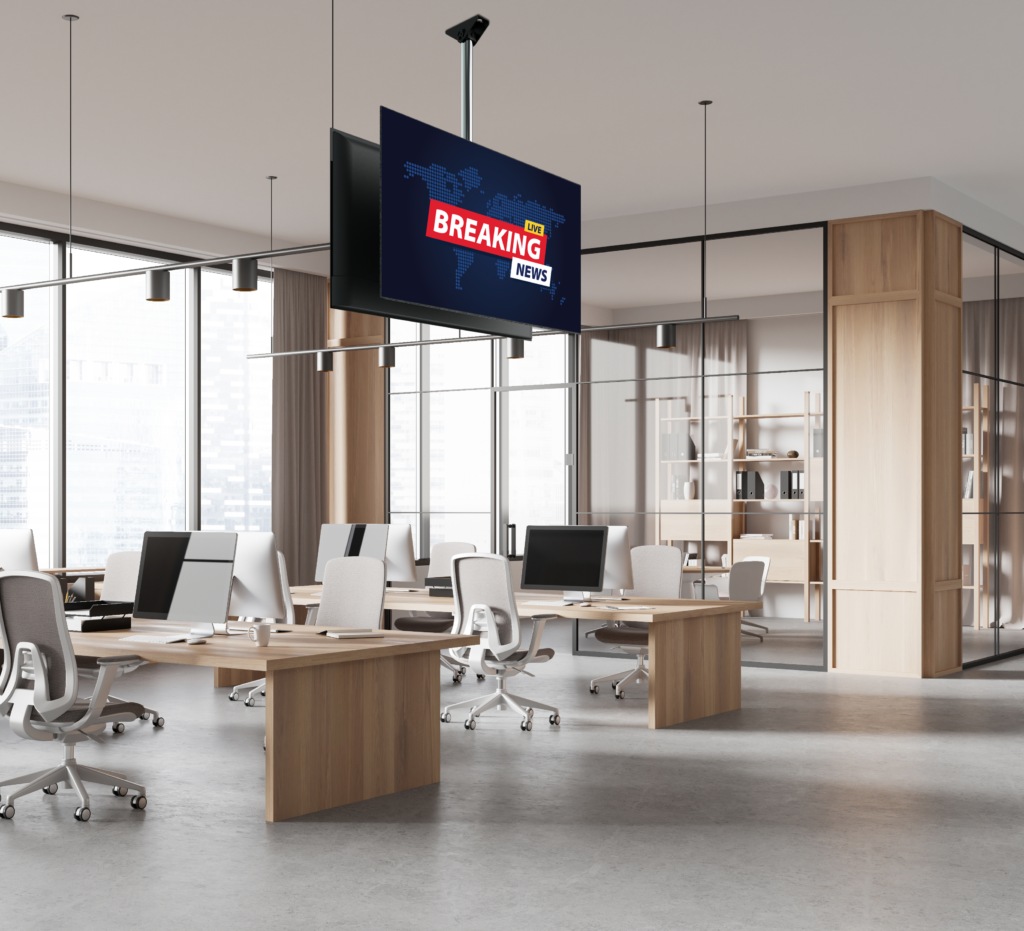

  • Mounts two screens back-to-back

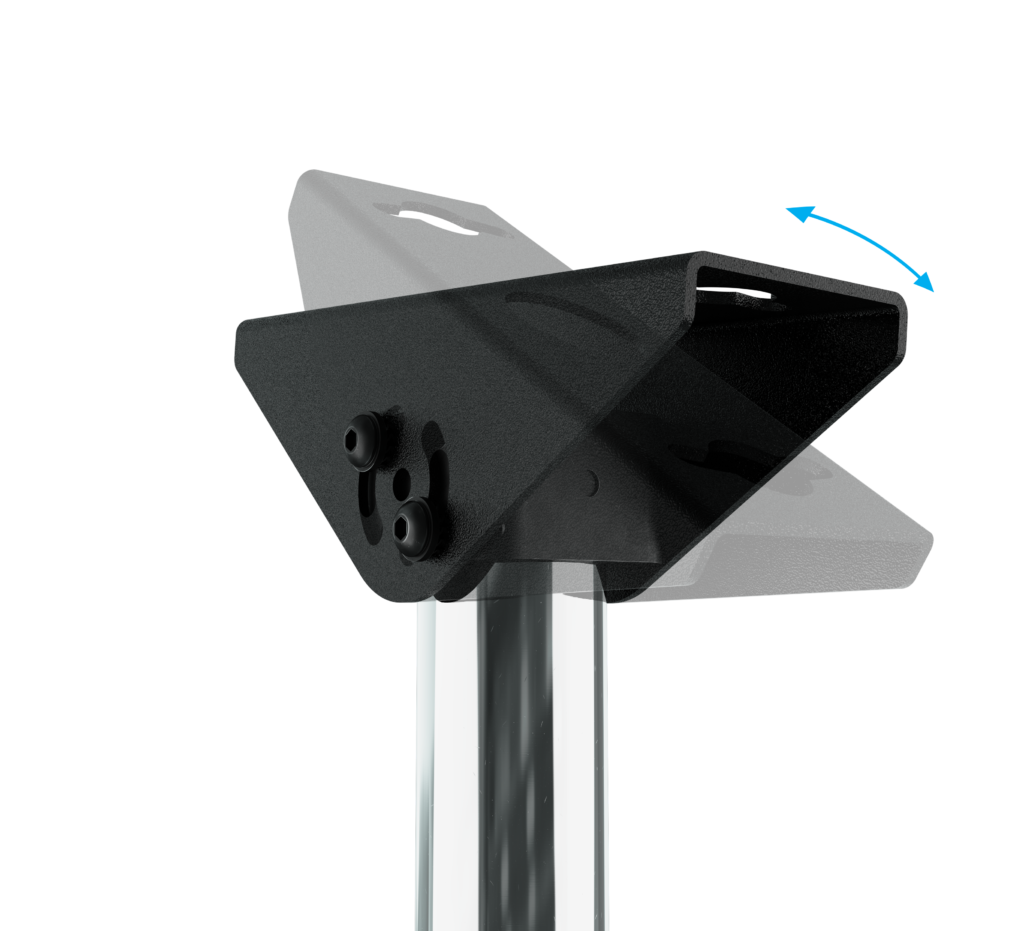

  • Ceiling bracket can be tilted for mounting on angled ceilings
  • Unique ‘Torsion-tilt’ mechanism for tool-less screen tilt adjustment

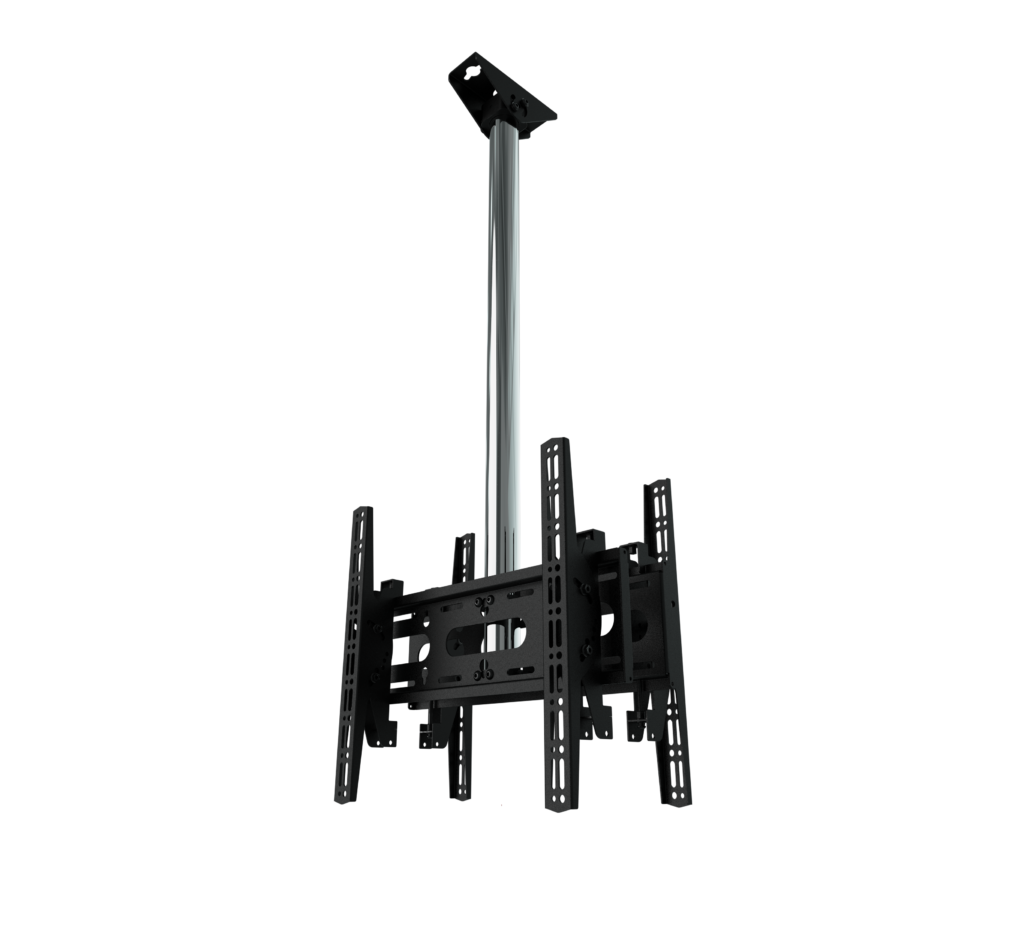

  • Suitable for landscape or portrait mounting
  • Lateral adjustment of screen once mounted

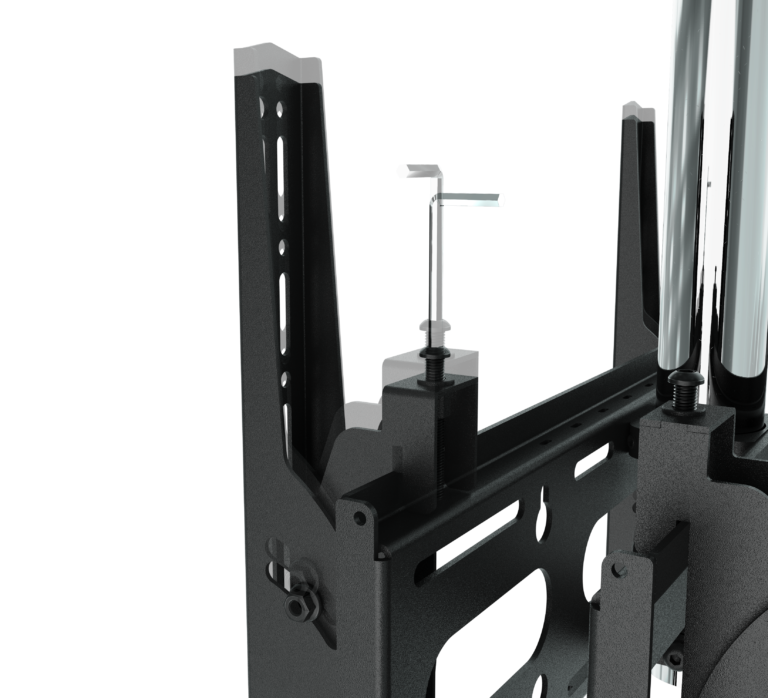

  • Arms feature levelling screws to adjust the screen height
  • Security screws help prevent unauthorised removal of screens
  • Poles are supplied with safety bolt and grub screws for a secure installation
  • Integrated cable management
  • Simple ‘hook-on’ installation with all mounting hardware included

Product Specifications

  • Pole length: 1m
  • Recommended display size: 32" up to 65"
  • Max load: 50kg (110lbs) per screen
  • VESA® fixings: up to 468mm x 400mm
  • VESA® compatibility (with included adaptors): up to 600mm x 400mm
  • Pole diameter: 50mm

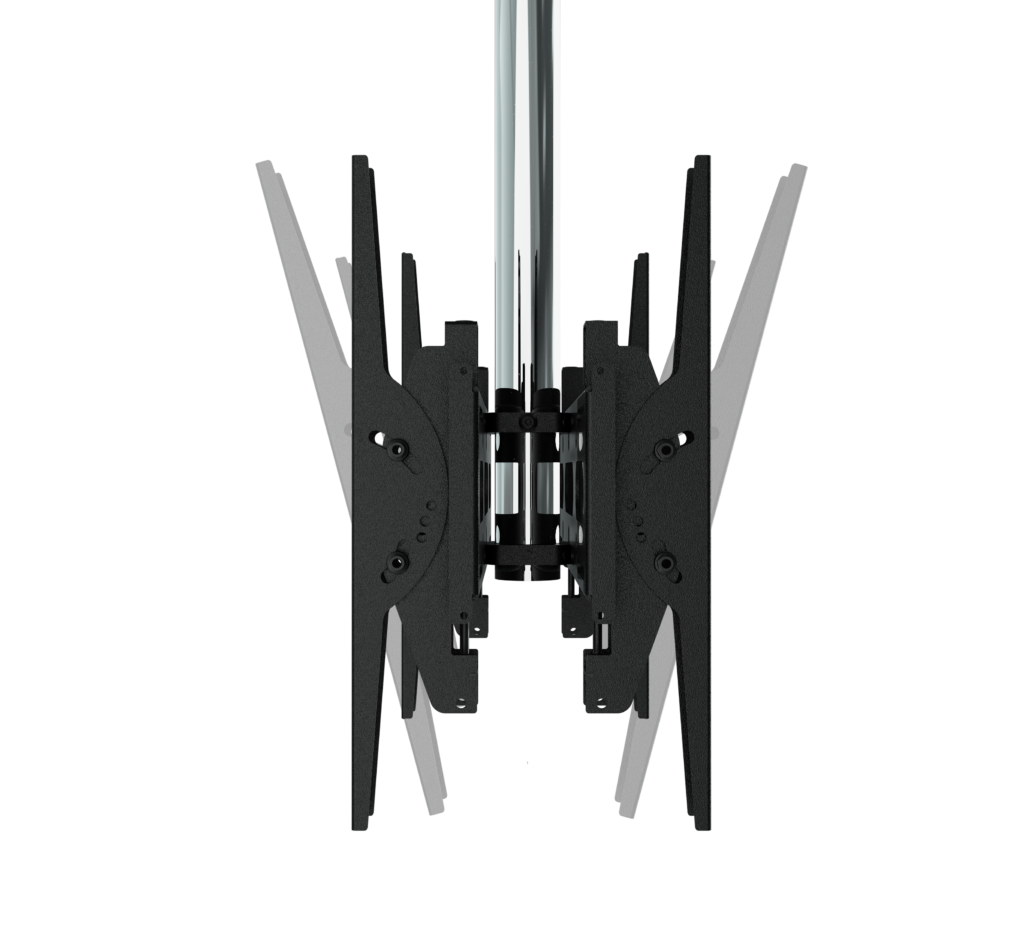

  • Tilt at interface: +/-15°
  • Tilt at ceiling: +90°
  • Product width: 620mm
  • Min product depth: 93.5mm
  • Max product depth: 351.1mm
  • Orientation: Landscape, Portrait
  • Colour: Chrome
