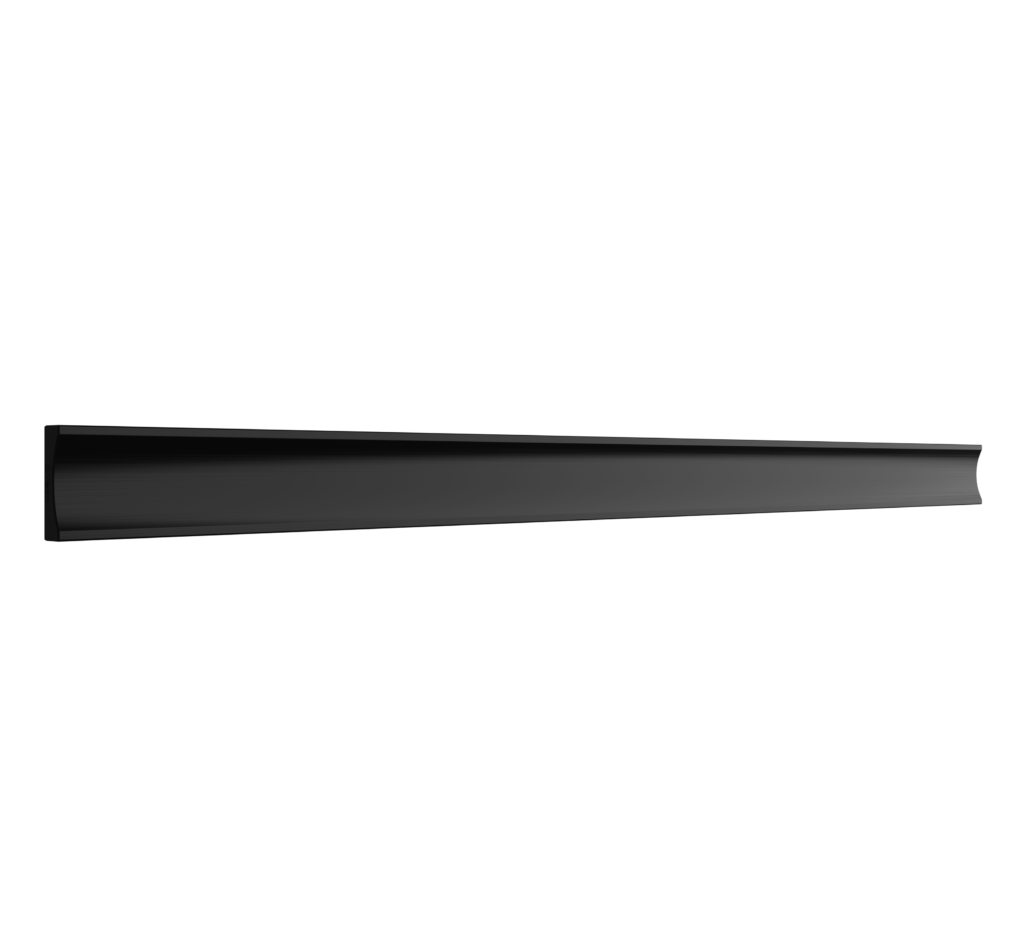

BT8390-200-B-V2
Horizontal Mounting Rail
For multi-screen installs
Black
Black
Black
Black
Black
Black
Choose product version by code
BT8390-050-B-V2
BT8390-070-B-V2
BT8390-100-B-V2
BT8390-150-B-V2
BT8390-175-B-V2
BT8390-200-B-V2
Enquire Today
View Related Products
Product Features
Part of the System X range for use in a variety of applications; wall, ceiling, trolley etc.
Ideal for video walls, menu boards and other multi-screen installations
Can also be used for premium single screen applications
Compatible with a variety of interface arms and collar compatible accessory mounts
Also compatible with Mode AL BT8385 columns
Suitable for landscape or portrait installs
High-end aesthetic quality
Available in a variety of lengths and can be cut if necessary
Multiple lengths can be joined together using BT8390-EXT to create longer rails

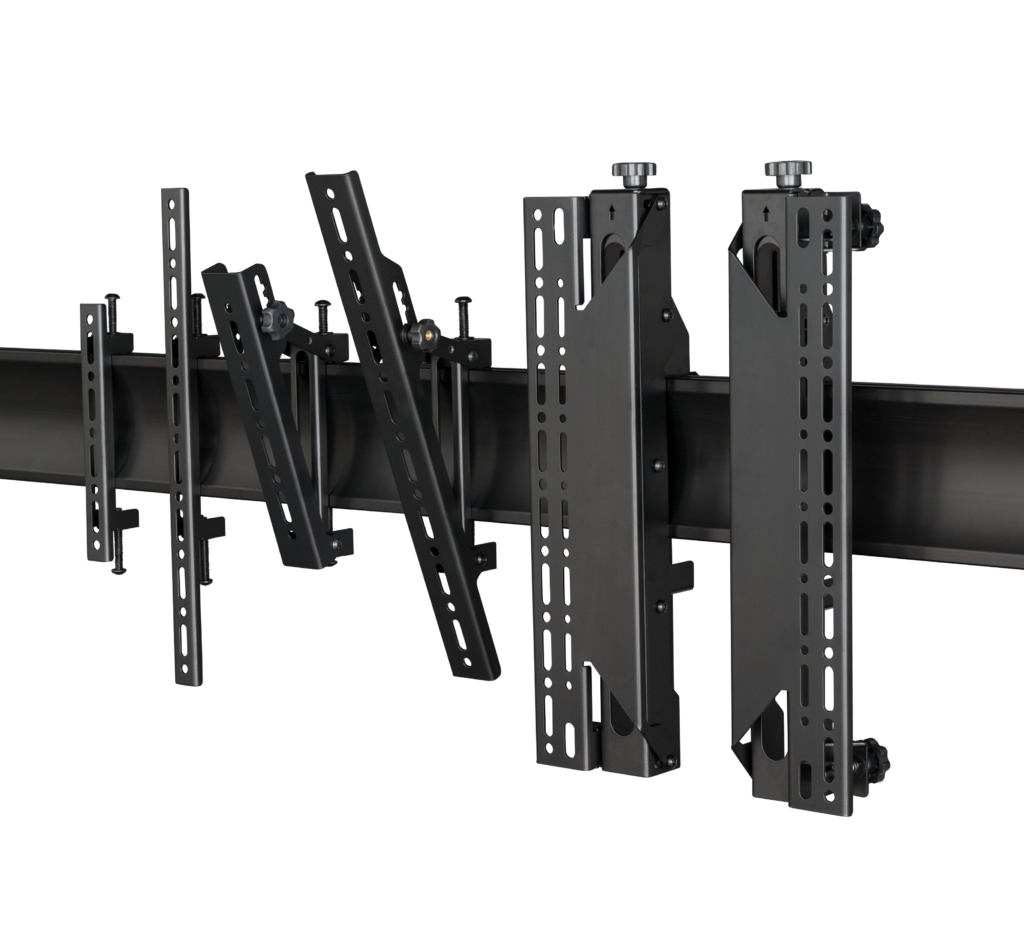

Lateral adjustment - position interface arms anywhere along the length of the rail
Supplied with plastic end caps for a neat and tidy finish

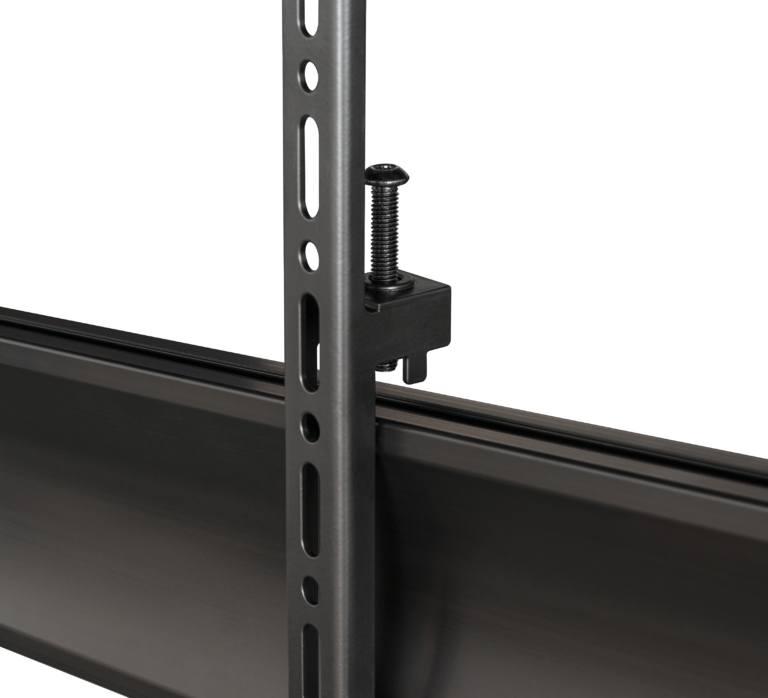

Simple 'hook-on' installation
TUV certified
Product Specifications
Max load: Dependent on interface arms used
Product width: 2004mm
Product depth: 30mm
Product height: 120mm
Fixing kit to wall mount: BT8390-WFK1 / 2 / 3 / 4 / 5 / 6

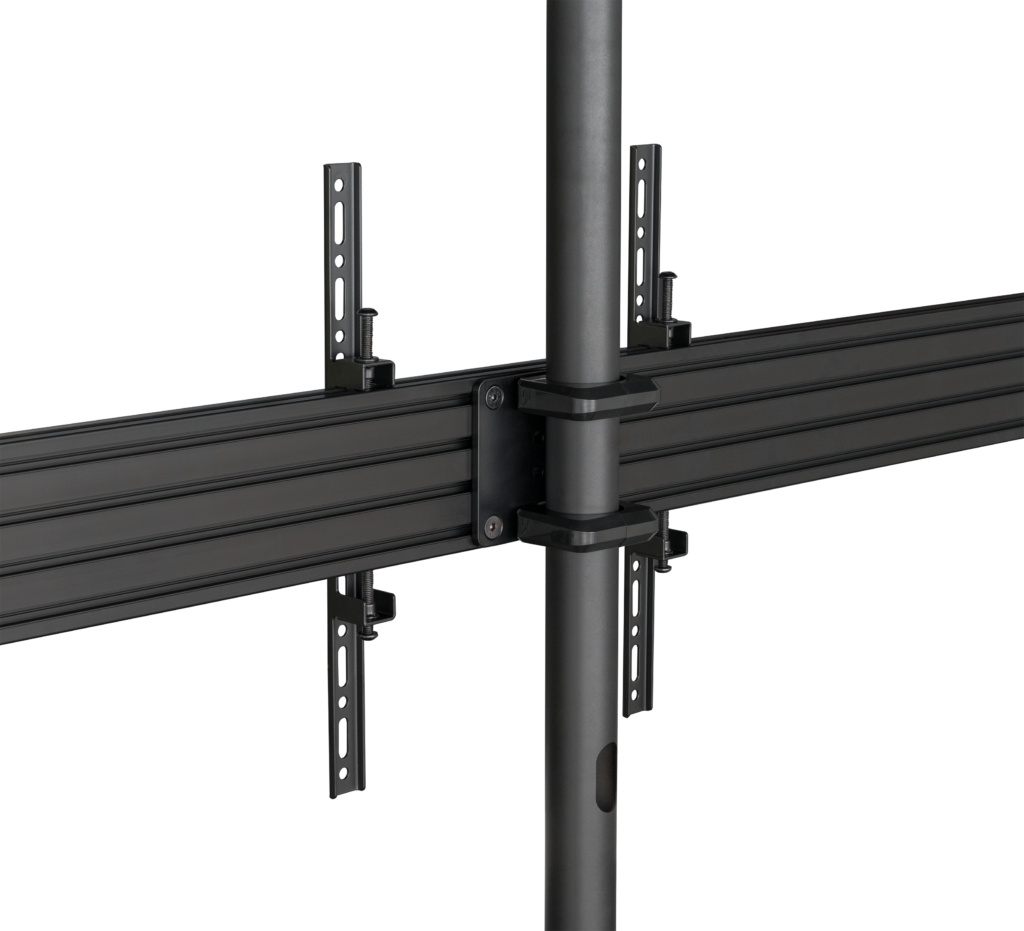

Fixing kit to pole mount: BT8390-CFK (accessory collar required)
Fixing kit to mount to a System X BT8390 column: BT8380-JPK / BT8380-JPT
Fixing kit to mount to a Mode AL BT8385 column: BT8385-RTC
Fixing kit to mount to a BT8381 column: BT8381-JPS
Colour: Black
