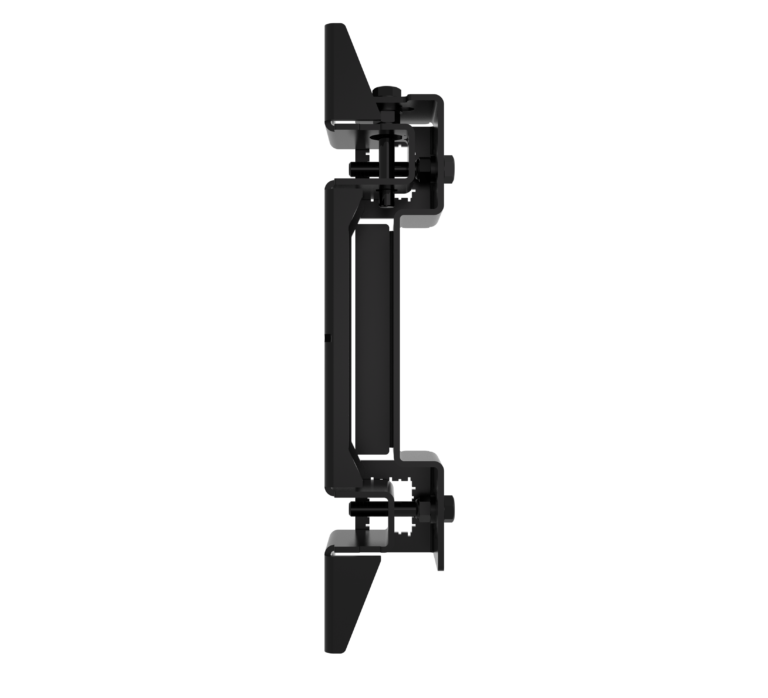

BT8390-WFK6
System X Adjustable Height & Depth Rail Mounting Bracket
Ideal for uneven walls
Product Features
- Designed to mount BT8390 horizontal rails and BT8393 vertical columns to walls and poles
- Mounts the BT8390 horizontal rail just 37mm from the wall with a +/-10mm adjustable depth to ensure a flat to the wall installation
- BT8390-WFK6 can also be pole mounted using B-Tech accessory collars
- Keyhole mounting for easy installation
- Micro-Adjustment of the height of the mounting rail with the supplied Hex Key allow for precision alignment
- Easy adjustment of the depth of the rails with a 13mm spanner ideal for counteracting uneven walls
- Integrated adjustment guides for straightforward alignment
- All mounting hardware included
Product Specifications
- Designed for use with: BT8390 - Mounting Rail
- Max load: 50kg per bracket
- Product width: 56mm
- Min product depth: 57.3mm
- Max product depth: 77.3mm
- Product height: 310mm
- Adjustable depth: +/- 10mm
- Adjustable height: +/- 10mm
- Qty per pack: 1
- Colour: Black
- *Use B-Tech's online configuration tool to automatically calculate the quantity required based on your configuration.
