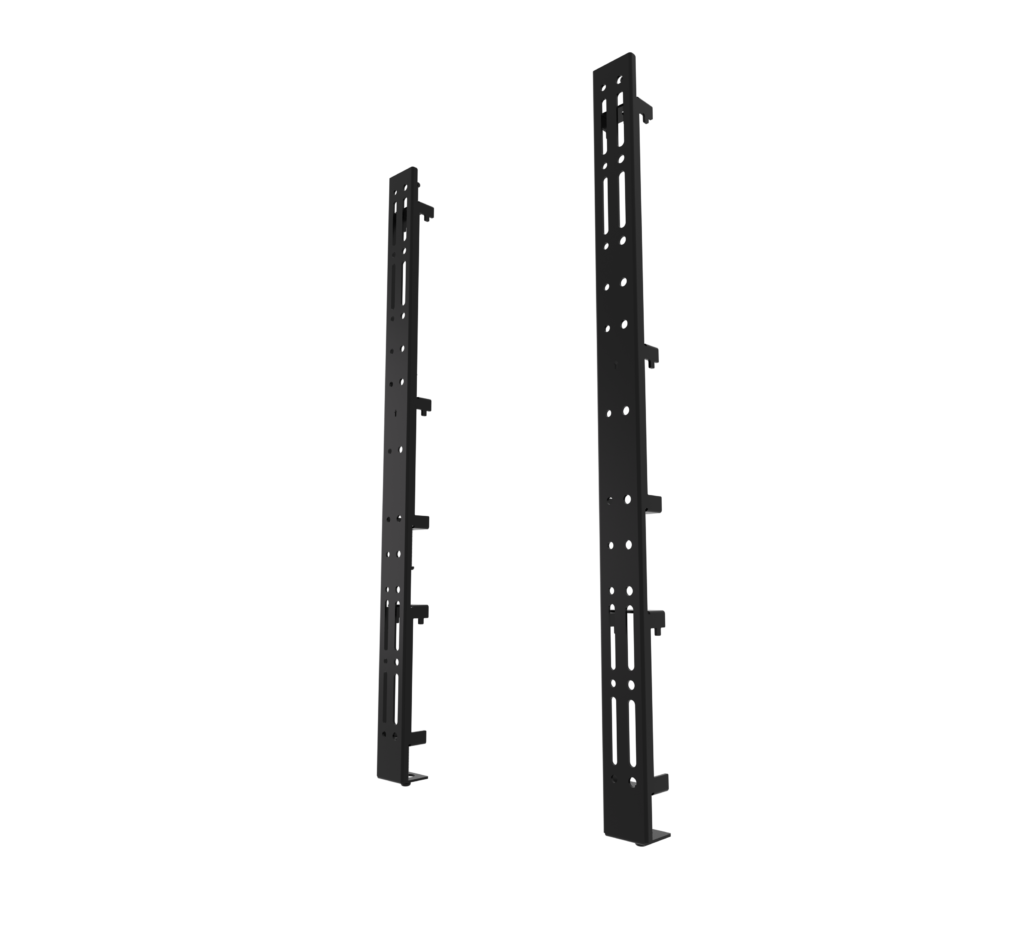

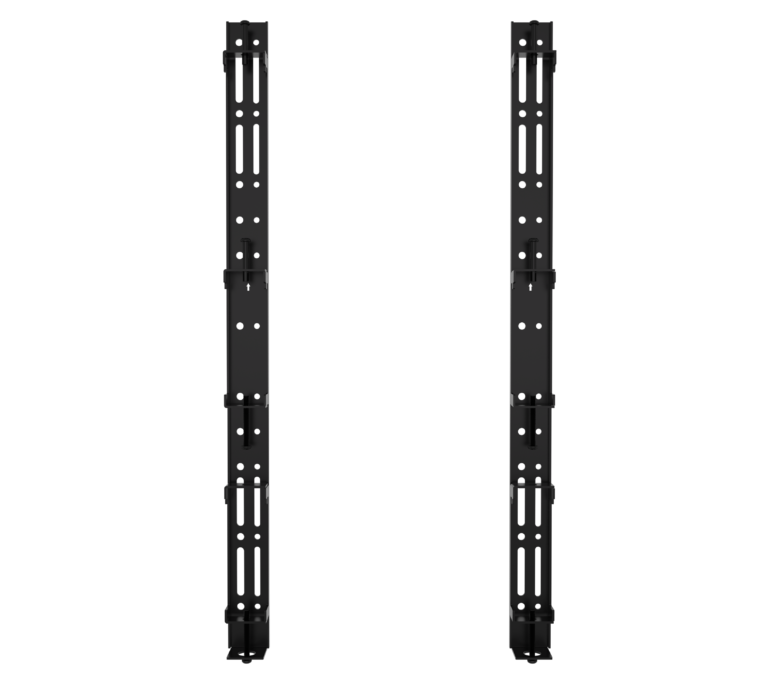

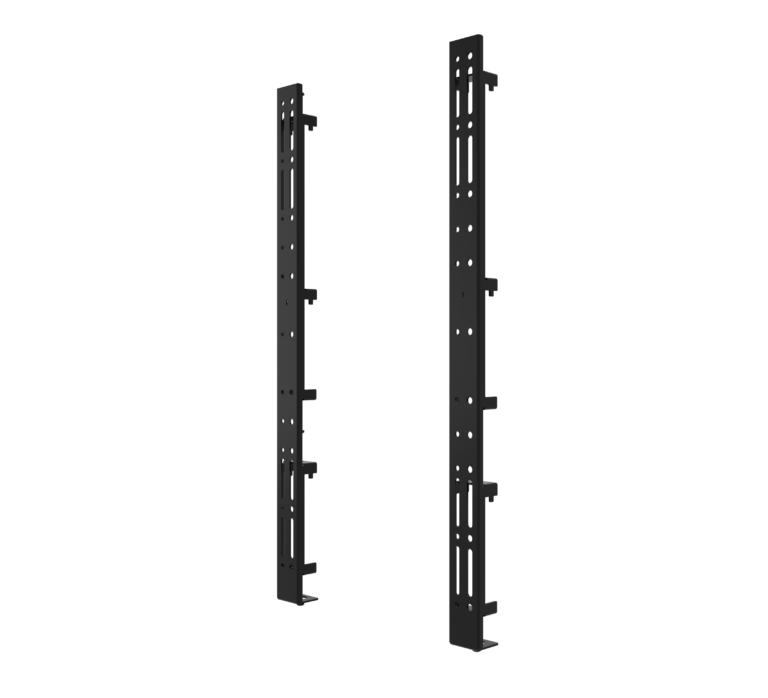

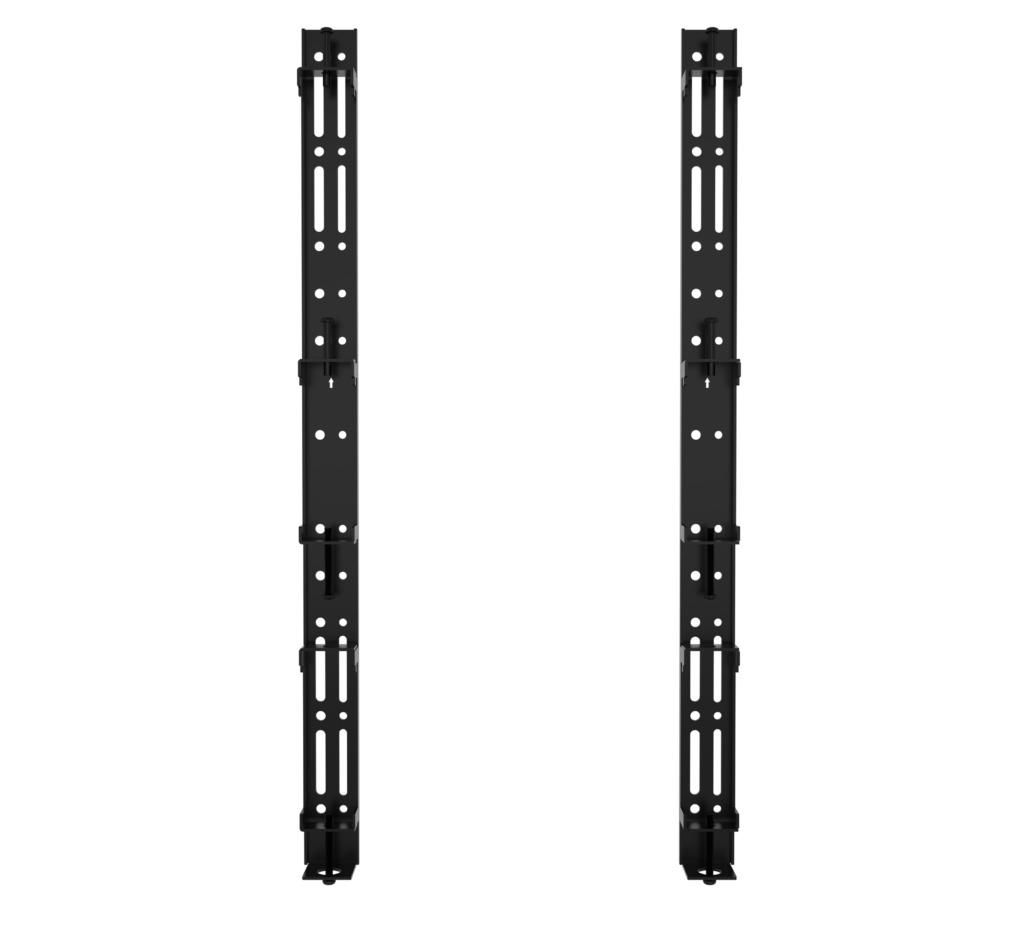

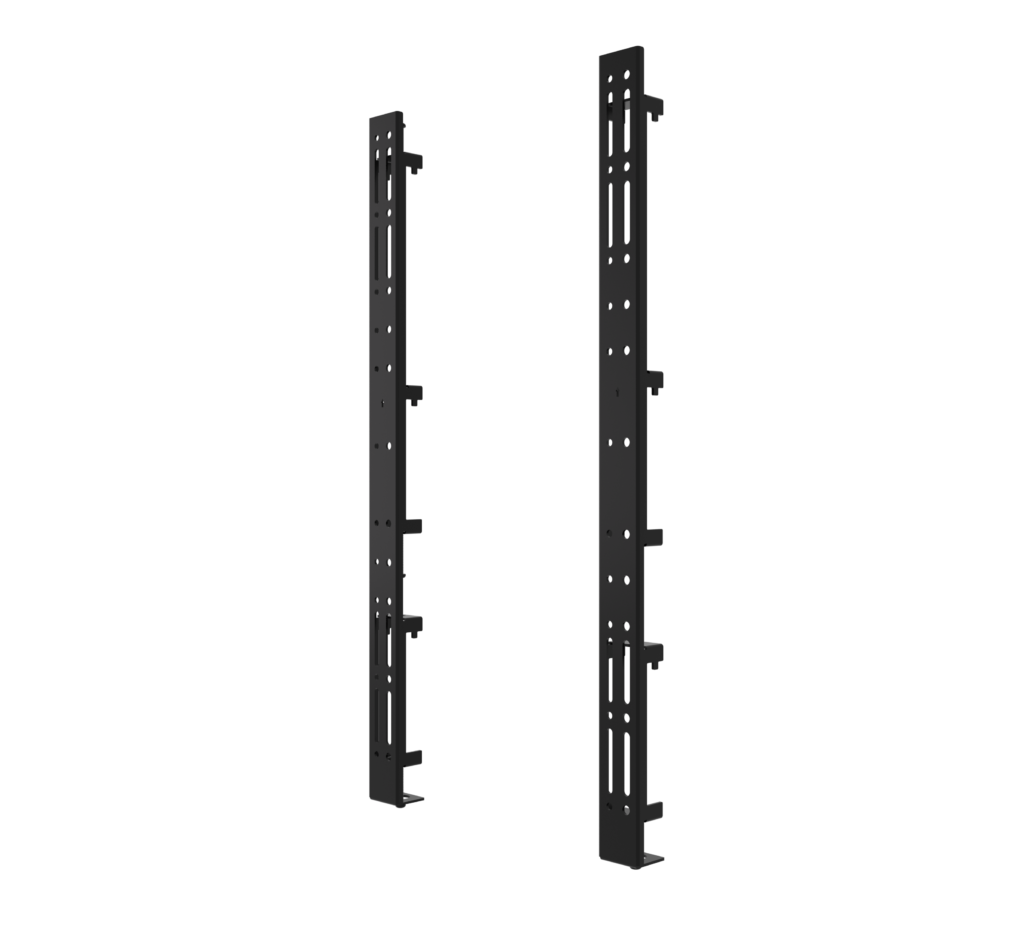

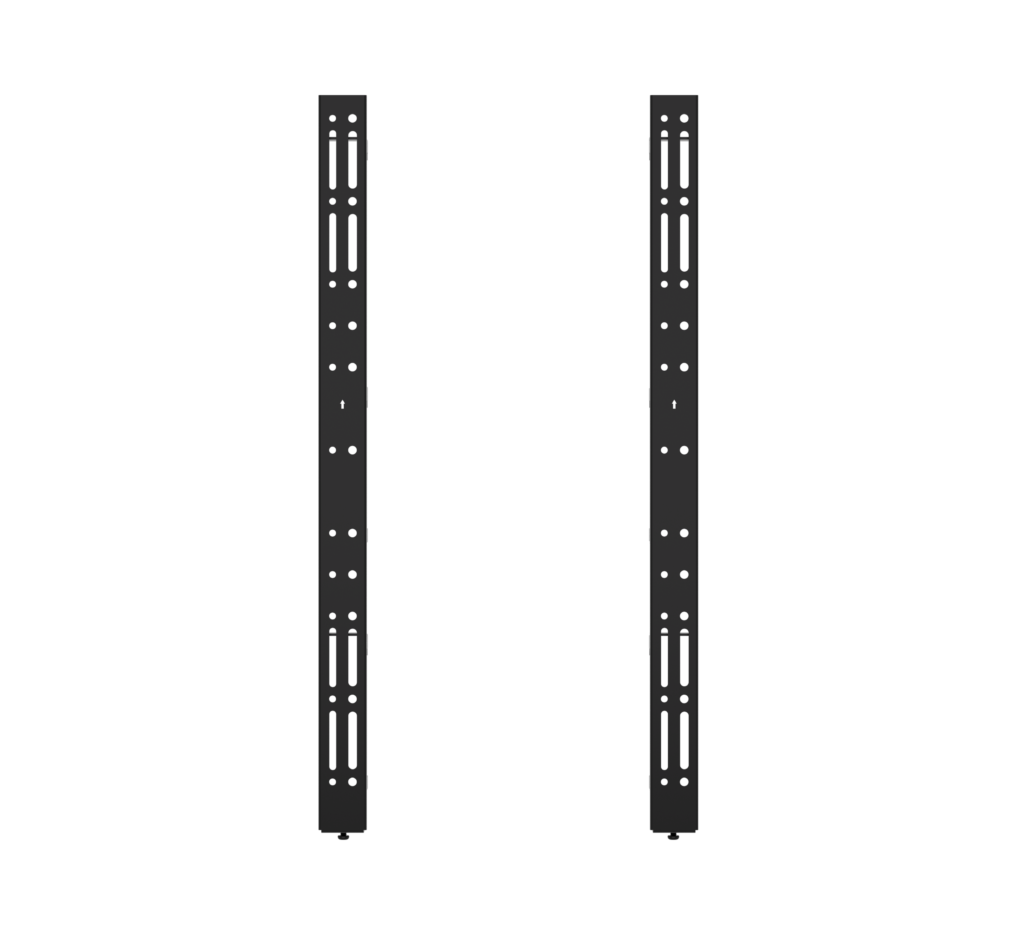

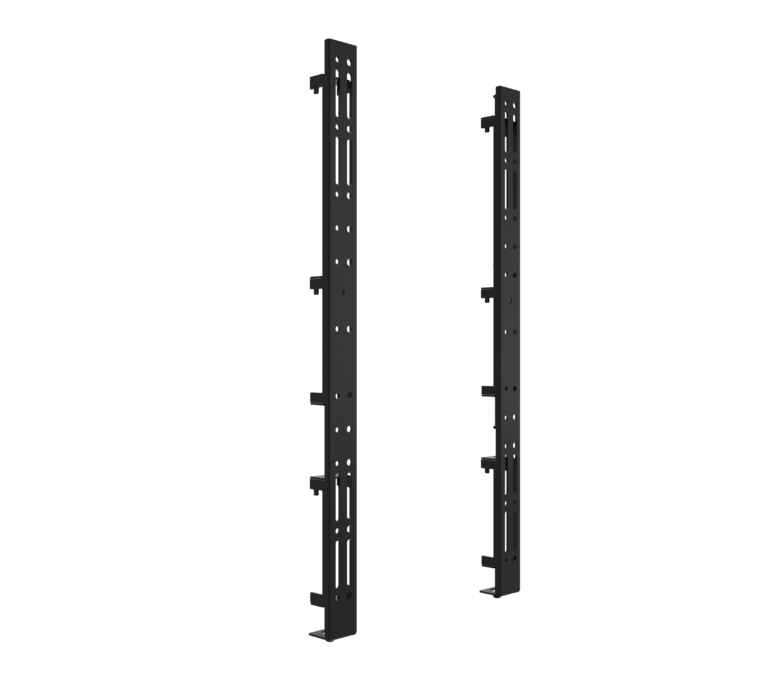

BT8390-VESA800F
System X™ Universal Interface Arms
For XL Screens
Product Features
- Heavy duty arms capable of supporting substantial loads
- Suitable for landscape or portrait mounting

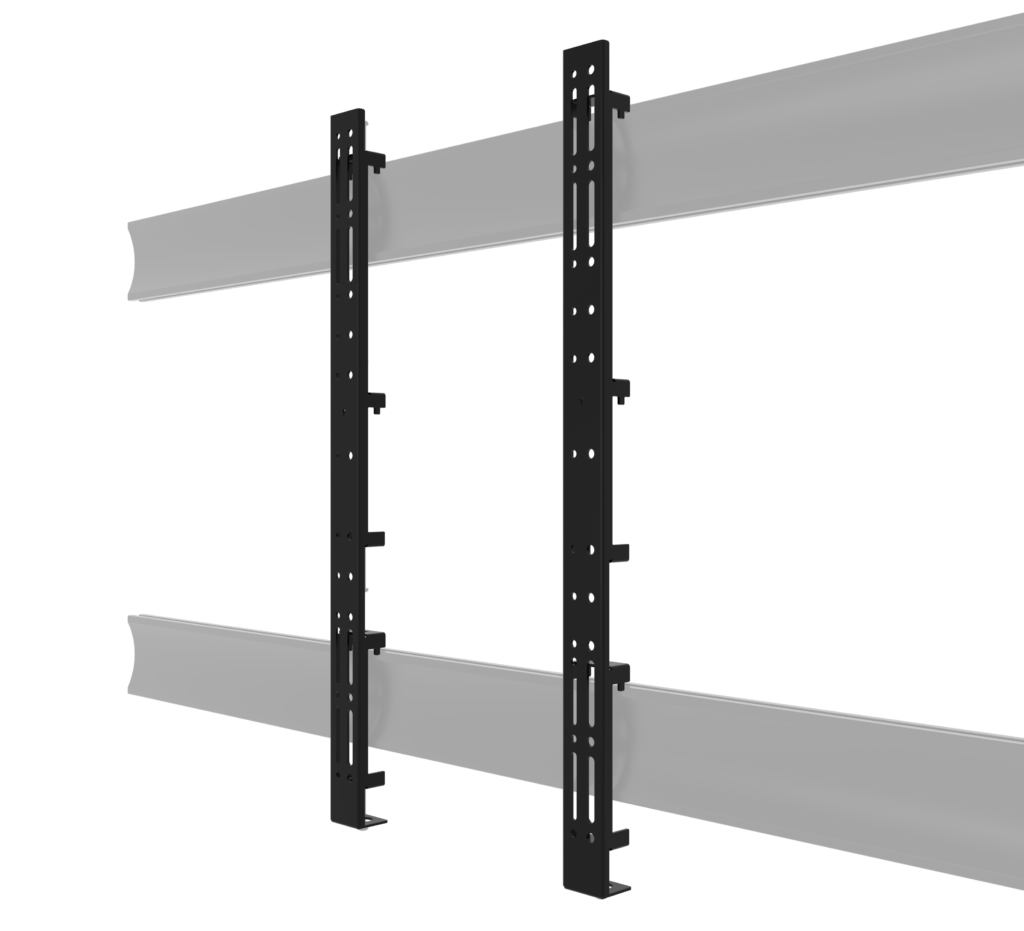

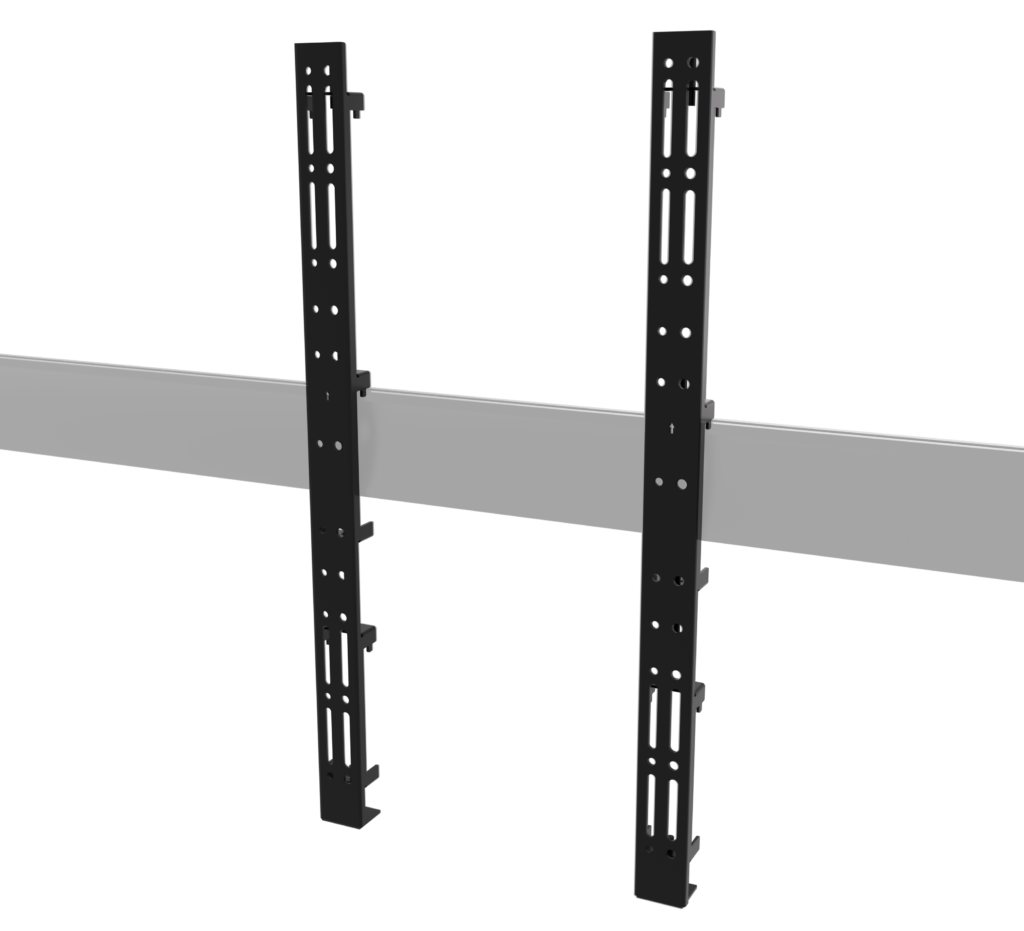

- Can be mounted across single or dual horizontal mounting rails to suit the application
- Lateral adjustment - position arms anywhere along the length of the rail
- Includes levelling screws to adjust the screen height
- Safety screws help prevent unauthorised removal of screens
- Simple ‘hook-on’ installation
Product Specifications
- Designed for use with: BT8390 - Mounting Rail

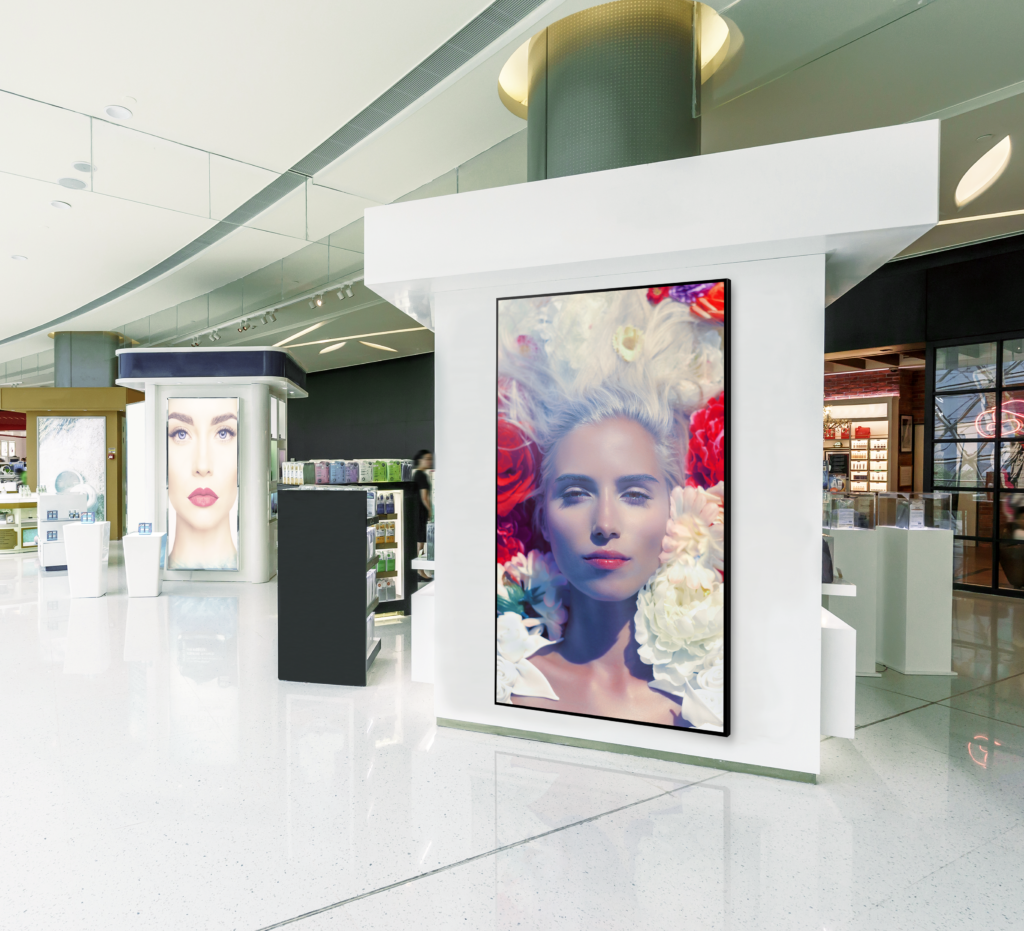

- Recommended display size (landscape) 72" (182.9cm) & over
- Recommended display size (portrait) 42" (106.7cm) & over
- Max load (single rail mounting): 70kg (154lbs)
- Max load (twin rail mounting): 200kg (441lbs)
- VESA® fixings up to 800mm *
- Product width: 58mm
- Product depth: 50mm
- Product height: 900mm
- Supplied in pairs
- Colour: Black
- *The VESA specification of the BT8390-VESA800mm F refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary.
