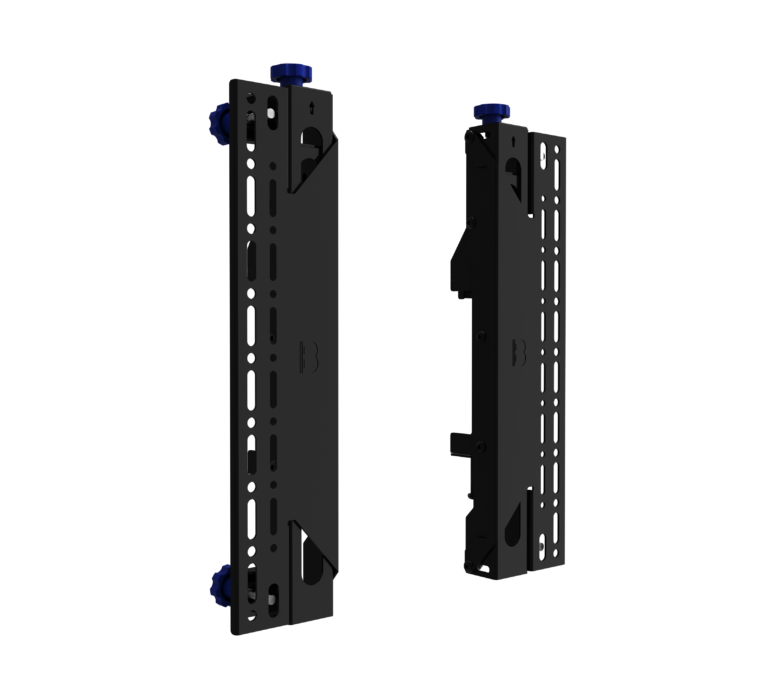

BT8390-VESA400MAF-B-V2

System X™ Universal Interface Arms

With Micro-Adjustment

BT8390-VESA400MAF-B-V2
Enquire TodayView Related Products

Product Features

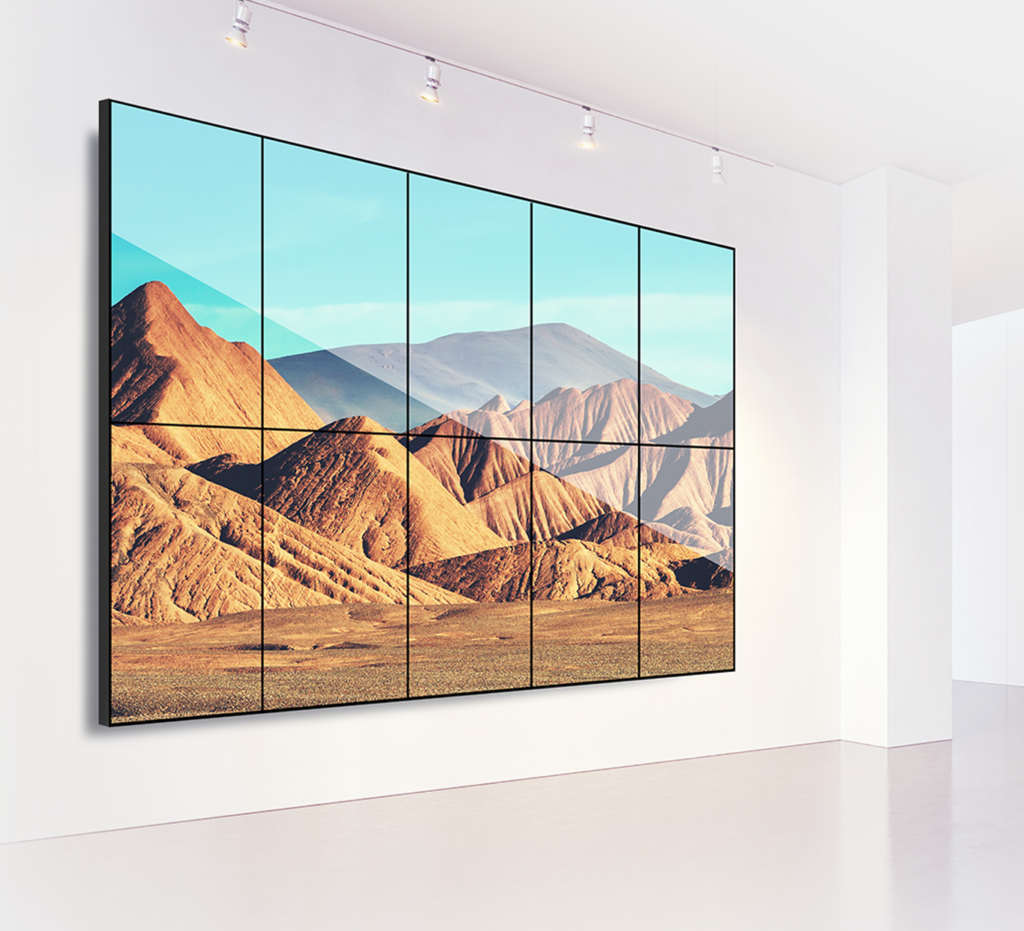

  • Ideal for videowalls and other multi-screen installations
  • Universal design compatible with most screens
  • Suitable for landscape or portrait mounting

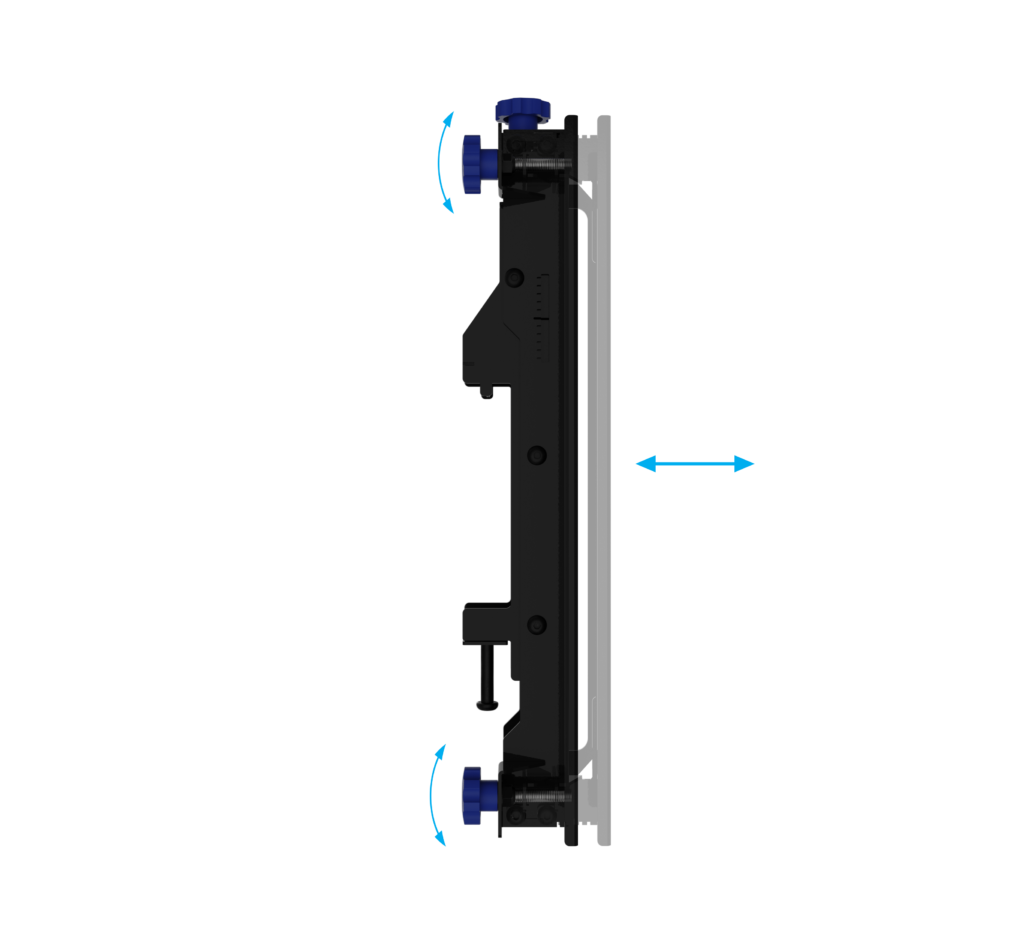

  • Tool-less micro-adjustment for seamless display alignment
  • Safety screws help prevent unauthorised removal of screens
  • Simple ‘hook-on’ installation
  • TUV certified

Product Specifications

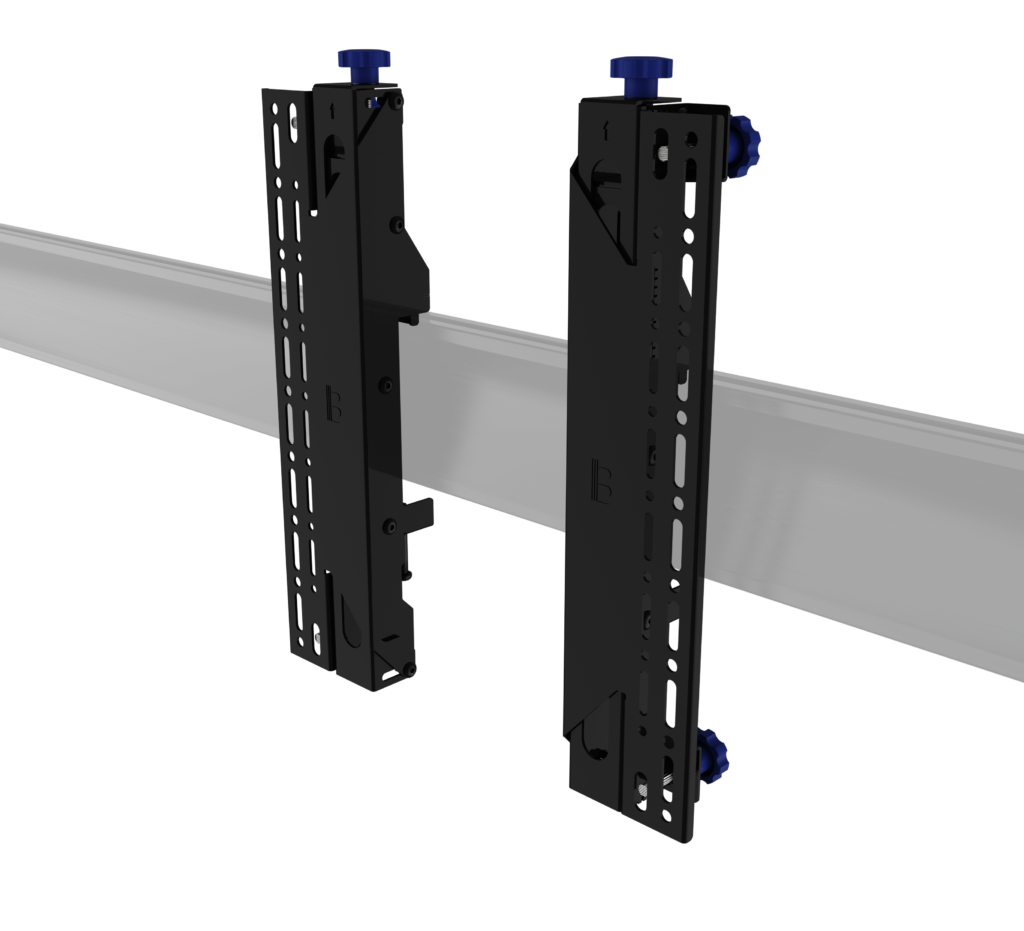

  • Designed for use with: BT8390 - Mounting Rail
  • Recommended display size: 39" up to 75"
  • Max load: 50kg (110lbs)
  • VESA® fixings: up to 400mm (15.7")*
  • Micro-adjustment per corner -/+: 10mm
  • Product width: 103.7mm
  • Product depth: 79.7mm
  • Product height: 454.6mm
  • Screen height adjustment: 25mm
  • Depth (using BT8390-WFK1): 86.1mm (3.4") (+/-10mm depth adjustment)
  • Depth (using BT8390-WFK2): 99mm (3.9") (+/-10mm depth adjustment)
  • Height Adjustment: +/- 25mm (1")
  • Supplied in pairs
  • Colour: Black
  • *The VESA specification of the BT8390-VESA400mm MAF refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary. BT7564 Interface Adaptor Arms can be used to increase the maximum vertical fixings to 600mm for larger screens.
The VESA specification of the BT8390-VESA400MAF refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary. BT7564 Interface Adaptor Arms can be used to increase the maximum vertical fixings to 600mm for larger screens.
