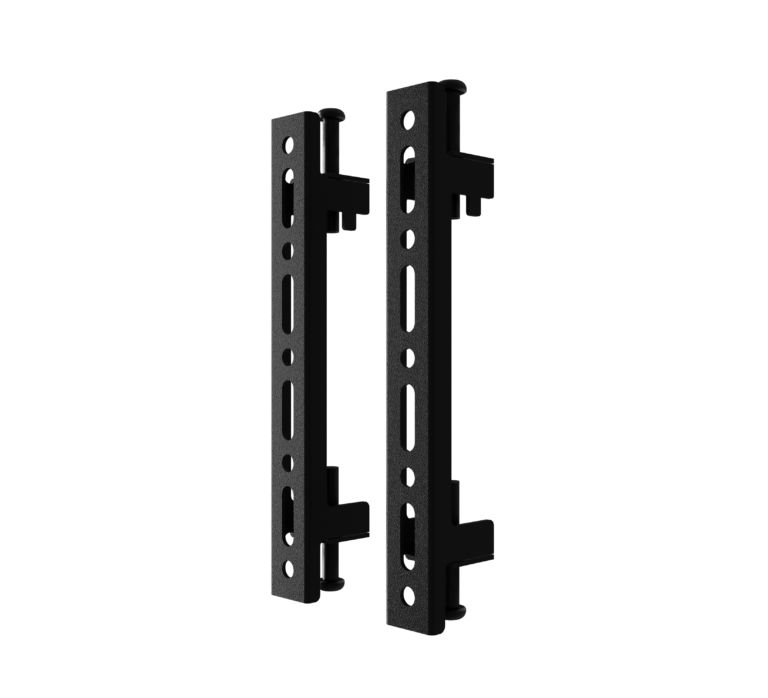

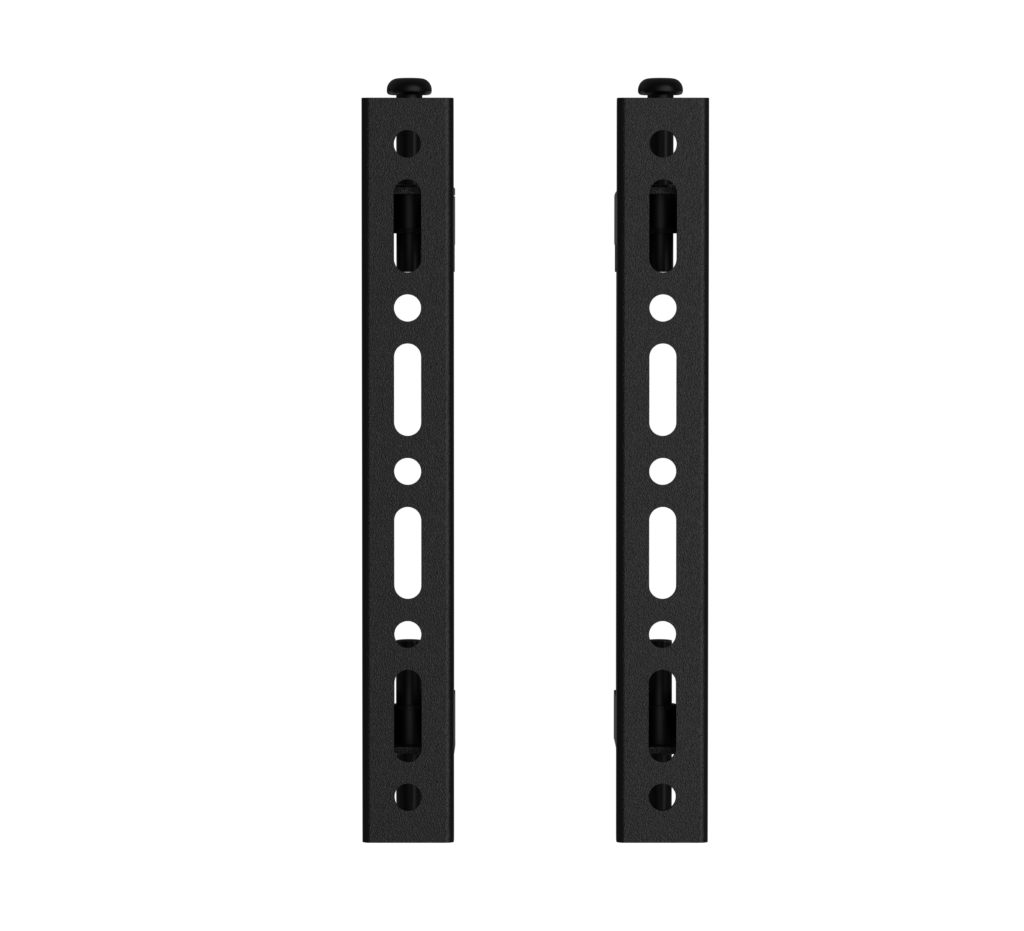

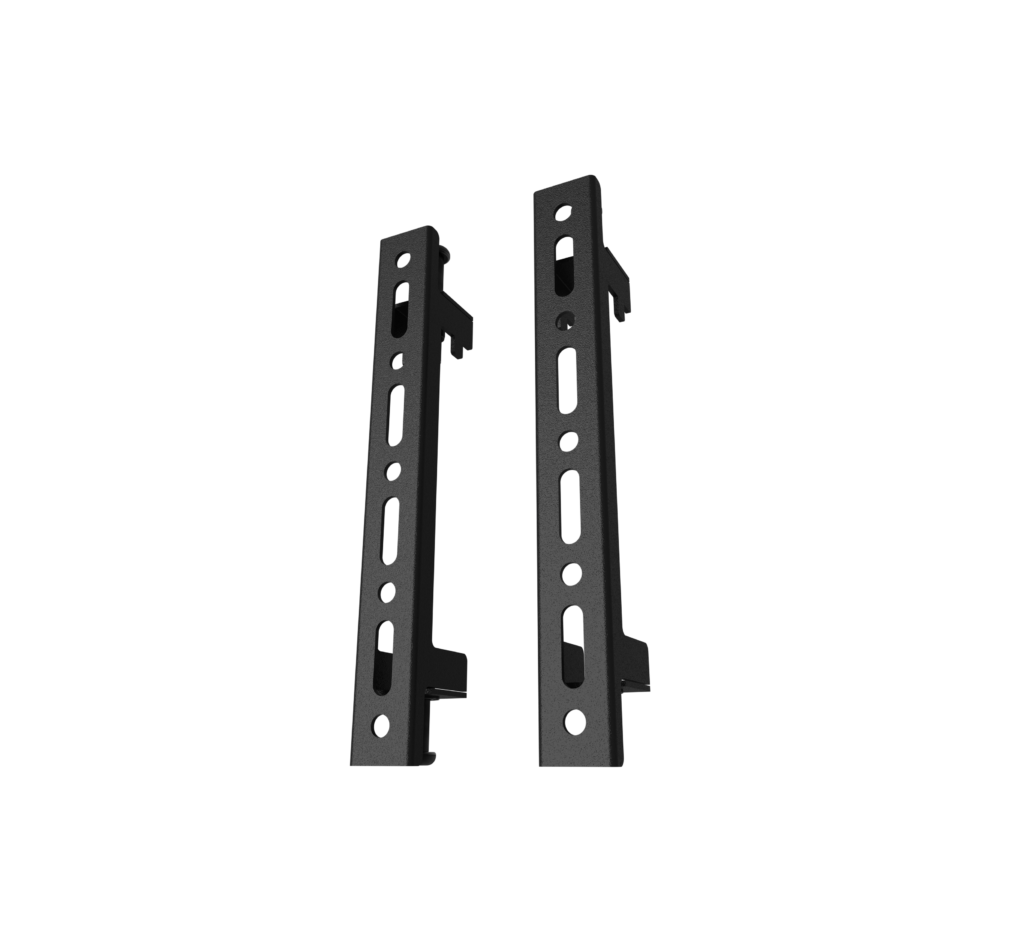

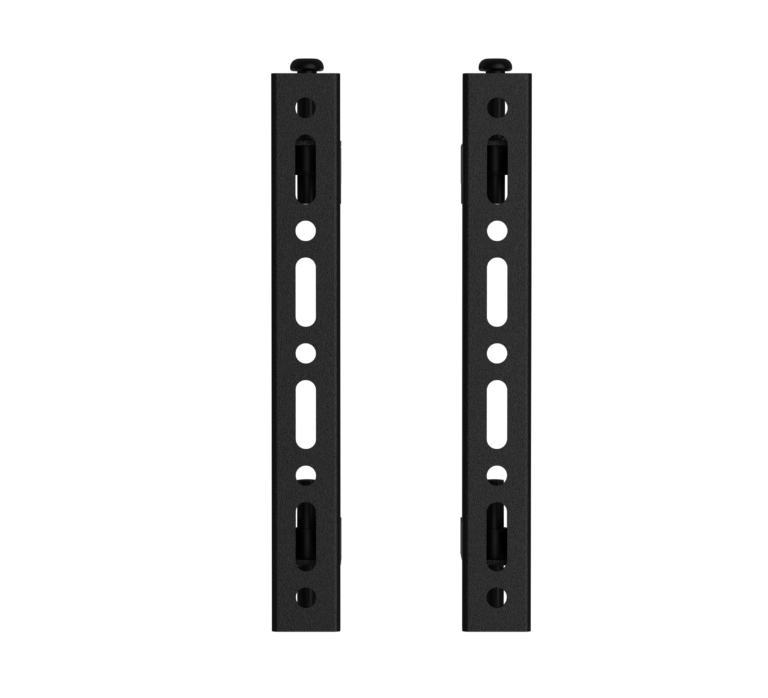

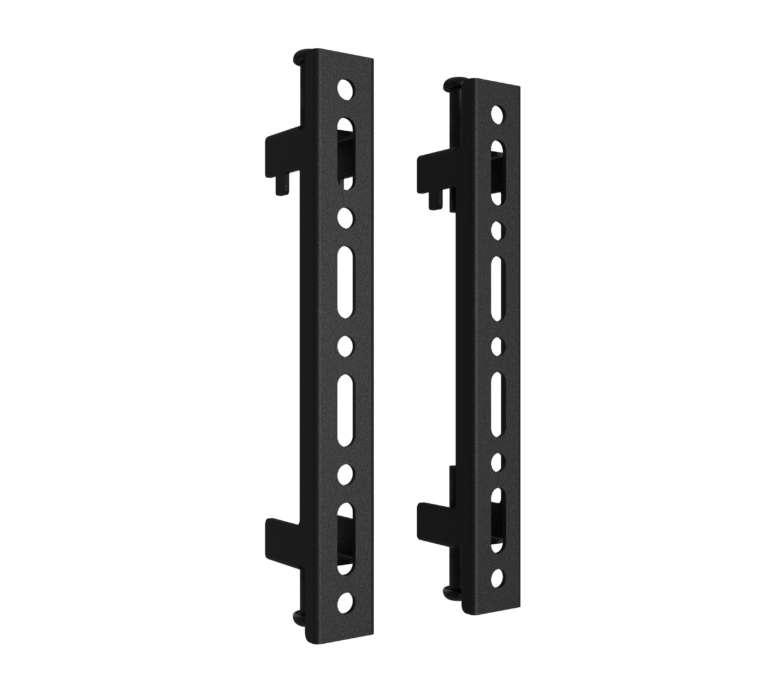

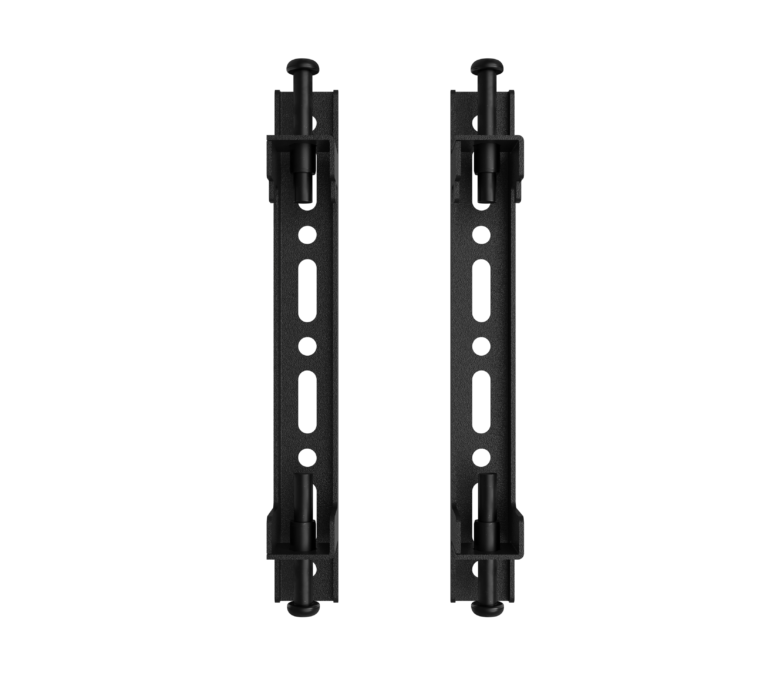

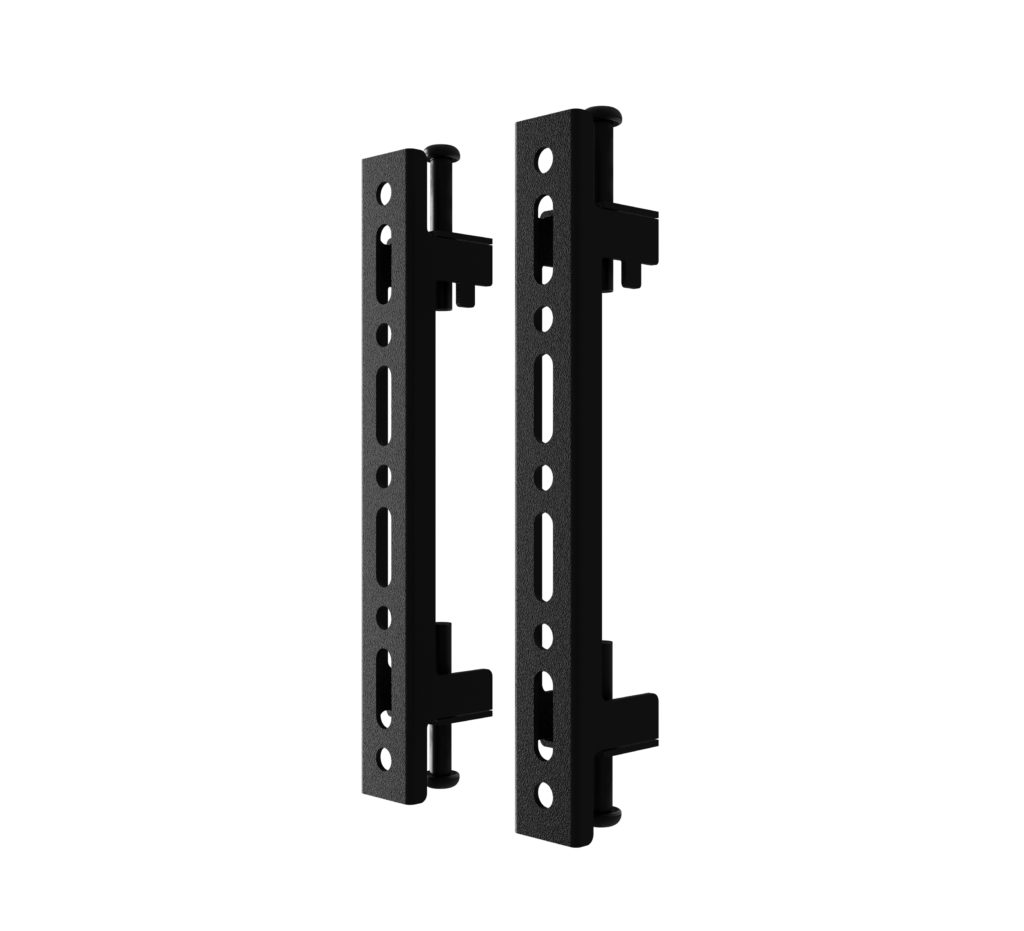

BT8390-VESA200F
System X™ Universal Interface Arms
For Small / Medium Screens
Product Features
- Ideal for menu boards and other multi-screen installations
- Universal design compatible with most screens
- Suitable for landscape or portrait mounting
- Lateral adjustment - position arms anywhere along the length of the rail

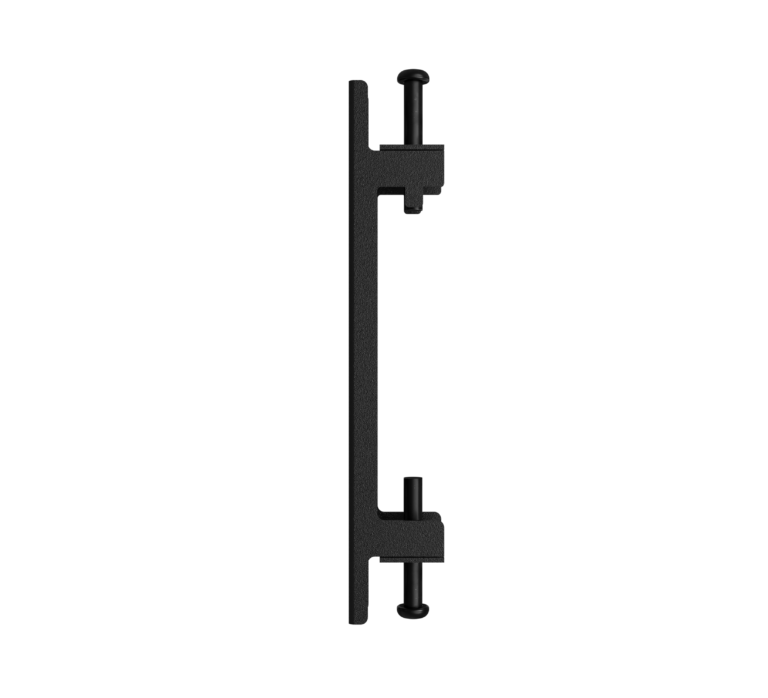

- Includes levelling screws to adjust the screen height
- Safety screws help prevent unauthorised removal of screens

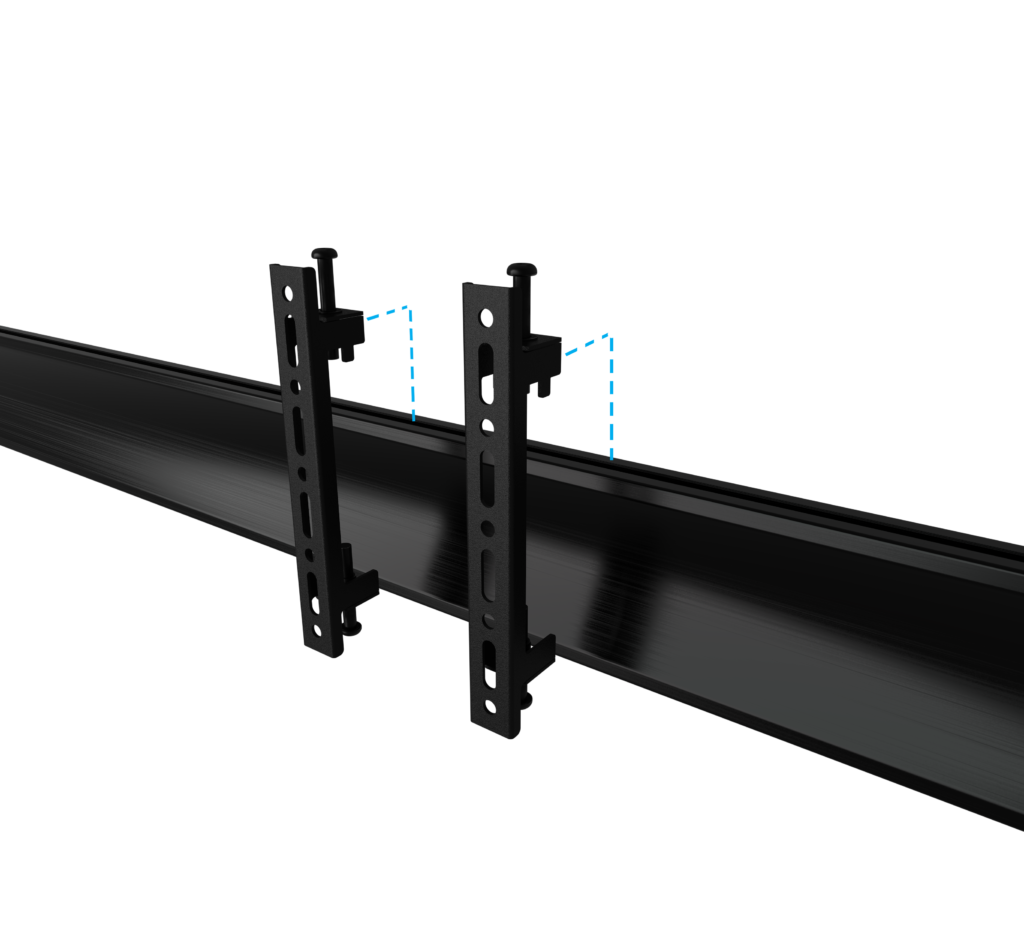

- Simple ‘hook-on’ installation
Product Specifications

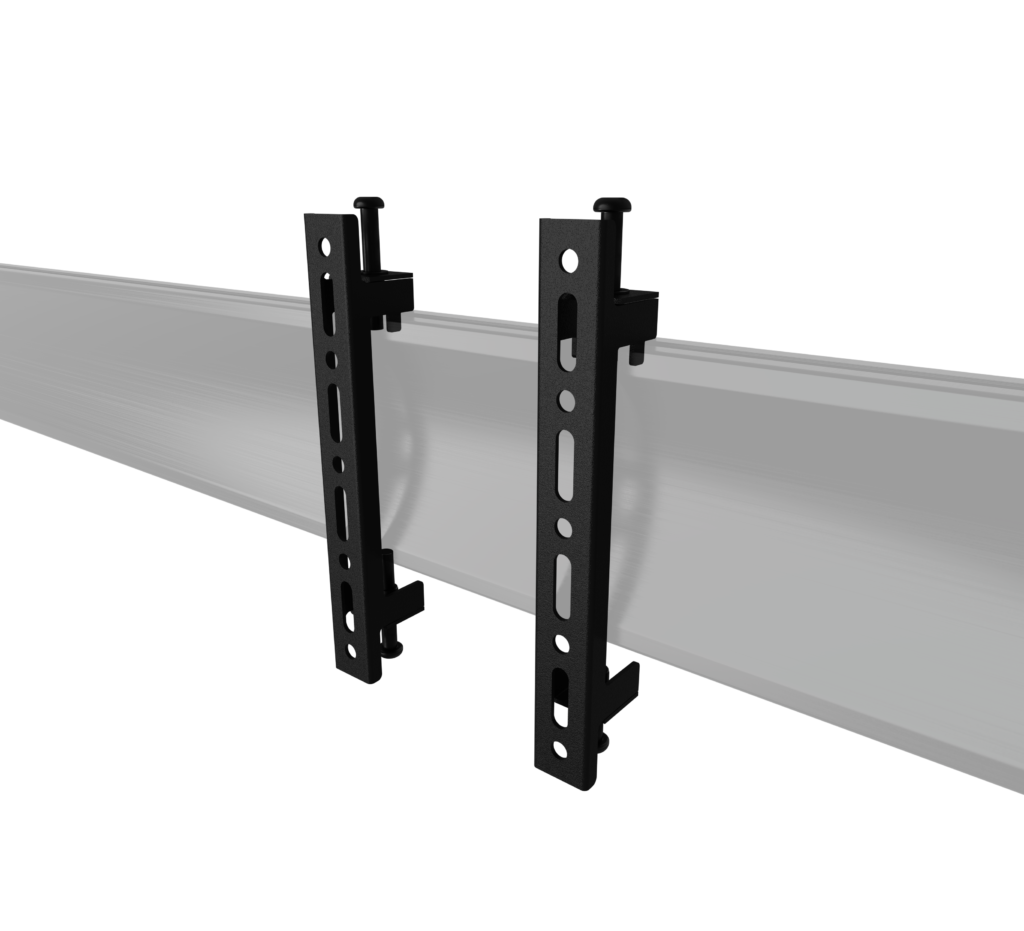

- Designed for use with: BT8390 - Mounting Rail
- Recommended display size: 22" up to 47"
- Max load: 70kg (154.3lbs)
- VESA® fixings: up to 200mm *
- Product width: 28mm
- Product depth: 40mm
- Product height: 228mm
- Supplied in pairs
- Colour: Black
- *The VESA specification of the BT8390-VESA200mm F refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary.
- Depth (typical wall mounted install): 48mm (1.9")
The VESA specification of the BT8390-VESA200F refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary.
