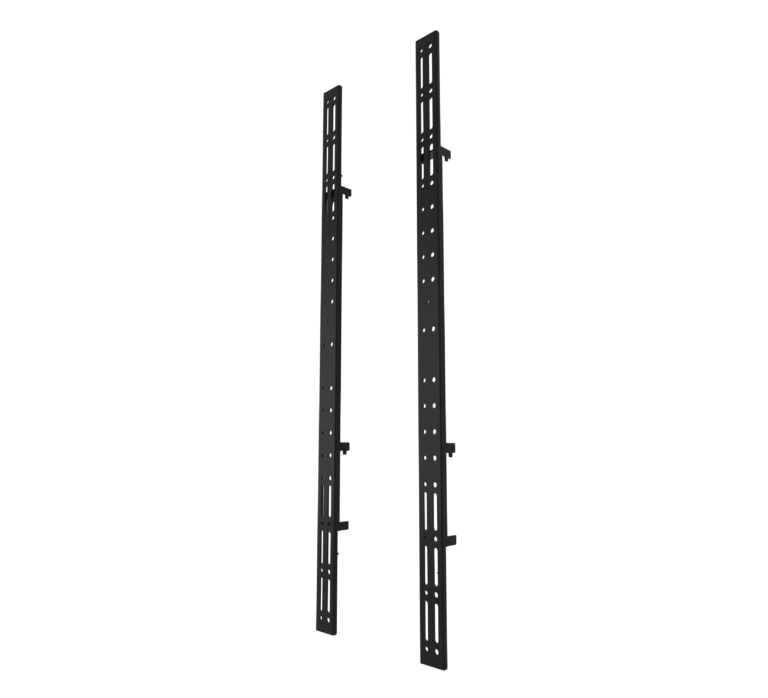

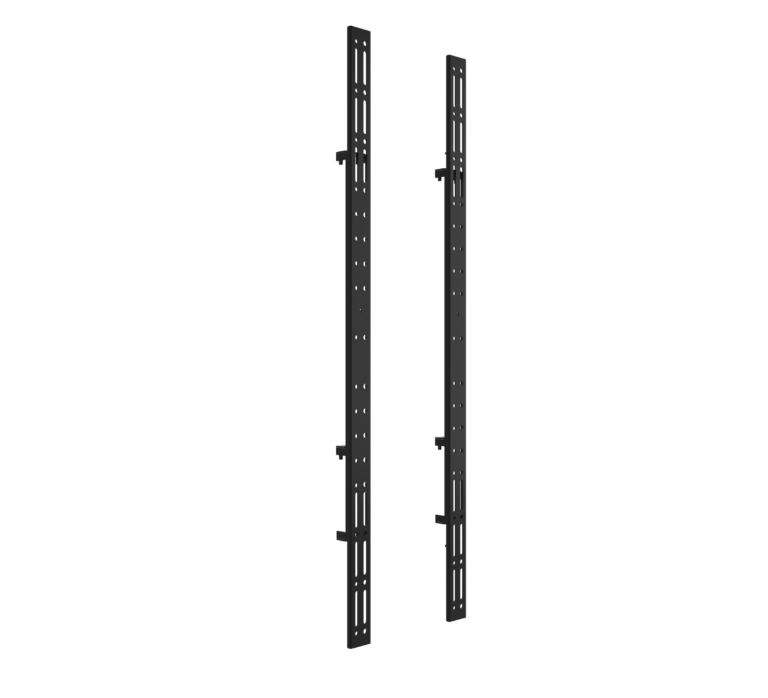

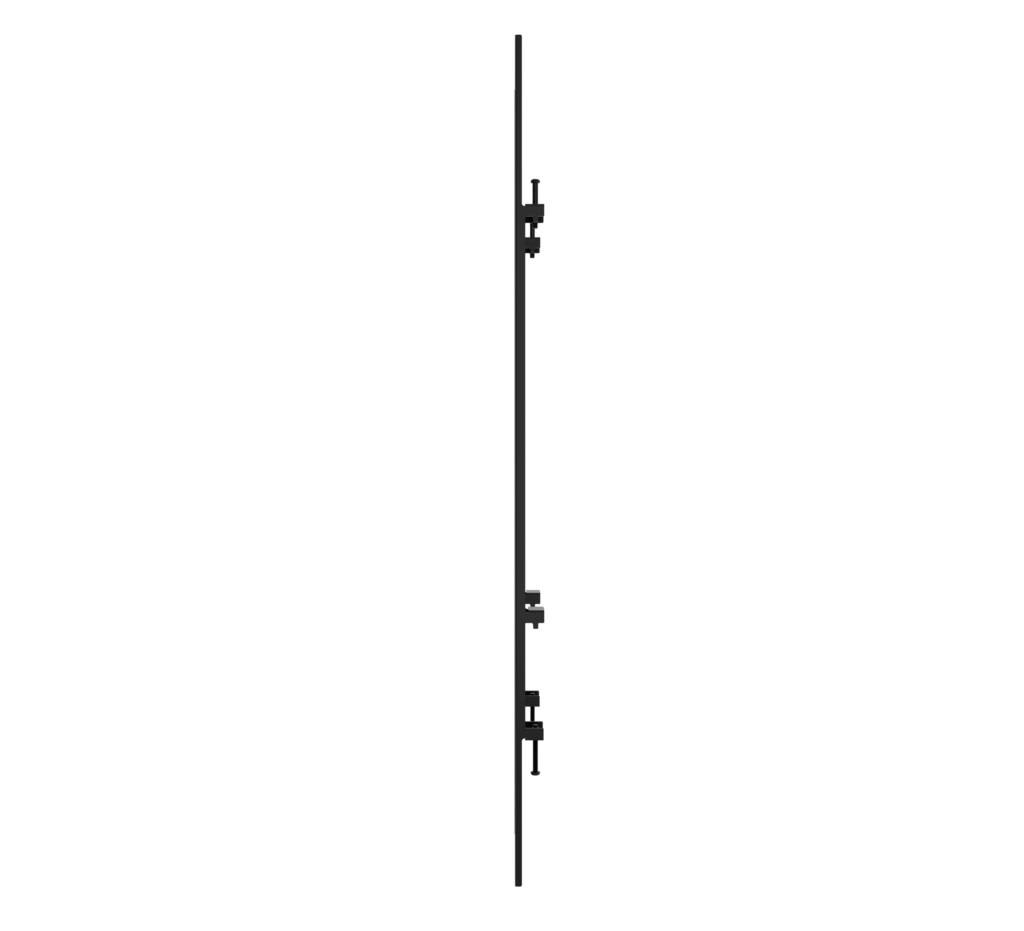

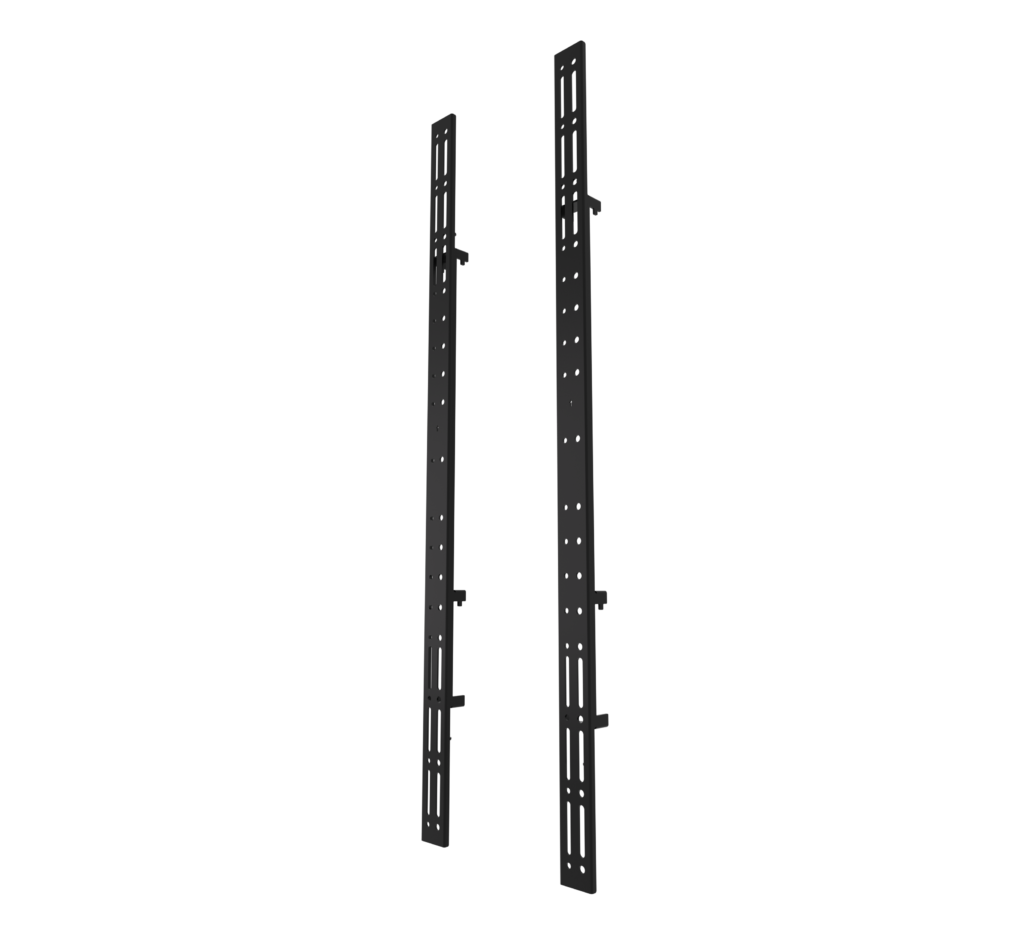

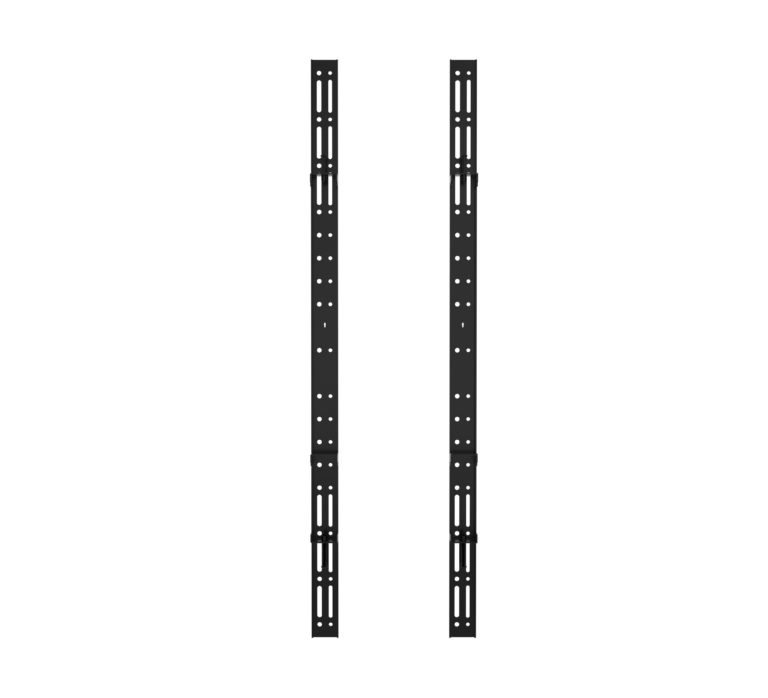

BT8390-VESA1200F
System X™ Universal Interface Arms
For XXL Screens
Product Features
- Heavy duty arms capable of supporting substantial loads

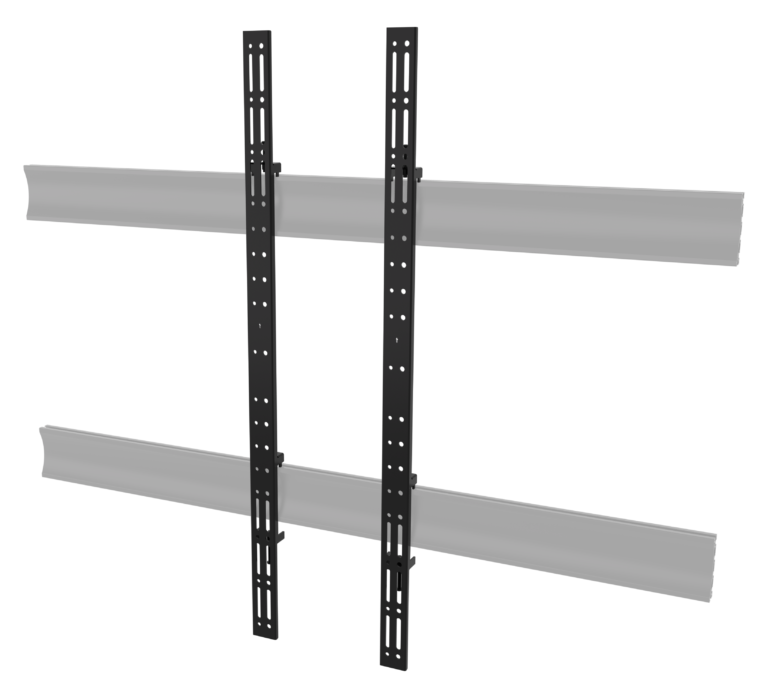

- Mounts on dual horizontal mounting rails
- Suitable for landscape or portrait mounting
- High-end aesthetic quality
- Lateral adjustment - position arms anywhere along the length of the rail
- Includes levelling screws to adjust the screen height
- Safety screws help prevent unauthorised removal of screens
- Simple 'hook-on' installation
- All mounting hardware included
Product Specifications
- Designed for use with: BT8390 - Mounting Rail
- Recommended display size (in landscape): 90" (228.6cm) & over
- Recommended display size (in portrait): 55" (139.7cm) & over
- Max load: 200kg (441lbs)
- VESA® fixings: up to 1200mm *
- Product width: 58mm
- Product depth: 51.5mm
- Product height: 1256mm
- Supplied in pairs
- Colour: Black
- *The VESA specification of the BT8390-VESA1200mm F refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary.
The VESA specification of the BT8390-VESA1200F refers to the vertical dimension only. All System X interface arms can be positioned as far along the rail as necessary.
