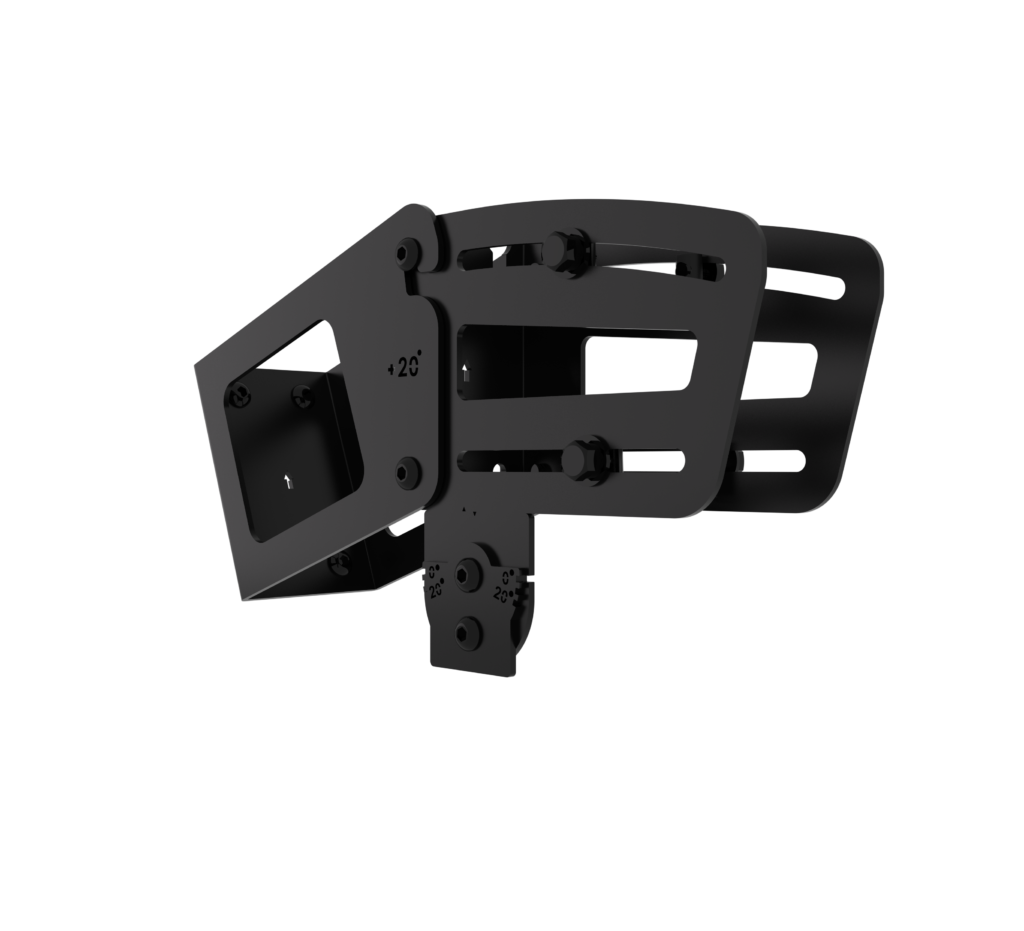

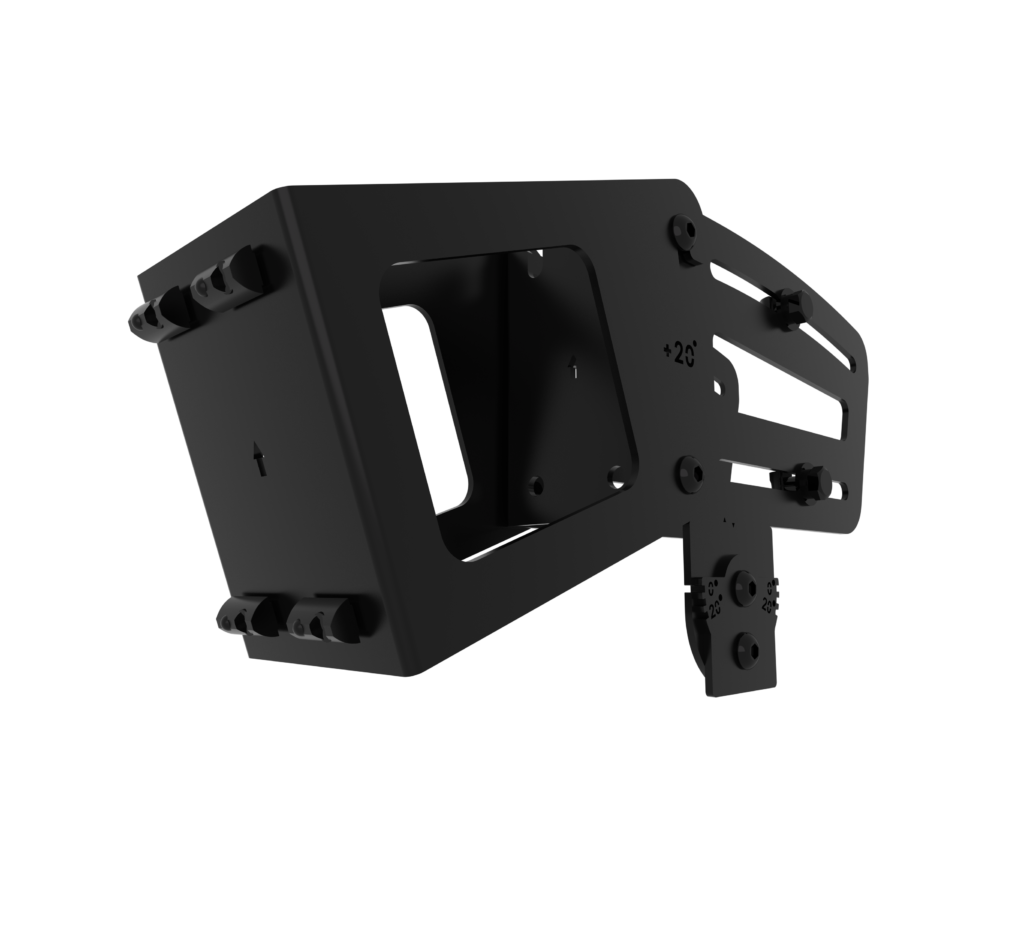

BT8380-JPT
Tilting Joining Plate
Connect BT8390 Rails to BT8380 Columns
Product Features

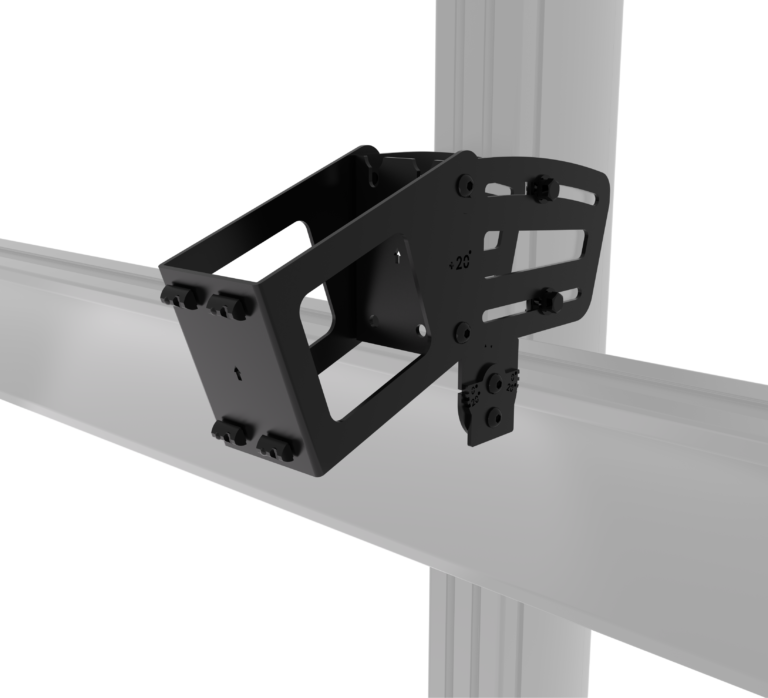

- Connects BT8390 mounting rails to BT8380 vertical columns
- Ideal for use in CCTV or broadcast control rooms where a top row of screens on a stand need to be tilted and aligned
- Can be positioned at any height on the column, and anywhere along the rail to suit the application
- Can be used for on a variety of different fixed, freestanding or mobile stands
Product Specifications
- Designed for use with: BT8380 - Vertical Columns & BT8390 Mounting Rails
- Max load per bracket): 50kg (110lbs)
- Max load (when used as a pair): 100kg (220lbs)
- Tilt: +30°
- Qty per pack: 1
- Colour: Black
