BT8380-AFB

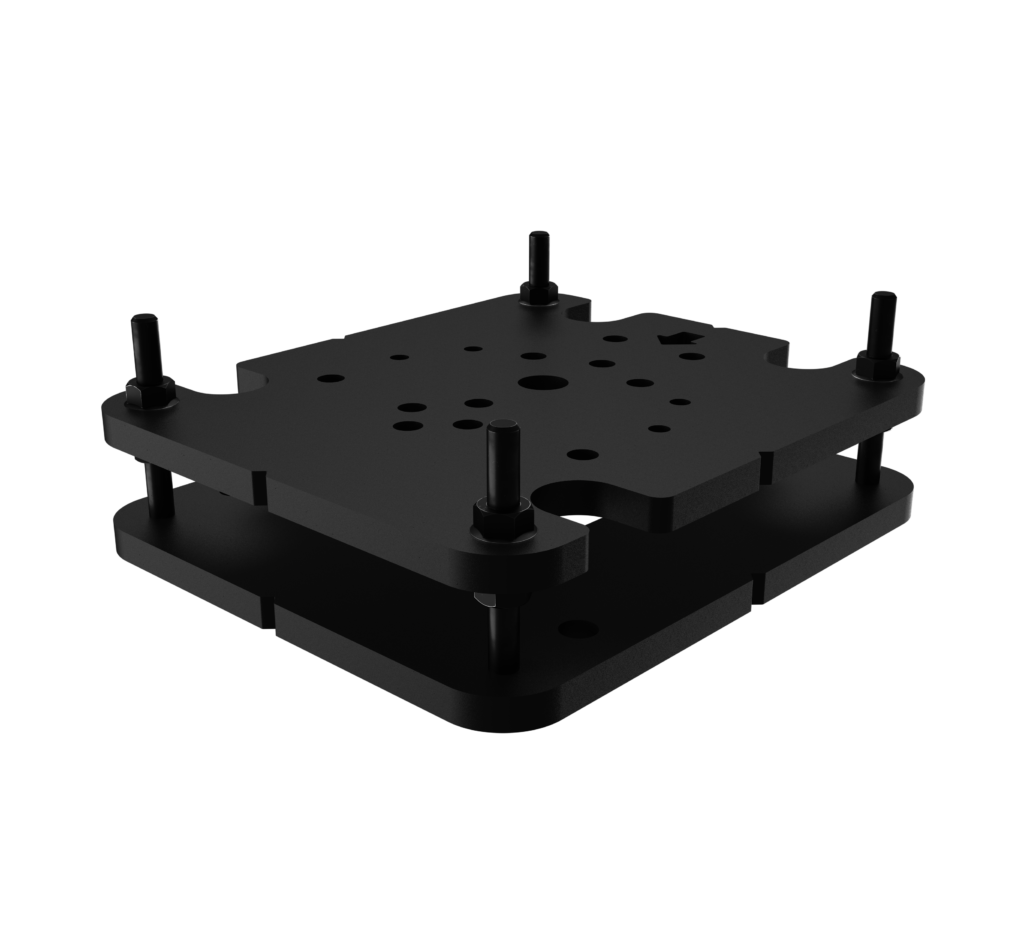

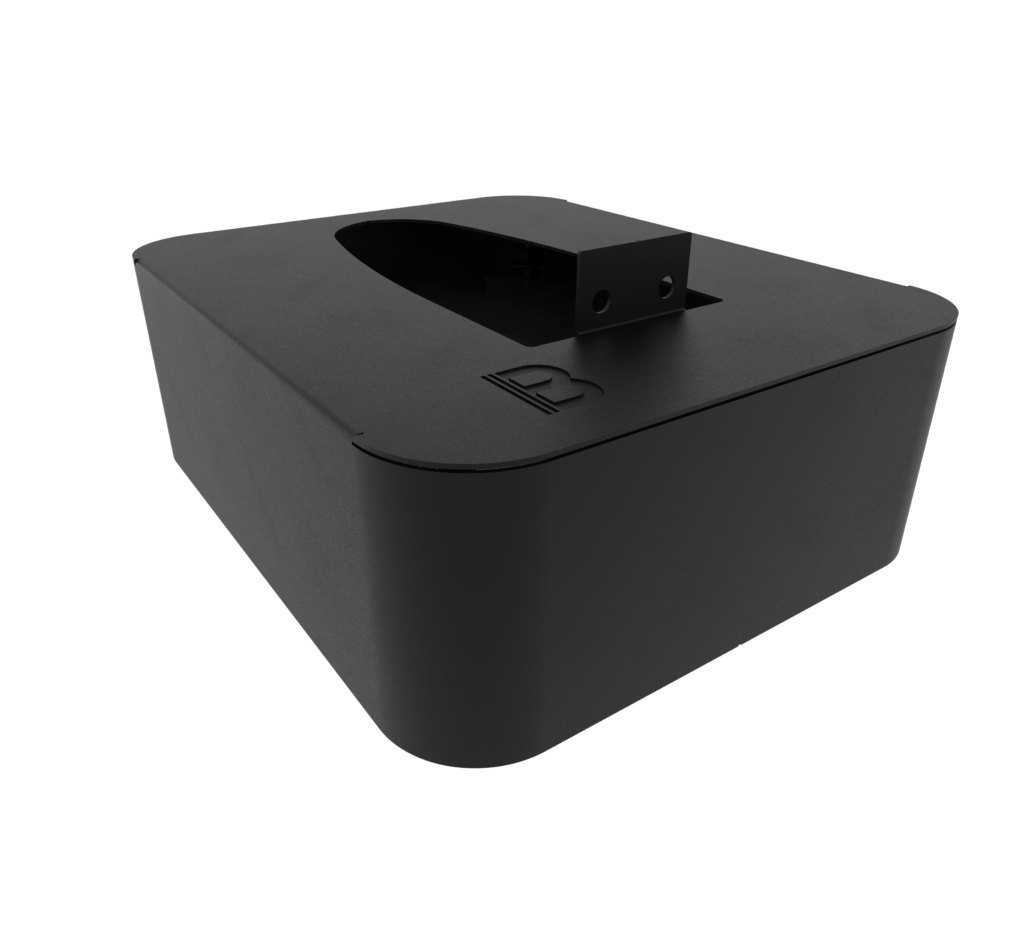

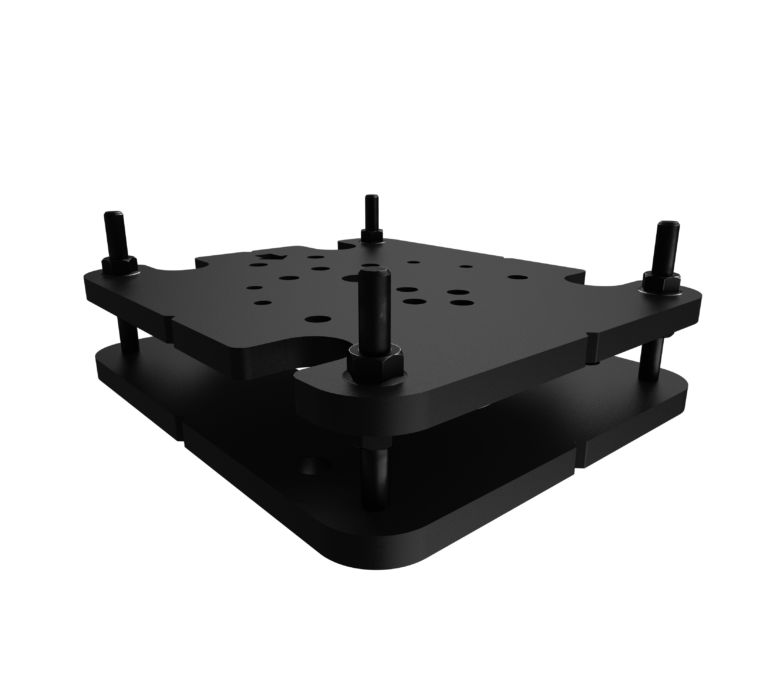

Bolt Down Floor Base With Level Adjustment

Ideal for uneven surfaces

Product Features

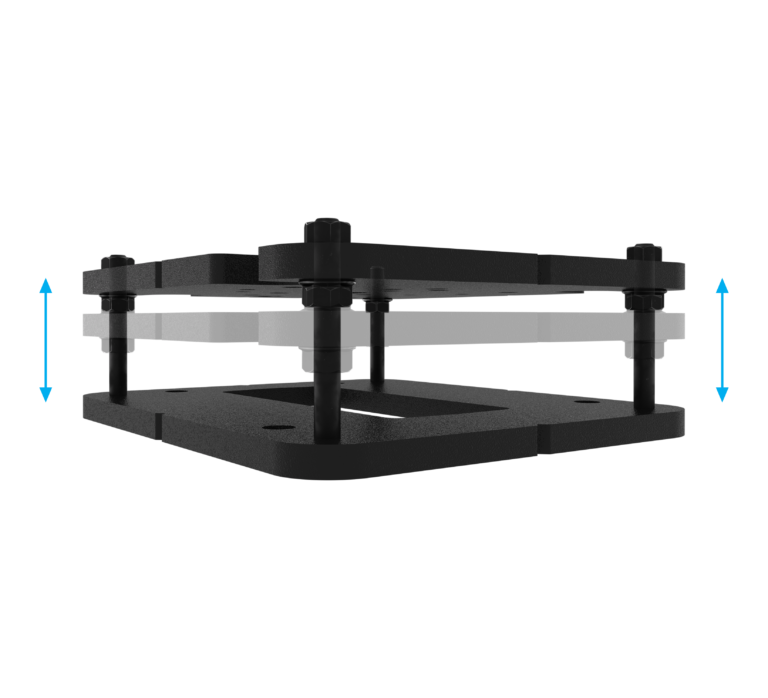

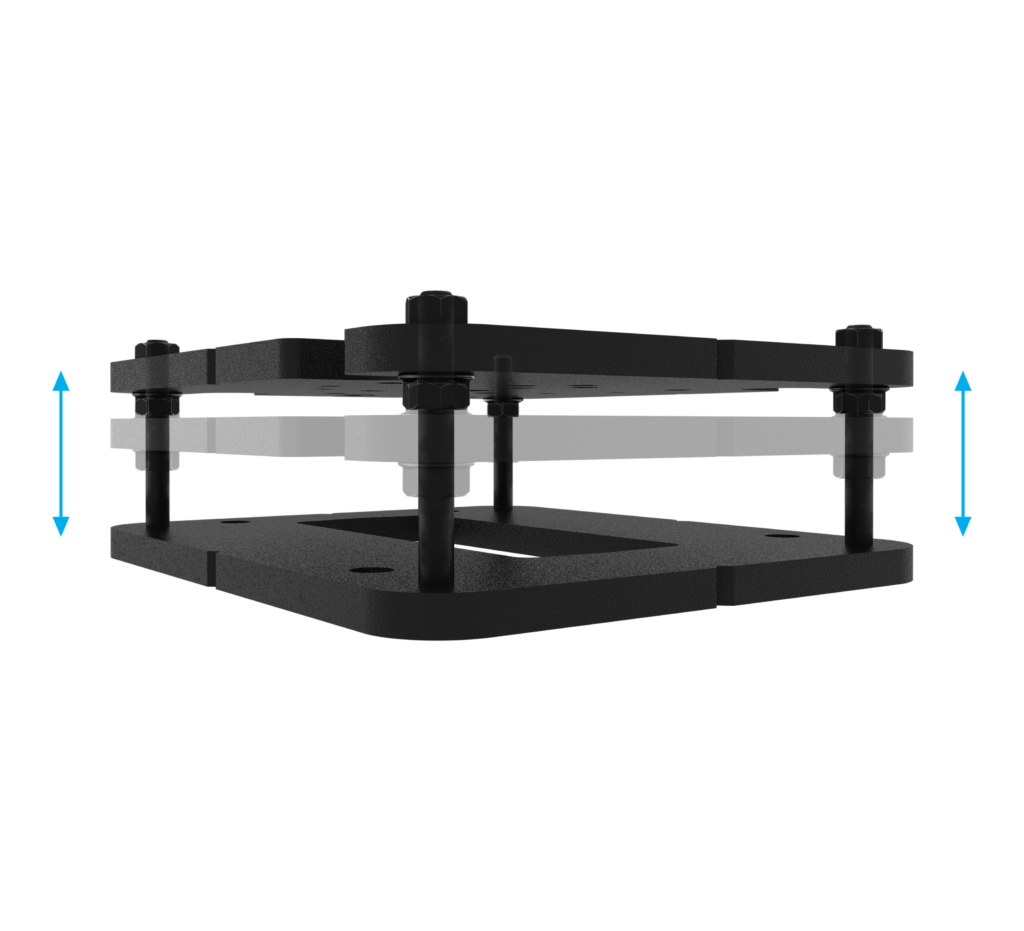

  • Level adjustment suitable for use on uneven surfaces or floors with minor slopes
  • Small footprint is ideal for retail and corporate applications where floor space is limited or for close to the wall installations
  • Heavy duty steel capable of supporting substantial loads

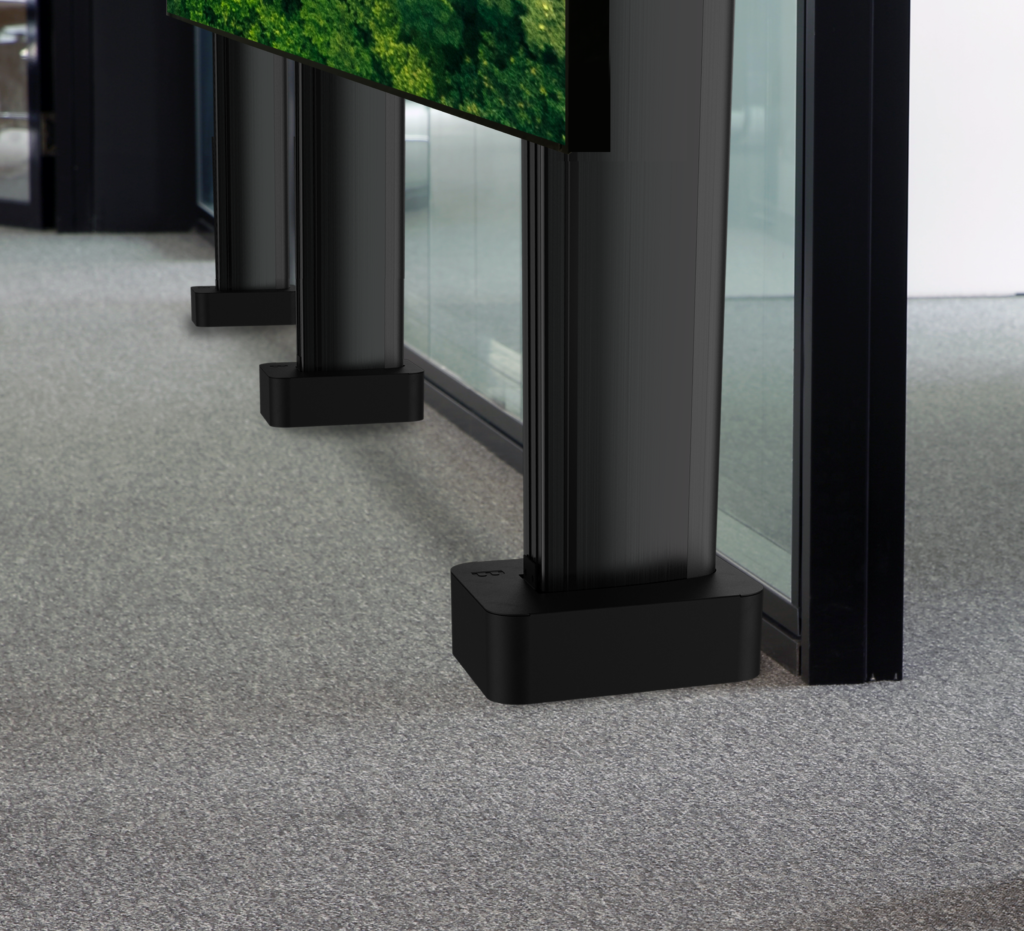

  • Can be used for large scale dvLED or videowall installations in straight or curved configurations - ideal for applications such as control rooms

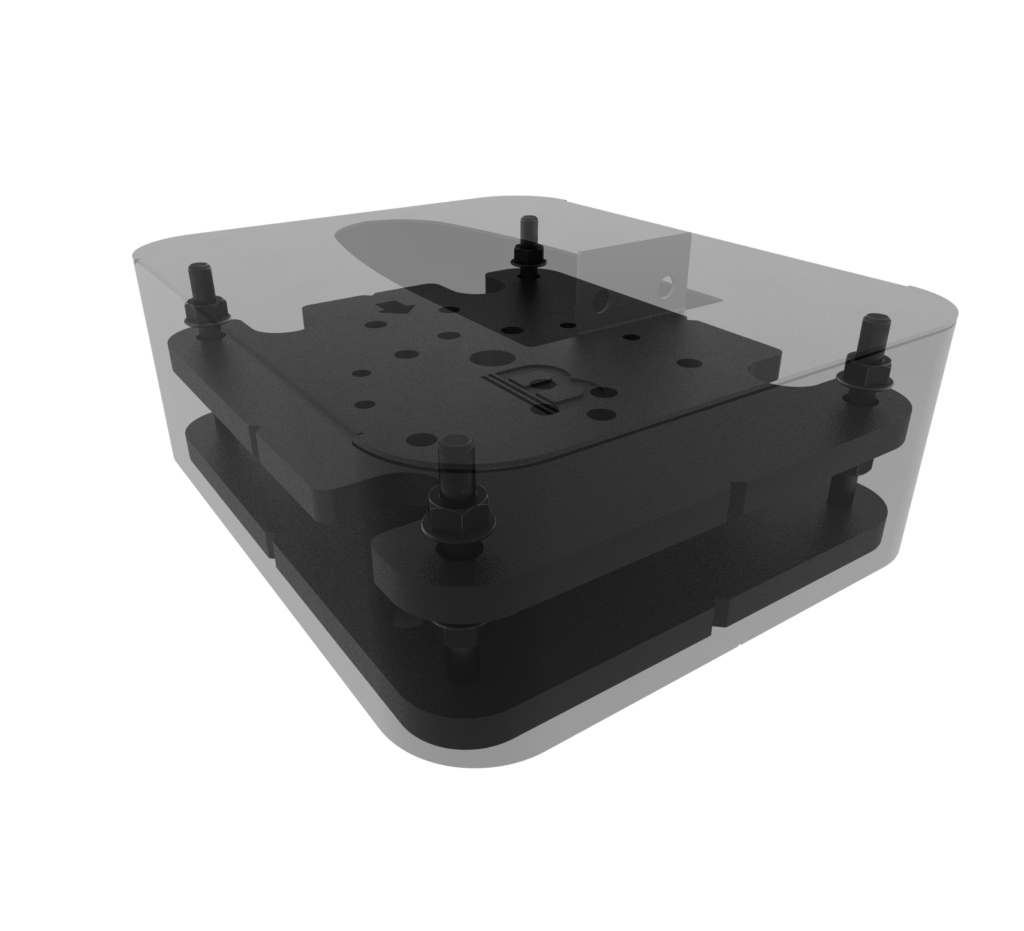

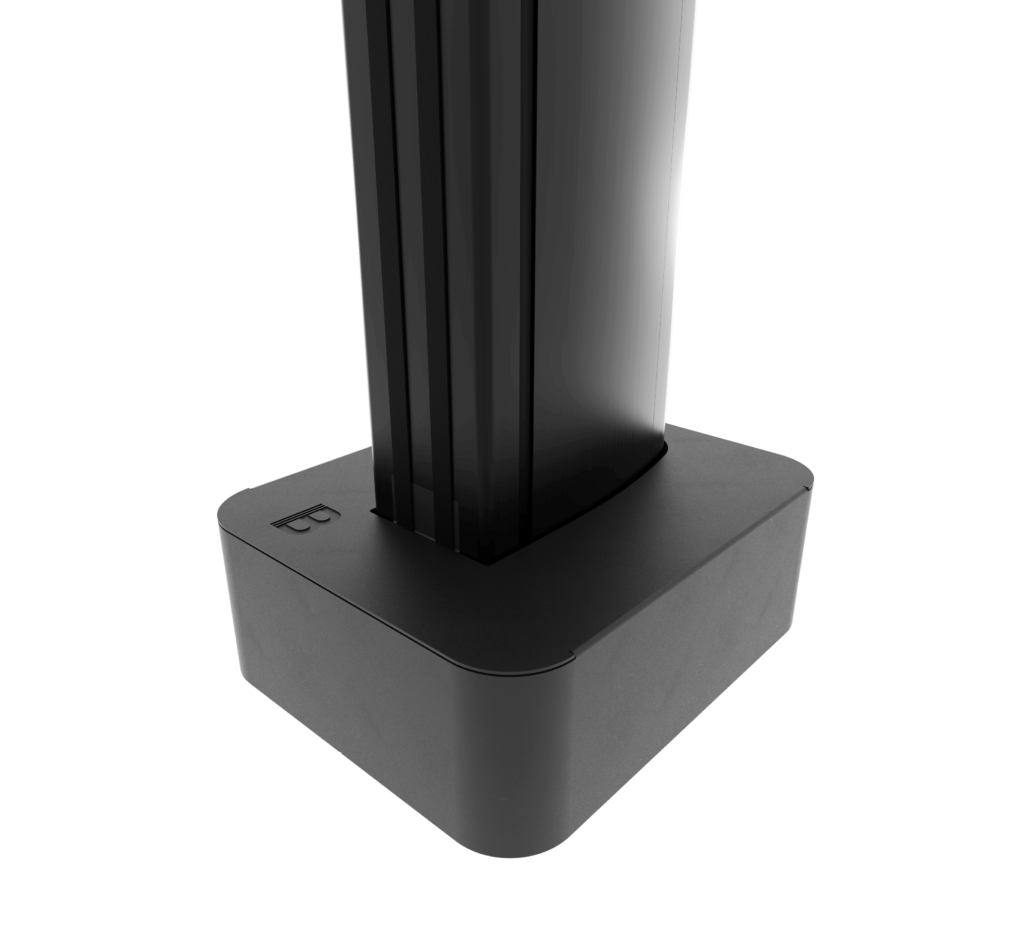

  • Integrated cable management

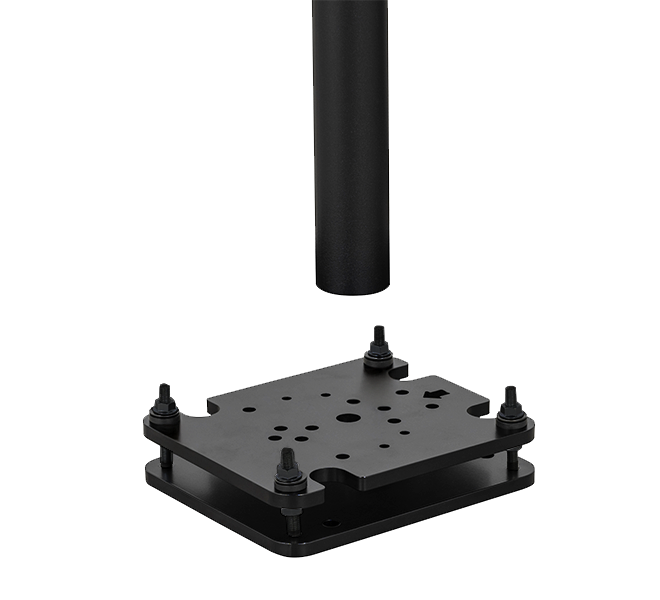

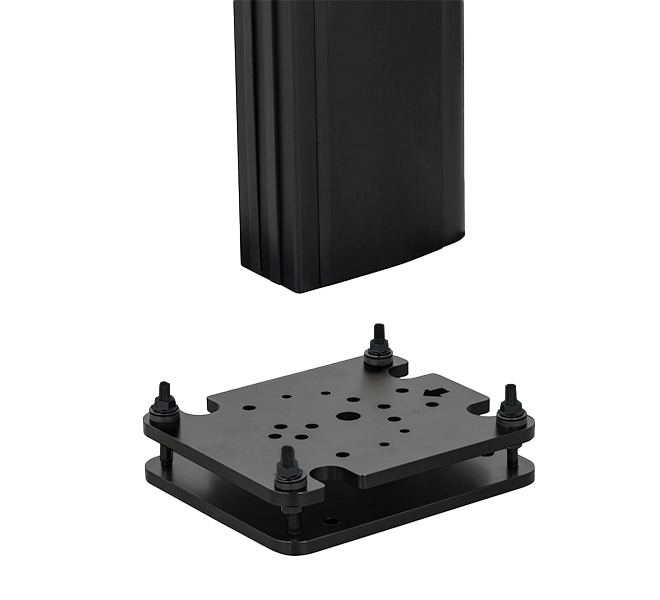

  • Compatible with a variety of B-Tech columns (BT8380 / BT8381 / BT8385), poles (BT4116 / BT4118) and rails (BT8390)
  • TUV certified

Product Specifications

  • Max load: 150kg (330lbs) (per base)*

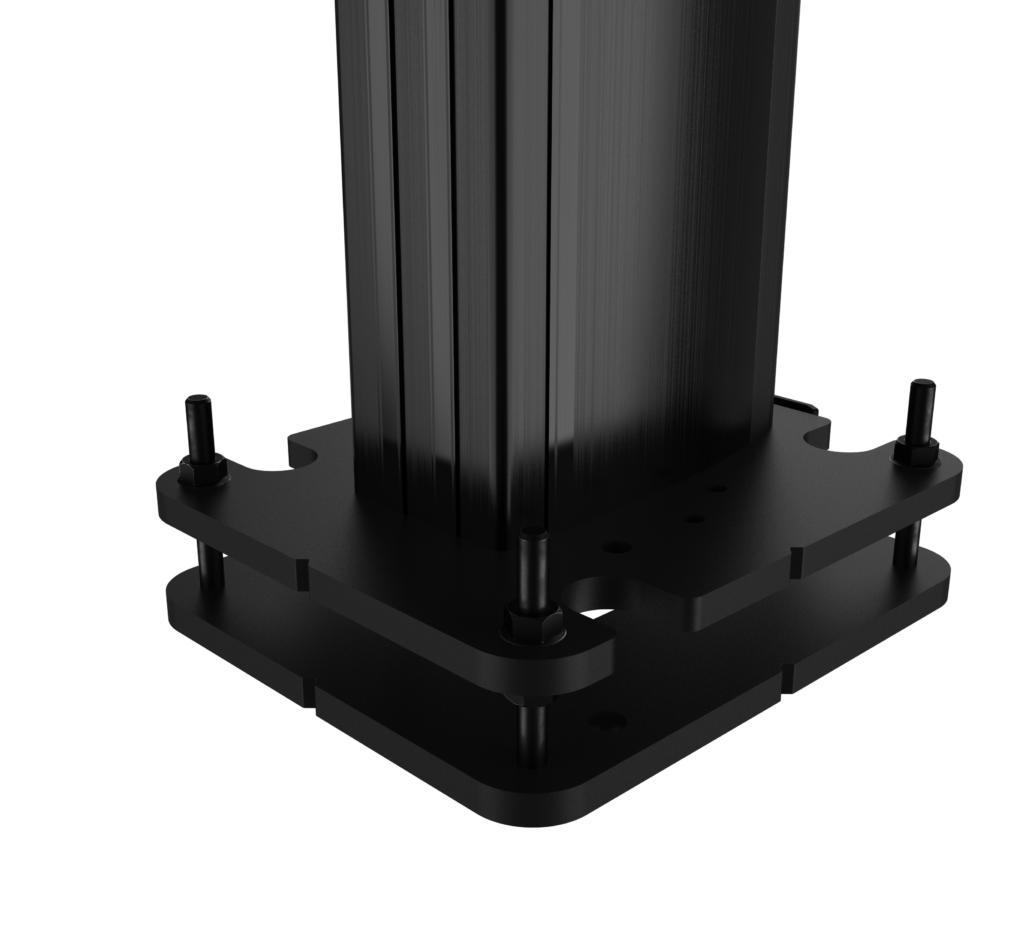

  • Designed for use with: BT8380 - Vertical Columns
  • Base dimensions: W: 183mm (7.2") D: 213mm (8.4") H: 45mm (1.8")

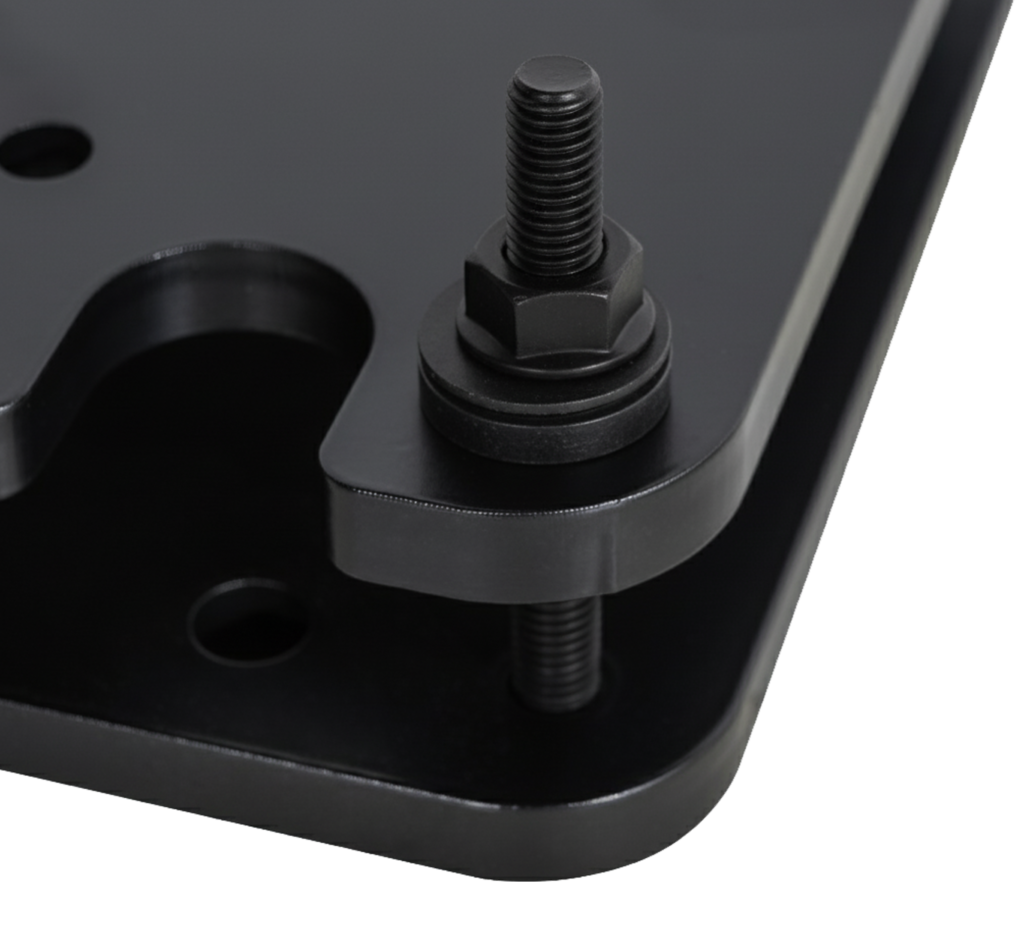

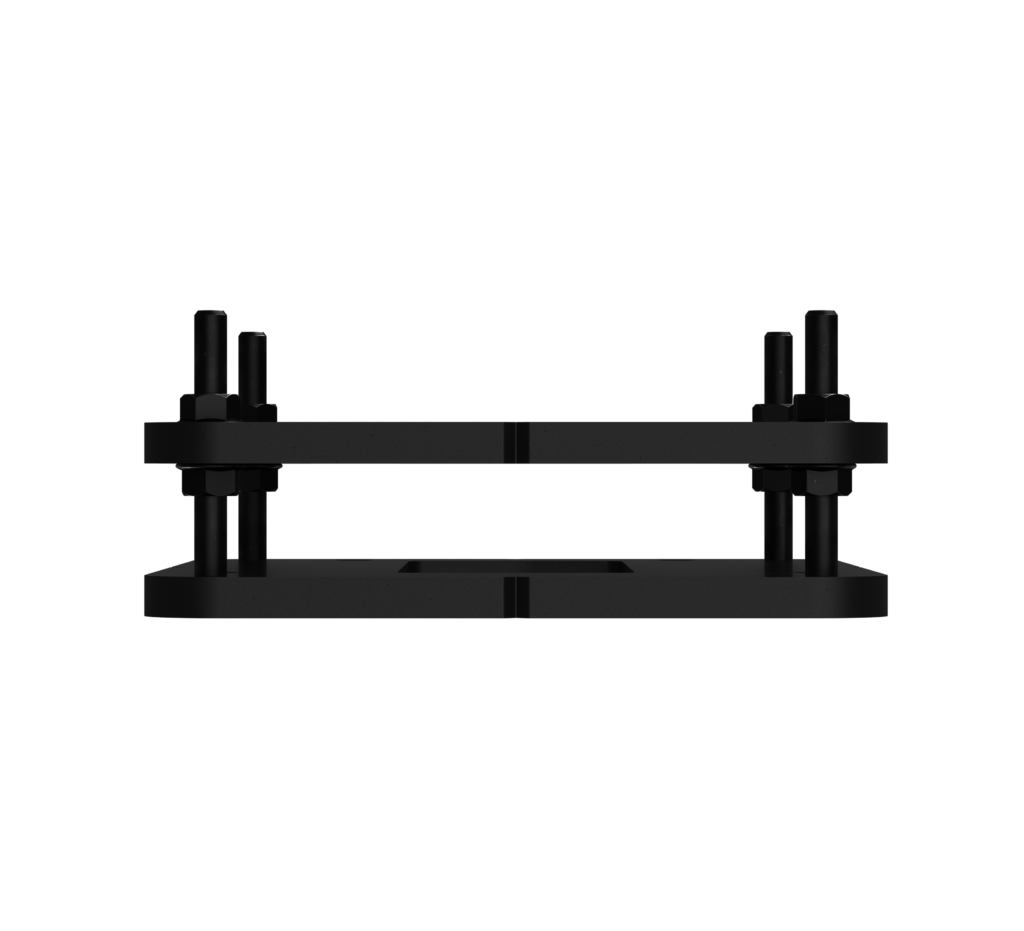

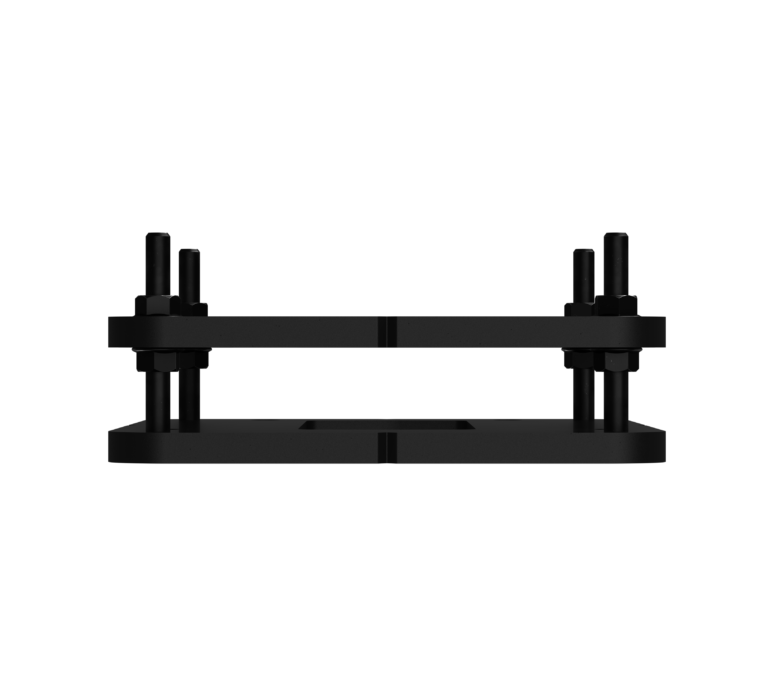

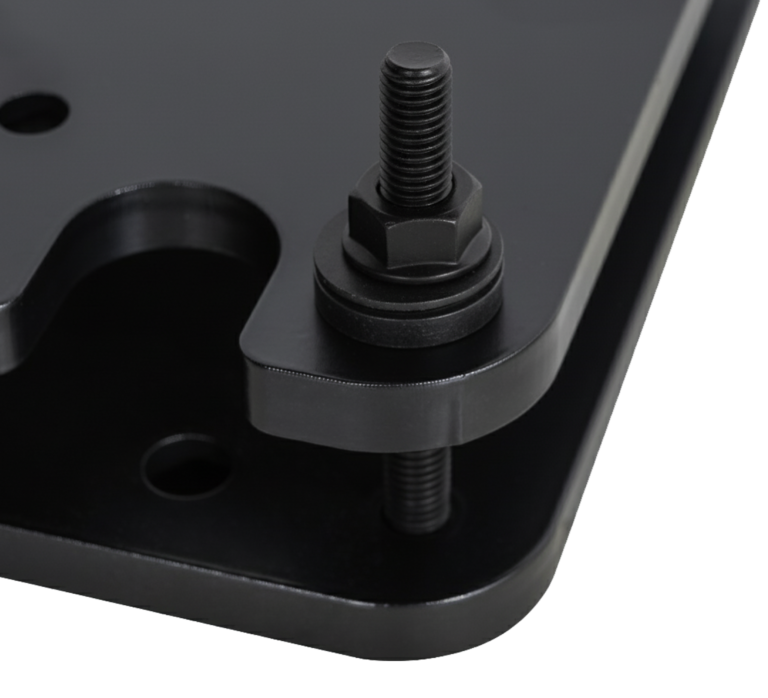

  • Micro-adjustment per corner -/+: 13.5
  • Qty per pack: 1
  • Colour: Black
  • *No more than 100kg should be mounted at a height above 1.2m (47.2") on BT8380 columns - see assembly leaflet for more info
No more than 100kg should be mounted at a height above 1.2m (47.2") on BT8380 columns - see assembly leaflet for more info
