BT8331
Universal Pop-Out Menu Board Mounting System
For pop-out menu boards
Overview

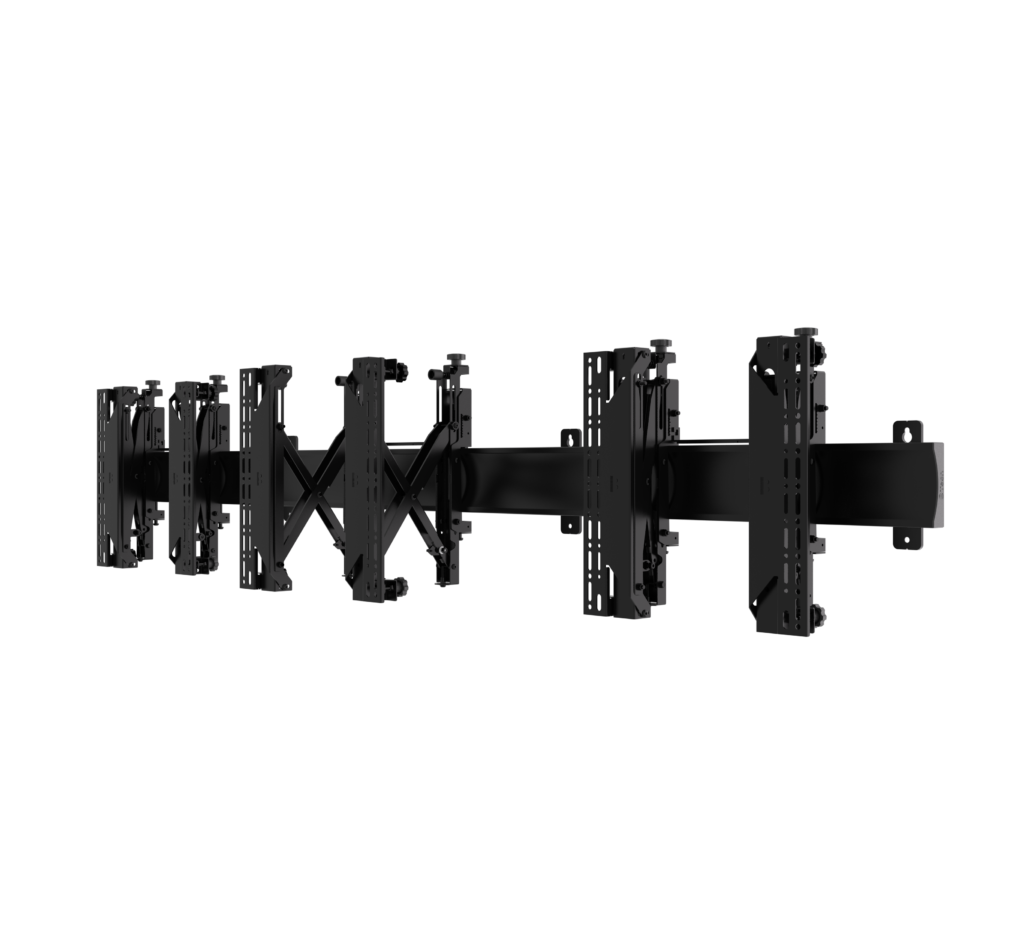

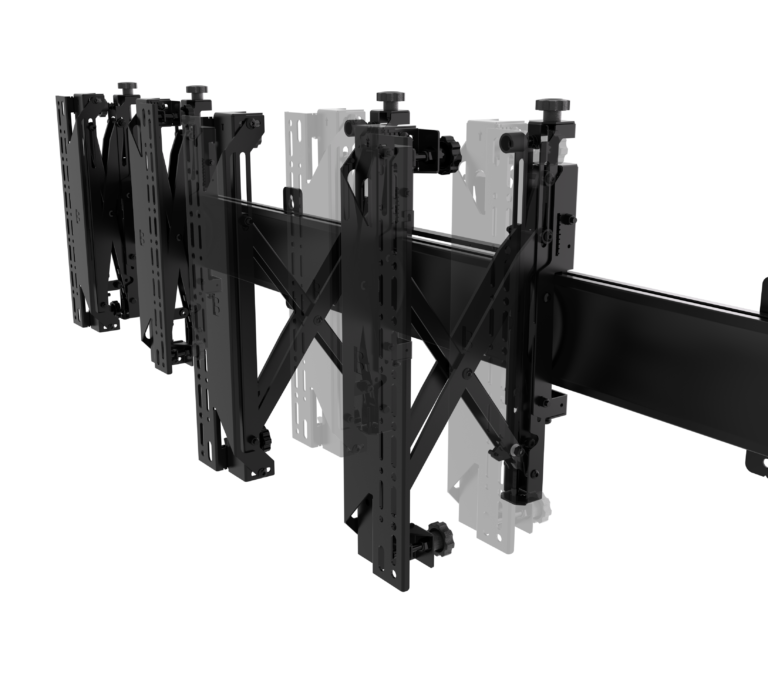

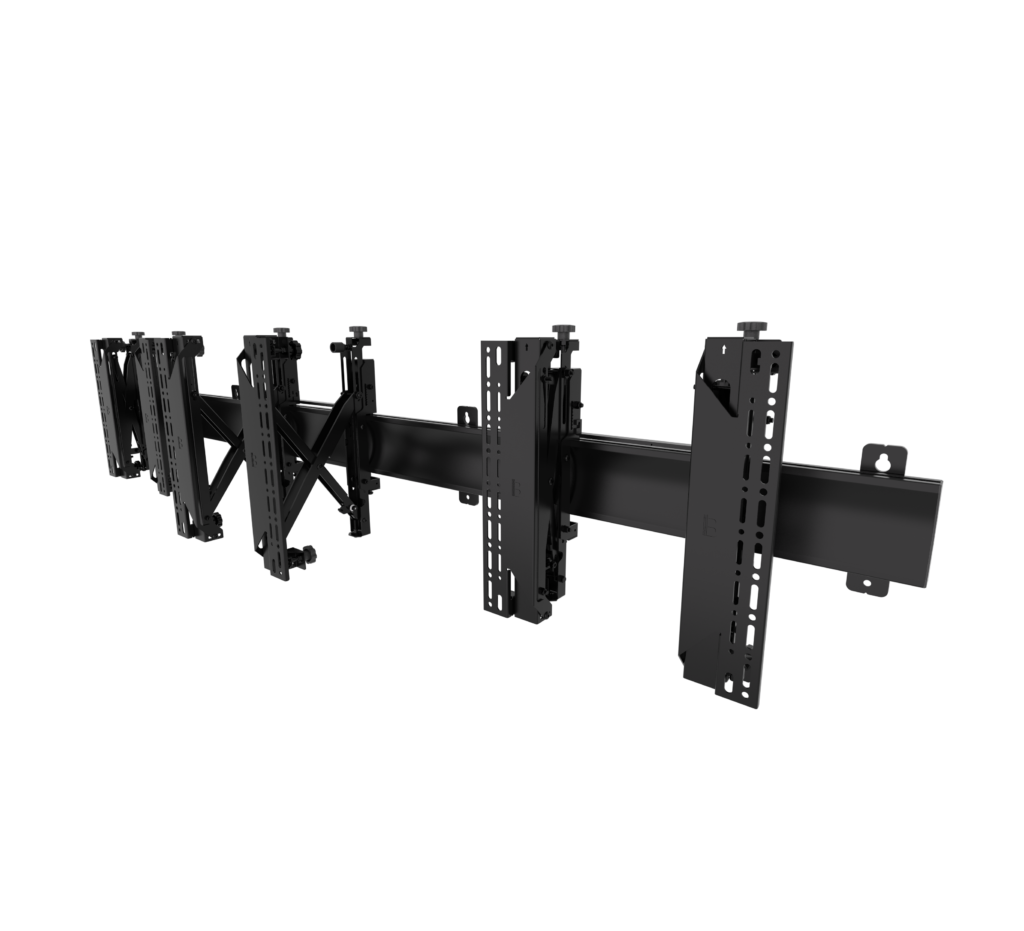

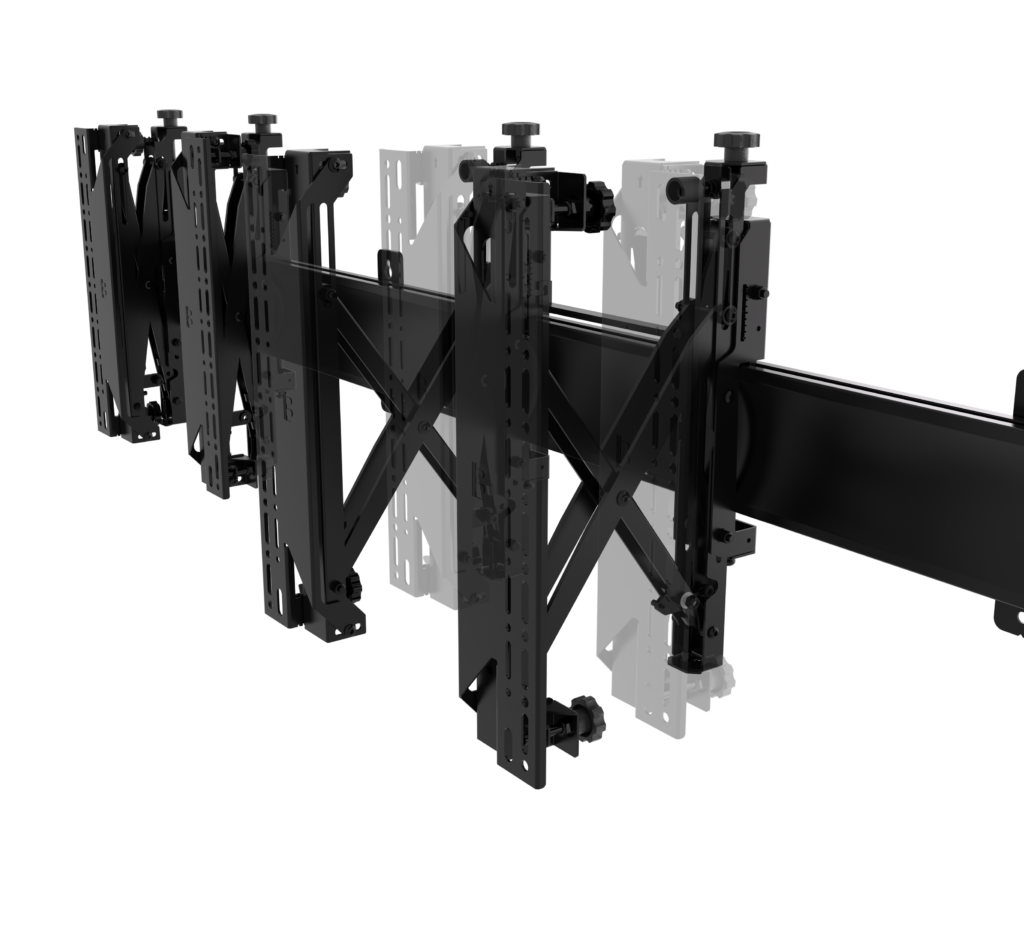

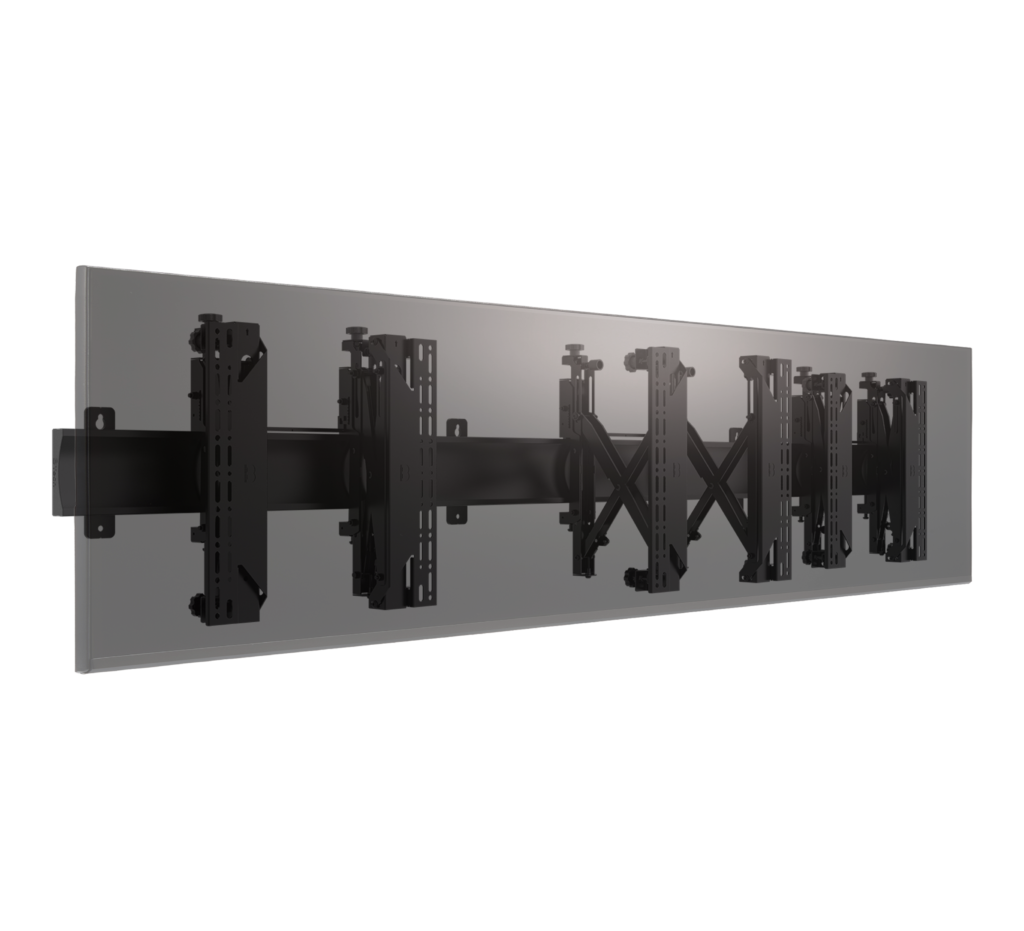

The BT8331 is a modular wall mounting system for menu board installations of any size and features pop-in, pop-out interface arms designed to aid installation and allow access to the rear of the screens for servicing and maintenance. As part of the System X range, the BT8331 features a contemporary, lightweight yet incredibly strong design with a high-end aesthetic quality and micro-adjustment for seamless screen alignment.
Product Features
- Universal design suitable for all sized screens up to 50kg (per screen)

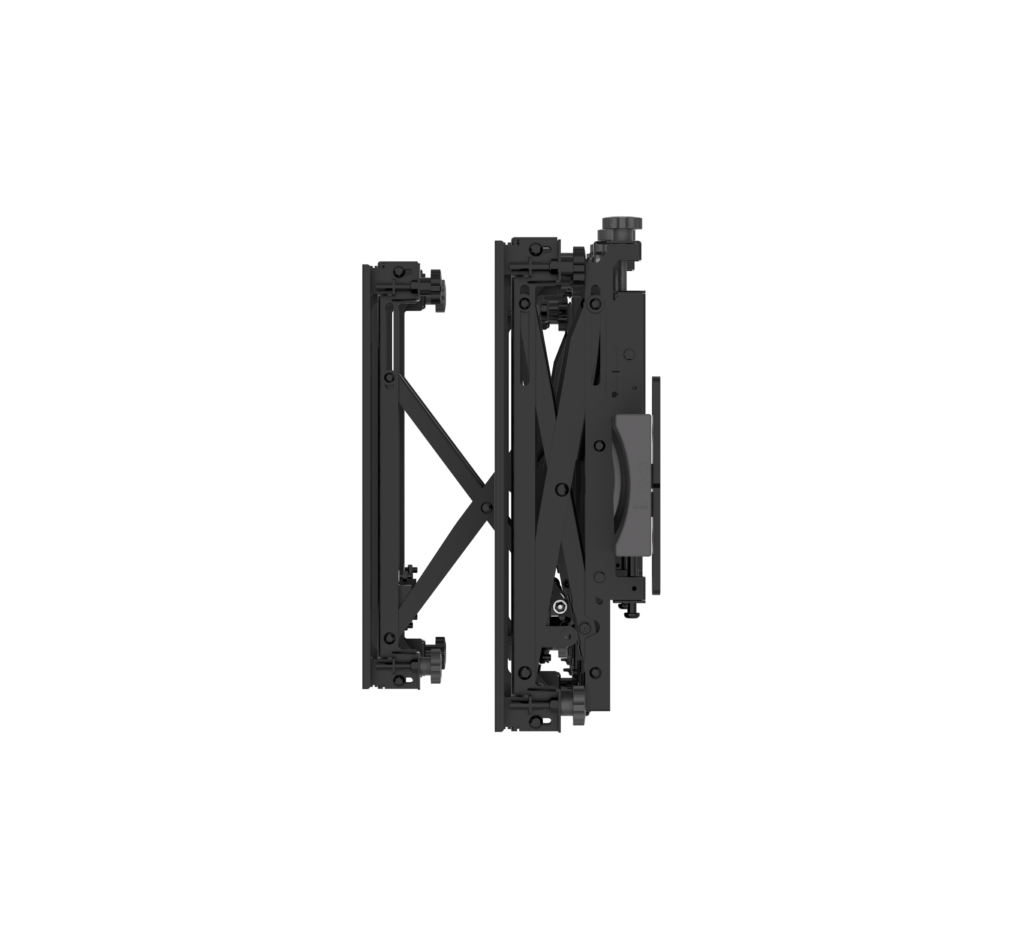

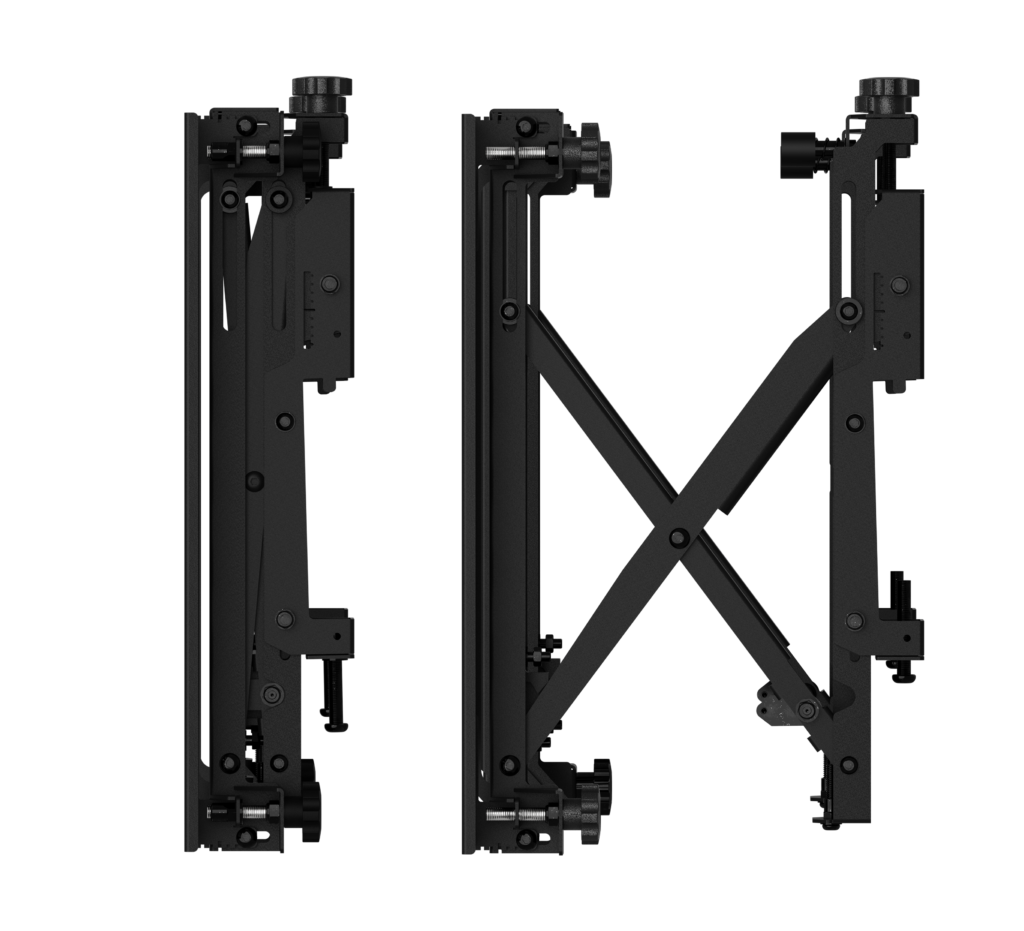

- Features pop-in, pop-out function to allow access to the rear of screens for servicing and maintenance and to aid installation

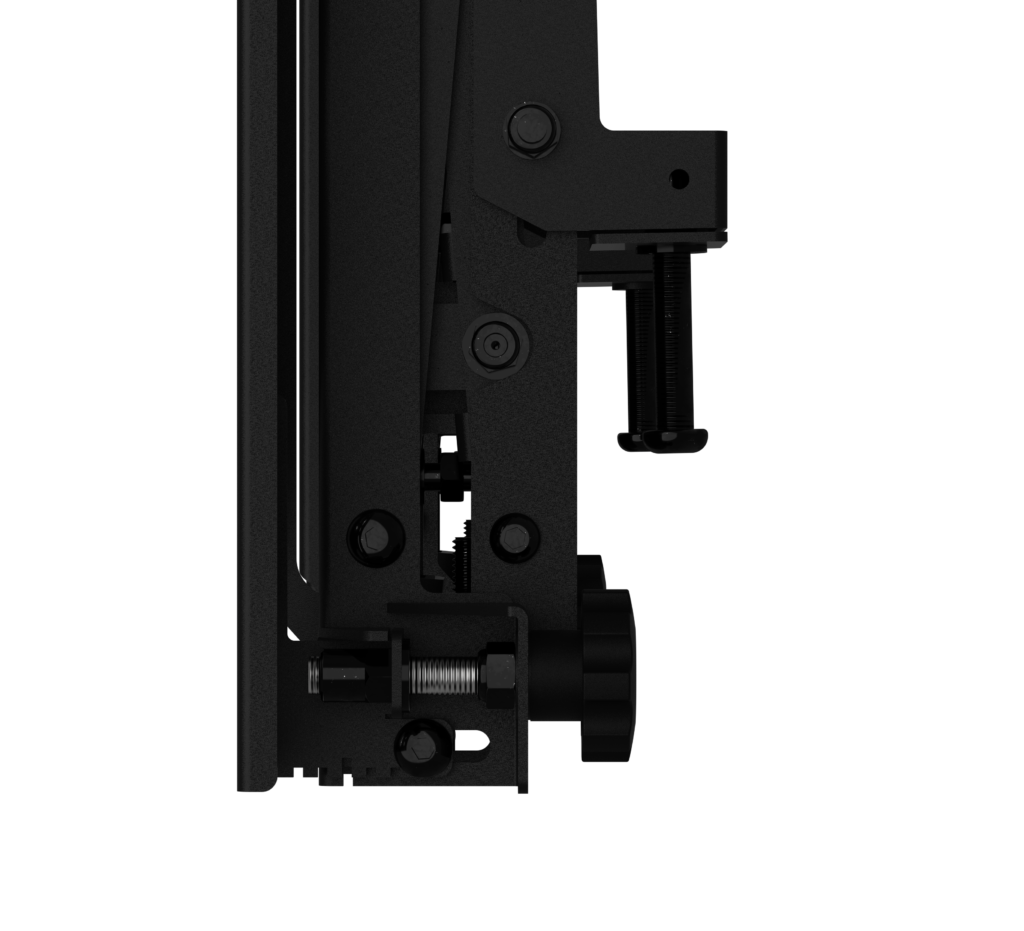

- Tool-less micro-adjustments for seamless display alignment
- Suitable for landscape or portrait mounting
- High-end aesthetic quality
- Safety screws help prevent unauthorised removal of screens

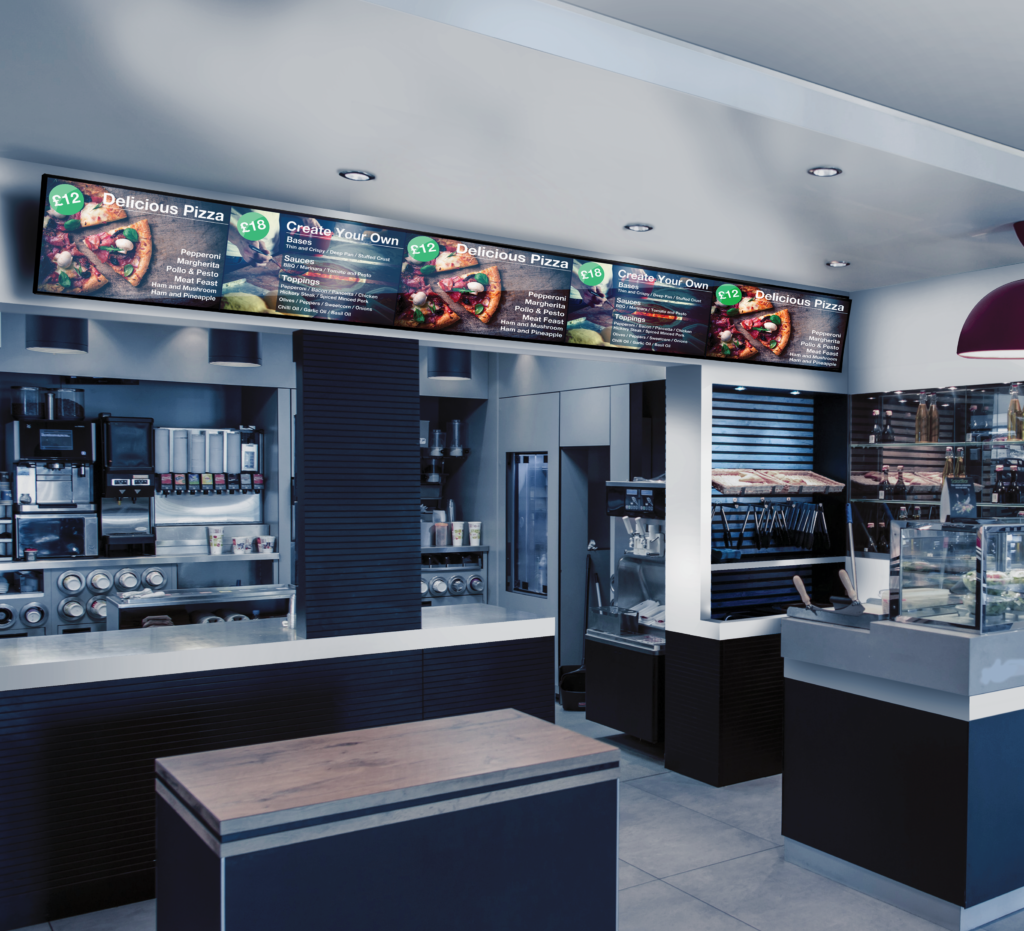

- Ideal for recess mounting menu boards
- Arms include locking screw to prevent accidental pop-out of screens
- Cable management included for a neat and tidy installation

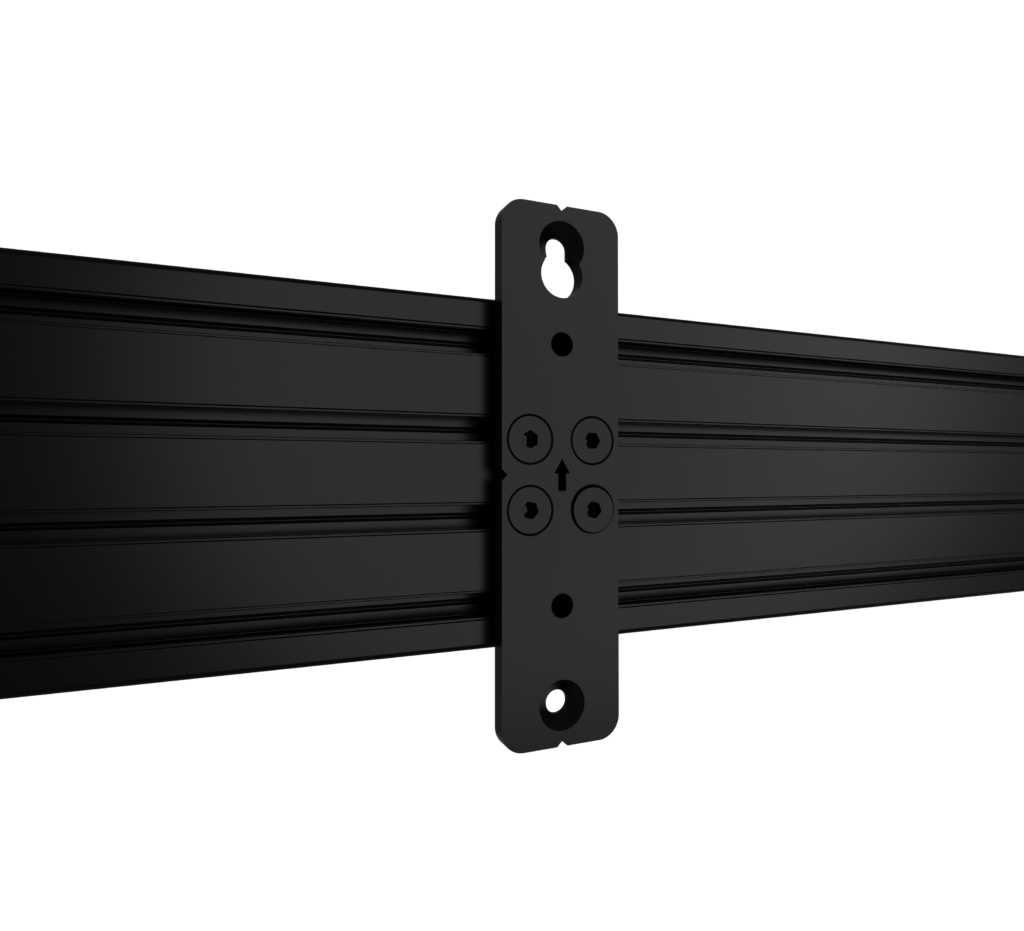

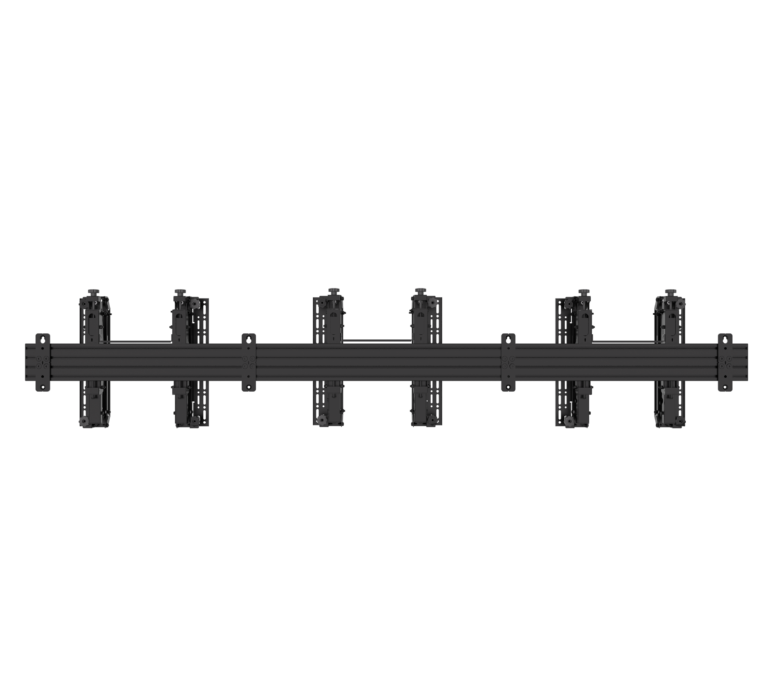

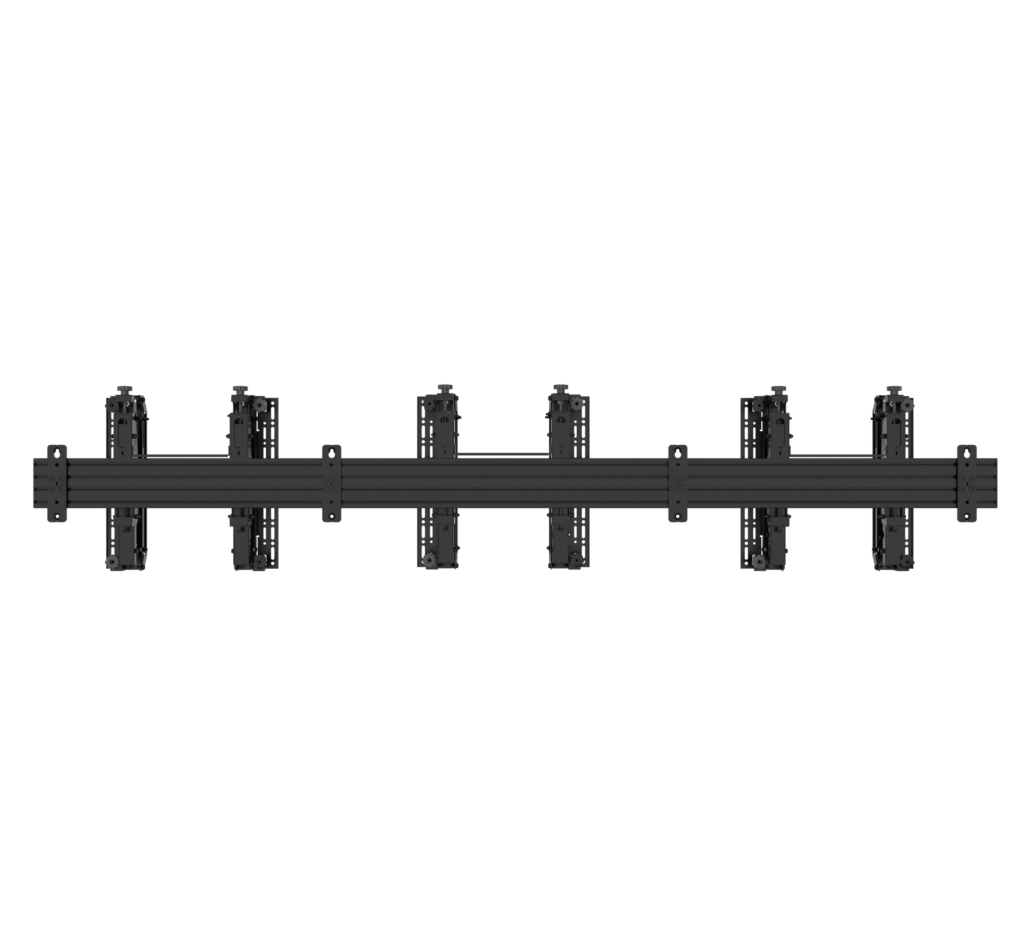

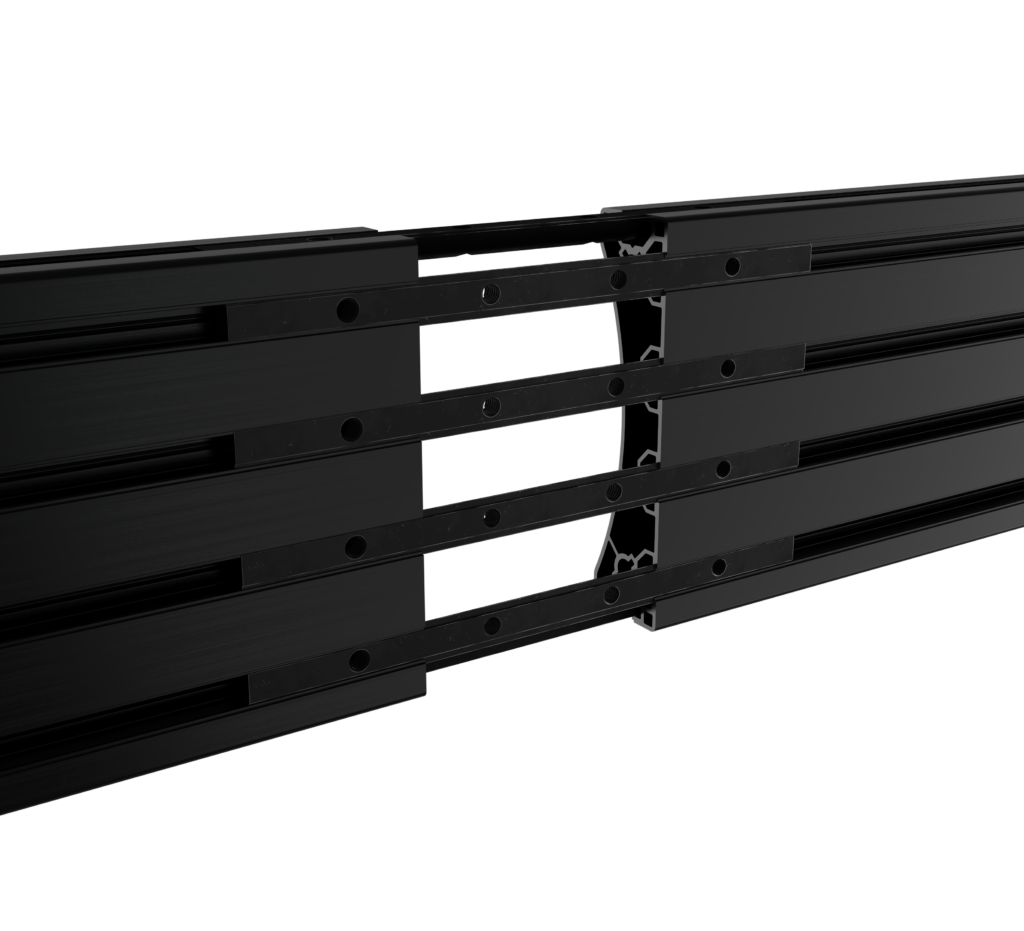

- Multiple rail lengths available (rails can also be joined to create larger installs)
- TUV certified
Product Specifications
- Recommended display size: 39" up to 75"
- Max load: 50kg (110lbs) (per screen)
- VESA® fixings: up to 900mm *
- Distance from wall (closed) 105.4mm (4.1") (+/-10mm)
- Distance from wall (open) 332mm (13") (+/-10mm)
- Orientation: Landscape, Portrait
- Colour: Black
- *Refers to maximum vertical fixing dimension for a typical configuration. Correctly sized interface arms & adaptors will be supplied as necessary to suit the mounting pattern you require.
VESA fixings refers to maximum vertical fixing dimension for a typical configuration. Correctly sized interface arms and adaptors will be supplied as necessary to suit the mounting pattern you require.
