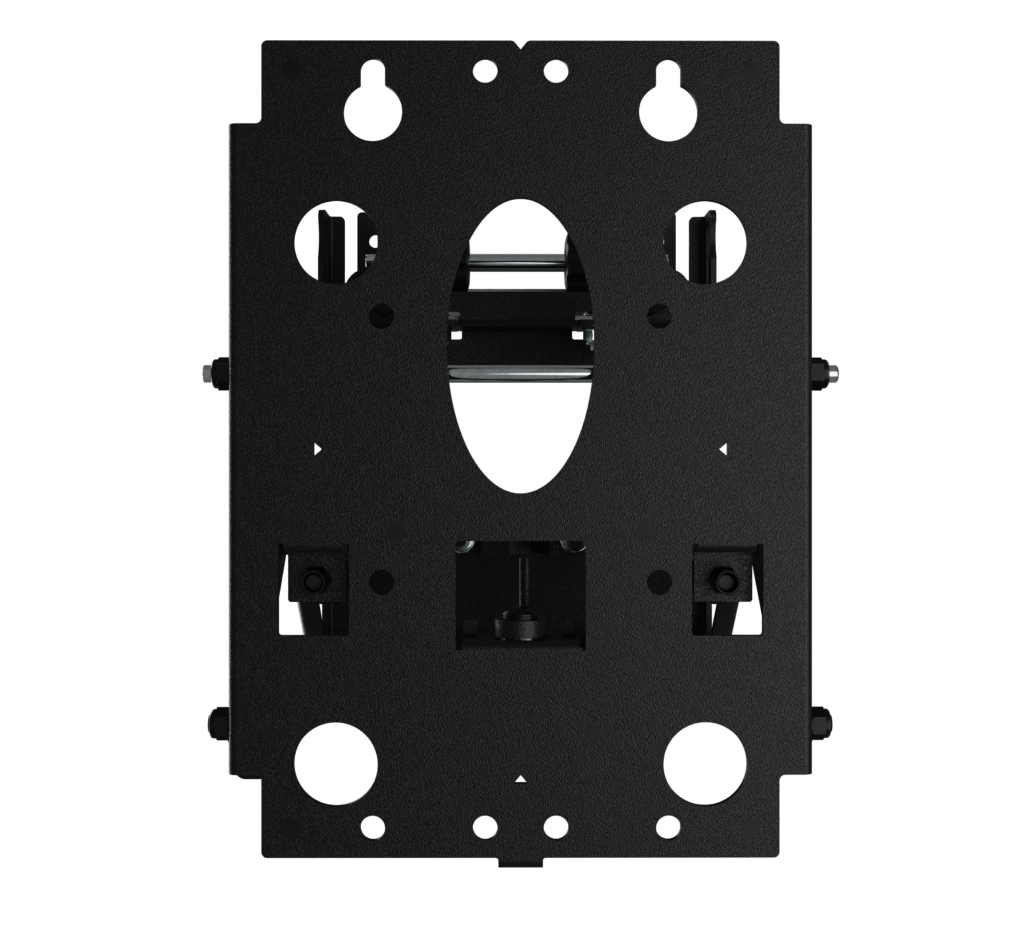

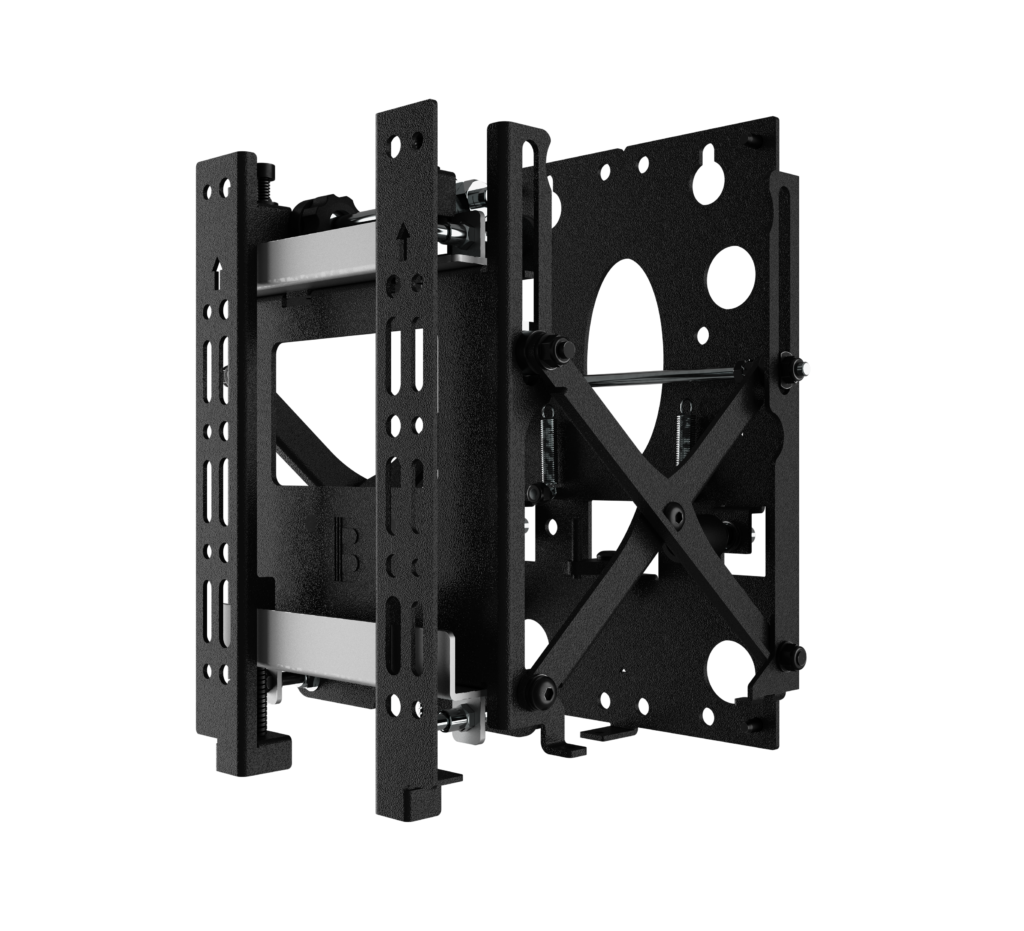

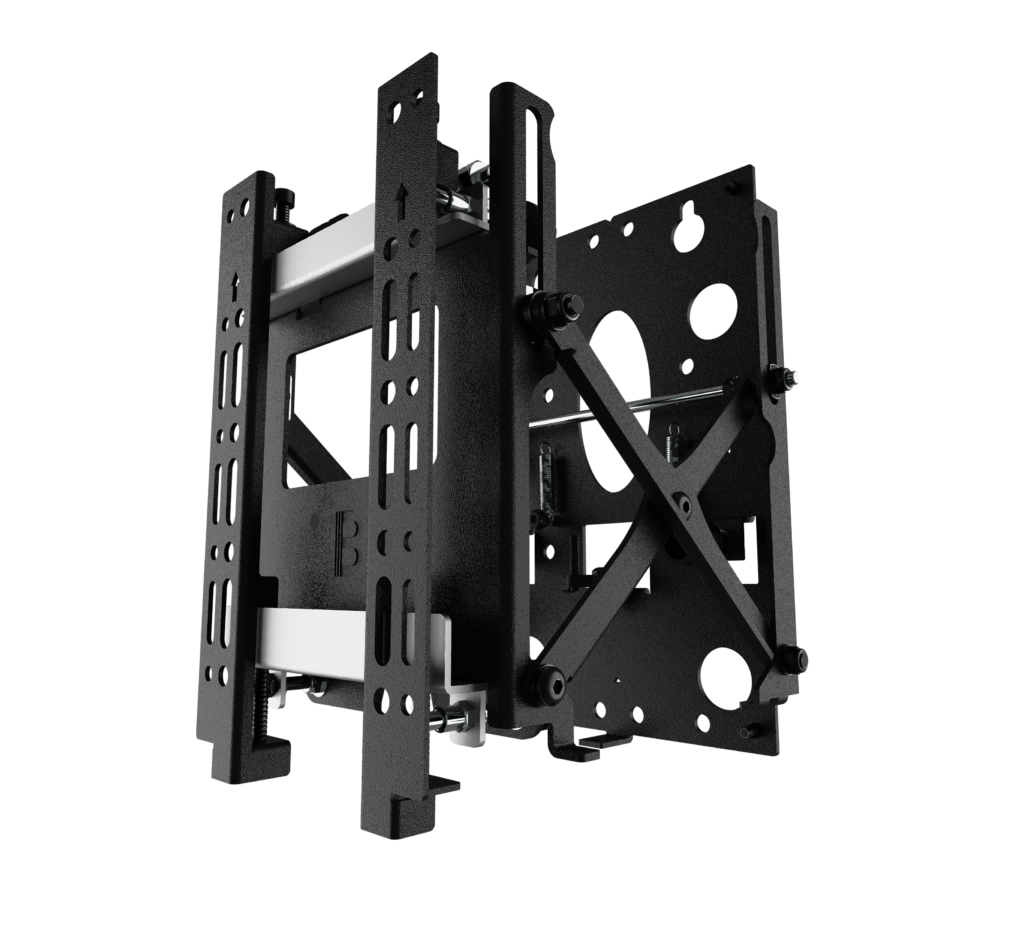

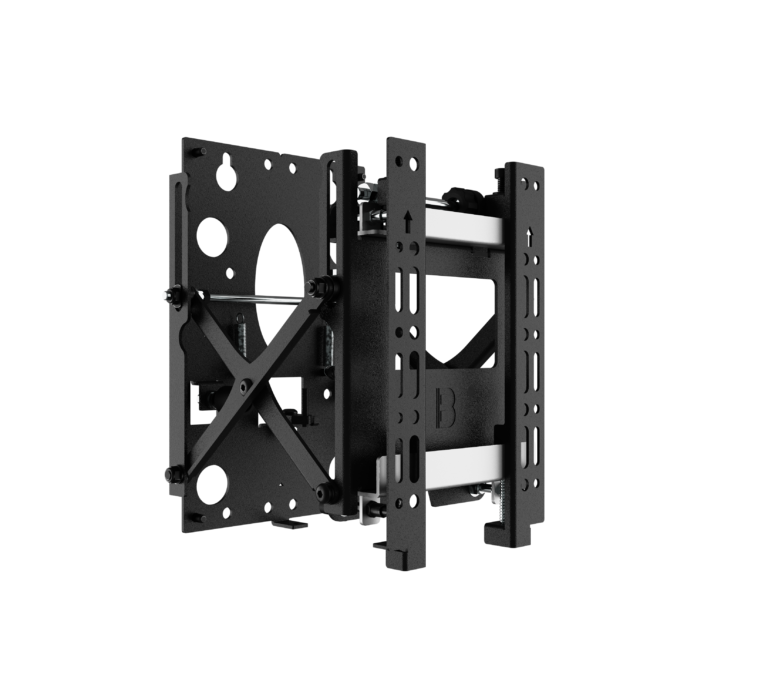

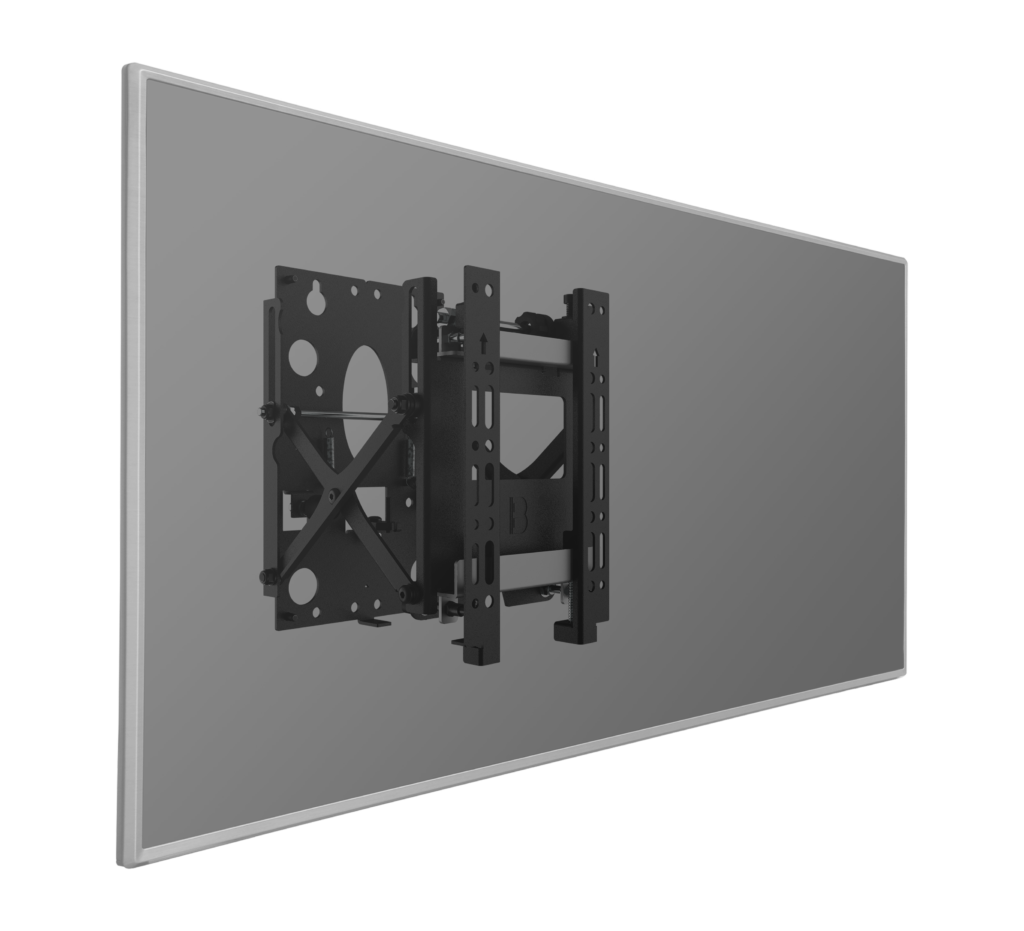

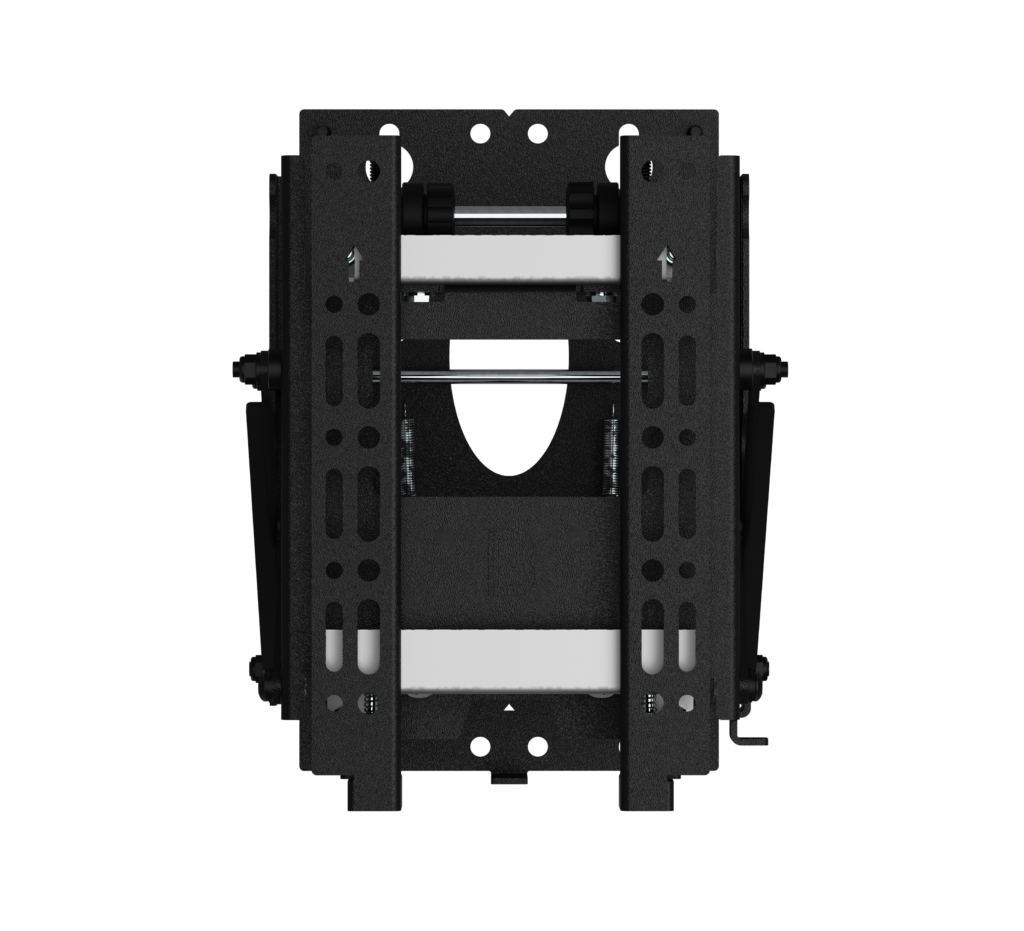

BT8309
Pop-Out Flat Screen Wall Mount
with Micro-Adjustment
Overview
The BT8309 is designed for installing small to medium screens into recessed walls. Its pop-out mechanism provides a flush-to-wall finish while still allowing quick access to the rear of the screen for installation and maintenance. Tool-less micro-adjustment at each corner ensures precise alignment with the recess and seamless integration with additional screens in videowall configurations. The BT8309 supports both landscape and portrait mounting and is fully compatible with B-Tech’s professional pole and collar system for pole-mounted installations.
Product Features

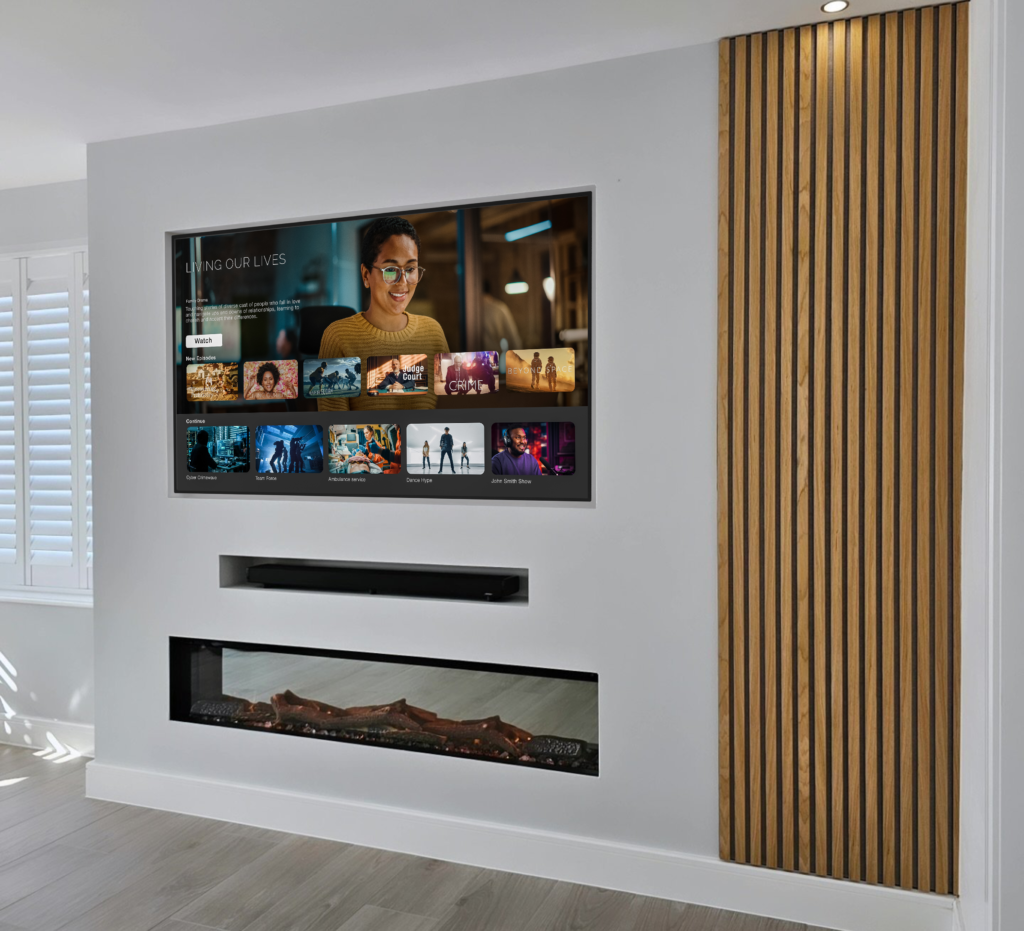

- Perfect solution for mounting screens into recessed walls
- Suitable for creating videowall installations

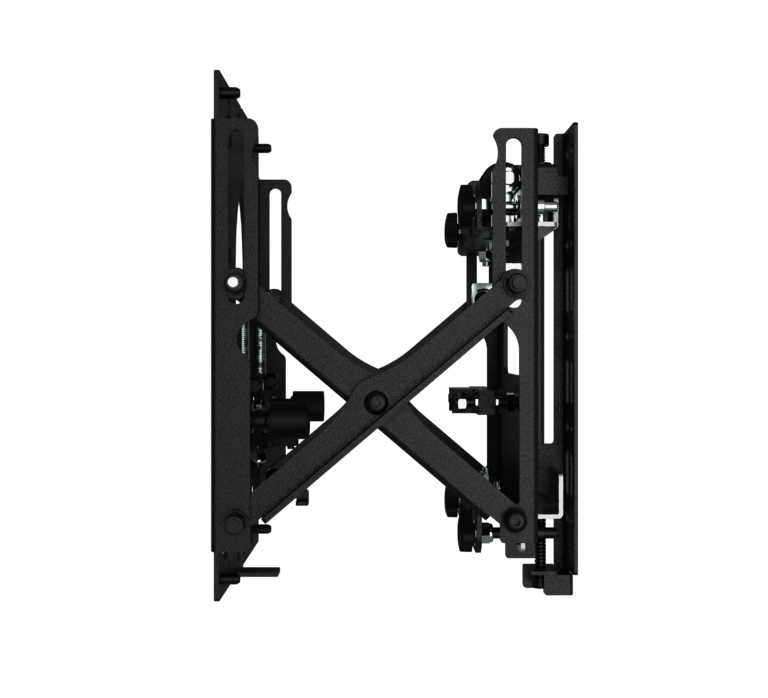

- Push-to-open / push-to-close system for quick and easy service access

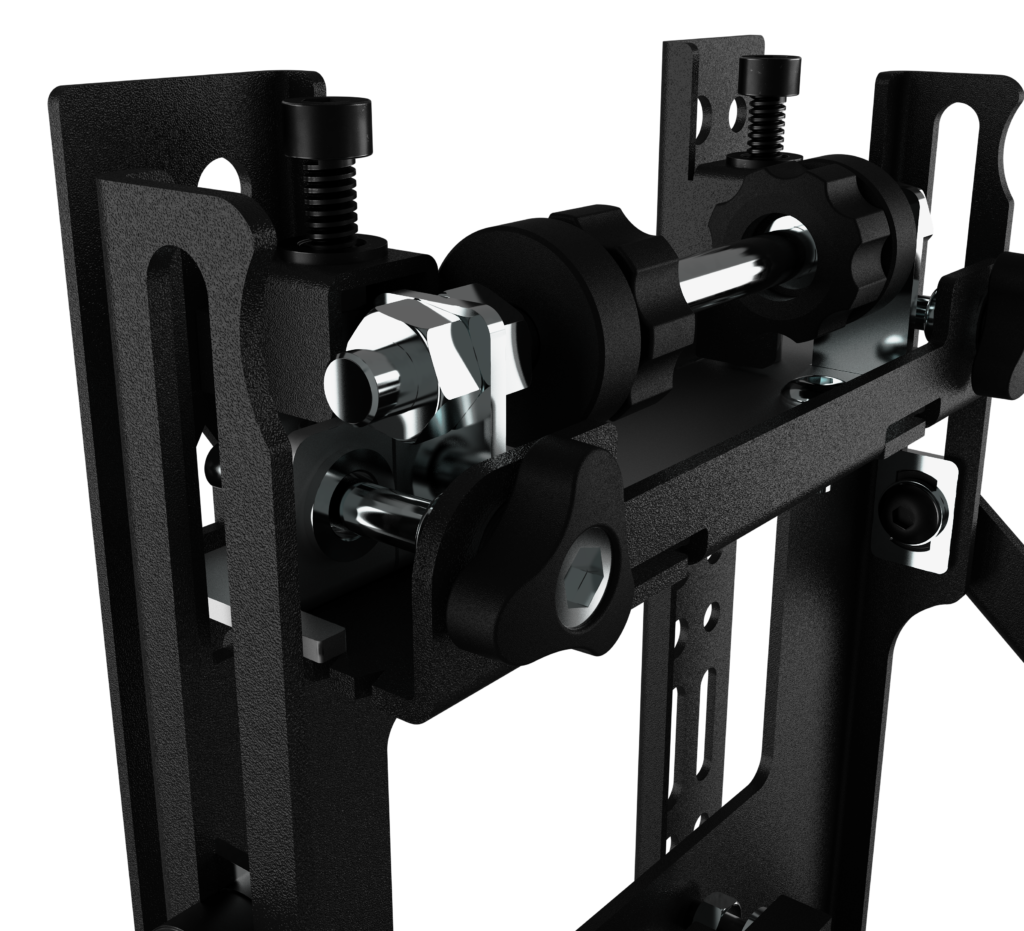

- Tool-less micro-adjustment at each corner for precise display alignment
- Supports both landscape and portrait screen mounting

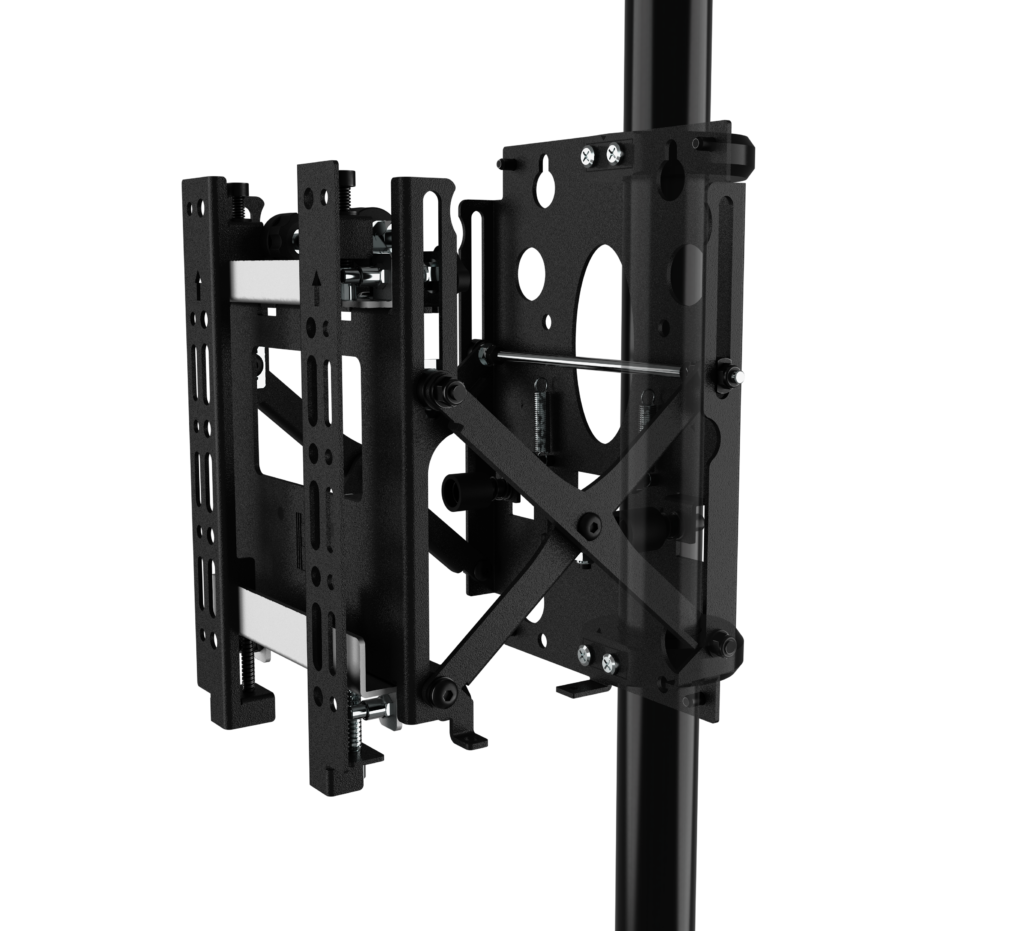

- Suitable for both wall or pole mounting
- Keyhole fixing for fast, simple installation
- Levelling screws for easy screen height adjustment
- Integrated locking mechanism prevents accidental pop-out
- Built-in cable management keeps installations tidy
- ‘Hook-on’ design with all mounting hardware included
Product Specifications
- Recommended display size: 22" up to 42"
- Max load: 25kg (55lbs)
- VESA® fixings: 75 x75 up to 200mm x 200mm
- Micro-adjustment per corner -/+: 4mm
- Distance from wall: 73mm
- Popped out depth: 191mm
- Screen height adjustment: 12mm
- Orientation: Landscape, Portrait
- Colour: Black
- *Please note using the included Interface Adaptor Arms to mount VESA 200mm x 200mm screens will increase the total depth of the product by 4mm (0.15"), for a total depth of: 77mm (3"), 195mm (7.7") whilst popped out.
Please note using the included Interface Adaptor Arms to mount VESA 200 x 200 screens will increase the total depth of the product by 4mm (0.15"), for a total depth of: 77mm (3") or 195mm (7.7") whilst popped out.
