BT8229

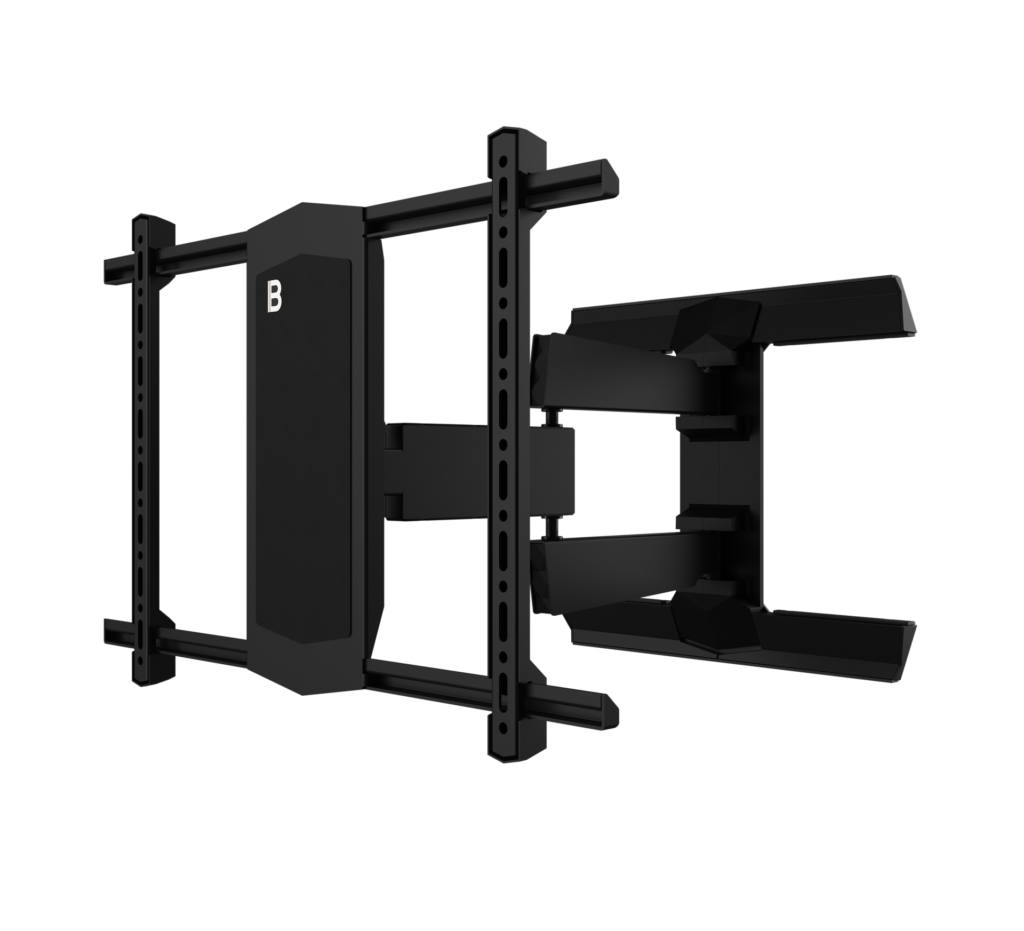

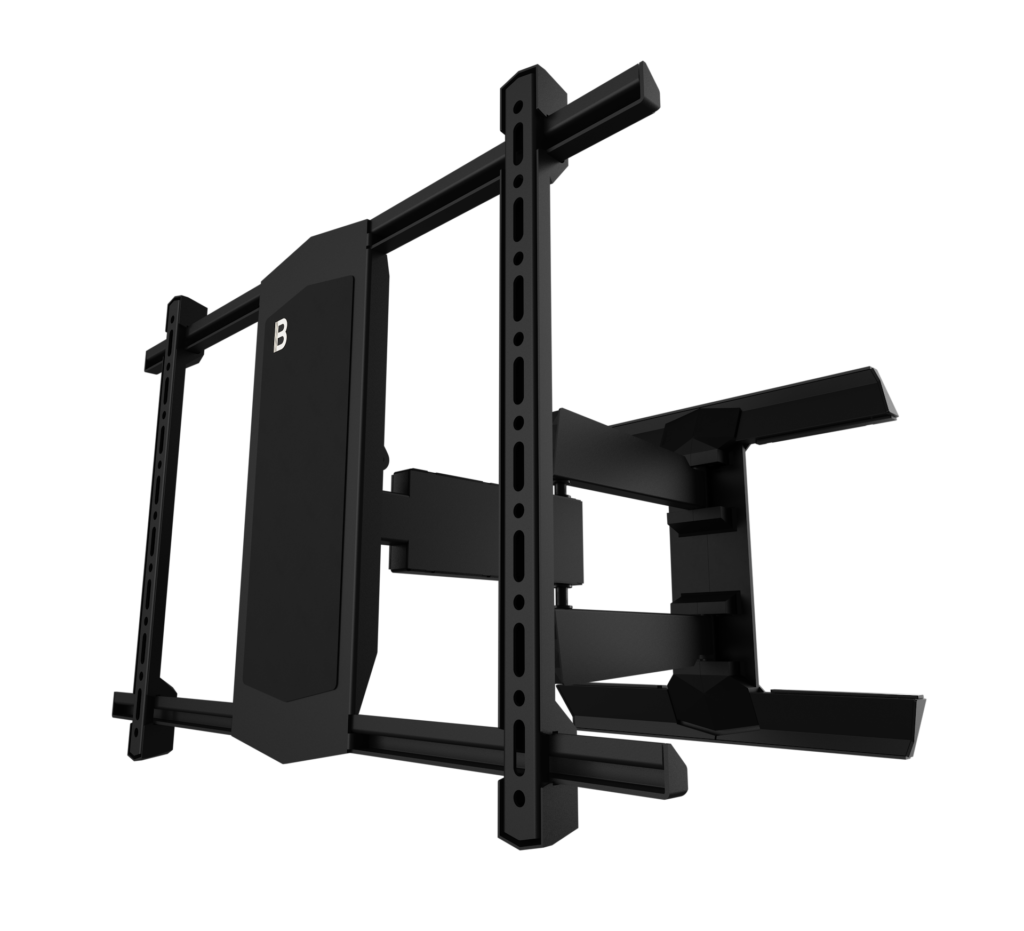

Double Arm Flat Screen Wall Mount with UltraGlide Tilt & Swivel
Ideal for screens up to 65"
Overview

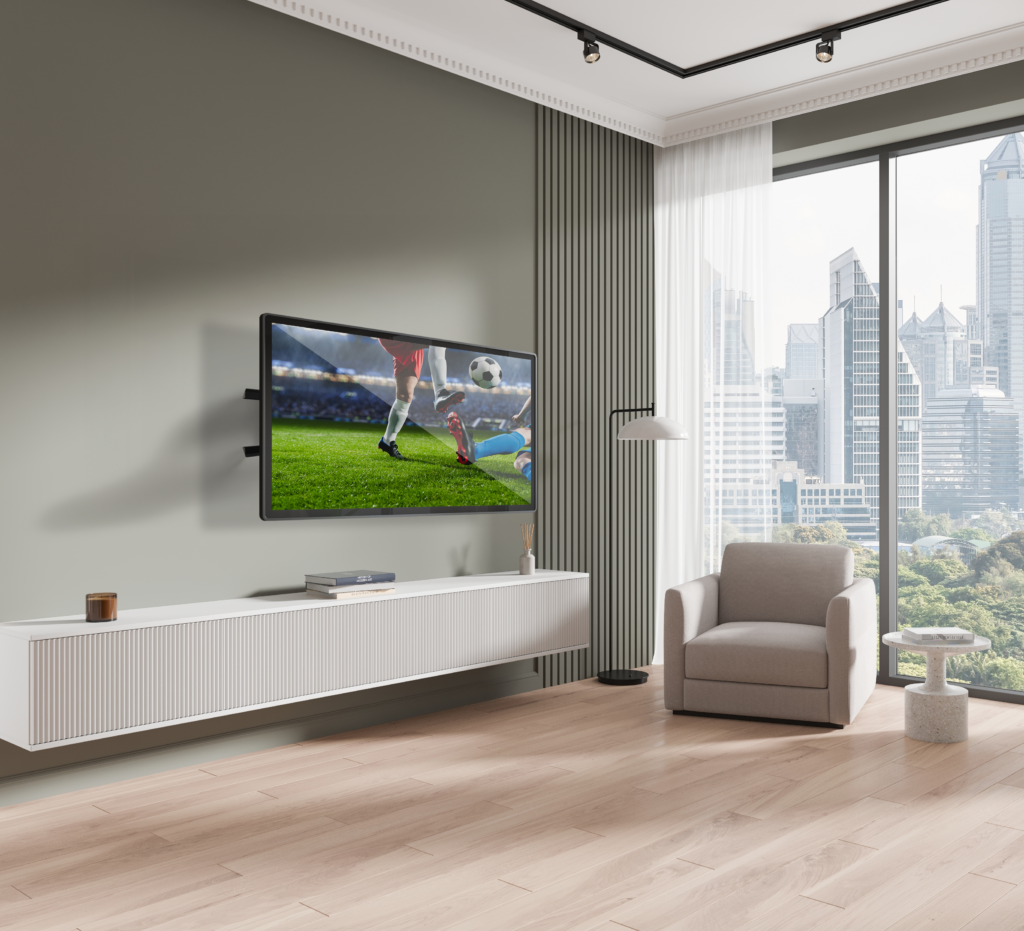

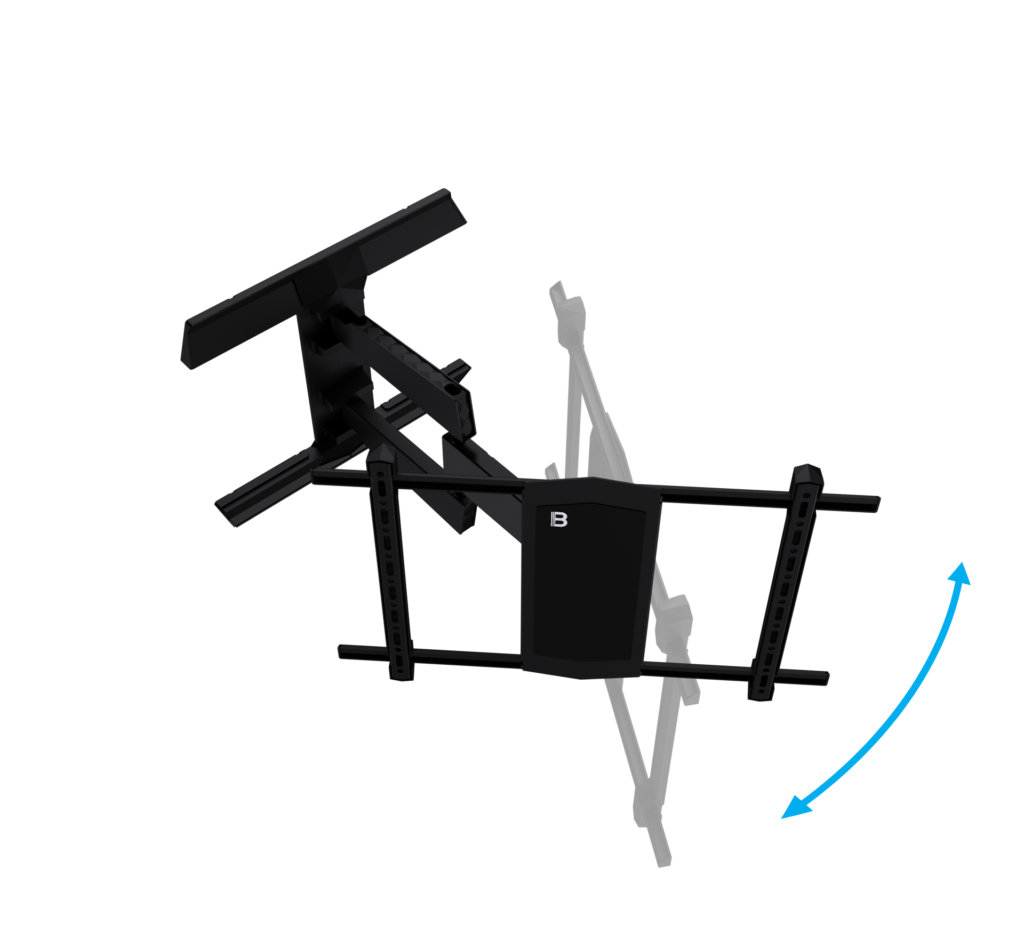

Designed for medium to large screens, this universal double arm wall mount combines strength and versatility with effortless usability. B-Tech's UltraGlide Tilt technology allows users to reposition displays up to 35kg with a simple touch, securely holding the tilt in place. Featuring three swivel points at the wall, arm and interface, the mount enables quick and smooth screen adjustments, whether folded flat against the wall or fully extended. Compatible with 16" stud walls, brick, and concrete surfaces, this mount is engineered for both commercial and home installations.
Product Features
- B-Tech's UltraGlide Tilt technology allows easy, secure screen adjustment
- Printed template for wall drilling makes installation quick and easy

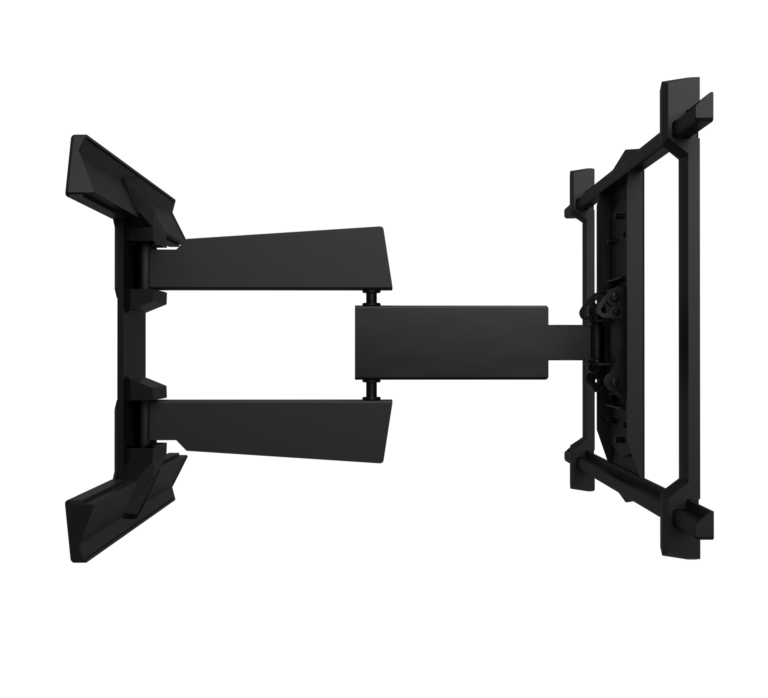

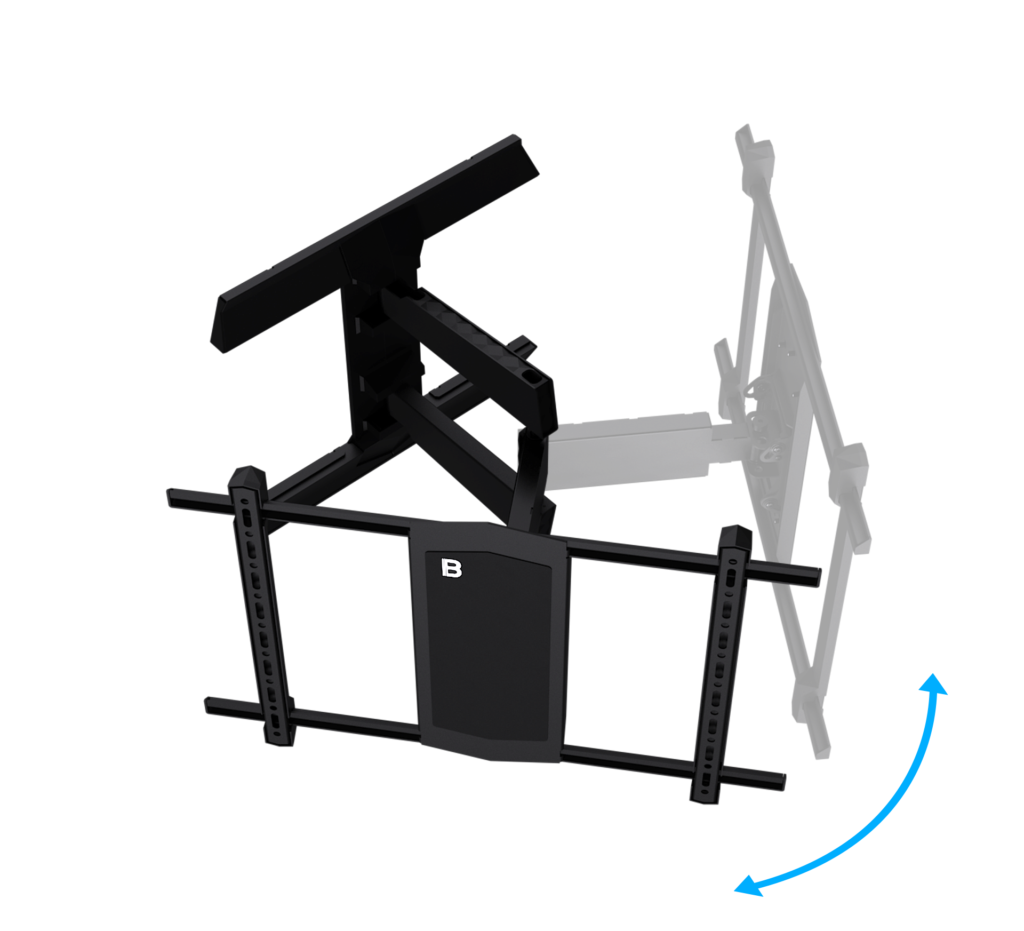

- Swivel points enables quick, smooth screen positioning

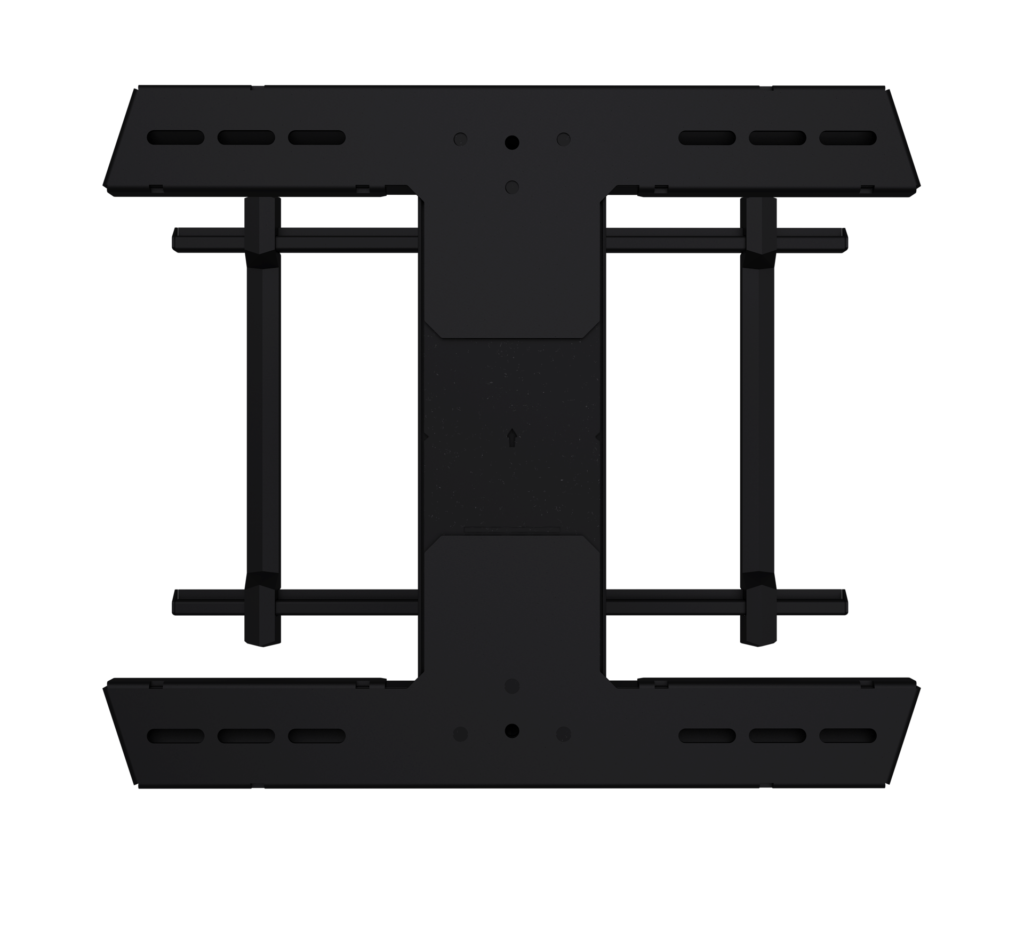

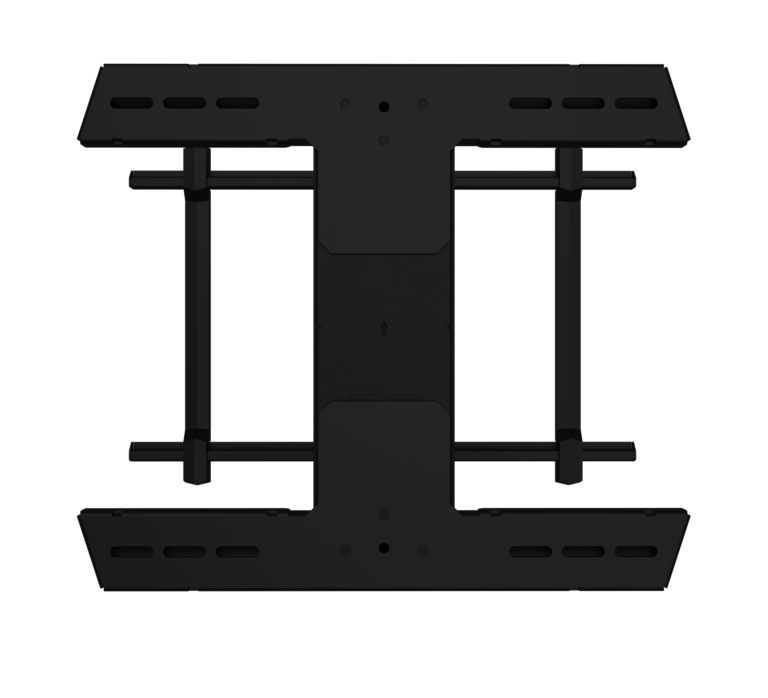

- Ideal for mounting across 16" stud walls

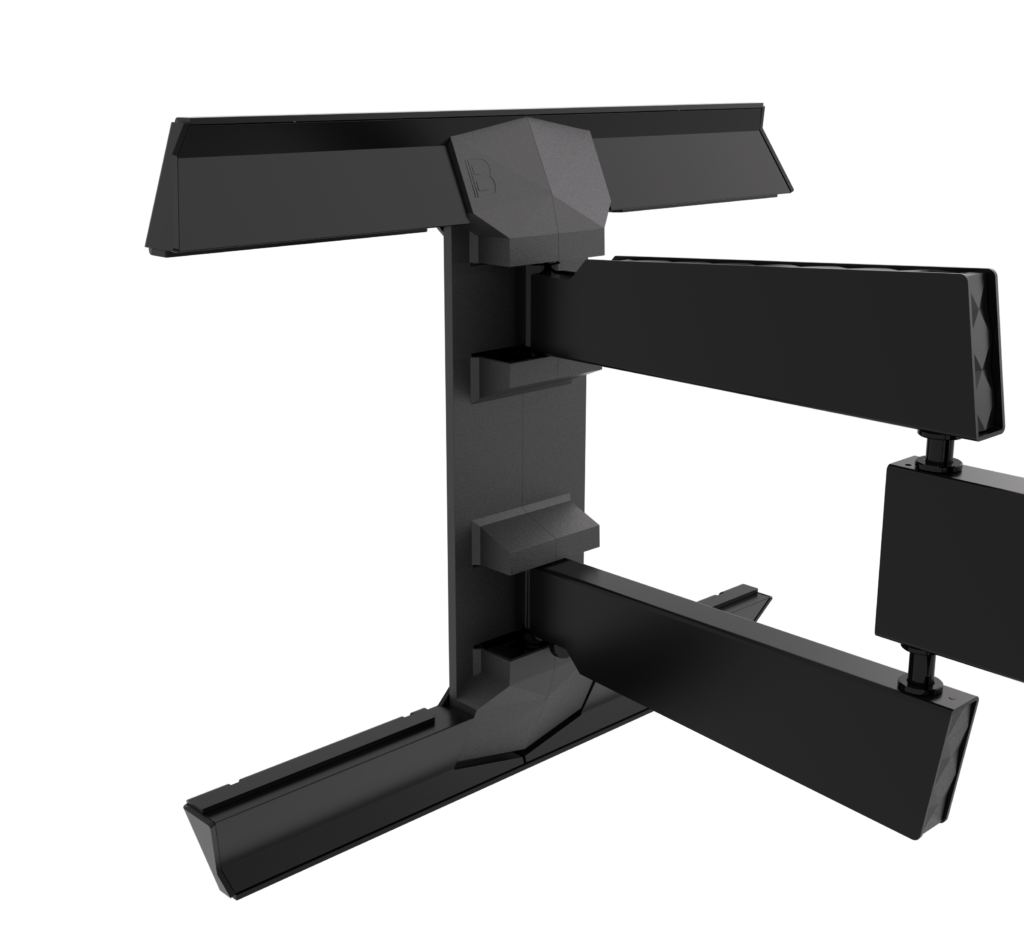

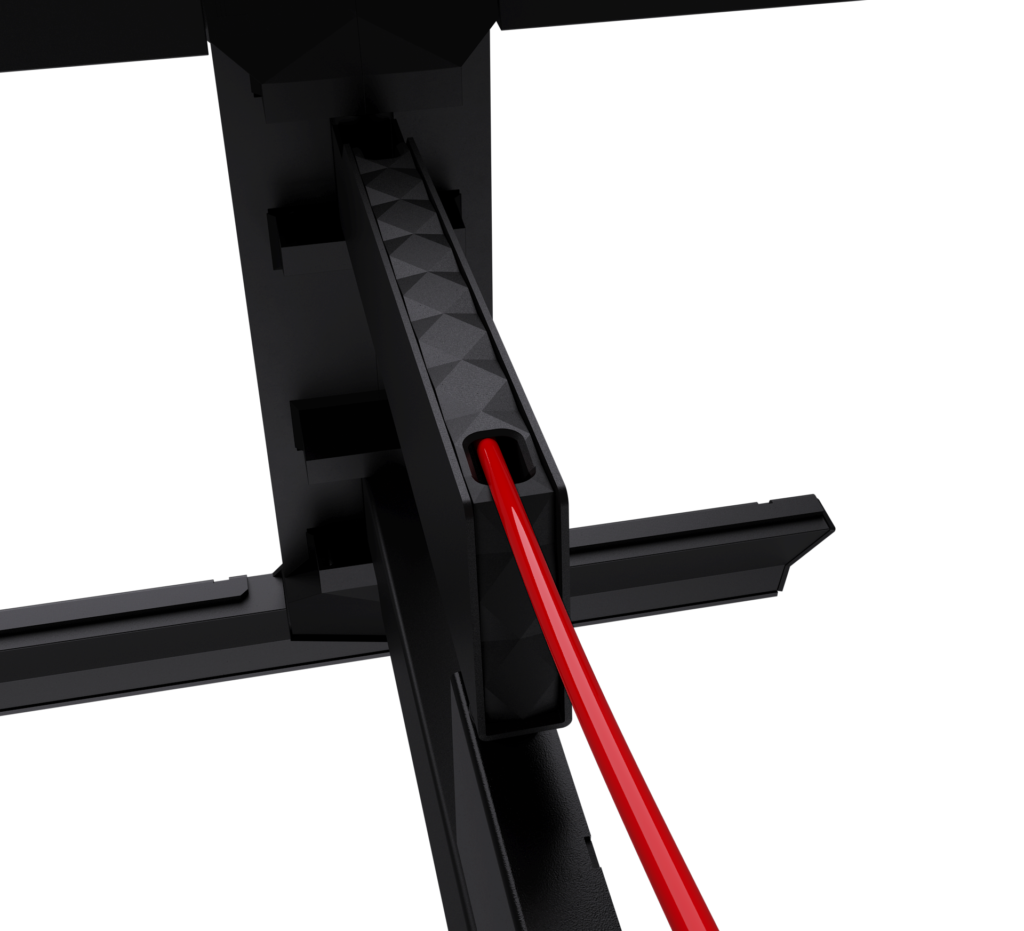

- Integrated cable management throughout the mount

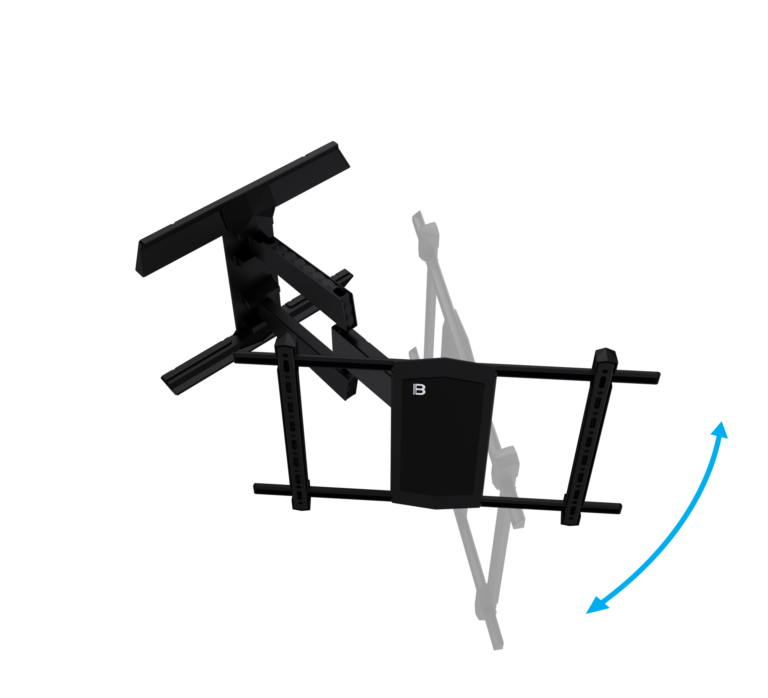

- Suitable for both landscape and portrait mounting
- Tilt can also be fixed at selected angles of -2˚,0˚& 15˚

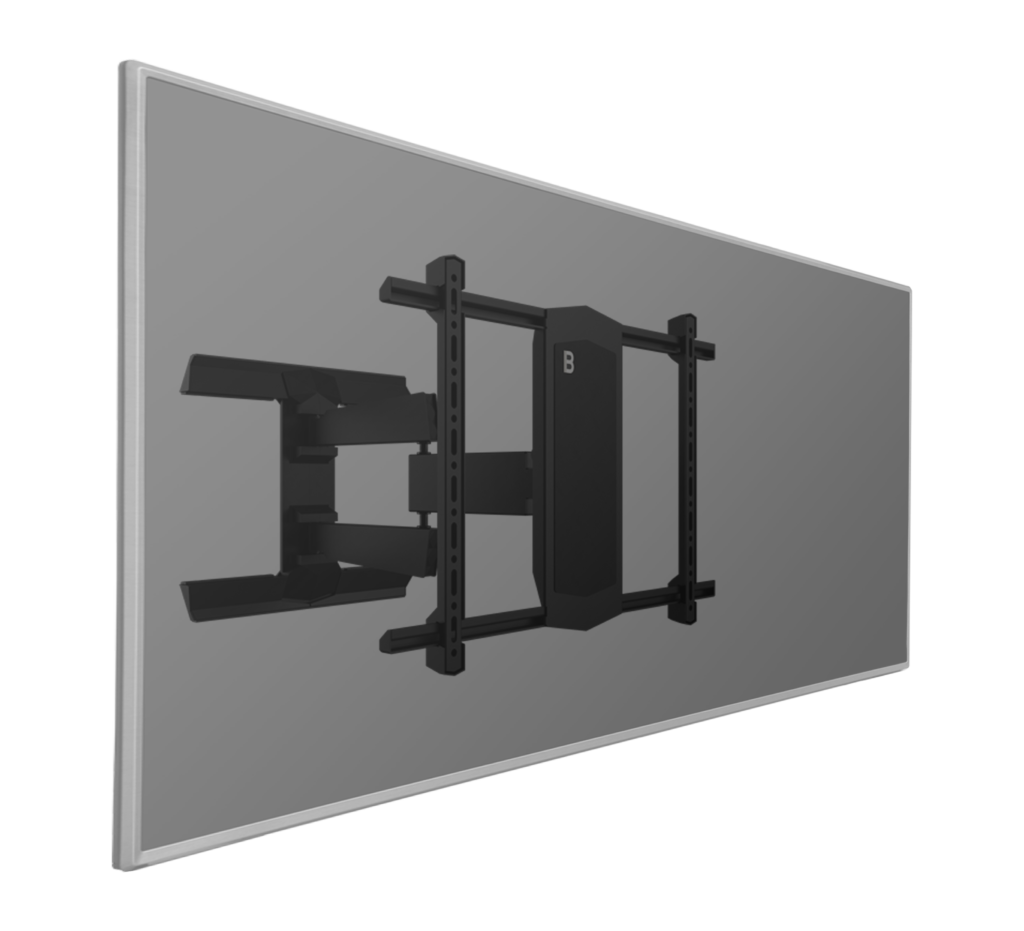

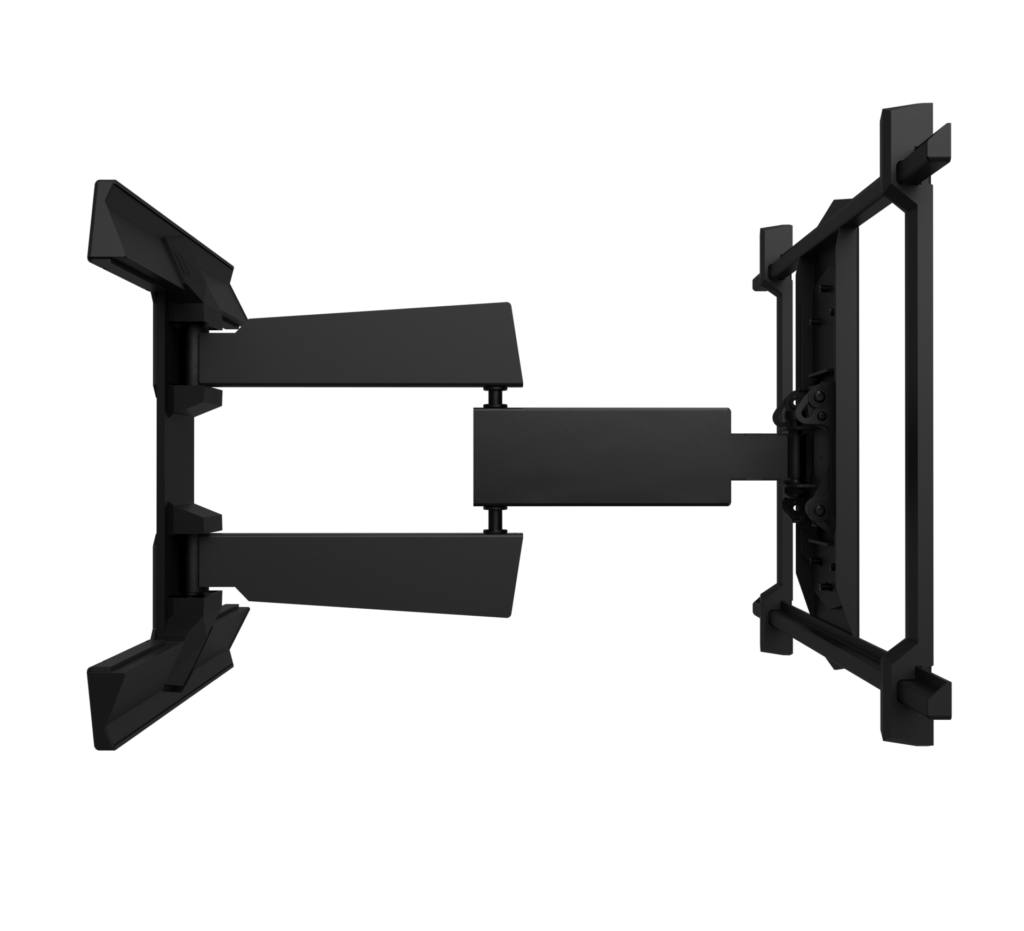

- Slim-line design allows close-to-wall installation when folded flat

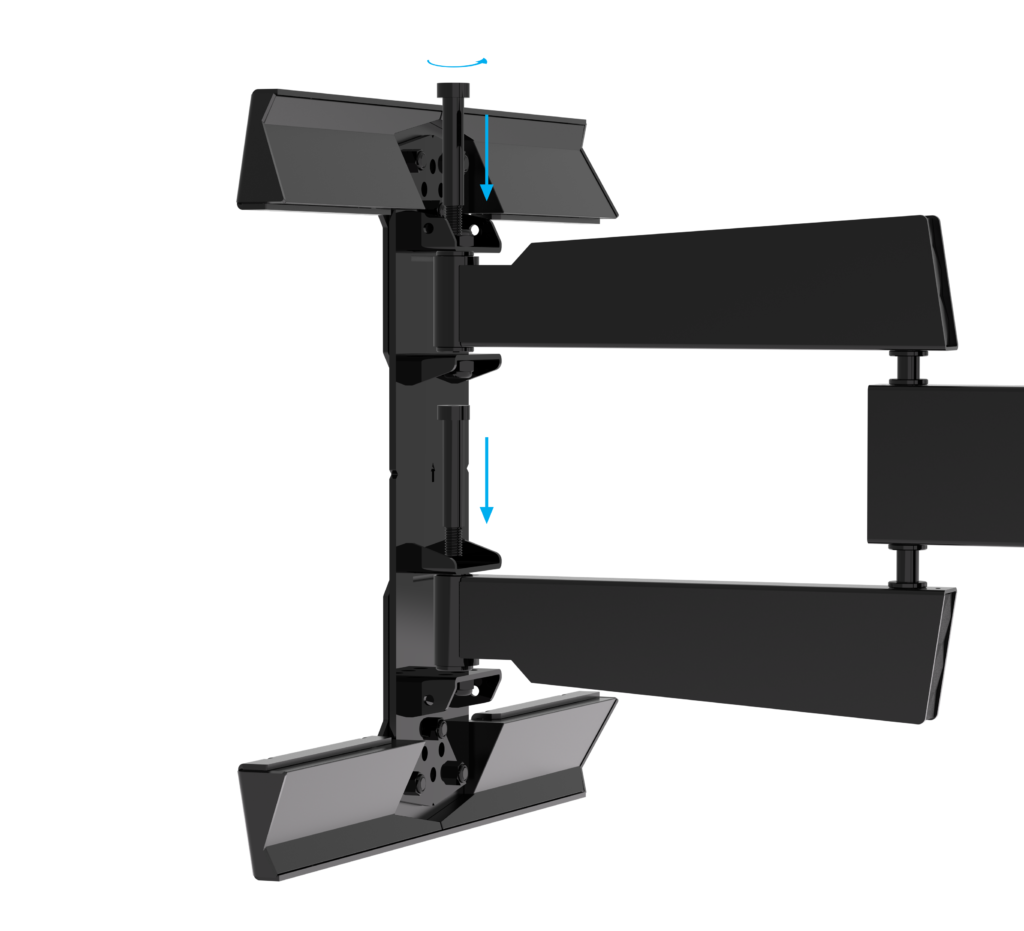

- Lateral adjustment of screen after mounting
- Safety screws to prevent unauthorised screen removal
- Cover plates included for an attractive finish
- Simple 'hook-on' installation with all mounting hardware included
- 100% plastic free packaging
Product Specifications
- Recommended display size: 32" up to 65"
- Max load: 35kg (77lbs)

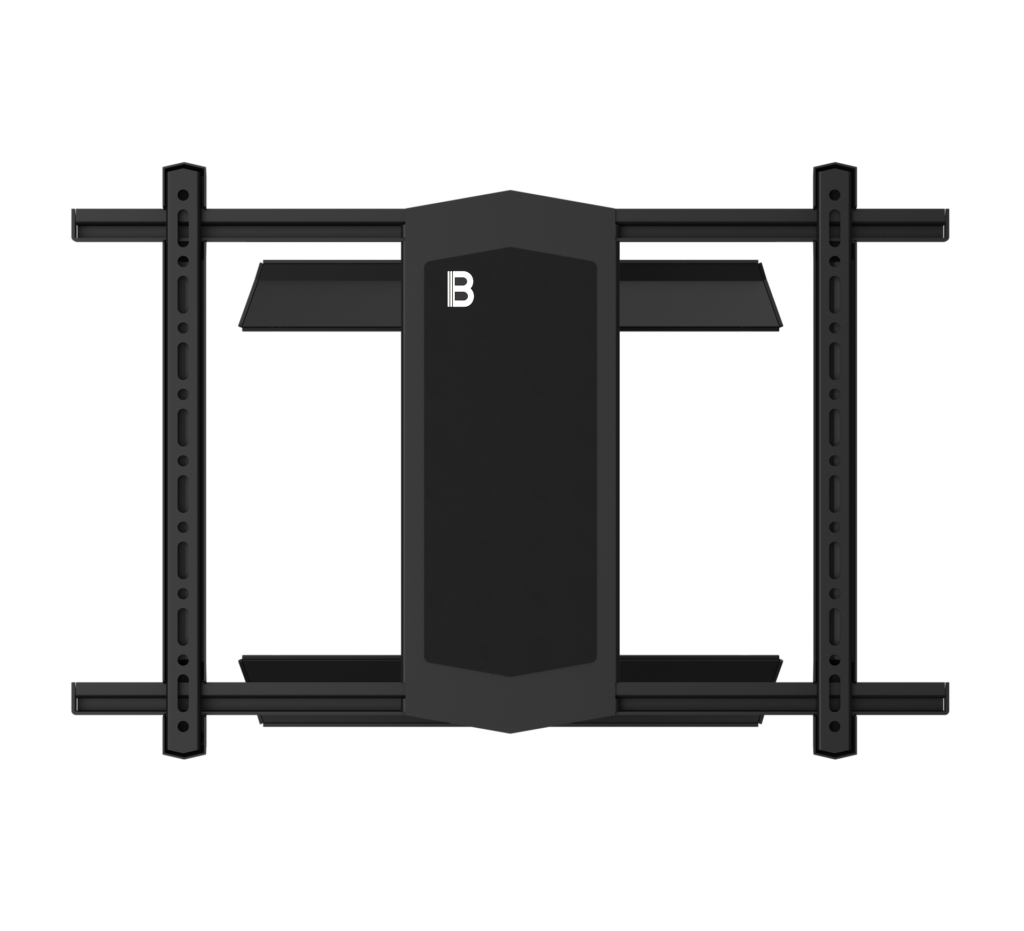

- VESA® fixings: up to 600mm x 400mm
- Tilt: +14°/-3°
- Screen levelling: +/-3°

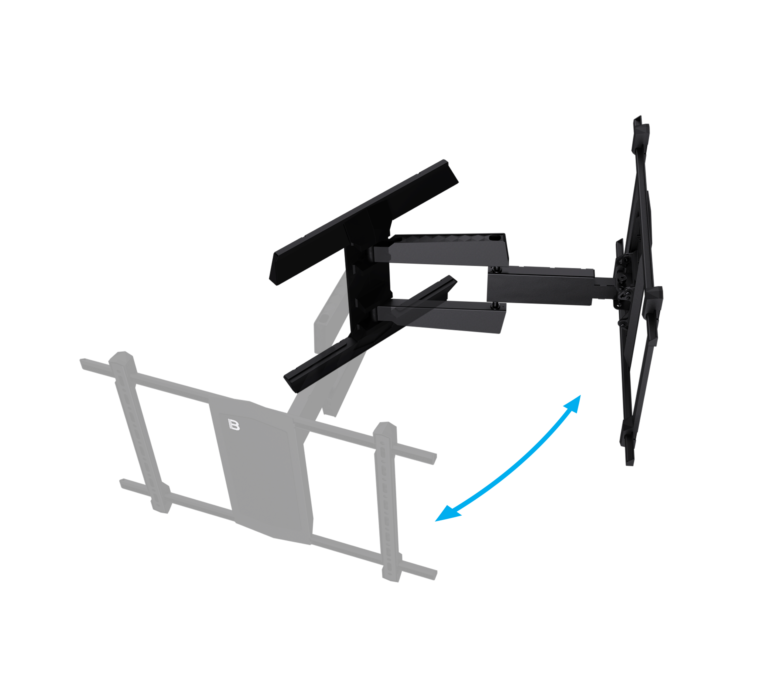

- Swivel wall mounted: 180°
- Swivel at central pivot: 360°
- Swivel at interface: 180°
- Distance from wall - min: 65mm
- Distance from wall - max: 591mm
- Screen height adjustment: 20mm
- Orientation: Landscape, Portrait
- Colour: Black
