BT8226
Double Arm Flat Screen Wall Mount with Tilt & Swivel
Ideal for screens up to 65"
Overview

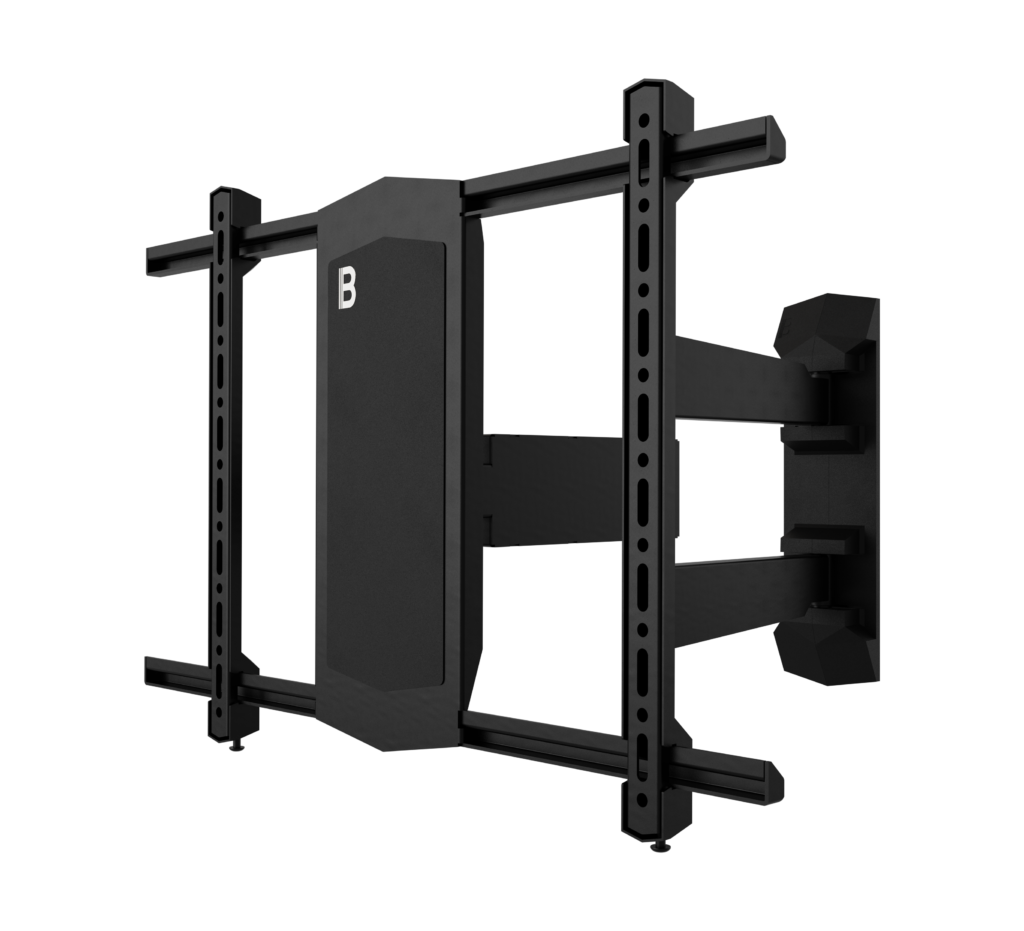

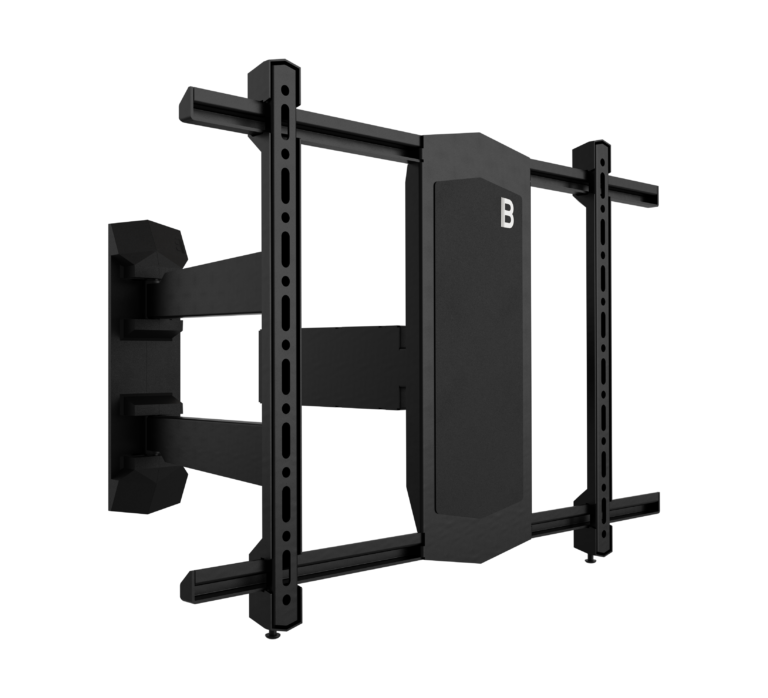

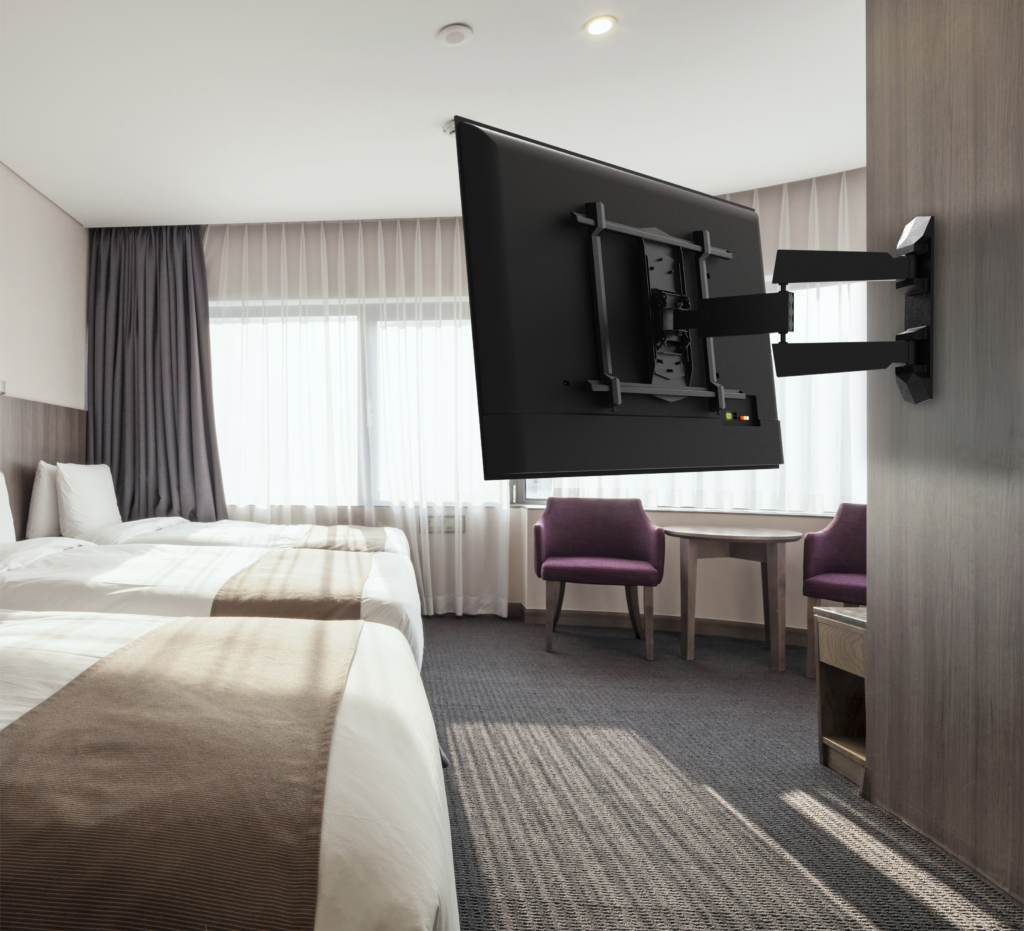

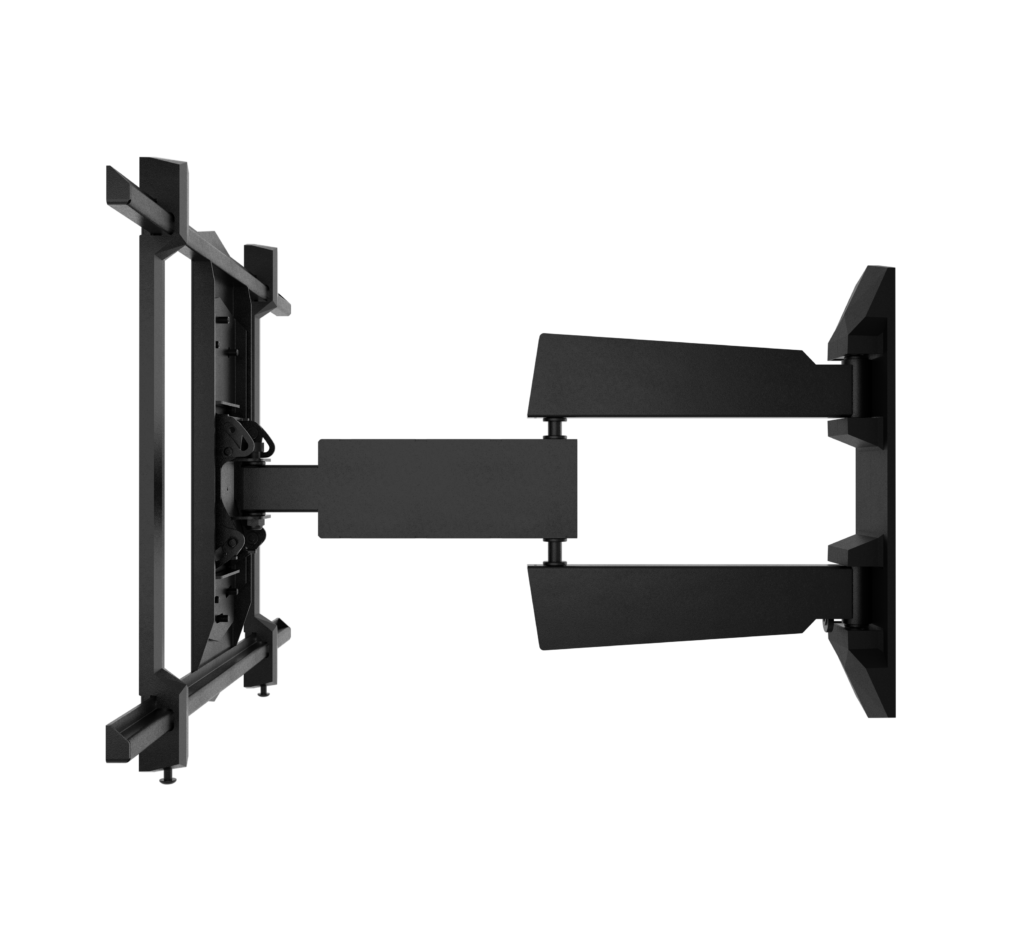

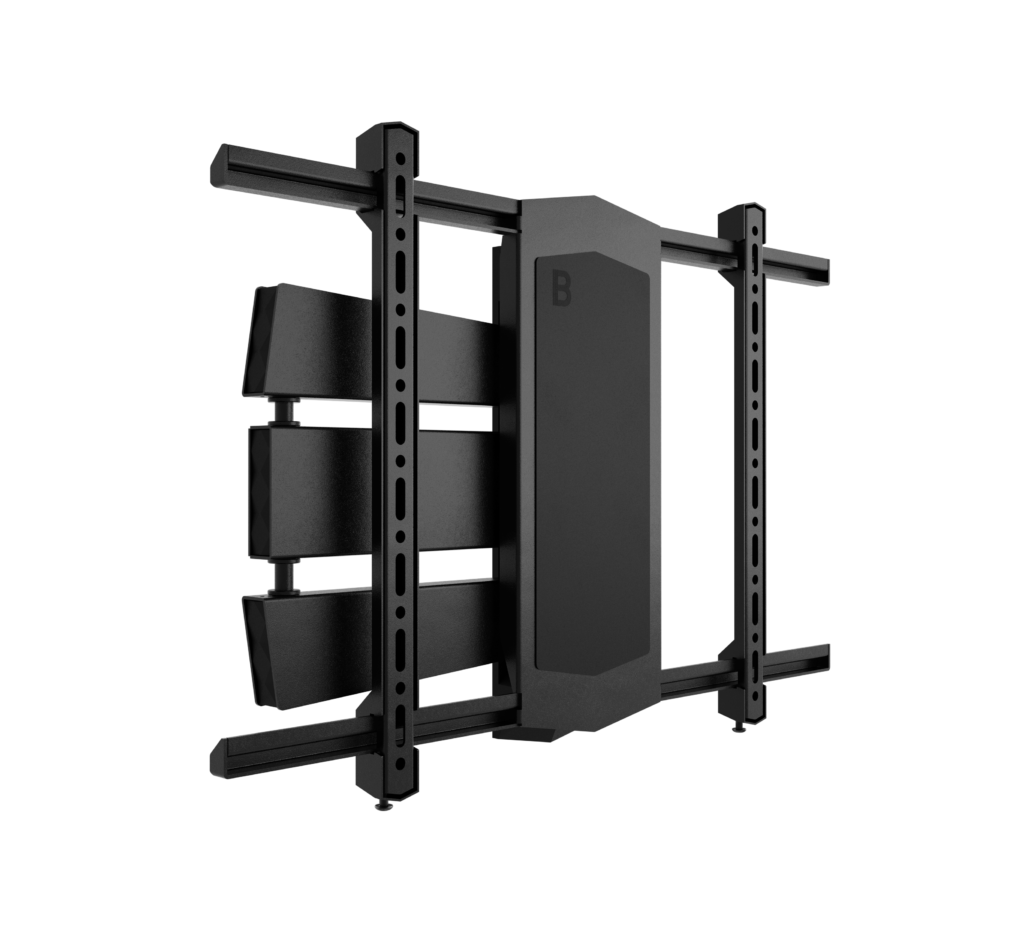

Designed to mount medium to large sized screens, this universal double arm wall mount features an easy to tilt interface and three swivel points, for a quick, smooth repositioning of the screen - whether folded flat to the wall (at a depth of just 50mm) or at maximum extension. Cover plates and integrated cable management help hide all fixings for a neat and tidy mounting solution, ideal for both commercial and home installations.
Product Features

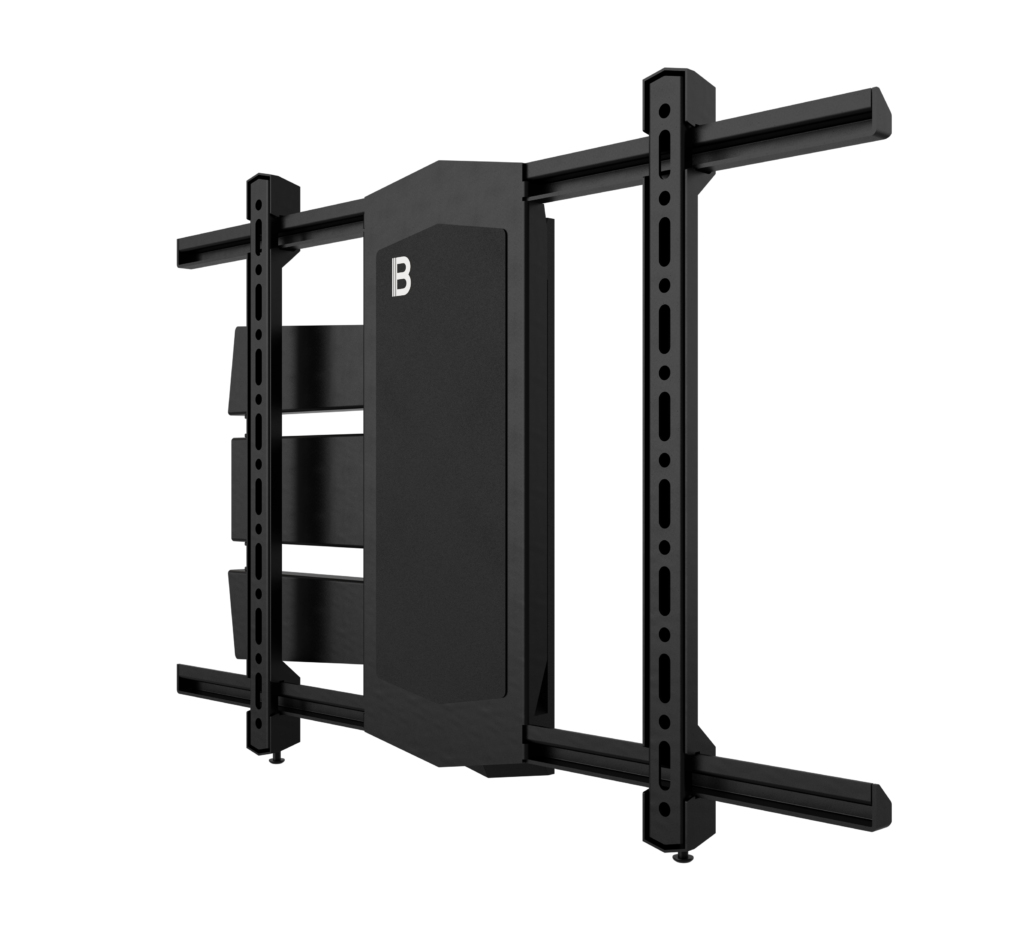

- Attractive cover plates included to hide fixings
- Lateral adjustment of screen once mounted

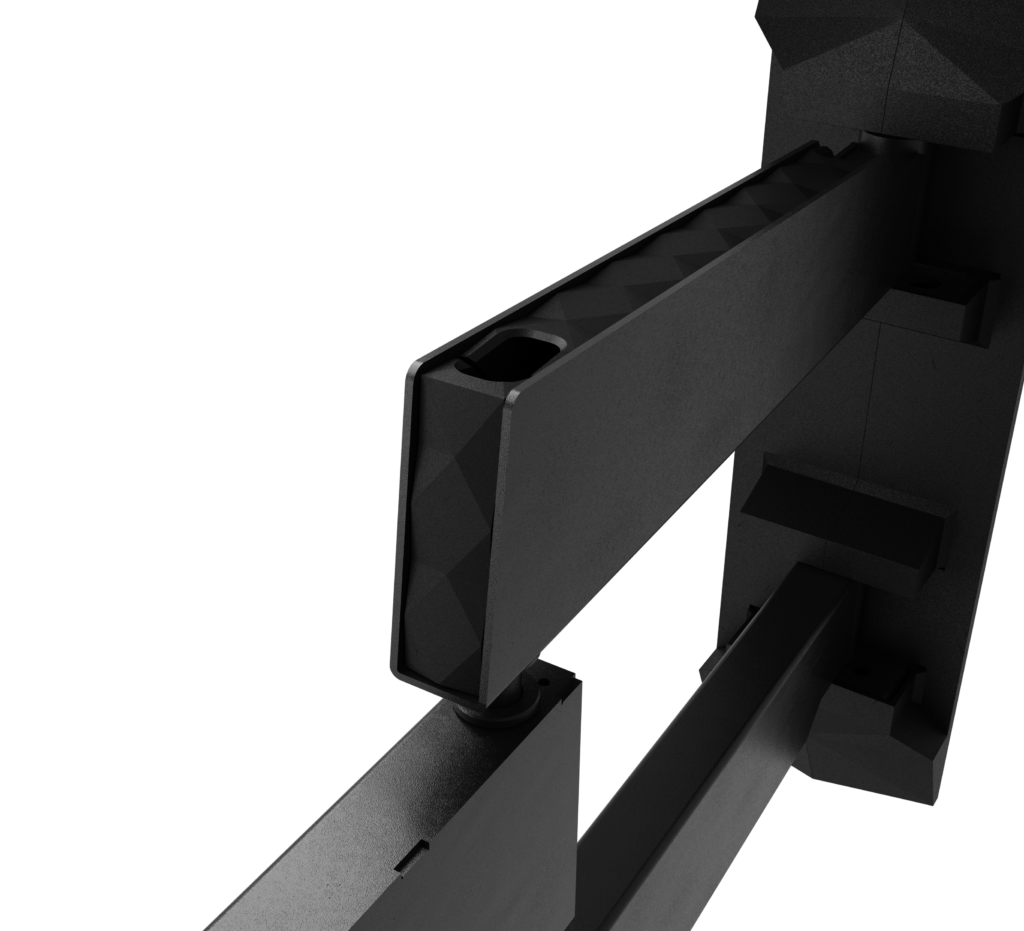

- Integrated cable management

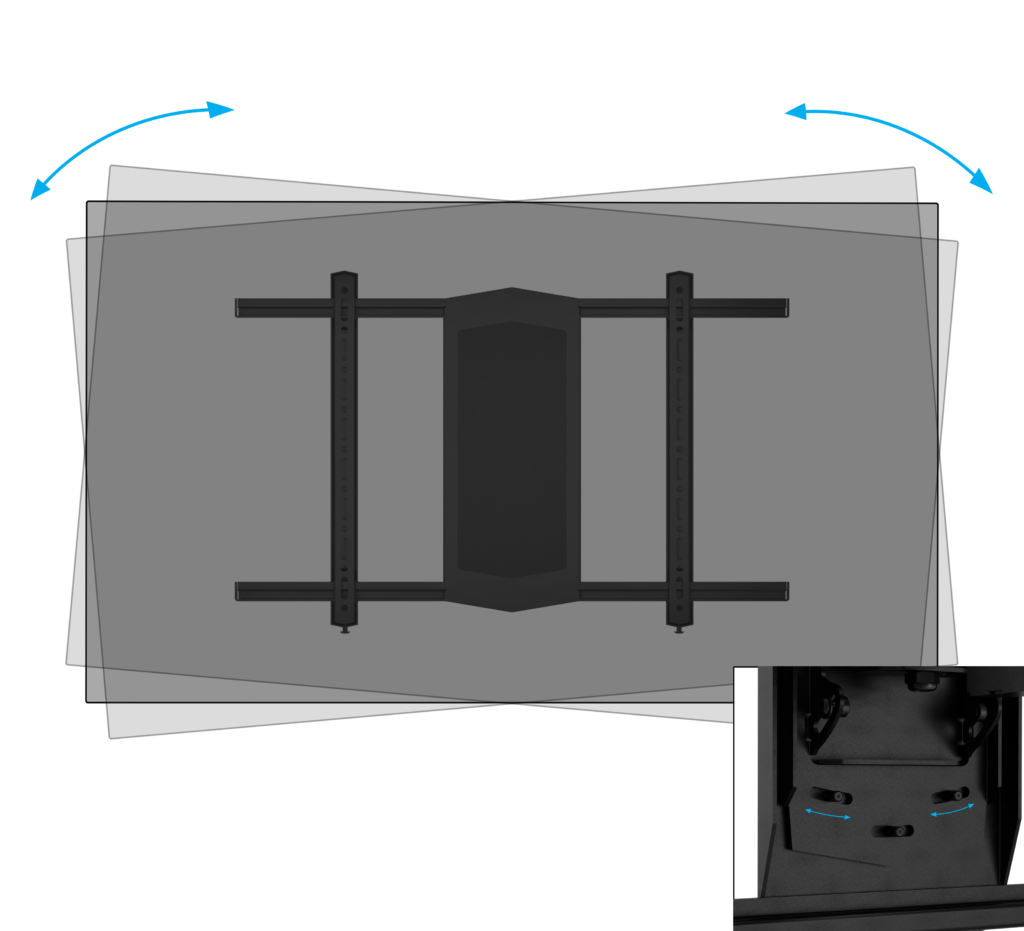

- Screen levelling of up to 3 ° in either direction
- Easy tilt and swivel adjustments

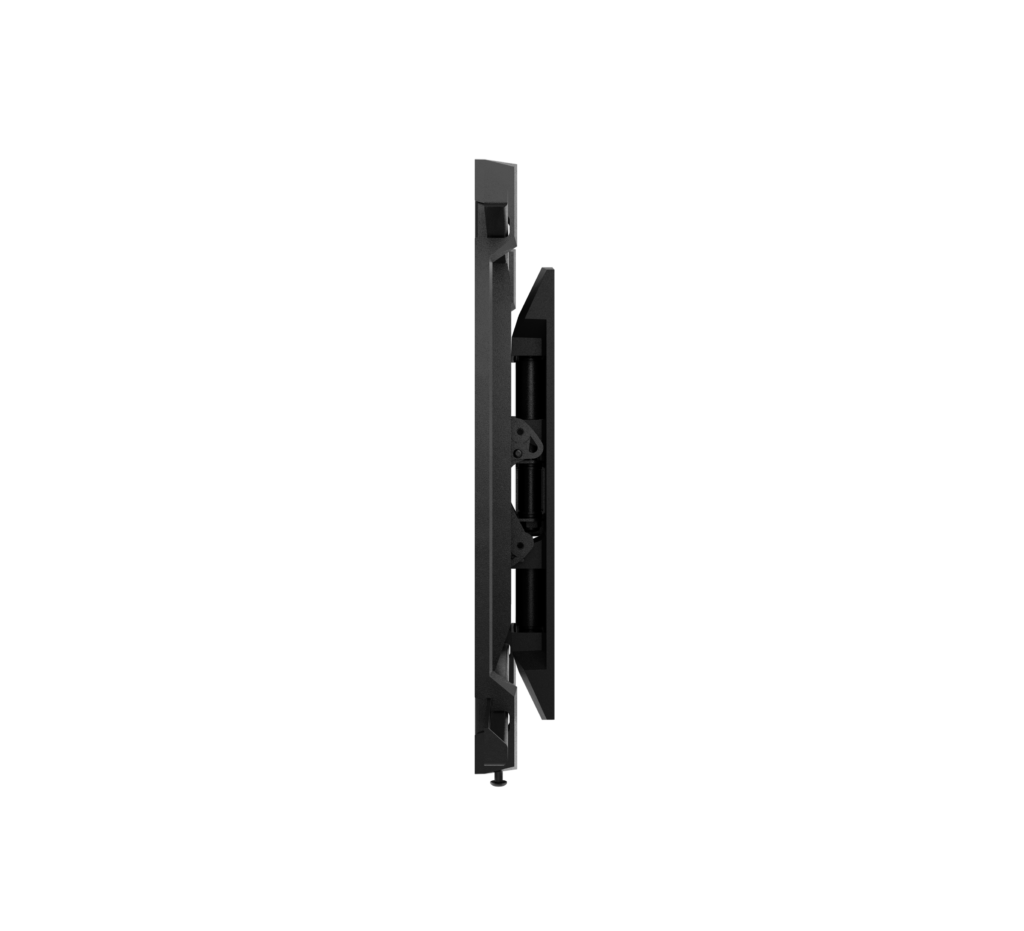

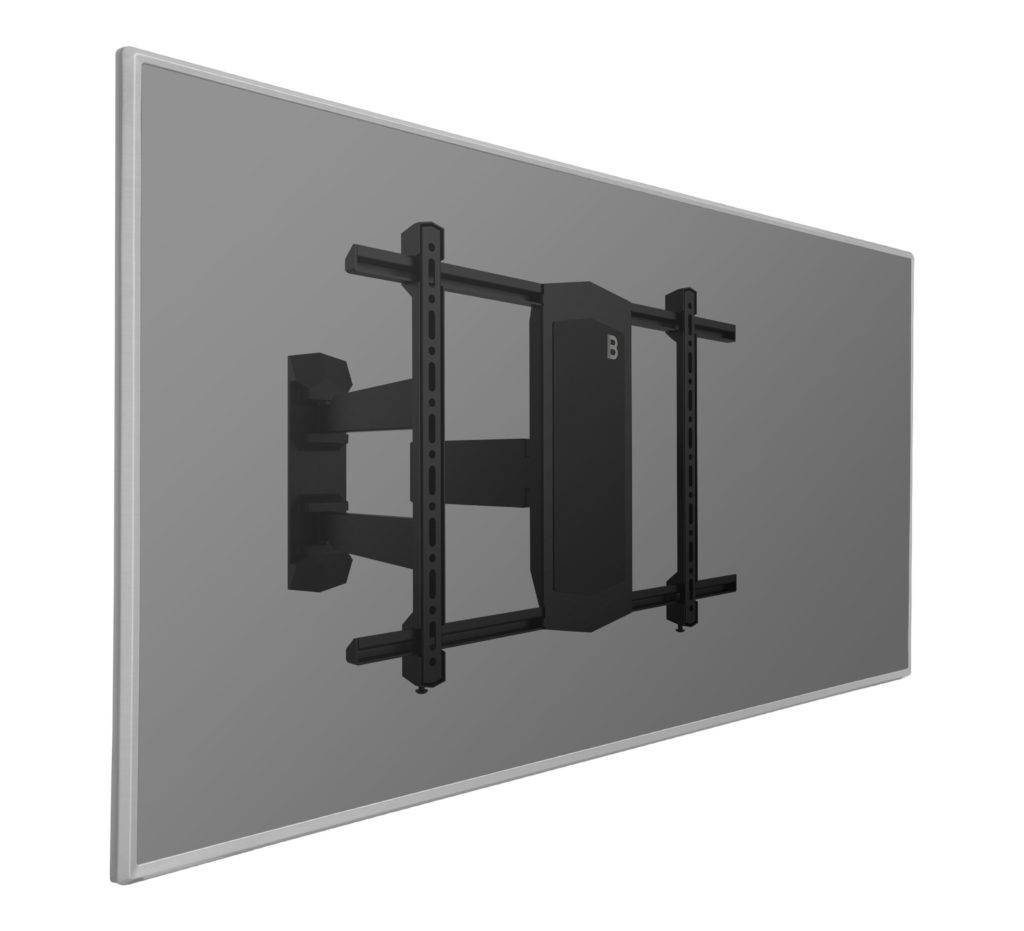

- Slim-line design allows close to the wall installation when folded flat

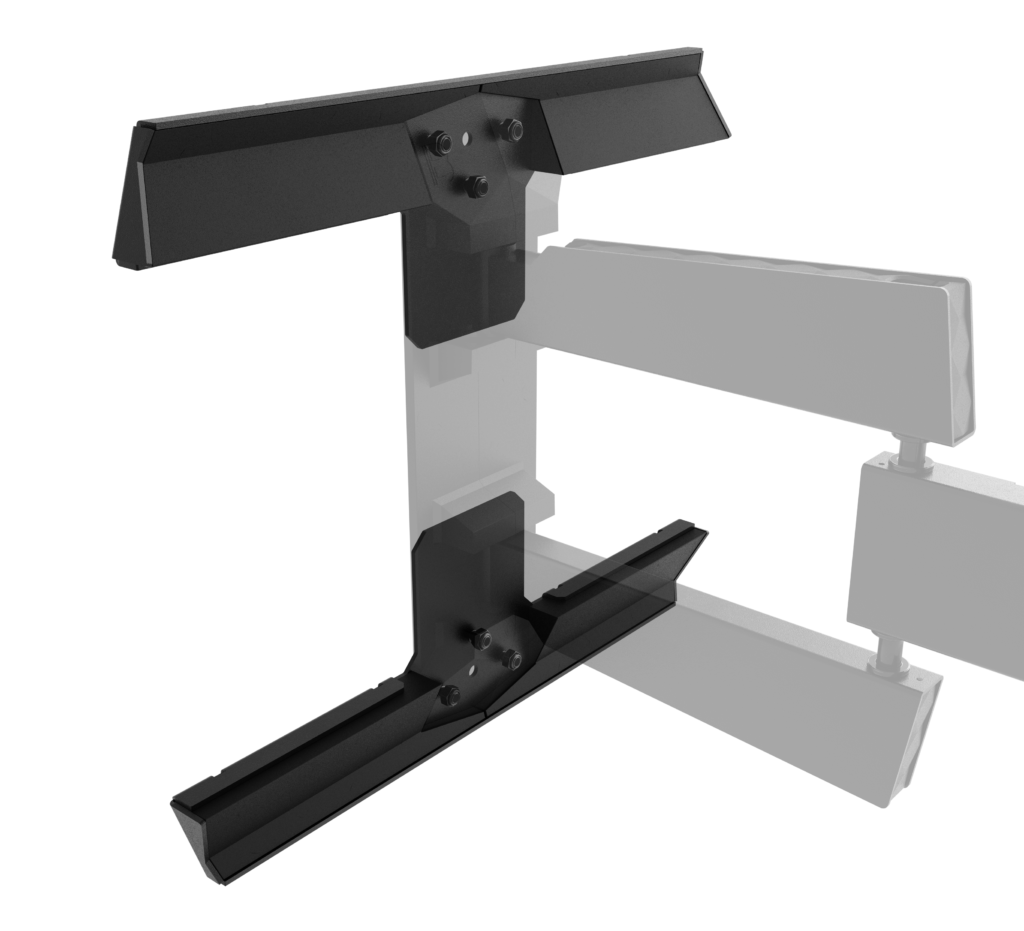

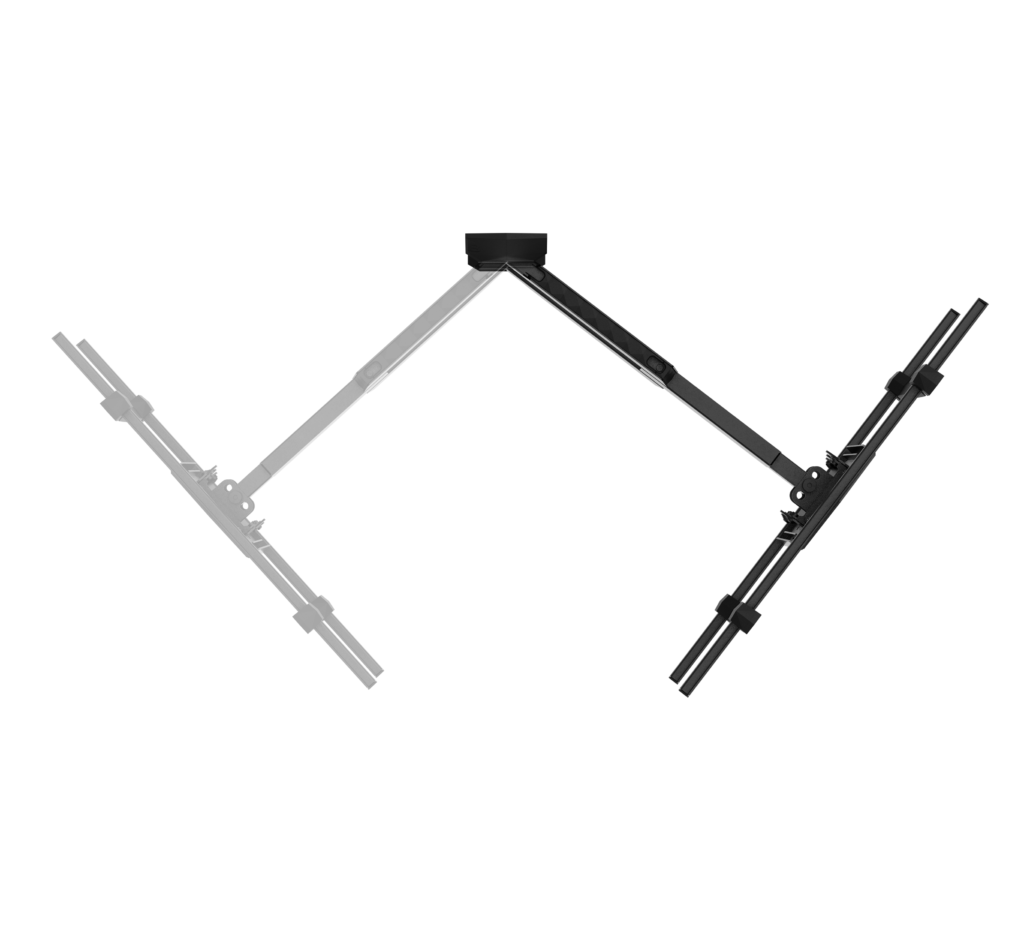

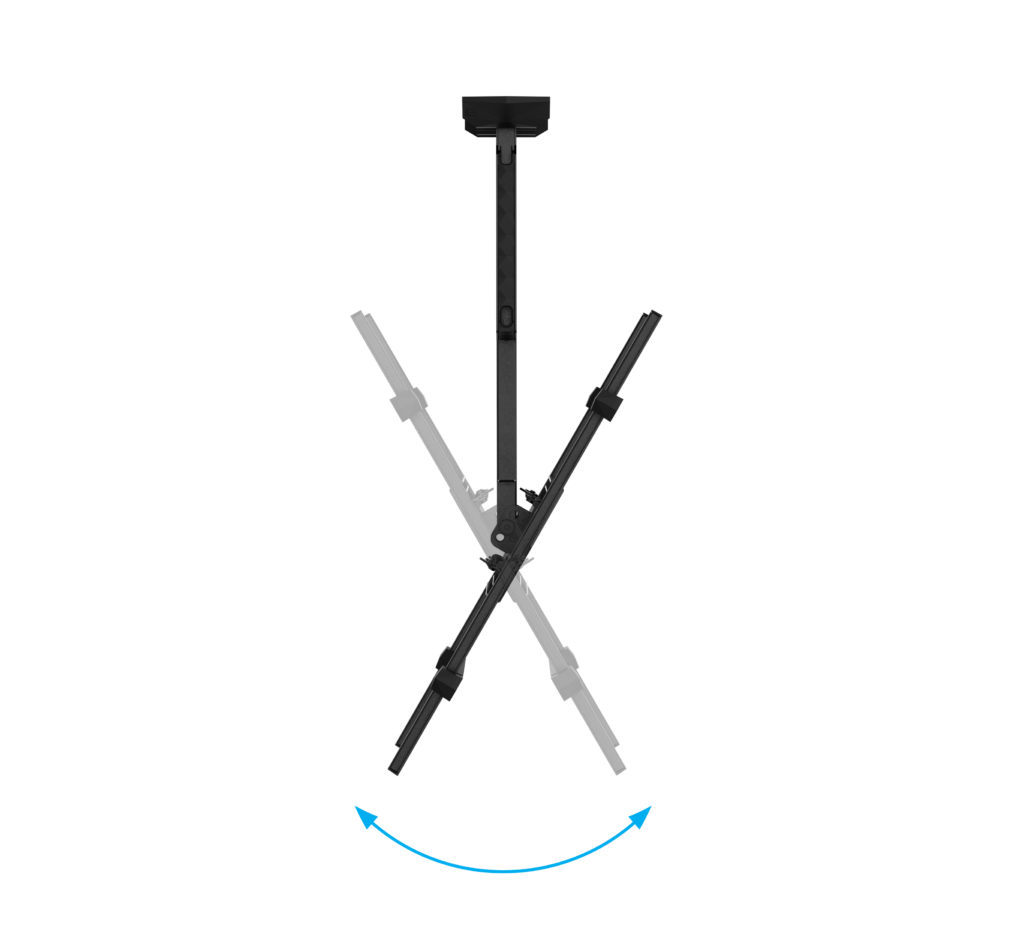

- Features three swivel points; ideal for corner mounting
- Toolless tilt with option to lock in position
- Toolless screen levelling
- Keyhole mounting and drilling template for a quick and easy installation
- Safety screws help prevent unauthorised removal of screens
- Simple ‘hook-on’ installation with all mounting hardware included
- 100% plastic free packaging
Product Specifications
- Recommended display size: 32" up to 65"
- Max load: 35kg (77lbs)

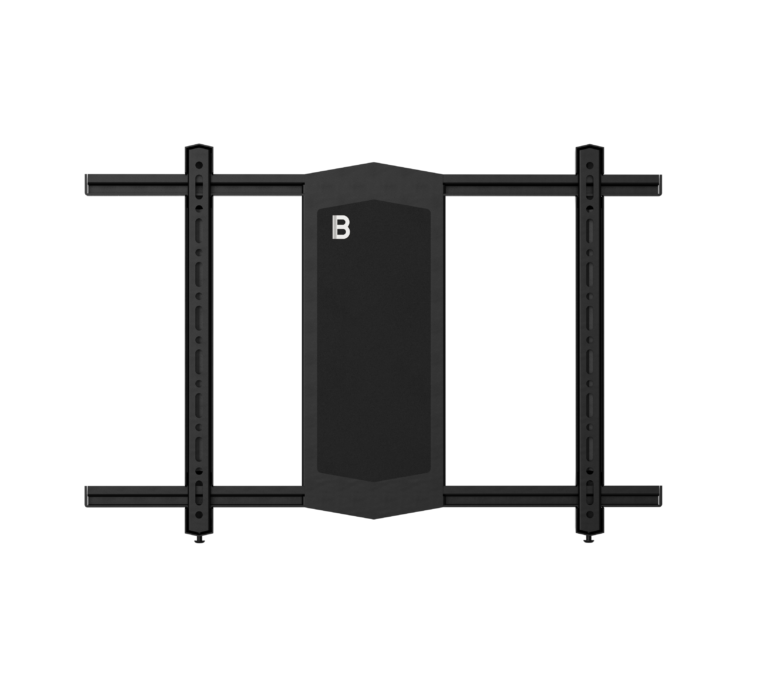

- VESA® fixings: up to 600mm x 400mm
- Tilt: +14˚/-3˚

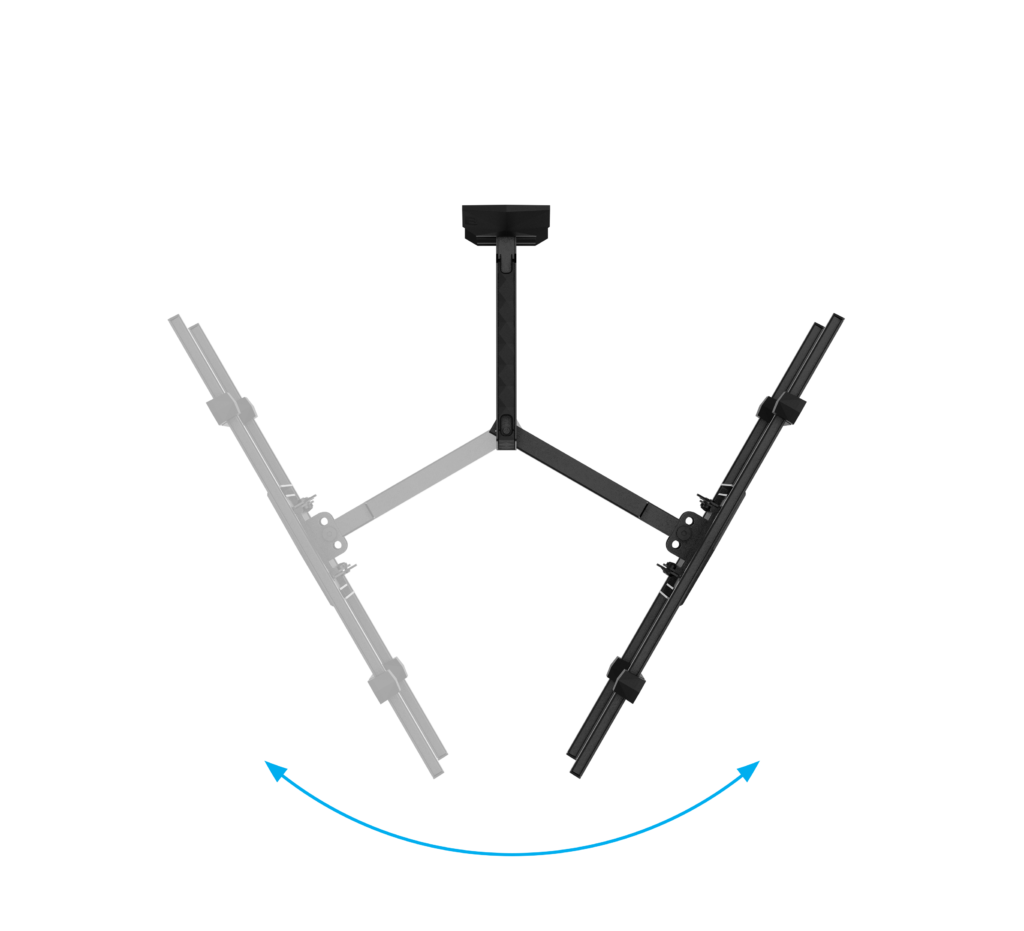

- Swivel wall mounted: 180°
- Swivel at central pivot: 360°
- Swivel at interface: 180°
- Product width: 662.6mm
- Min product depth: 50mm
- Max product depth: 573.6mm
- Product height: 449.6mm
- Distance from wall - min: 50mm
- Distance from wall - max: 574mm
- Orientation: Landscape, Portrait
- Colour: Black
