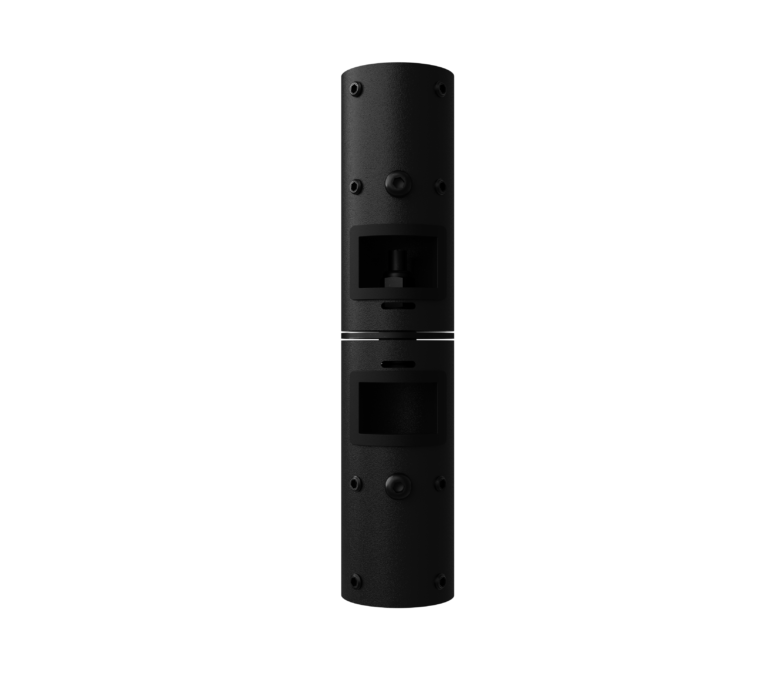

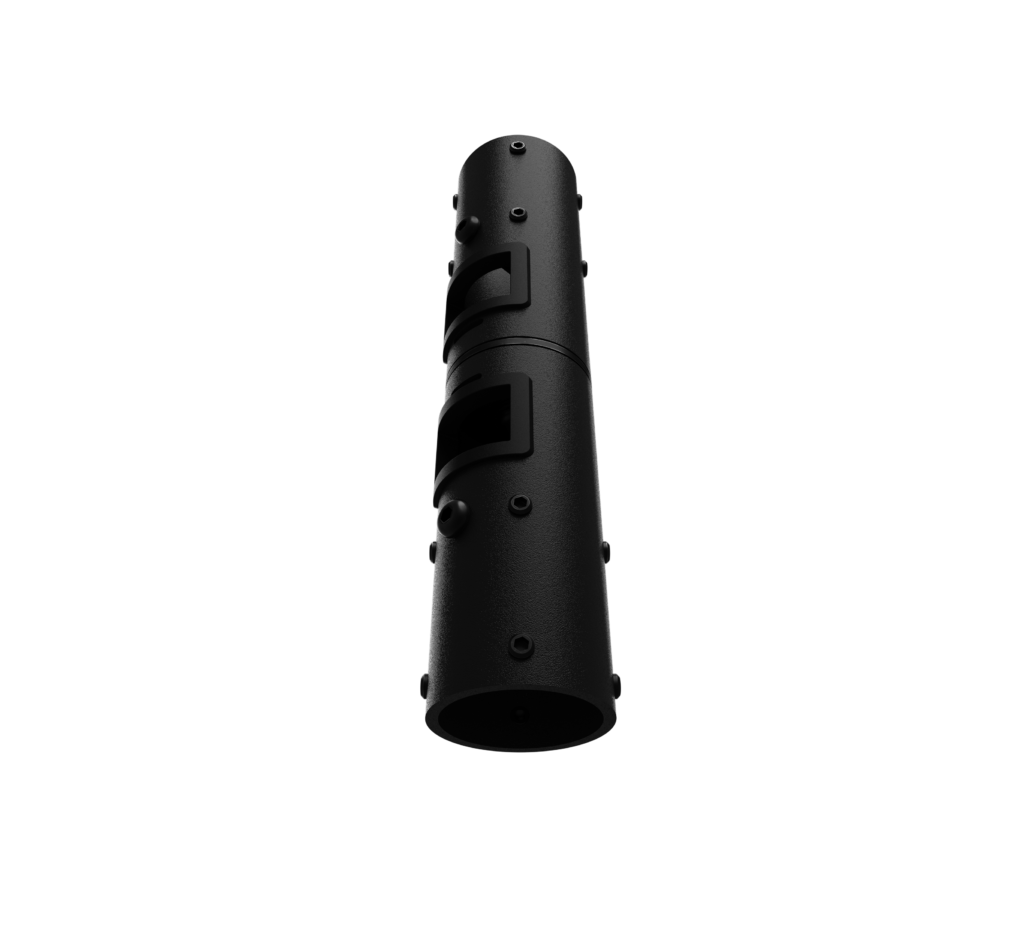

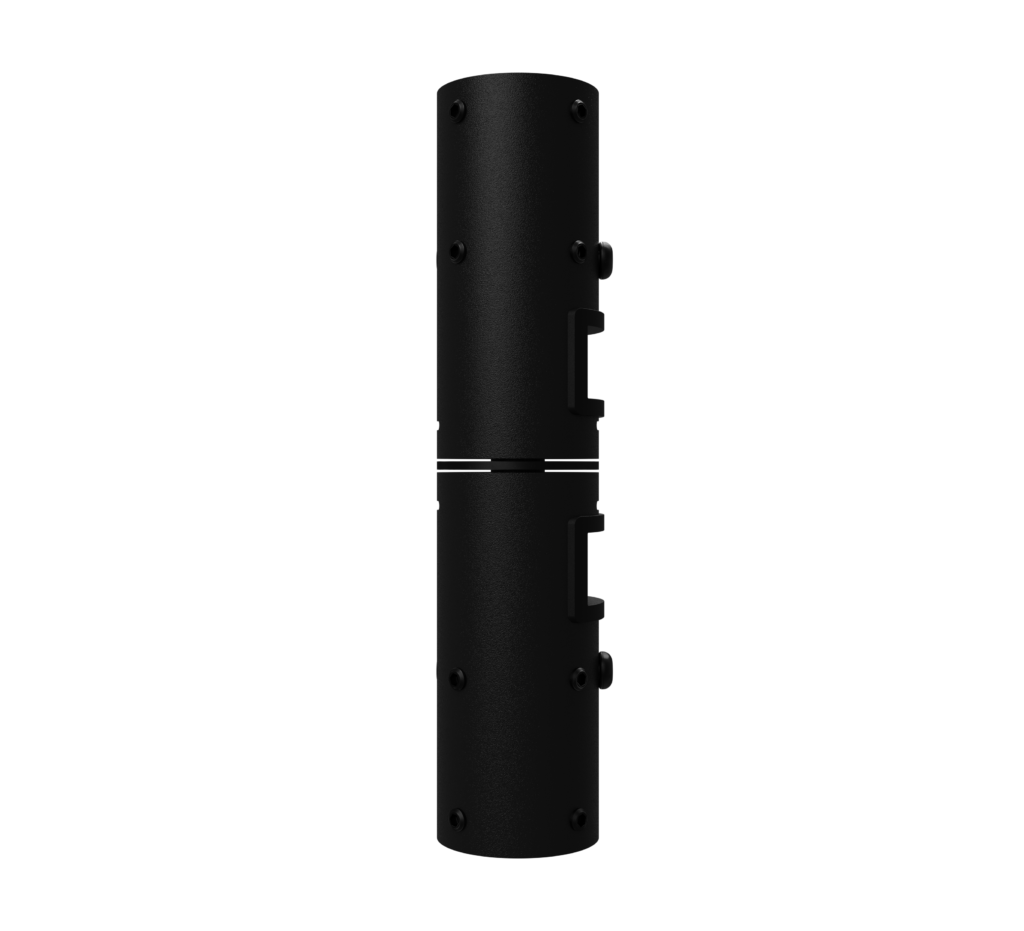

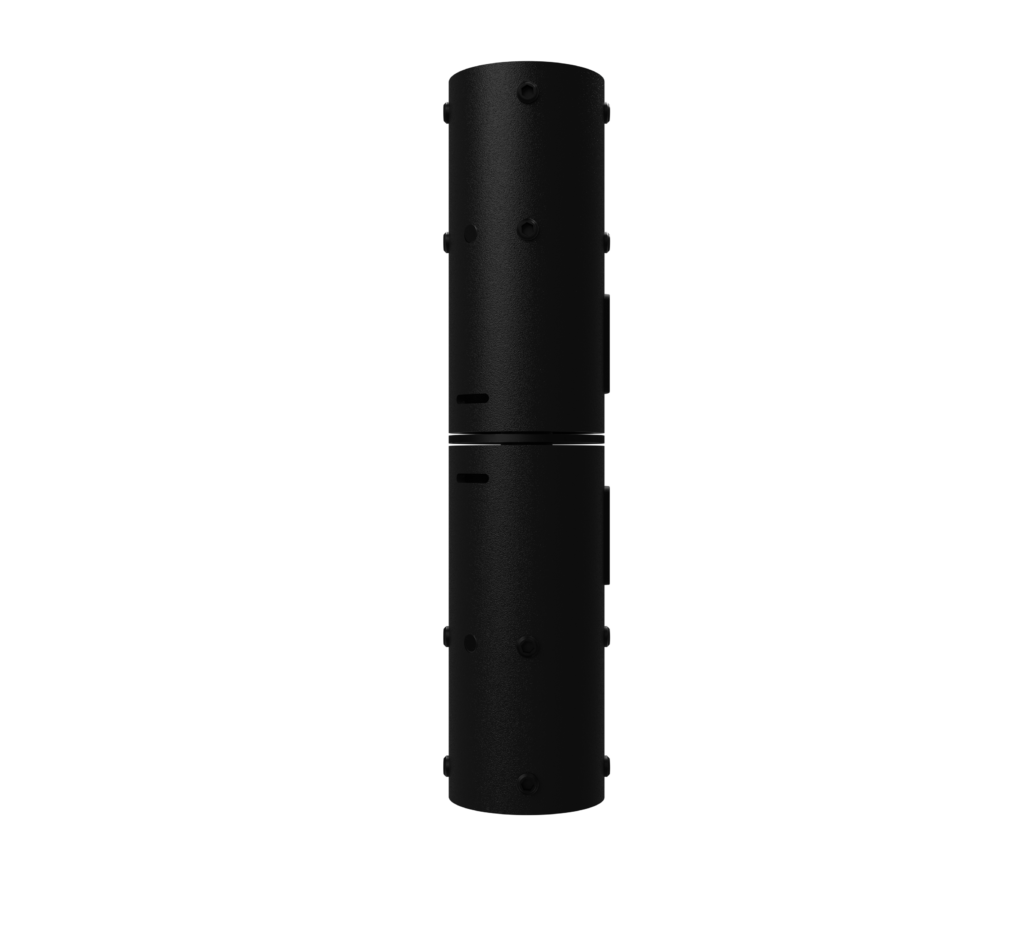

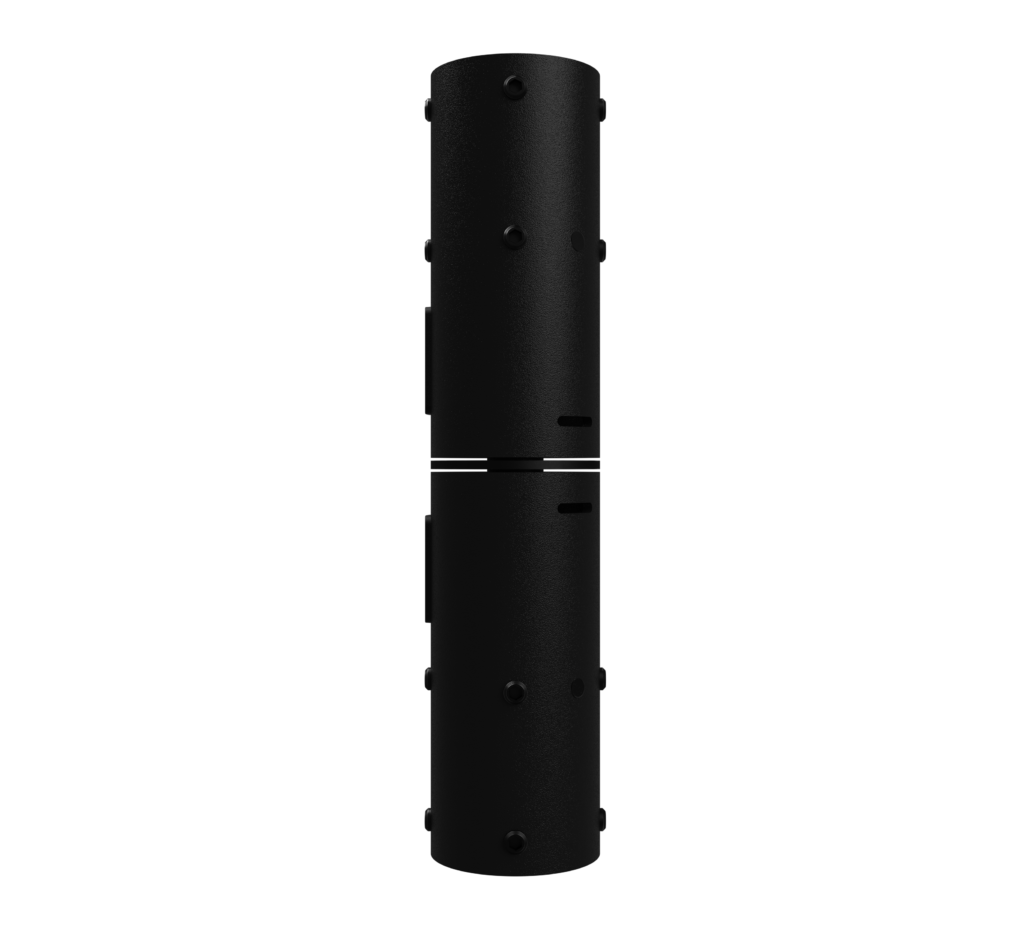

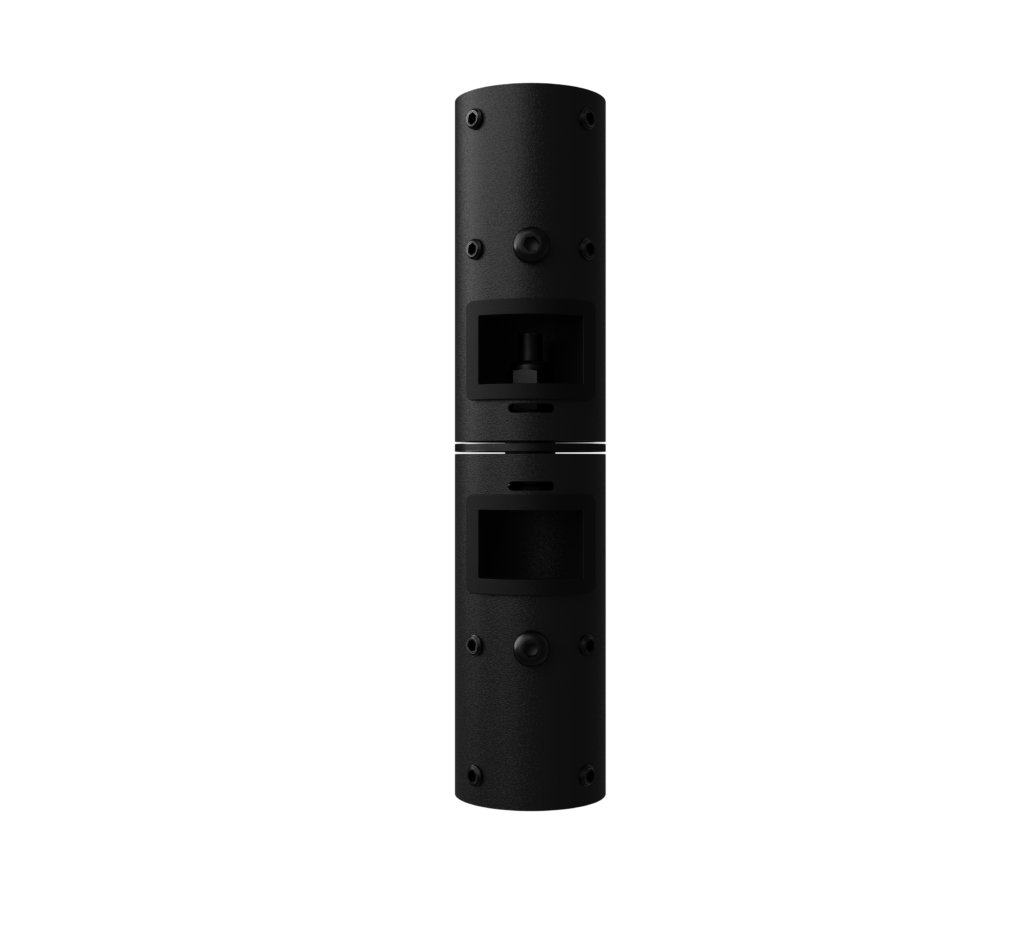

BT7852
Swivel Adaptor
For Ø50mm Poles
Choose product version by code
BT7852-B
Enquire Today
View Related Products
Product Features

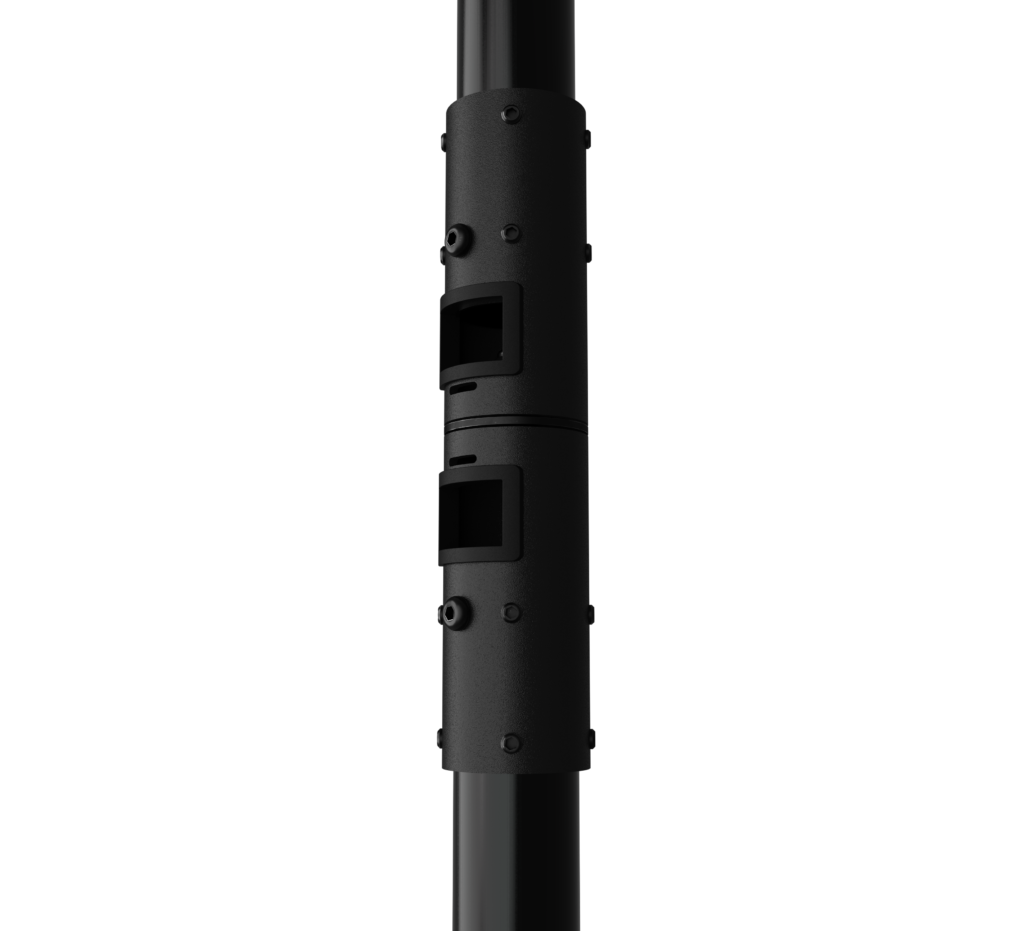

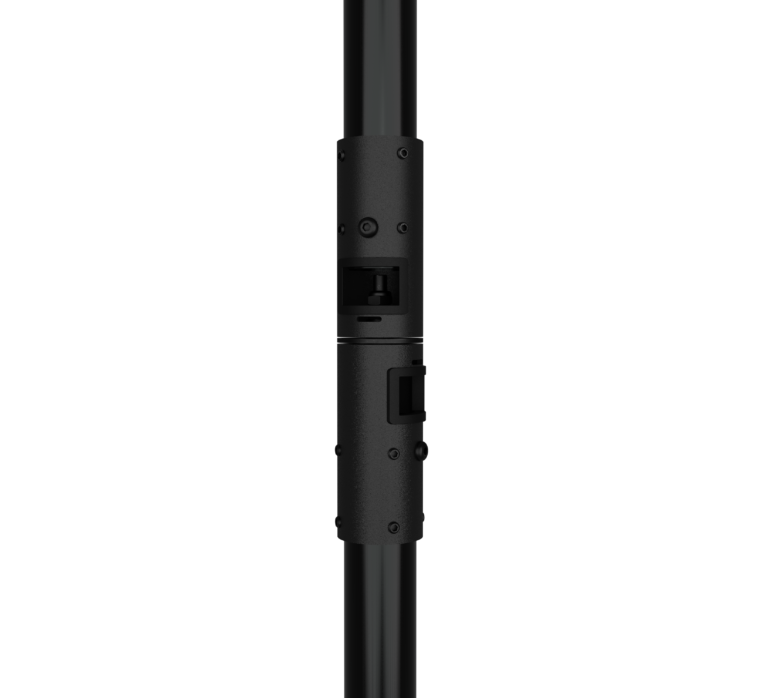

Designed for use with System 2 components such as BT7850 Ø50mm poles

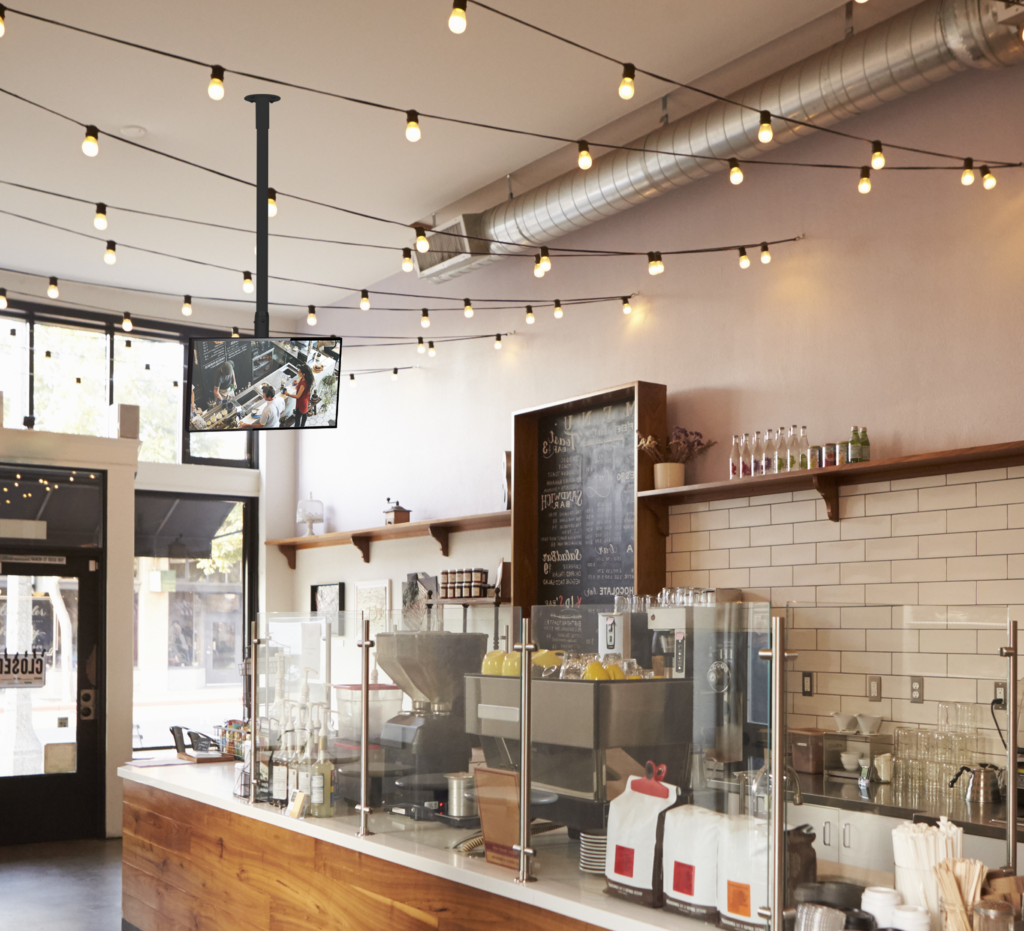

Ideal component for pole mounting screens to the ceiling with the ability to swivel the bottom pole 360°
Also suitable for back-to-back and floor-to-ceiling installations
Integrated cable management
Heavy-duty steel capable of supporting substantial loads
Multiple grub screws allow micro-adjustment of the pole
Product Specifications
Max load (Single sided screen): 70kg (154lbs)
Max load (Back-to-back): 35kg (77lbs) per screen
For pole diameter: 50mm
Swivel: 360°
Product width: 60mm
Product depth: 60mm
Product height: 275mm
Steel thickness: 4mm
Colour: Black
