BT77-B

Side-Clamping Speaker Wall Mounts (Pair)

With Tilt & Swivel

Overview

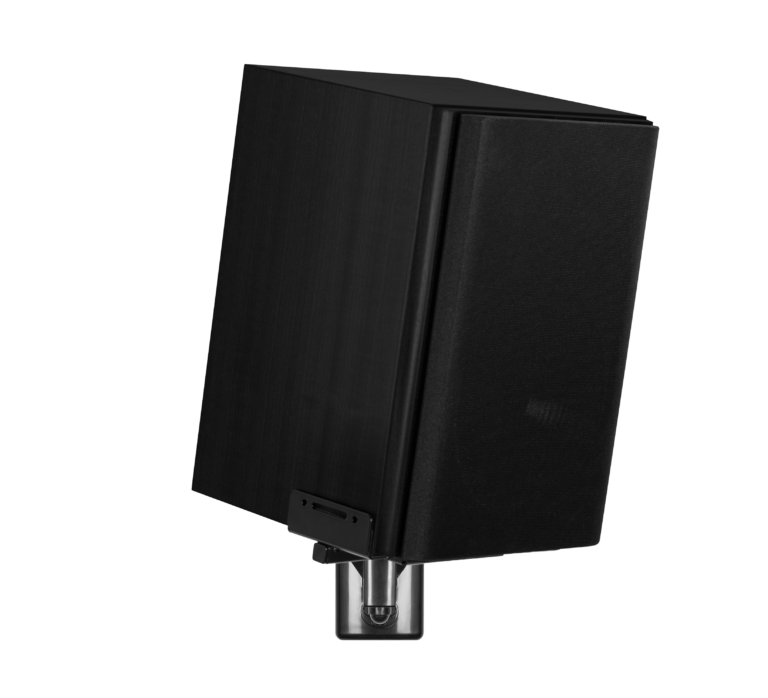

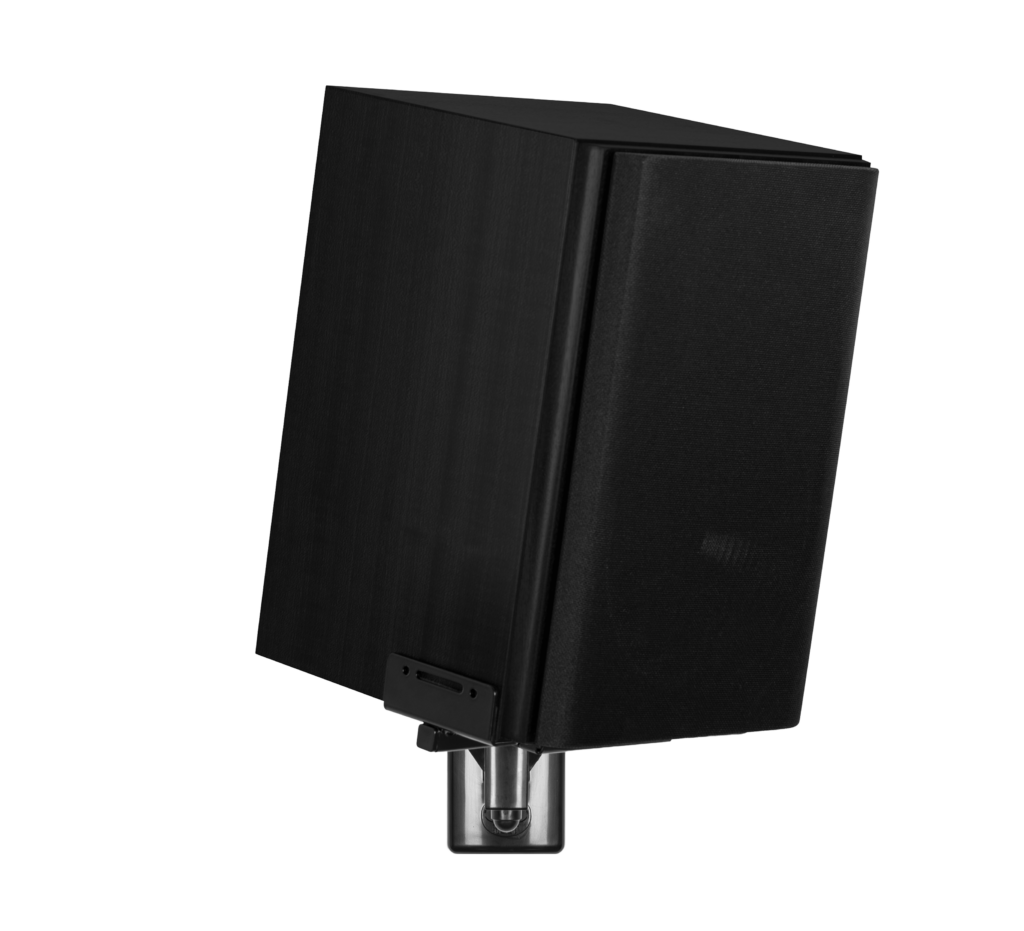

Suitable for bookshelf speakers including curved front types, the BT77 wall mount features a padded, adjustable side clamping design which grips medium to large sized speakers without marking them. The mounts are easy to install with tilt and swivel adjustments that allow for optimal speaker positioning once mounted. Supplied in pairs, the BT77 also includes cover plates for a neat and tidy finish.

Product Features

  • Adjustable clamp to accommodate larger speaker sizes
  • Side-clamping design is padded and does not mark the speaker
  • A safety strap (not included) can be added to the clamp for extra security
  • Tilt and swivel adjustment allows perfect positioning

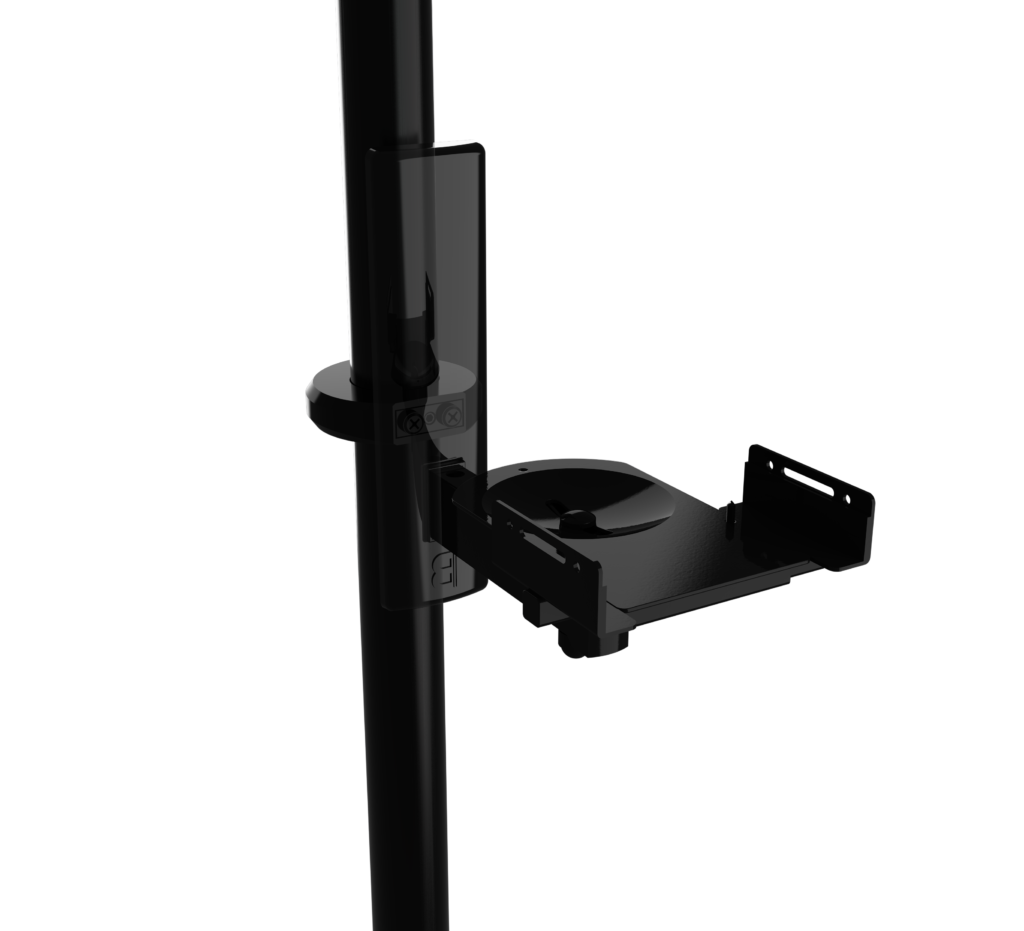

  • Can also be mounted directly to System X vertical columns or onto B-Tech collars for pole mounting
  • Supplied with cover plate and screw cap for a neat and tidy finish

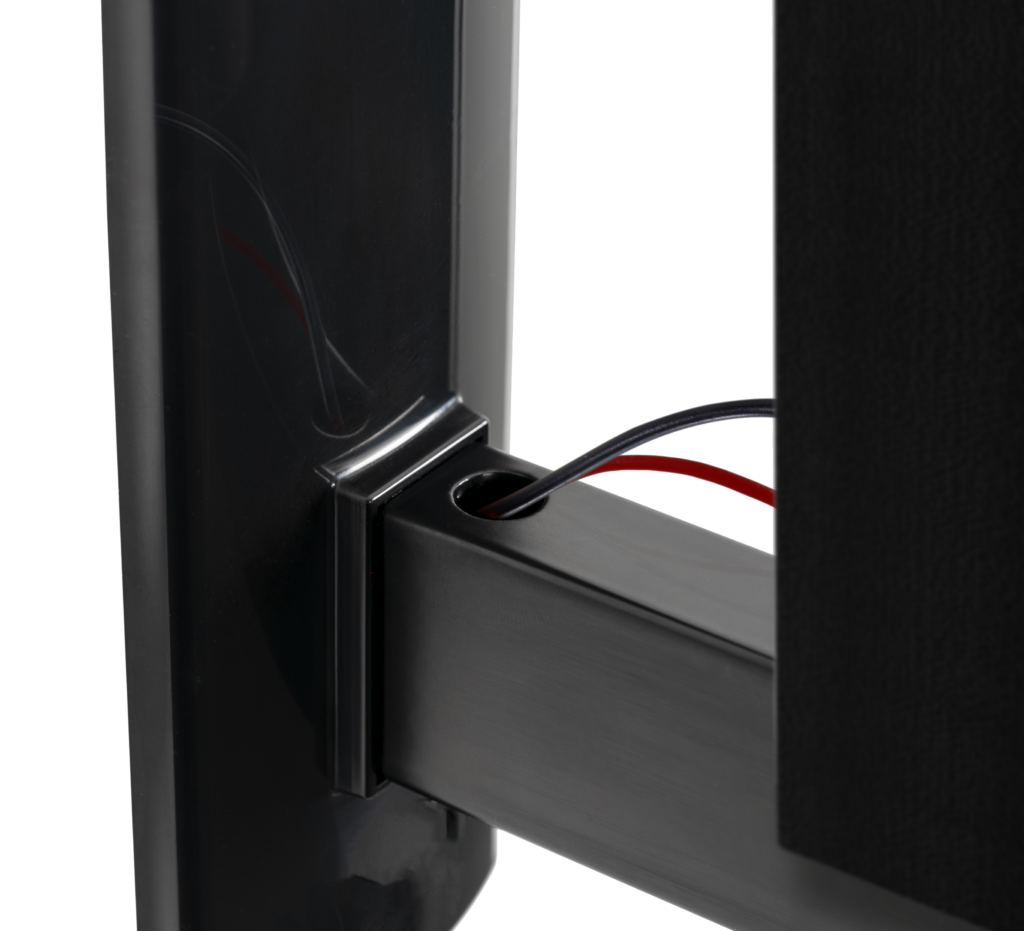

  • Integrated cable management

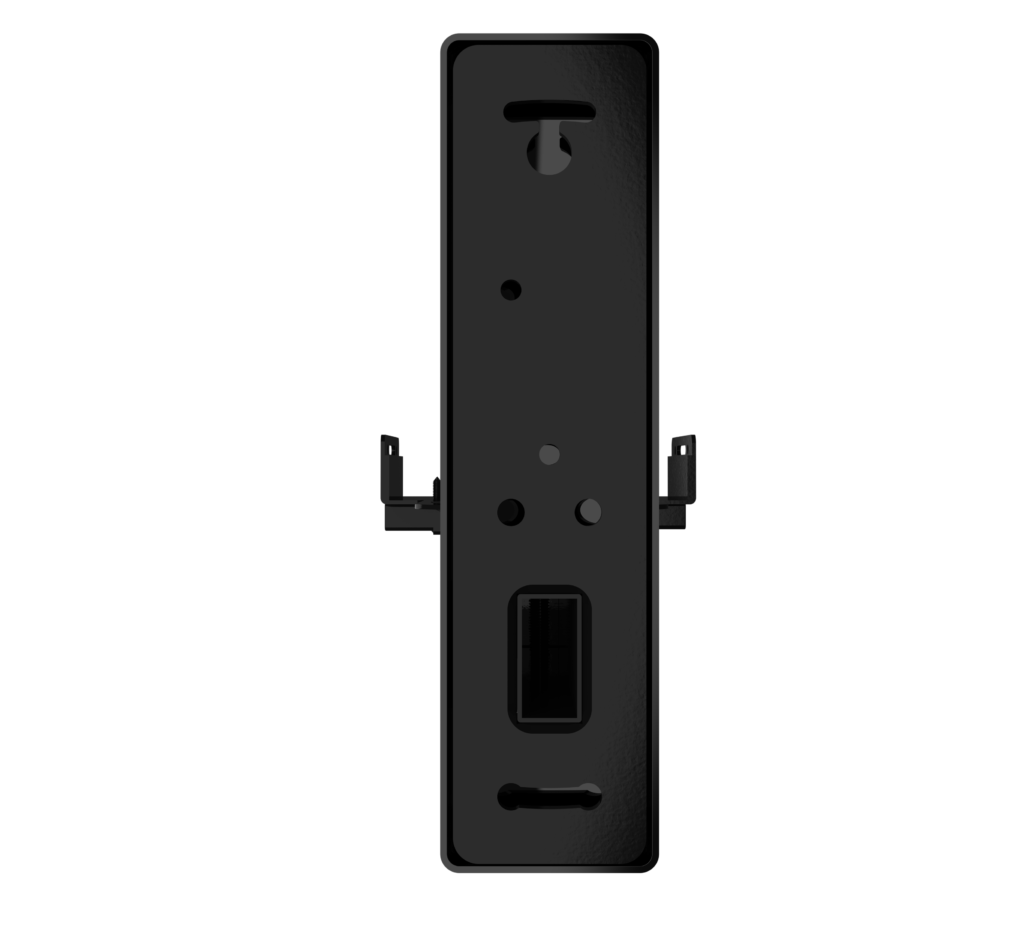

  • Quick and easy installation with keyhole mounting
  • All mounting hardware included

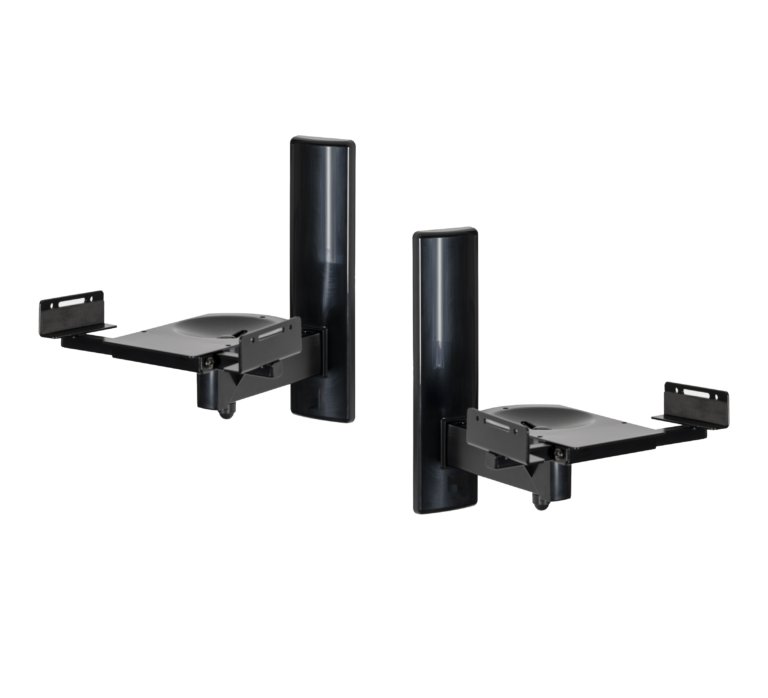

  • Supplied in pairs

Product Specifications

  • Max load: 25kg (55lbs)
  • Max speaker size width: 280mm
  • Max speaker size depth: 350mm
  • Adjustable clamp size min: 135mm
  • Adjustable clamp size max: 280mm
  • Tilt: +/-10°
  • Swivel: 360°
  • Colour: Black
