Overview

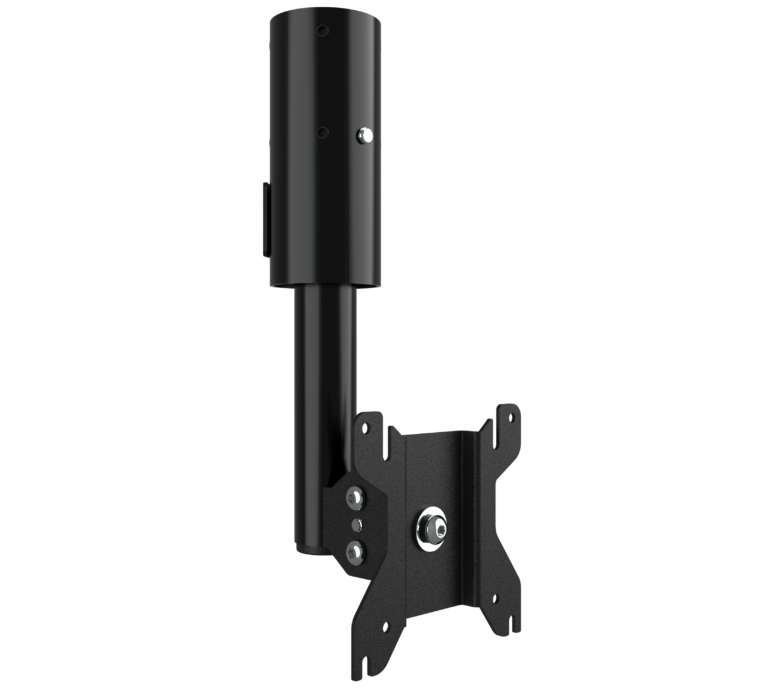

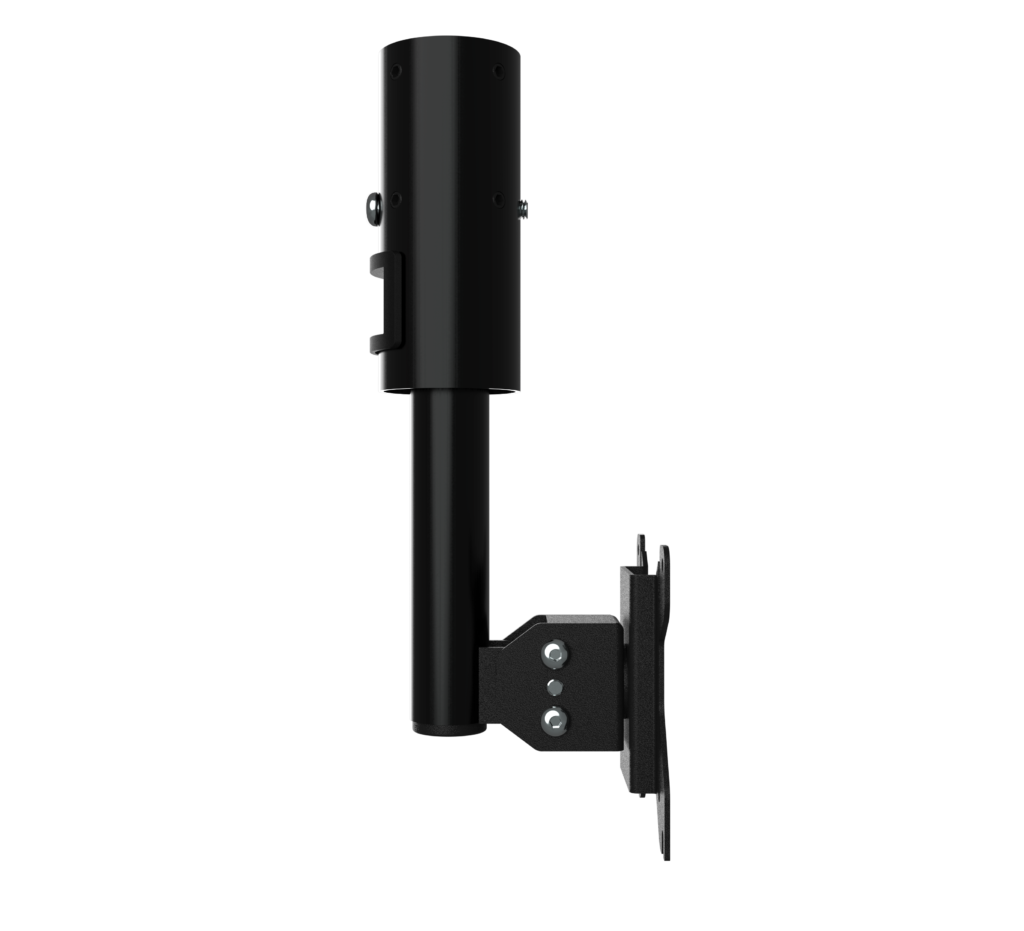

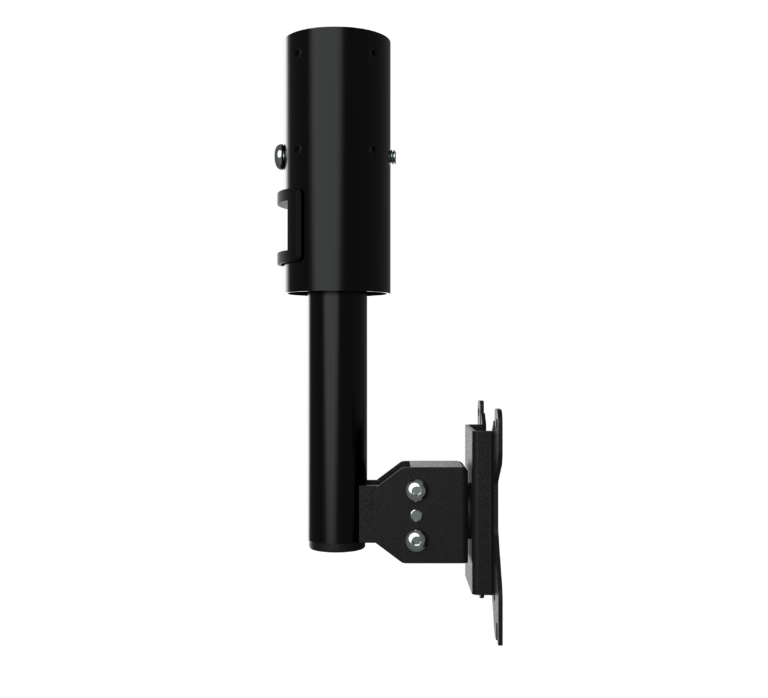

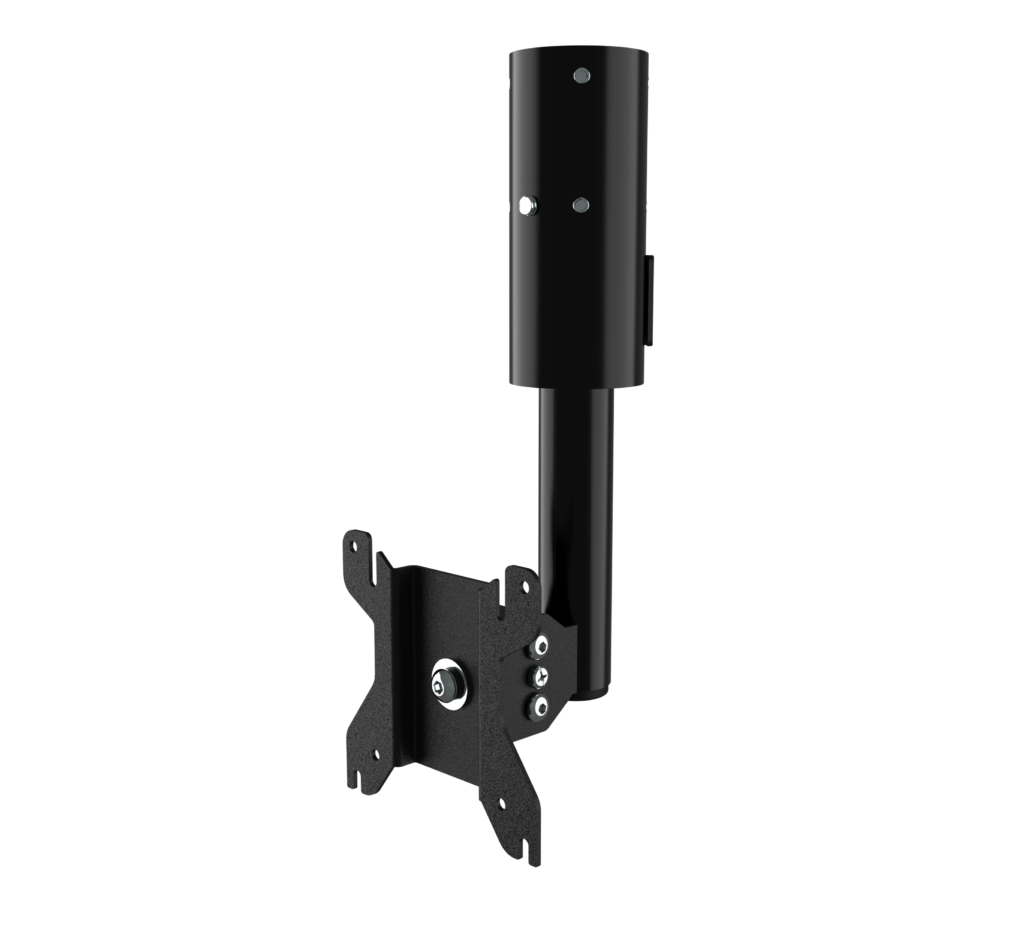

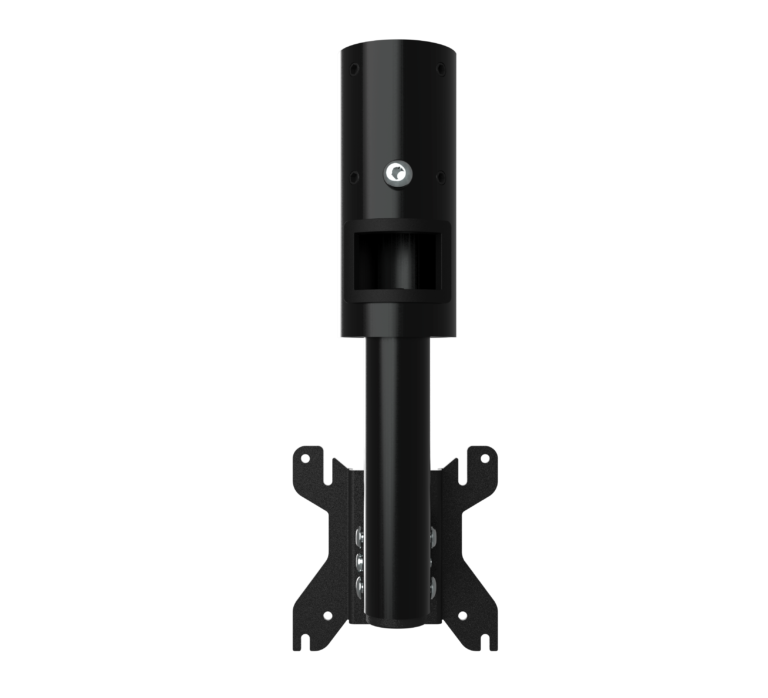

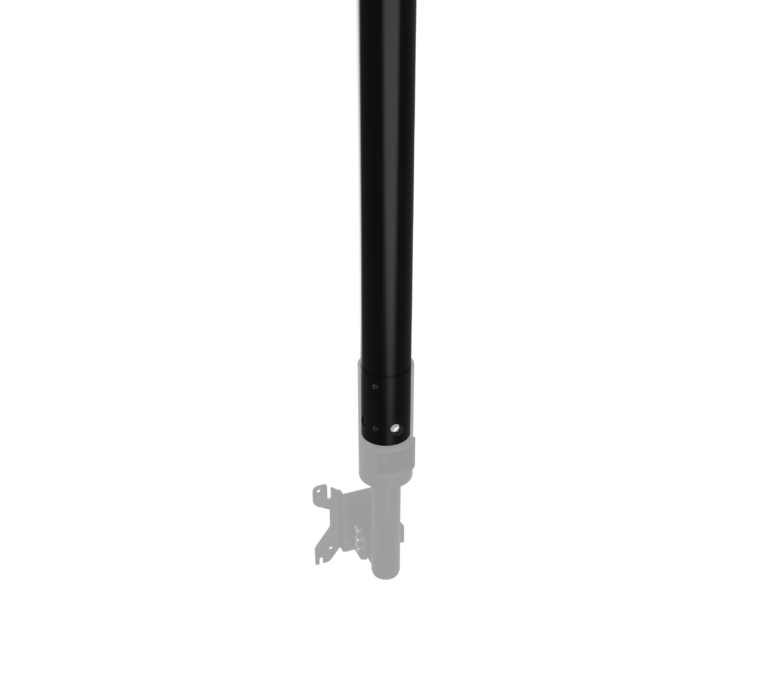

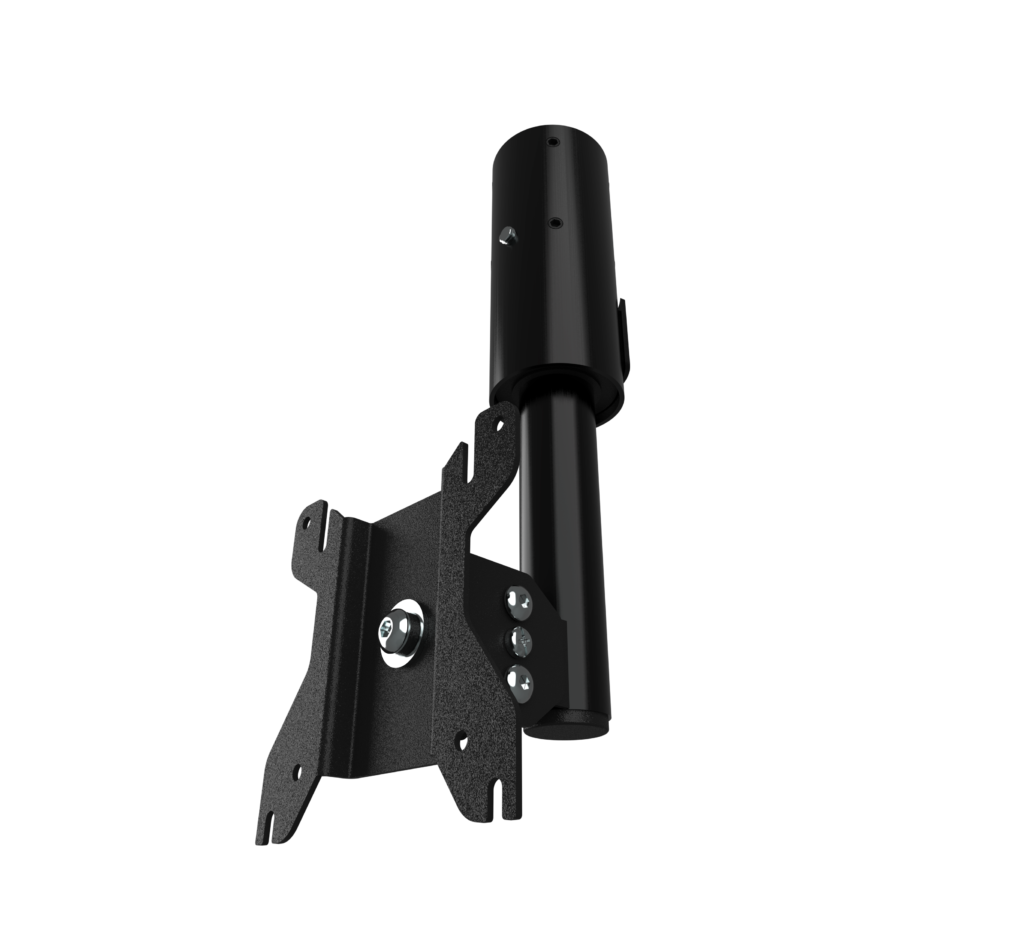

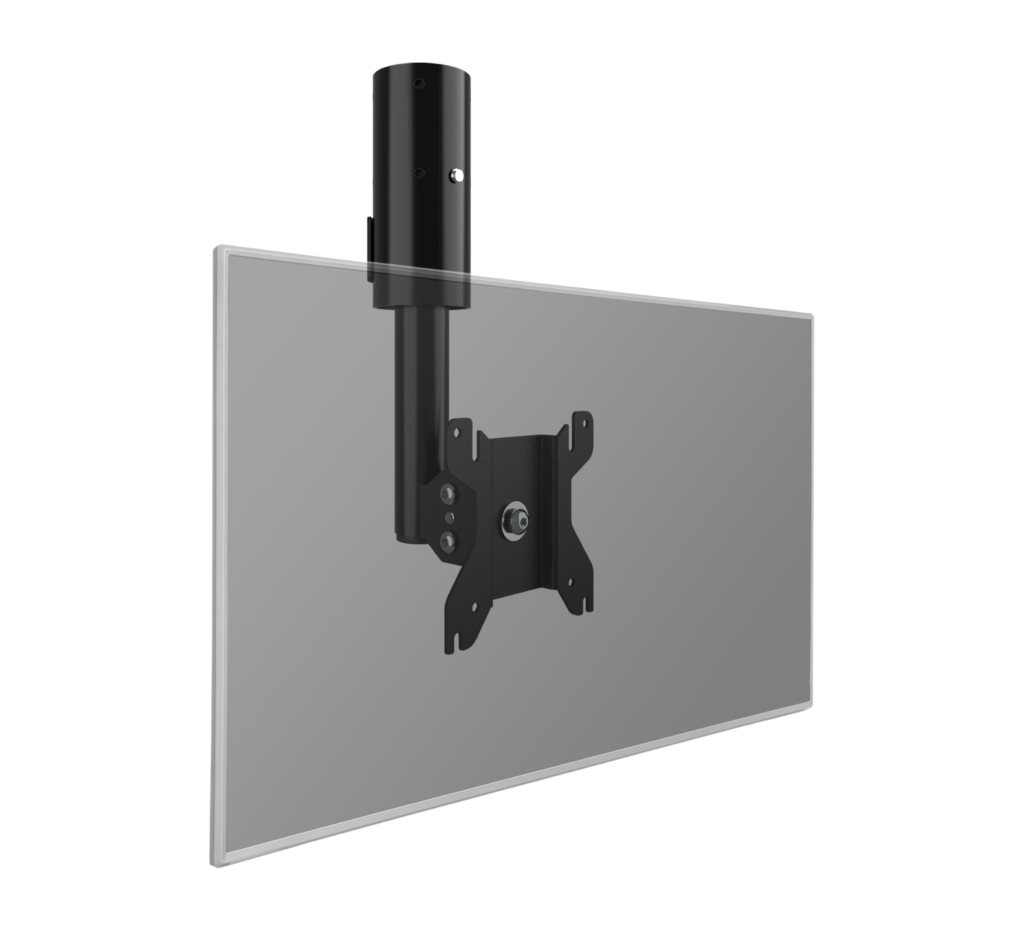

Designed to fit onto B-Tech's System 2 Ø50mm poles, the BT7551 is a flat screen mount which can be used to mount screens up to 23kg from the ceiling, floor, or to a desktop. With easy tool-less adjustment of tilt, swivel and screen rotation, this mount is ideal for landscape or portrait screen mounting and makes it quick and simple to switch between the two. The BT7551 can also be ordered as part of a complete mounting solution, with a choice of Black or Chrome poles and a ceiling / floor mount (please see the BT7553 for more information).
Product Features

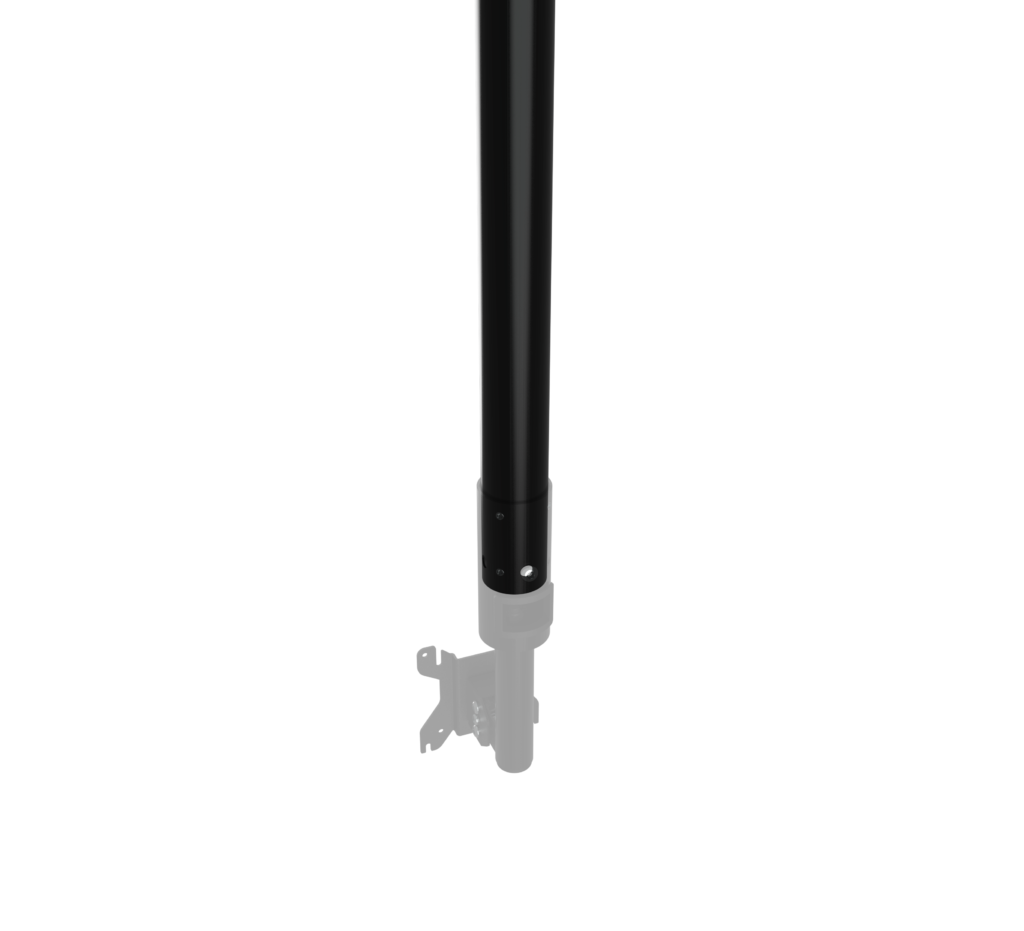

- Mounts flat screens to Ø50mm poles

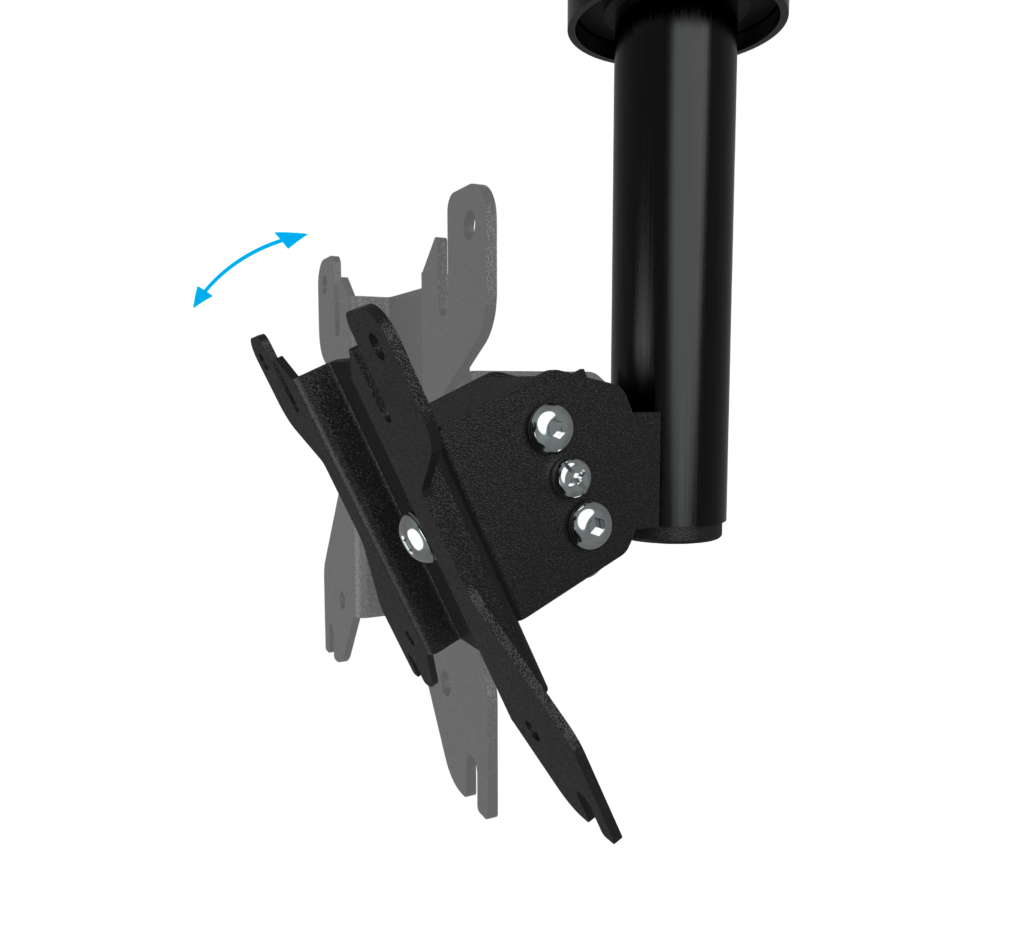

- Easy tool-less tilt, swivel and screen rotation mechanism

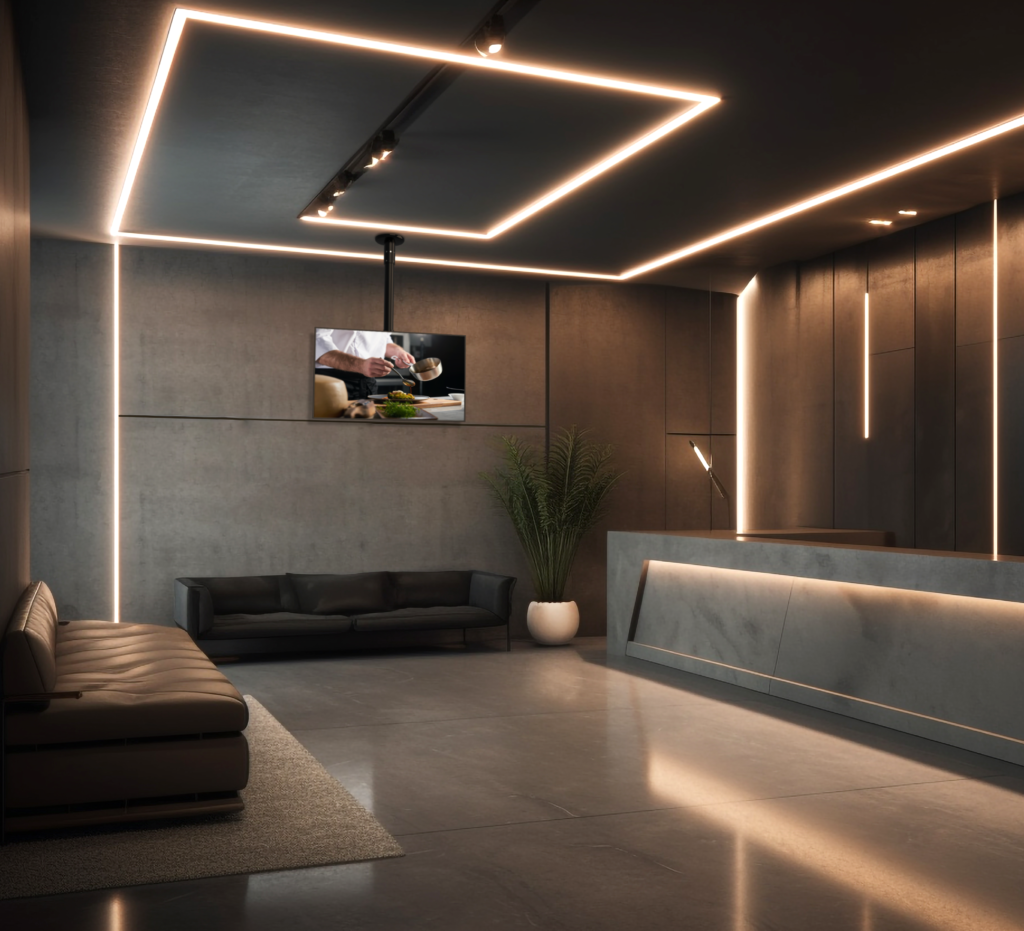

- Mounts screens from the ceiling, floor or to a desktop

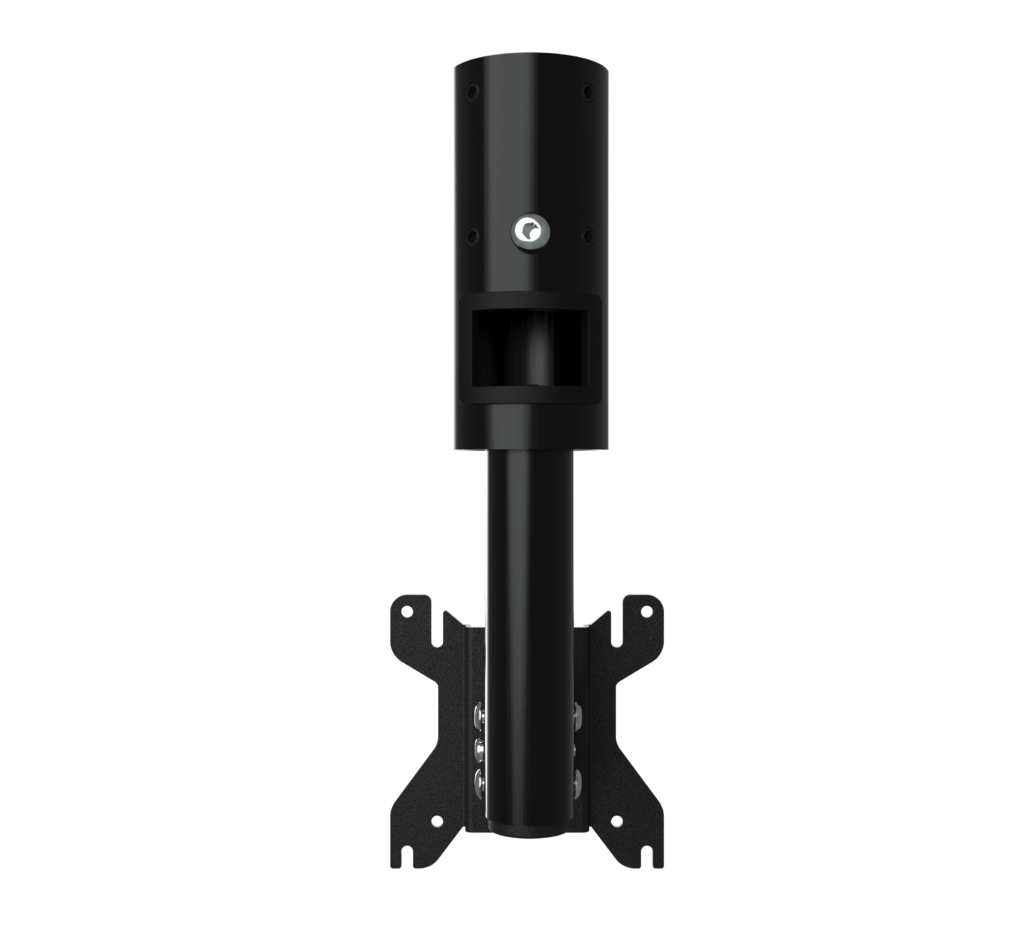

- Integrated cable management through the top or side of the mount
- Included grub screws allow micro-adjustment of pole angle
- Quick and easy ‘hook-on’ screen installation
Product Specifications
- Recommended display size: 10" up to 28"
- Max load: 23kg (50.7lbs)
- VESA® fixings: 75 x 75 & 100mm x 100mm
- Tilt: +90° / -15°
- Swivel: 360°
- Screen rotation: 360°
- Product width: 114mm
- Product depth: 111mm
- Product height: 311mm
- Orientation: Landscape, Portrait
- Colour: Black
