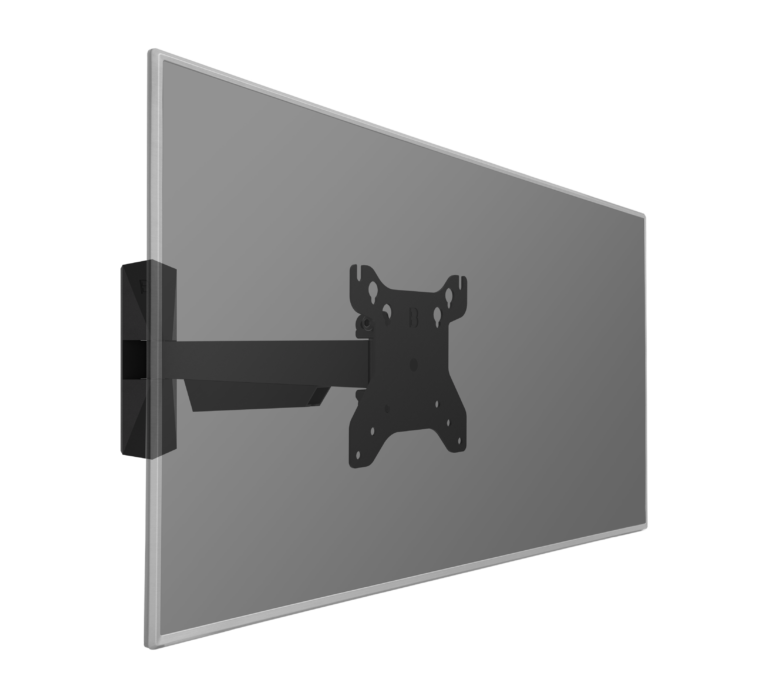

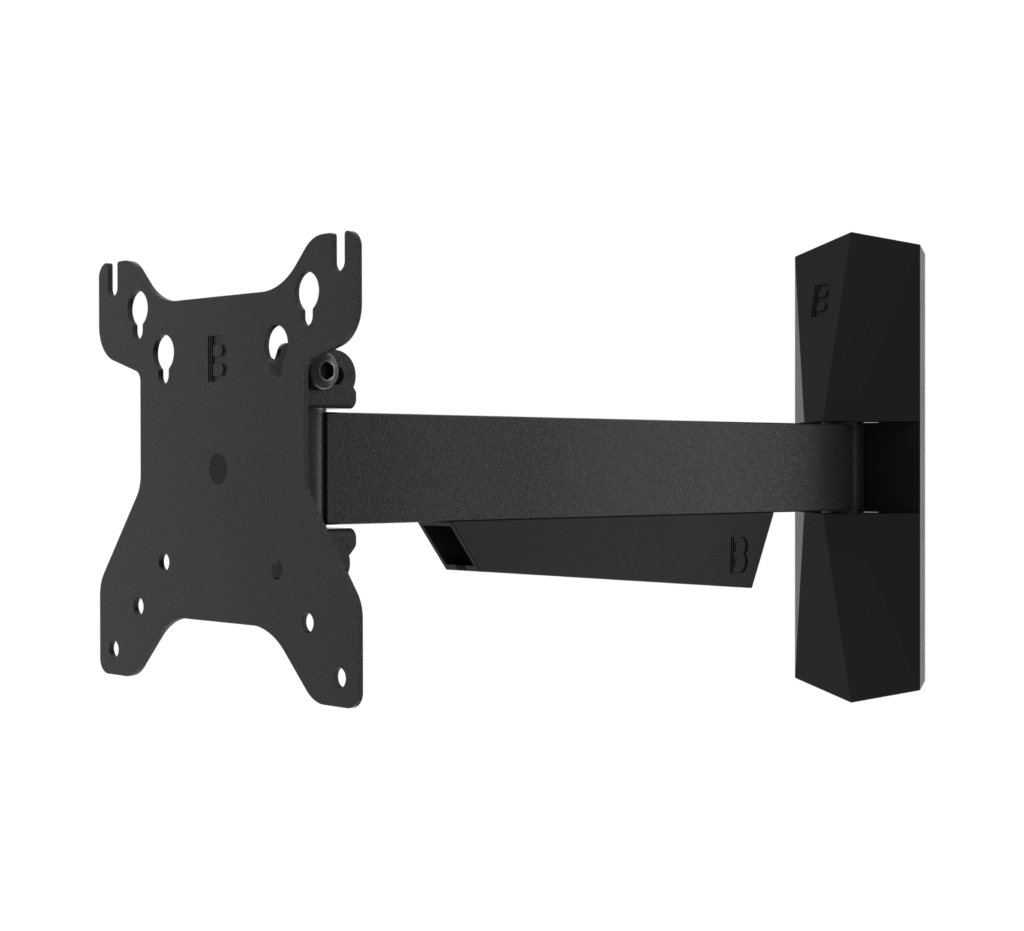

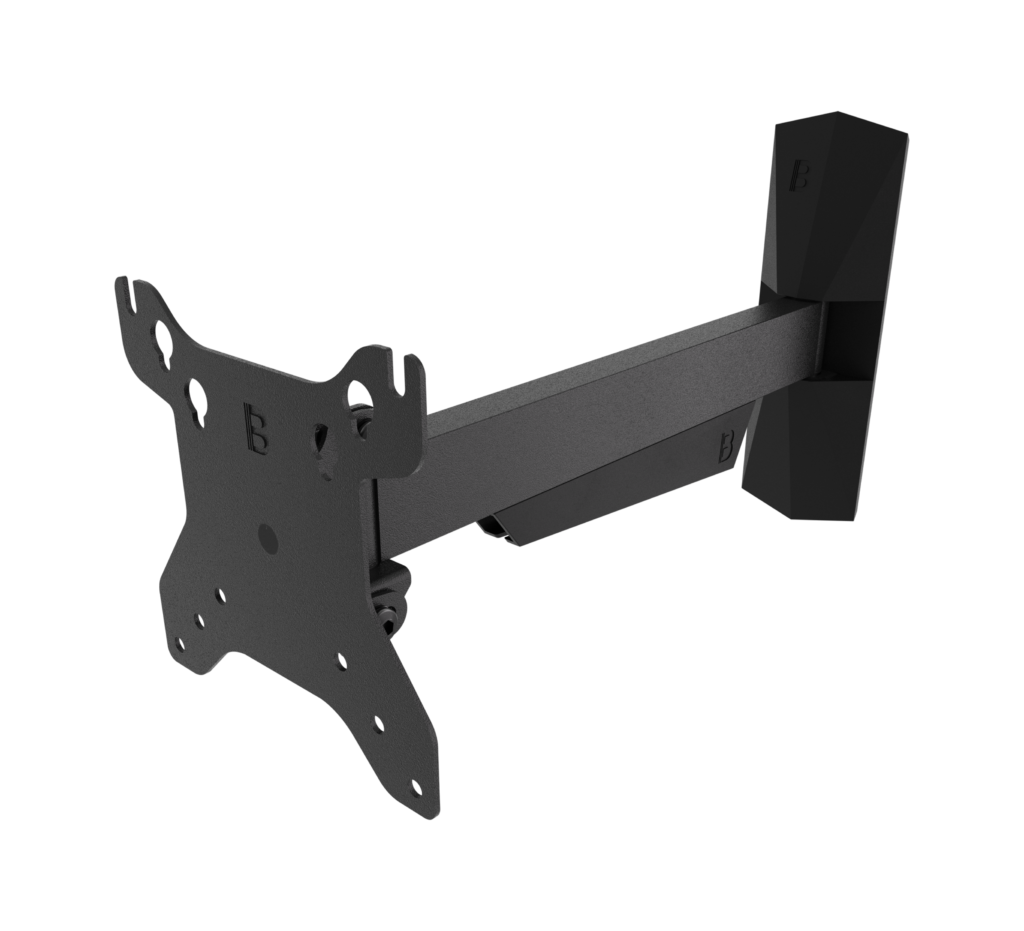

BT7512

Single Arm Flat Screen Wall Mount

With Tilt & Swivel

Product Features

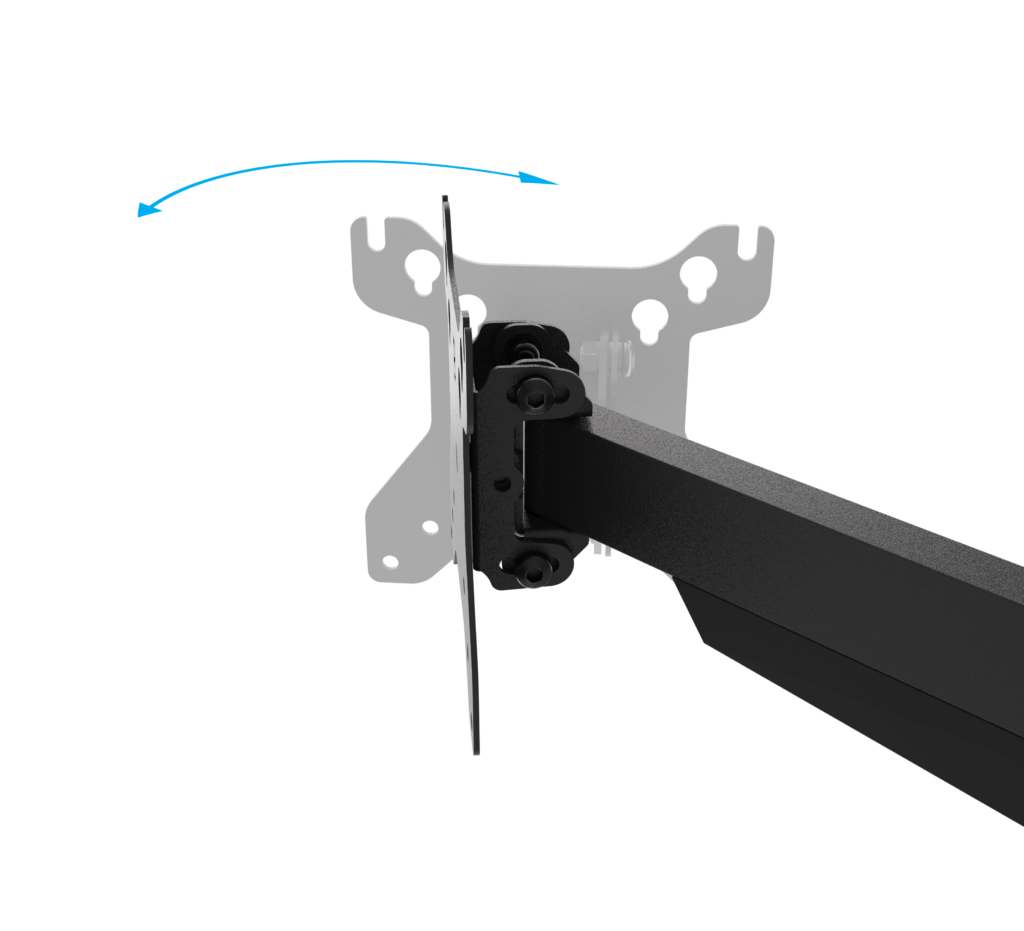

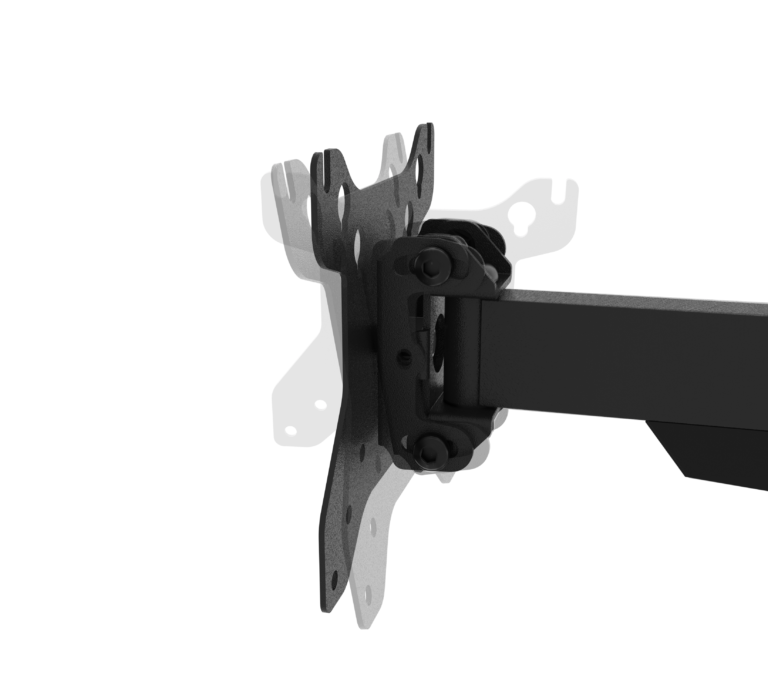

  • Easy tilt and swivel adjustment
  • Screen rotation allows screen to mounted in landscape or portrait orientation
  • Features ‘OWLS’ On Wall Levelling System
  • CLIPLOGIC™ cable management included
  • Compatible with B-Tech System 2 professional range

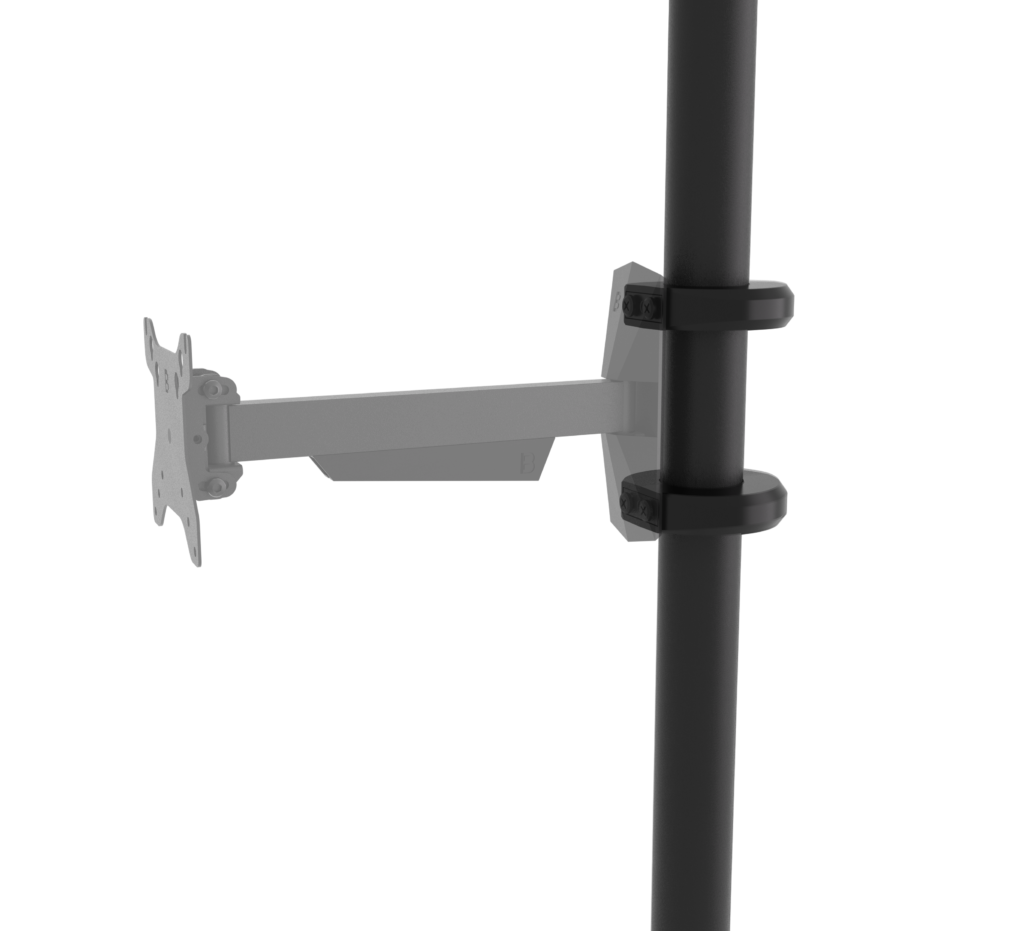

  • Mounts to B-Tech BT7850 poles using x2 BT7841 / BT7052 Collars
  • Security locking screws and Allen key provided help prevent unauthorised removal of the screen

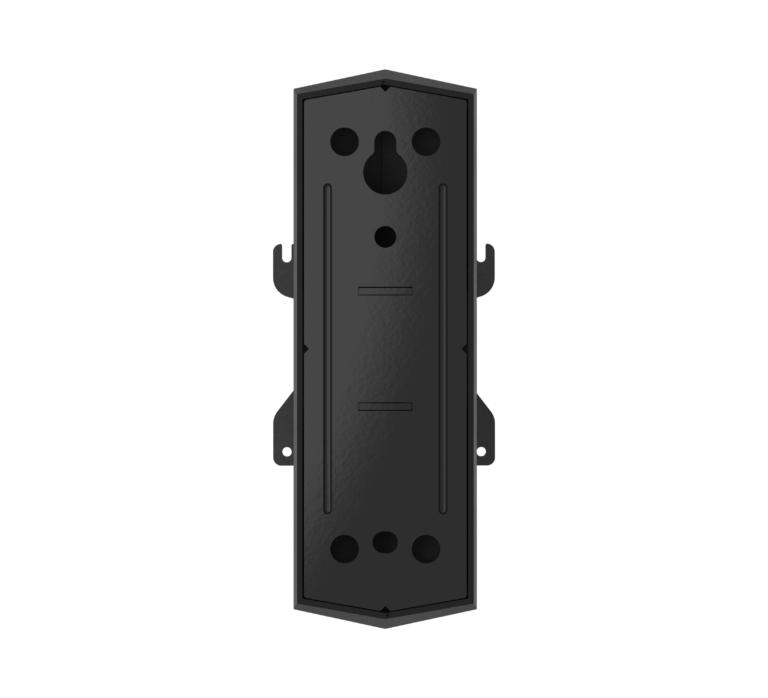

  • Simple ‘hook-on’ installation

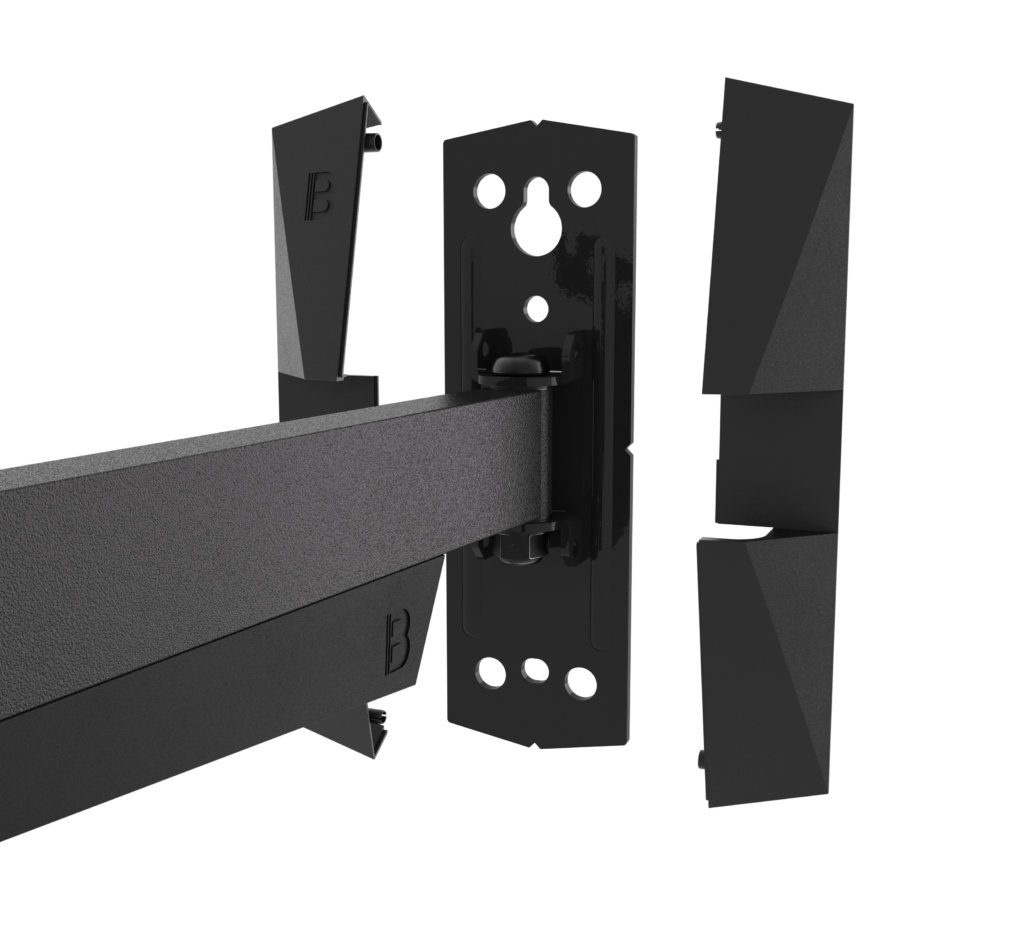

  • Coverplates included for a neat and tidy installation
  • All mounting hardware included

Product Specifications

  • Recommended display size: 10" up to 28"
  • Max load: 15kg (33lbs)

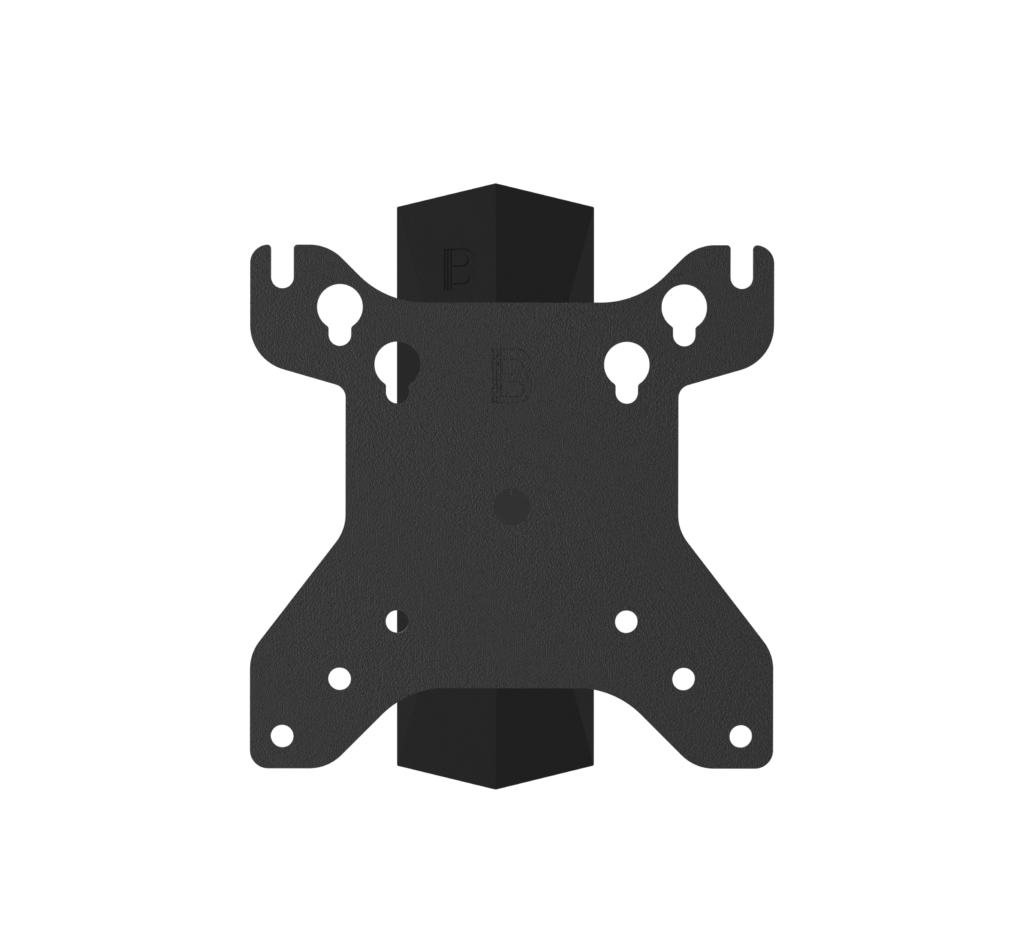

  • VESA fixings: up to 100mm x 100mm
  • Tilt: +17° / -10°

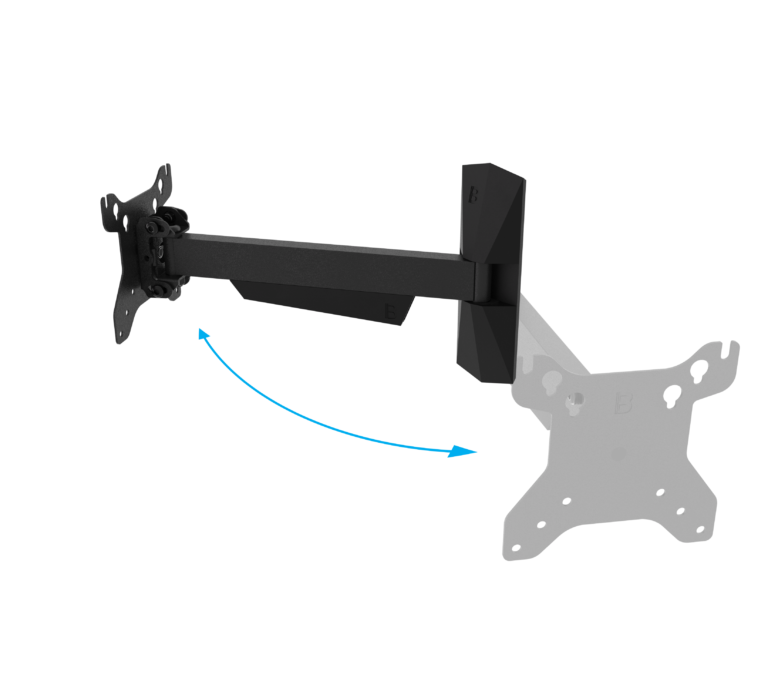

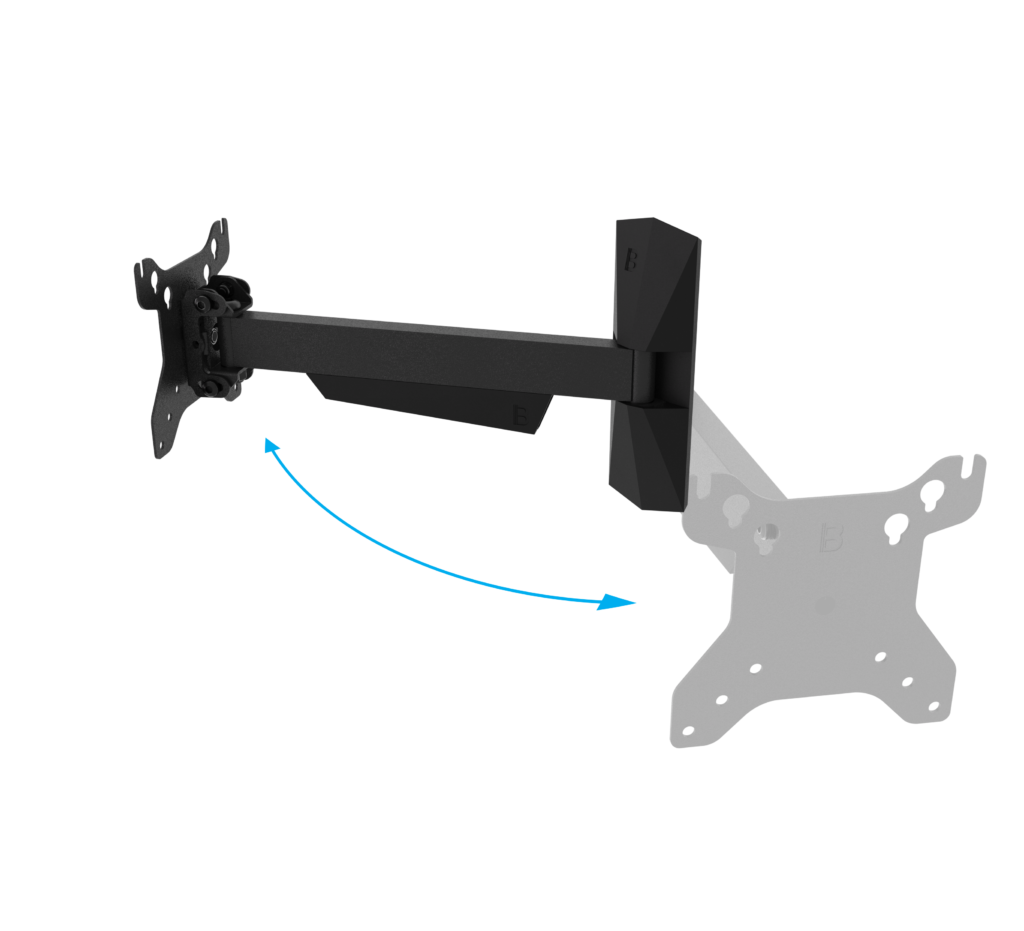

  • Swivel: 180°
  • Rotation: 360°

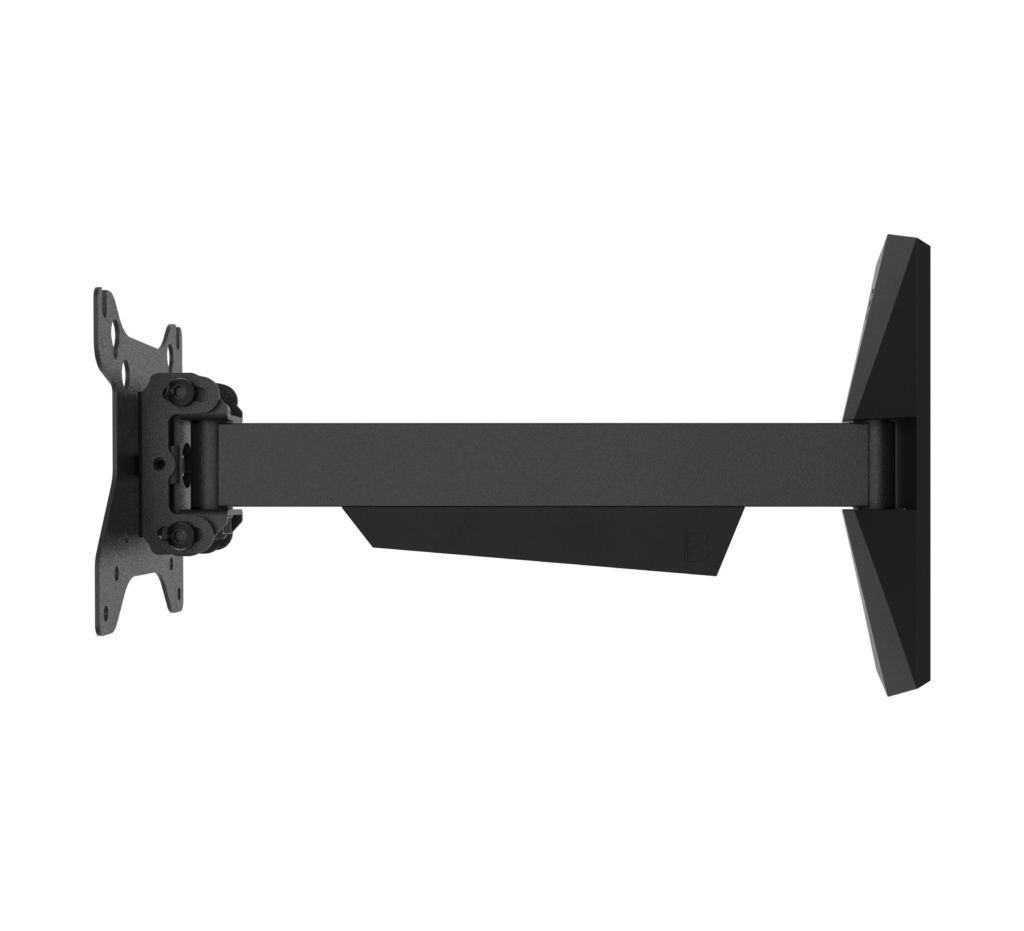

  • Distance from wall - min: 54mm
  • Distance from wall - max: 70mm
  • Orientation: Landscape, Portrait
  • Colour: Black
