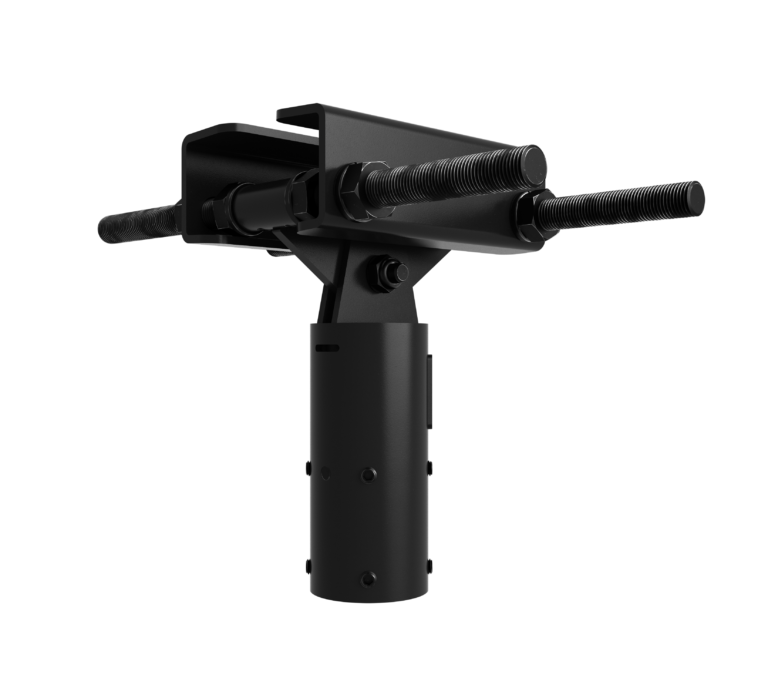

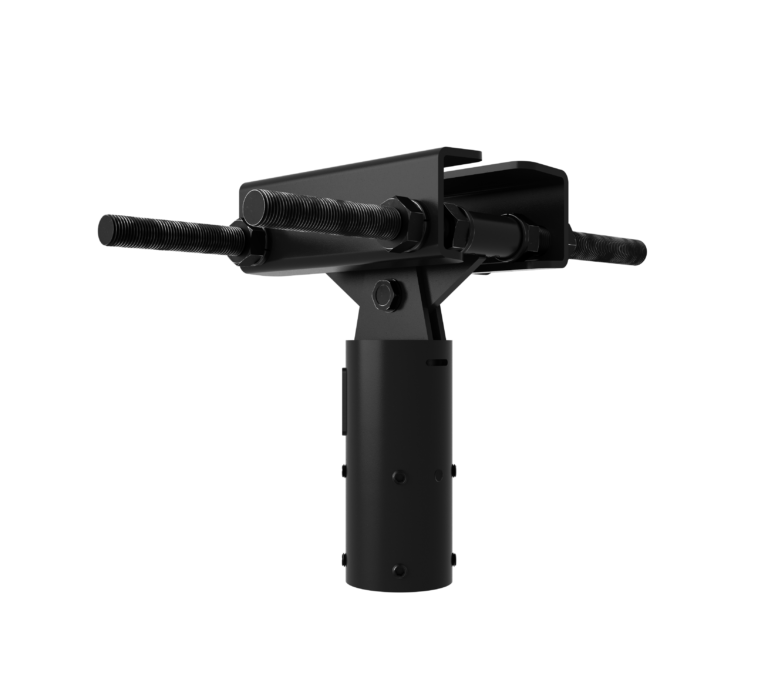

BT7017
I-Beam / Girder Mount
For use with B-Tech Ø50mm Poles
Overview

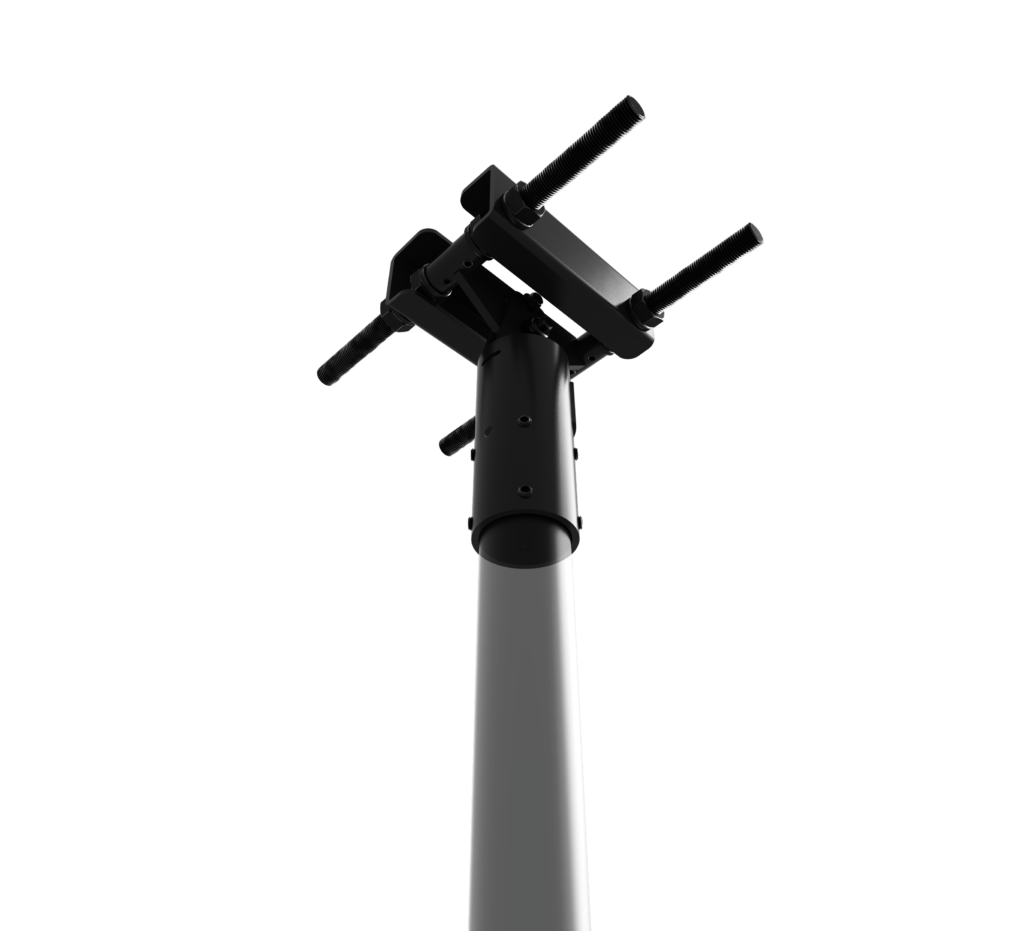

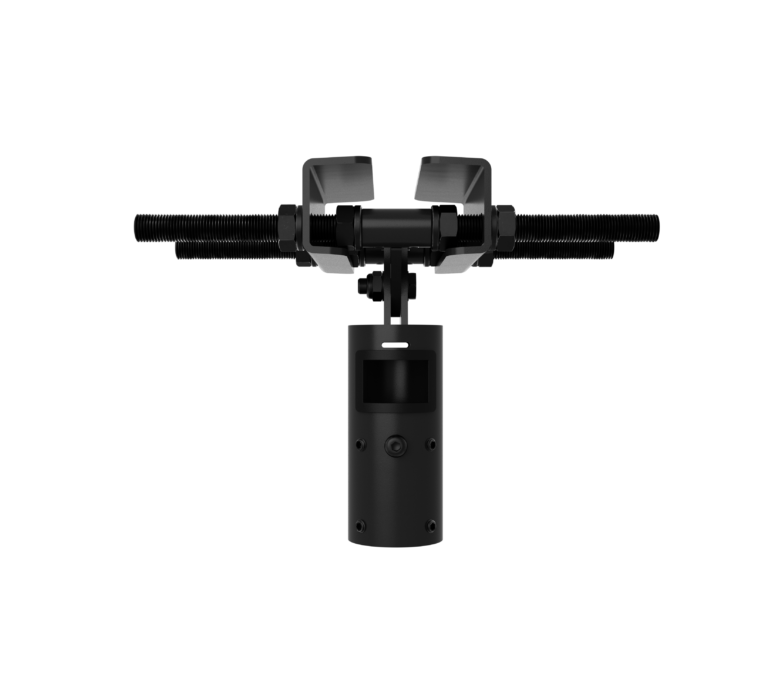

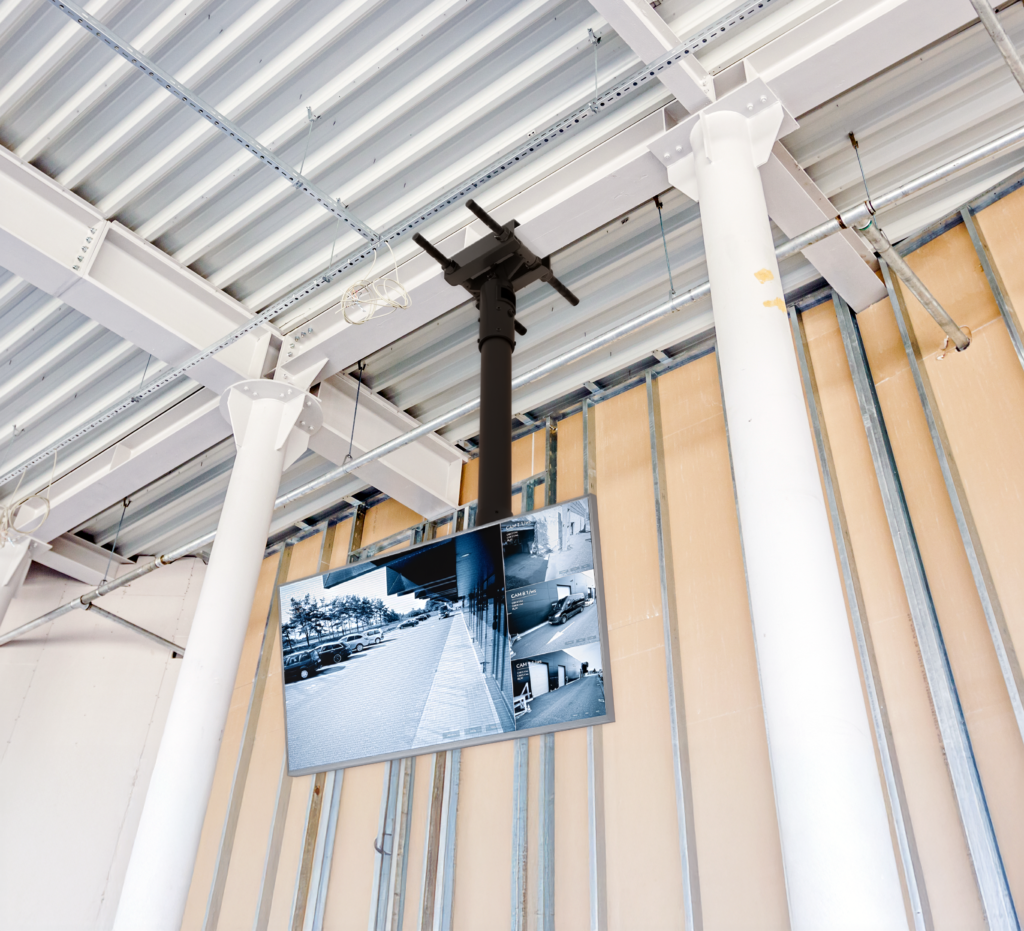

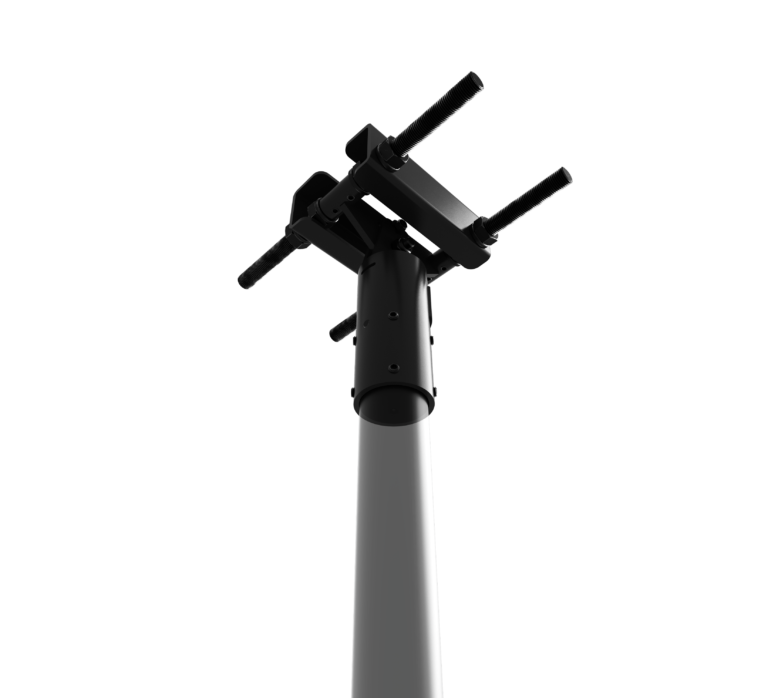

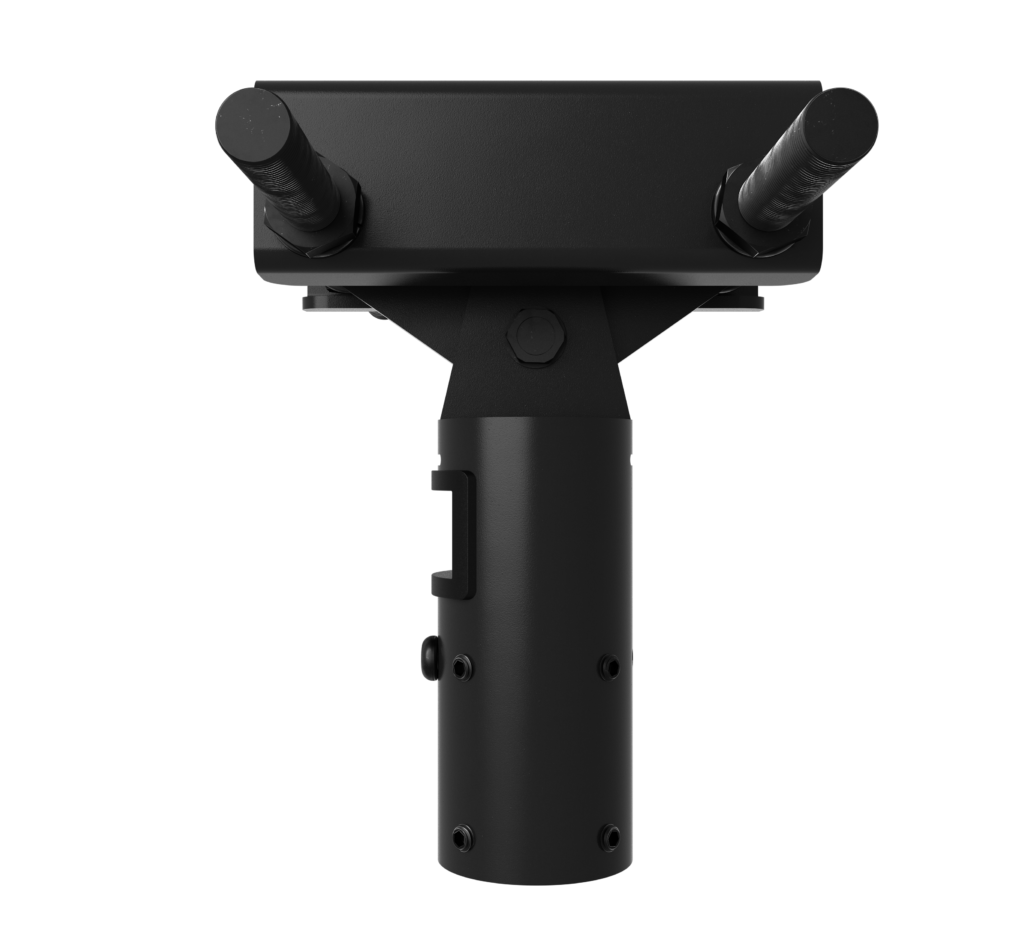

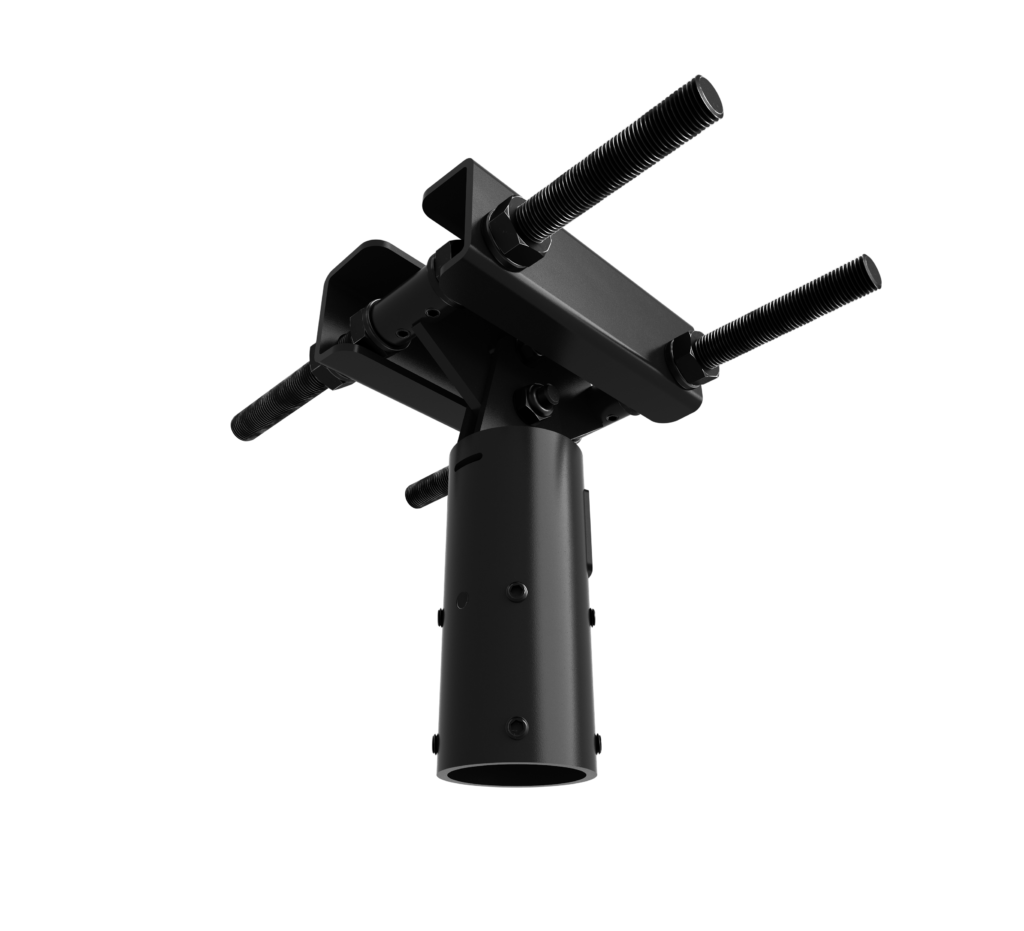

The BT7017 enables the suspension of pole mounted solutions up to 140kg from I-Beam girders. Compatible with B-Tech’s range of BT7850 Ø50mm poles the locking bolt securely sets the pole vertically at any angle up to 36 degrees.
Product Features
- Adjustable I-Beam (girder) mount for use with 50mm poles
- Locking bolt included to securely set the pole vertical at any angle up to 40°
- Fits I-Beams and thick steel from 80mm (3.1") - 250mm (9.8") in width
- Integrated cable management
Product Specifications
- Max load: 140kg (308lbs)

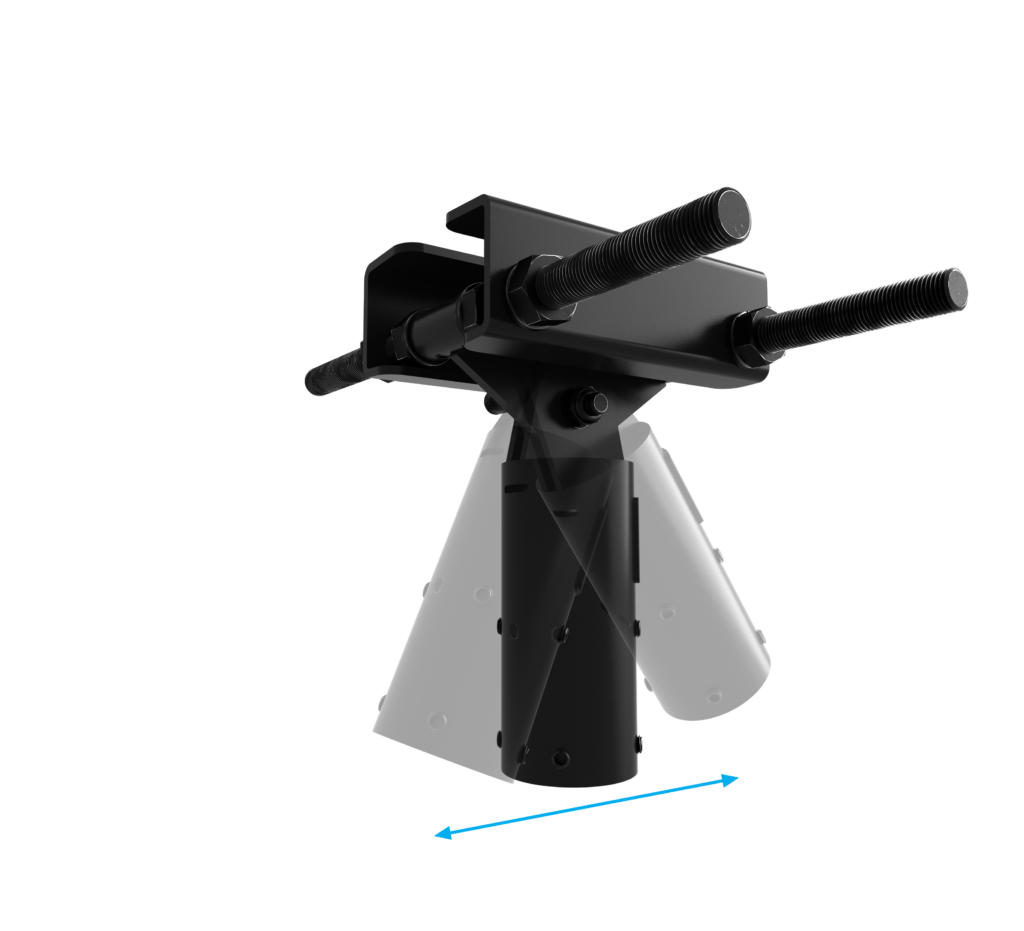

- Tilt: up to +/- 36°

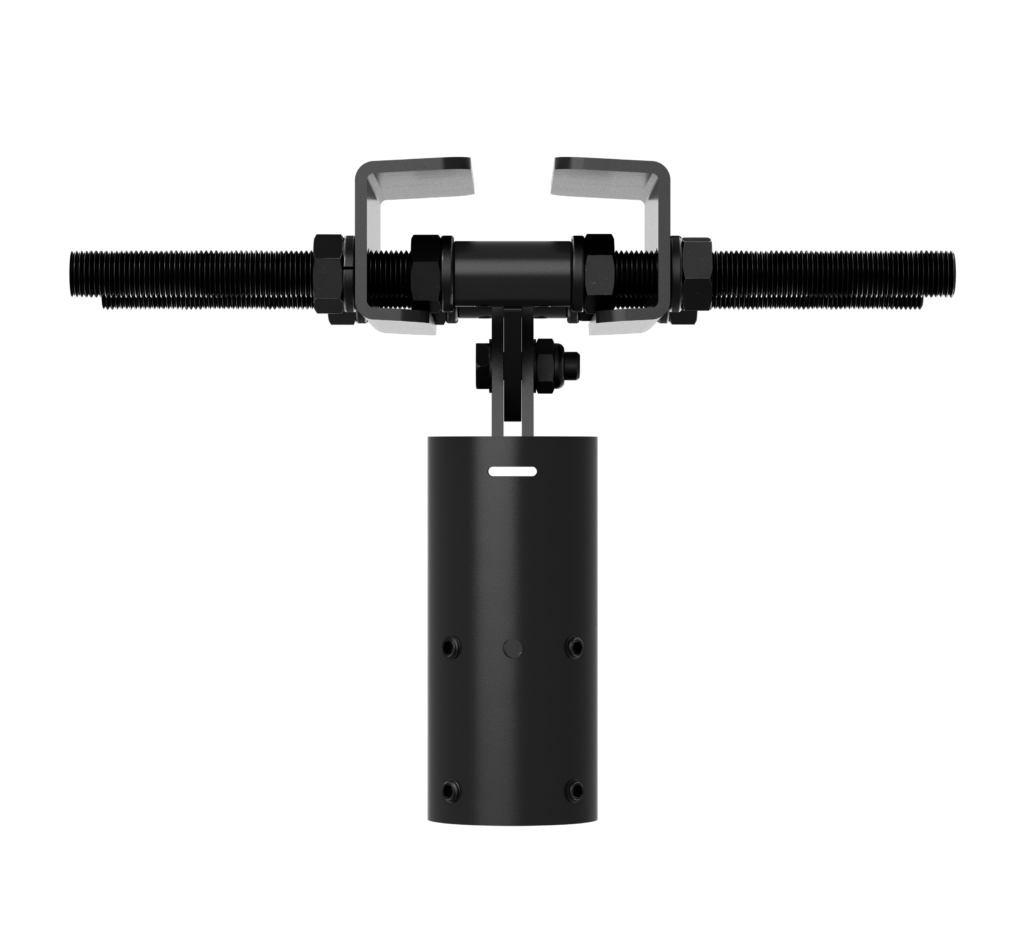

- Adjustable width 80mm (3.1") - 250mm (9.8")
- Colour: Black
